RZY220-TLPDE3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )LY220,230,280,RZY220,230..TS..ATM

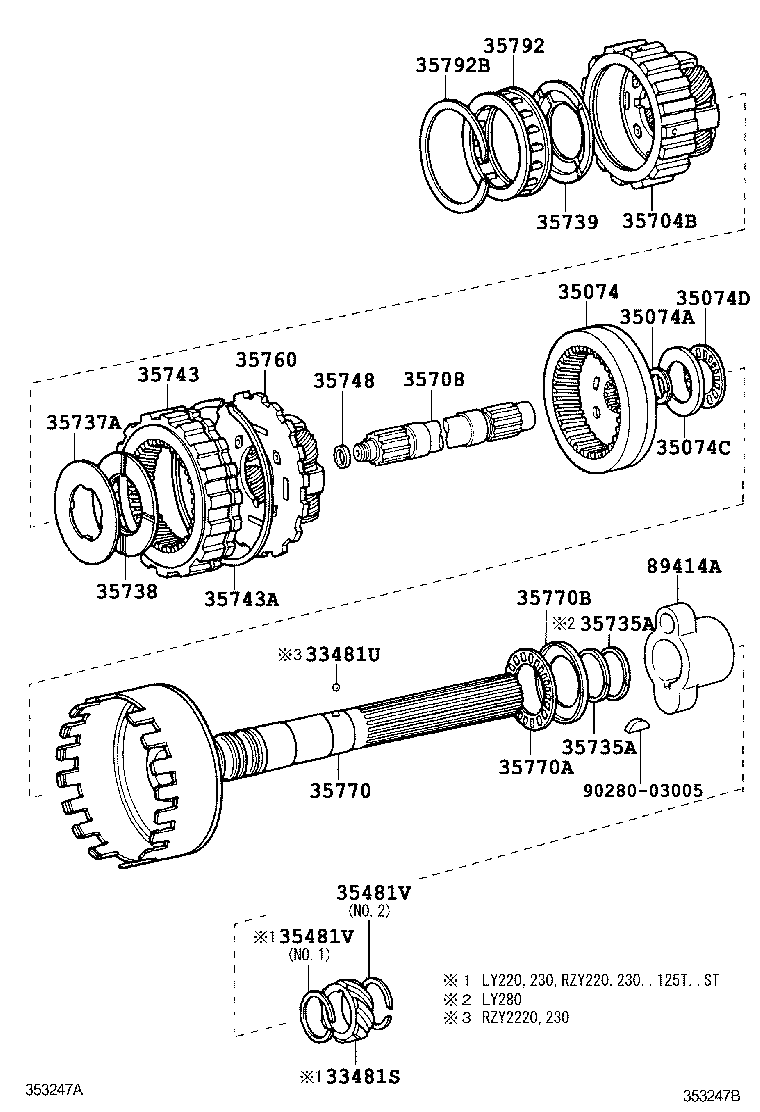

Click highlighted areas on diagram

A44DE,A44DF,A45DE

diagram 33481S 33481U 35074 35074A 35074C 35074D 35481V 35481V 35704B 35708 35735A 35735A 35737A 35738 35739 35743 35743A 35748 35760 35770 35770A 35770B 35792 35792B 89414A 9028003005
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-25021

RZY230,TRY230..ATM..125T..(CBU,IV3);LY220,230,RZY220,TRY220..ATM..125T..ST

歯数=5,ﾏｰｸ 5X17−19

 1
33481U - BALL (FOR SPEEDOMETER DRIVE GEAR)
90360-06004

RZY220,230..ATM

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-30030

RZY220,230..ATM

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

RZY220,230..ATM

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

RZY220,230..ATM

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

RZY220,230..ATM

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

厚さ=1.50,外径=34.8,NO.2

 1
90520-28009

LY220,230,RZY220,230..ATM..125T..ST

厚さ=1.50,外径=33.8,NO.1

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

厚さ=1.50,外径=34.8,NO.2

 1
90520-28009

LY220,230,RZY220,230..ATM..125T..ST

厚さ=1.50,外径=33.8,NO.1

 1
35704B - GEAR SUB-ASSY, FRONT PLANETARY
35704-30040

RZY220,230..ATM

 1
35708 - SHAFT SUB-ASSY, INTERMEDIATE
35708-30041

RZY220,230..ATM

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-22010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-30030

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-30020

RZY220,230..ATM

 1
35743 - GEAR, FRONT PLANETARY RING
35743-30010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

RZY220,230..ATM

 1
35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL
35748-30010

RZY220,230..ATM

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-30040

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35770 - SHAFT ASSY, OUTPUT
35770-53010

RZY220,230..ATM

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

RZY220,230..ATM

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30030

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
89414A - ROTOR, SENSOR
89414-30011

LY220,230,RZY220,230..ATM..125T..ST

 1
Common parts
90280-03005
