RZY220-TLPDE3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )KDY230,LY230,RZY231,TRY230..TB..ATM ;(0605- )KDY230..TS..ATM..WT ; (

Click highlighted areas on diagram

A442E,A443E

diagram 35108R 35181 35182 9010110073 9011910372 9011910796 9011910800 9161261045 9161261045 9161261045 9453101000
Part # Description Qty Price
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-38032

LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-28010

KDY22#,23#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST

 1
Common parts
90101-10073
90119-10372
90119-10796
90119-10800
91612-61045
94531-01000

(0107- )LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

Click highlighted areas on diagram

A44DE,A45DE

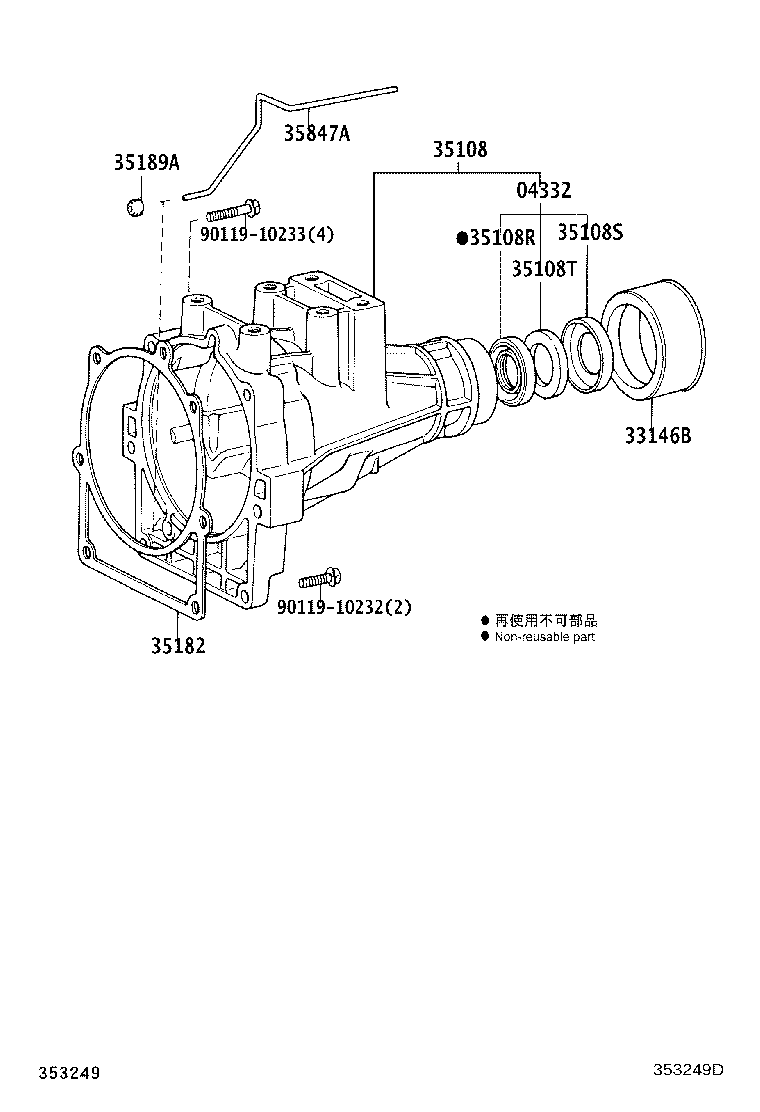

diagram 04332 33146B 35108 35108R 35108S 35108T 35182 35189A 35847A 9011910232 9011910233
Part # Description Qty Price
04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)
04332-30030

RZY220,230..ATM

 1
33146B - DEFLECTOR, EXTENSION HOUSING DUST
33146-30020

KDY22#,23#,LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-26020

LY220,230,RZY220,230..ATM..125T..ST

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-38032

LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

 1
35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM)
33145-30010

RZY220,230..ATM

 1
35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN
90303-38010

RZY220,230..ATM

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-28010

KDY22#,23#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST

 1
35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE
35189-30010

KDY22#,23#,LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

 1
35847A - TUBE, EXTENSION HOUSING BUSH APPLY
35847-30020

KDY22#,23#,LY220,230,RZY220,230..ATM..125T..ST

 1
Common parts
90119-10232
90119-10233
