RZY220-TLPDE3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )1RZE,3RZFPE

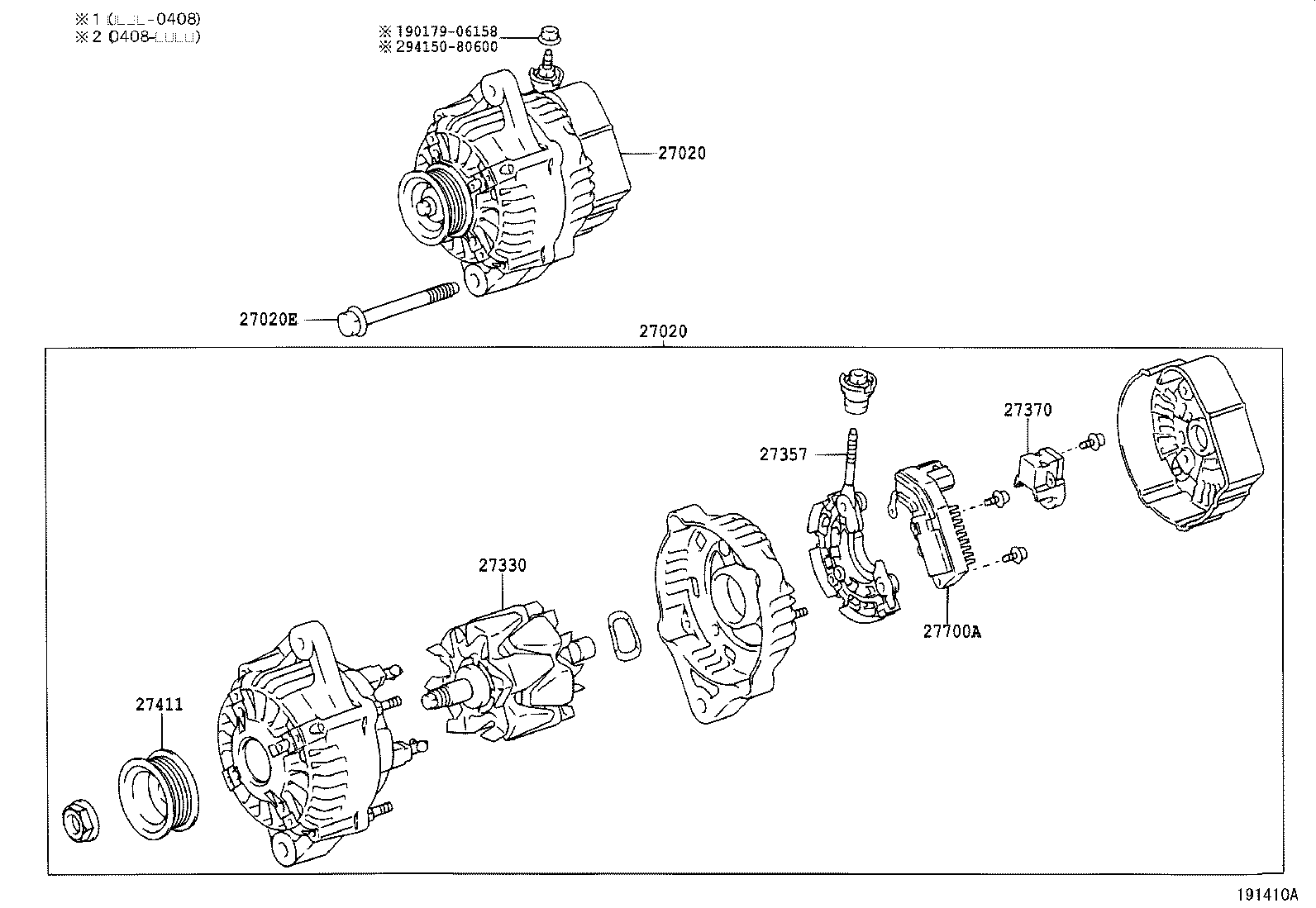

Click highlighted areas on diagram

12V 70,90A

diagram 27020 27020 27020E 27330 27357 27370 27411 27700A 9017906158 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-75150

1RZE..RZY220,230..CBU,IV3;3RZFPE..LY230,280,RZY231,281..MTM

12V 70A

 1
27020 - ALTERNATOR ASSY
27060-75150

1RZE..RZY220,230..CBU,IV3;3RZFPE..LY230,280,RZY231,281..MTM

12V 70A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10221

1RZE,3RZFPE..LY230,280,RZY220,23#,281

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-67100

3RZFPE..LY230,280..MTM;1RZE..RZY220,230..CBU,IV3

12V 70A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-67100

3RZFPE..LY230,280..MTM;1RZE..RZY220,230..CBU,IV3

12V 70A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

3RZFPE..LY230,280..MTM;1RZE..RZY220,230..CBU,IV3

12V 70A

 1
27411 - PULLEY, ALTERNATOR
27411-16150

3RZFPE..LY230,280..MTM;1RZE..RZY220,230..CBU,IV3

12V 70A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-75020

3RZFPE..LY230,280..MTM;1RZE..RZY220,230..CBU,IV3

12V 70A

 1
Common parts
90179-06158
94150-80600
