RZY220-TLPDE3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0308)1RZE

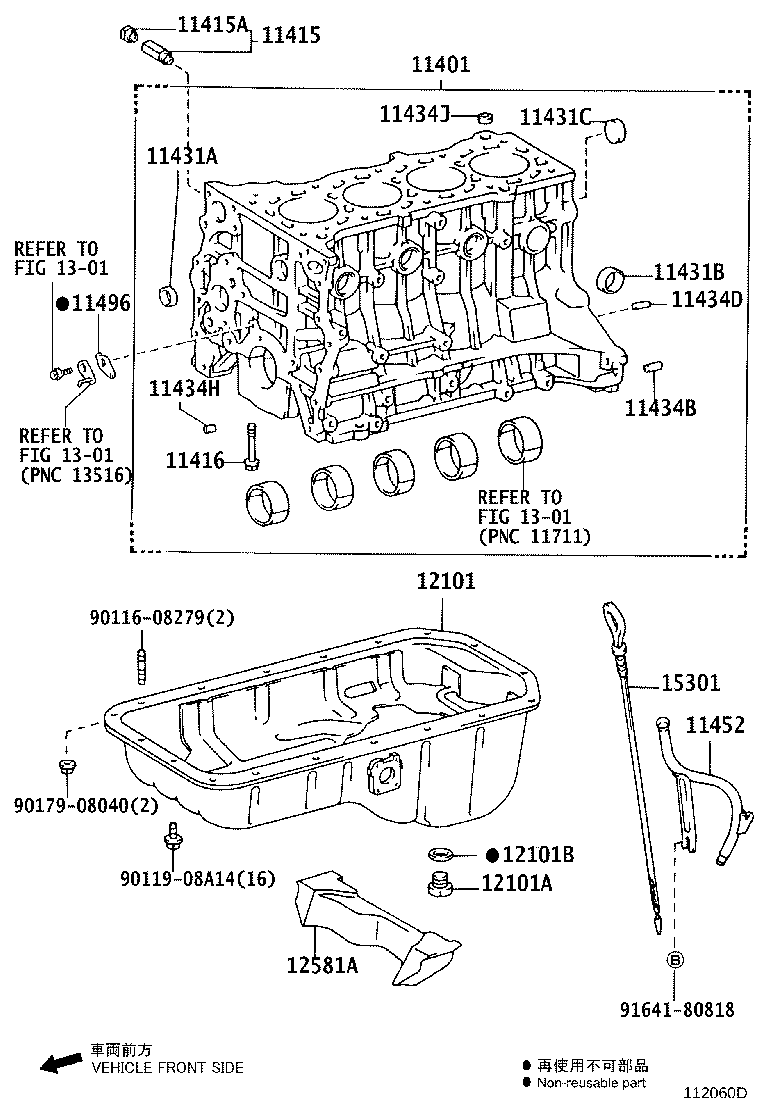

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431B 11431C 11434B 11434D 11434H 11434J 11452 11496 12101 12101A 12101B 12581A 1301 1301 1301 15301 9011608279 9011908A14 9017908040 9164180818
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79537

1RZE..RZY220,230..CBU,IV3

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

1RZE..RZY220,230

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1RZE,3RZFPE..RZY220,23#,281

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1RZE,3RZFPE..RZY220,23#,281

長さ=22,外径=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1RZE,3RZFPE..RZY220,23#,281

長さ=14,外径=6

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-11005

1RZE..RZY220,230

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

1RZE,3RZFPE..RZY220,23#,281

 2
11452 - GUIDE, OIL LEVEL GAGE
11409-75020

1RZE,3RZFPE..RZY220,23#,281

 1
11496 - GASKET, OIL HOLE COVER PLATE
11496-75011

1RZE..RZY220,230

 1
12101 - PAN SUB-ASSY, OIL
12101-75060

1RZE,3RZFPE..RZY220,23#,281

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1RZE,3RZFPE..RZY220,23#,281

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1RZE,3RZFPE..RZY220,23#,281

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-75020

1RZE,3RZFPE..RZY220,23#,281

 1
Common parts
90116-08279
90119-08A14
90179-08040
91641-80818
Linked diagrams
1301
