RZY220-TLPDE (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )1RZE

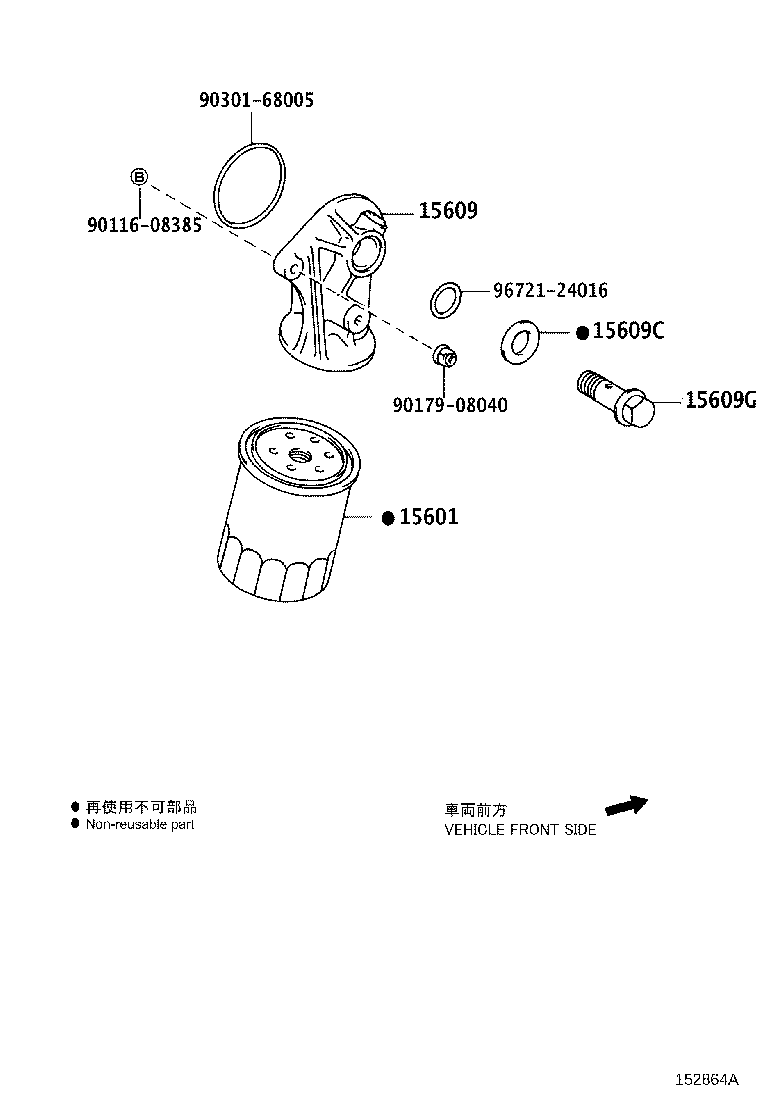

Click highlighted areas on diagram

diagram 15601 15609 15609C 15609G 9011608385 9017908040 9030168005 9672124016
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-20003

1RZE,3RZFPE..RZY220,23#,281

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-75010

1RZE..RZY220,230

 1
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90430-28004

1RZE..RZY220,230

 1
15609G - BOLT, UNION(FOR OIL FILTER BRACKET)
90401-19005

1RZE..RZY220,230

 1
Common parts
90116-08385
90179-08040
90301-68005
96721-24016
