RZY220-TLMEE3 (2001)
Toyota Dyna/Toyoace
(0107-0907)1RZE,1TRFE
12V 1.0KW

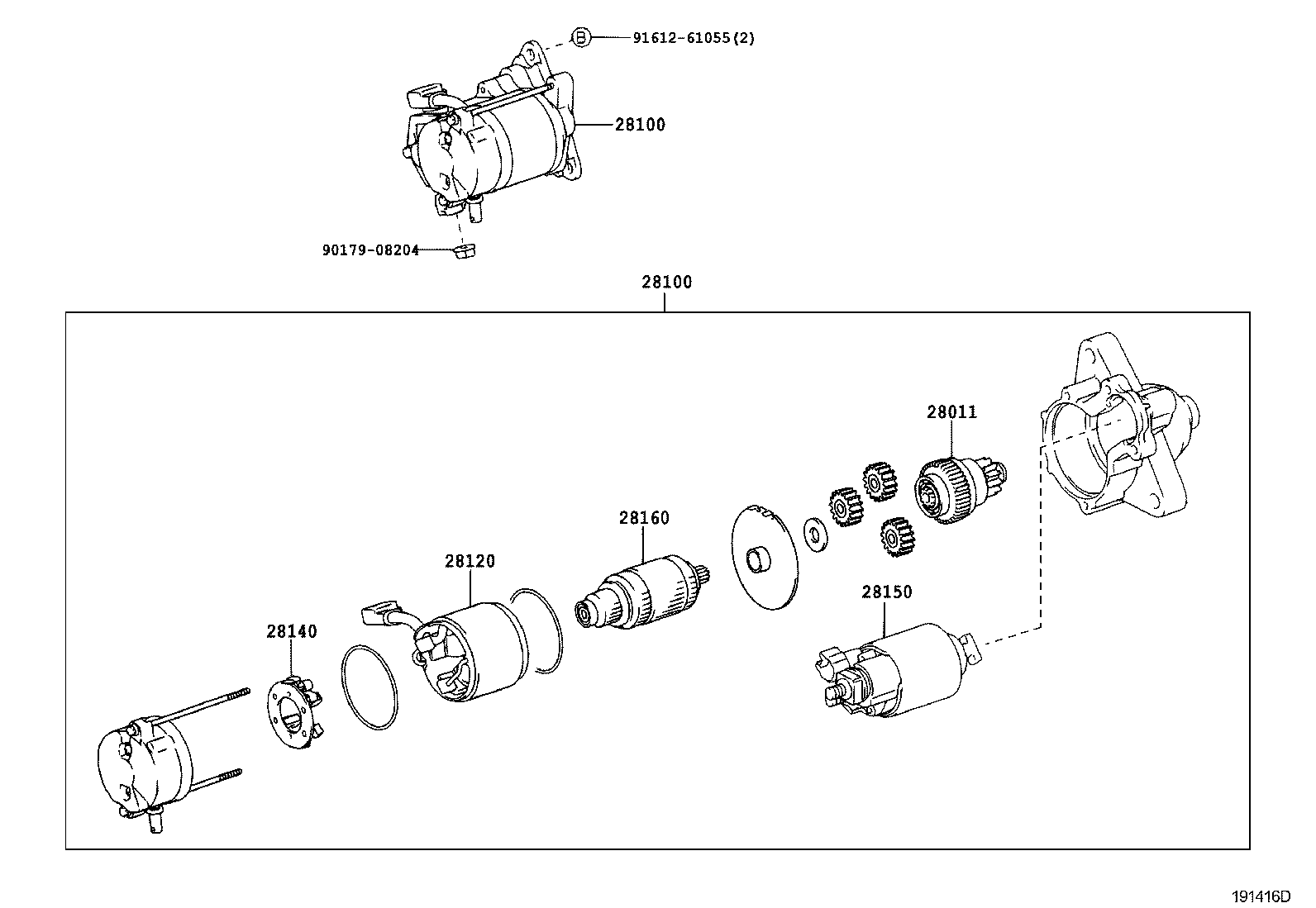

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-70020 |
1RZE,1TRFE..RZY220,230,TRY220,230 12V 1.0KW |
1 | ||
| 28011-76070 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,231,281 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75150 |
1RZE..RZY220,230 12V 1.0KW |
1 | ||
| 28100-75100 |
1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,23#,281 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75150 |
1RZE..RZY220,230 12V 1.0KW |
1 | ||
| 28100-75100 |
1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,23#,281 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70050 |
1RZE..RZY220,230 |
1 | ||
| 28120-66040 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,231,281 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76070 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,231,281 12V 1.4KW |
1 | ||
| 28140-70020 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1RZE,1TRFE..RZY220,230,TRY220;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-75102 |
1RZE,3RZFPE..LY230,280,RZY220,230 12V 1.4KW |
1 | ||
| 28150-75150 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1RZE,1TRFE..RZY220,230,TRY220;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-70050 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1RZE,1TRFE..RZY220,230,TRY220;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 1.0KW |
1 | ||
| 28160-74070 |
1RZE,3RZFPE..LY230,280,RZY220,230 12V 1.4KW |
1 | ||
| 28160-75060 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,231,281 12V 1.4KW |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91612-61055 | ||||
(0107- )5L,1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,23#,281
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-70020 |
1RZE,1TRFE..RZY220,230,TRY220,230 12V 1.0KW |
1 | ||
| 28011-76070 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,231,281 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75150 |
1RZE..RZY220,230 12V 1.0KW |
1 | ||
| 28100-75100 |
1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,23#,281 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75150 |
1RZE..RZY220,230 12V 1.0KW |
1 | ||
| 28100-75100 |
1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,23#,281 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70050 |
1RZE..RZY220,230 |
1 | ||
| 28120-66040 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,231,281 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76070 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,231,281 12V 1.4KW |
1 | ||
| 28140-70020 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1RZE,1TRFE..RZY220,230,TRY220;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-75102 |
1RZE,3RZFPE..LY230,280,RZY220,230 12V 1.4KW |
1 | ||
| 28150-75150 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1RZE,1TRFE..RZY220,230,TRY220;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-70050 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1RZE,1TRFE..RZY220,230,TRY220;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 1.0KW |
1 | ||
| 28160-74070 |
1RZE,3RZFPE..LY230,280,RZY220,230 12V 1.4KW |
1 | ||
| 28160-75060 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,231,281 12V 1.4KW |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91612-61055 | ||||
