Toyota Dyna/toyoace RZY220 REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
RZY220-TLMEE (2001)
4706 - REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

RZY220-TLMEE (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003

Engine 1RZE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0107- )T2,TW2..WT

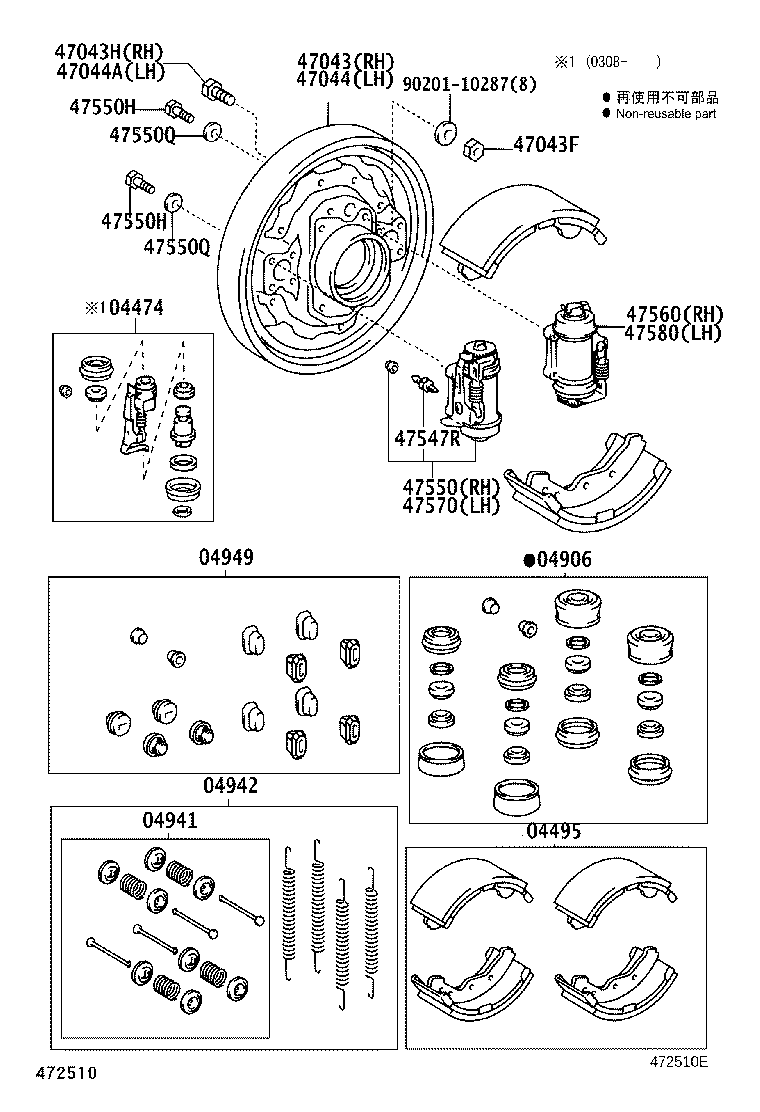

Click highlighted areas on diagram

Part #	Description	Period	Qty
04495 - SHOE KIT, REAR BRAKE
04495-25090	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT ﾏｰｸ NBK LN508	07/2001 - 12/2999	1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-26070	LY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)	07/2001 - 09/2012	1
04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04941-25020	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	1
04942 - SPRING KIT, REAR BRAKE
04942-25020	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	1
04949 - PLUG KIT, REAR BRAKE
04949-25040	KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT	11/2001 - 12/2999	1
04949-25020	LY280..TB;LY280..12T;LY220,240,290,RZY220..WT;LY230,RZY230..12T,15T,175T;LY230,RZY230..(TW1,TW2,TW4)..125T	07/2001 - 11/2001	1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-25170	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	1
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90170-10021	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	8
47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
90101-10028	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	4
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-25140	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	1
47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
90101-10028	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-12010	LY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)	09/2002 - 12/2999	2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-25161	LY220,RZY220..T2..WT;LY230,RZY230..(TW1,TW2)..125T;LY230,280,RZY230..(T2,T3,TW1,TW2)..(12T,15T)	07/2001 - 09/2002	1
47550-25162	LY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)	09/2002 - 12/2999	1
47550H - BOLT(FOR REAR WHEEL CYLINDER)
90101-08081	KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT	07/2001 - 12/2999	16
47550H - BOLT(FOR REAR WHEEL CYLINDER)
90101-08081	KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT	07/2001 - 12/2999	16
47550Q - WASHER(FOR REAR WHEEL CYLINDER)
90201-08002	KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT	07/2001 - 12/2999	16
47550Q - WASHER(FOR REAR WHEEL CYLINDER)
90201-08002	KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT	07/2001 - 12/2999	16
47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47560-25141	LY220,RZY220..T2..WT;LY230,RZY230..(TW1,TW2)..125T;LY230,280,RZY230..(T2,T3,TW1,TW2)..(12T,15T)	07/2001 - 09/2002	1
47560-25142	LY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)	09/2002 - 12/2999	1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47570-25112	LY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)	09/2002 - 12/2999	1
47570-25111	LY220,RZY220..T2..WT;LY230,RZY230..(TW1,TW2)..125T;LY230,280,RZY230..(T2,T3,TW1,TW2)..(12T,15T)	07/2001 - 09/2002	1
47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47580-25142	LY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)	09/2002 - 12/2999	1
47580-25141	LY220,RZY220..T2..WT;LY230,RZY230..(TW1,TW2)..125T;LY230,280,RZY230..(T2,T3,TW1,TW2)..(12T,15T)	07/2001 - 09/2002	1
Common parts
90201-10287

(0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..125T,1T ; (0107- )KDY22#,23#,27#,

Click highlighted areas on diagram

Part #	Description	Period	Qty
04495 - SHOE KIT, REAR BRAKE
04495-25090	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT ﾏｰｸ NBK LN508	07/2001 - 12/2999	1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-26070	LY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)	07/2001 - 09/2012	1
04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04941-25020	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	1
04942 - SPRING KIT, REAR BRAKE
04942-25020	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	1
04949 - PLUG KIT, REAR BRAKE
04949-25040	KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT	11/2001 - 12/2999	1
04949-25020	LY280..TB;LY280..12T;LY220,240,290,RZY220..WT;LY230,RZY230..12T,15T,175T;LY230,RZY230..(TW1,TW2,TW4)..125T	07/2001 - 11/2001	1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-25170	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	1
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90170-10021	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	8
47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
90101-10028	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	4
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-25140	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	1
47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
90101-10028	KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT	07/2001 - 12/2999	4
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-25161	LY220,RZY220..T2..WT;LY230,RZY230..(TW1,TW2)..125T;LY230,280,RZY230..(T2,T3,TW1,TW2)..(12T,15T)	07/2001 - 09/2002	1
47550-25162	LY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)	09/2002 - 12/2999	1
47550H - BOLT(FOR REAR WHEEL CYLINDER)
90101-08081	KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT	07/2001 - 12/2999	16
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47570-25112	LY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)	09/2002 - 12/2999	1
47570-25111	LY220,RZY220..T2..WT;LY230,RZY230..(TW1,TW2)..125T;LY230,280,RZY230..(T2,T3,TW1,TW2)..(12T,15T)	07/2001 - 09/2002	1

RZY220-TLMEE (2001)

(0107- )T2,TW2..WT

(0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..125T,1T ; (0107- )KDY22#,23#,27#,
