RZY220-TLMEE (2001)
Toyota Dyna/Toyoace
(0107- )T2,TW2..WT

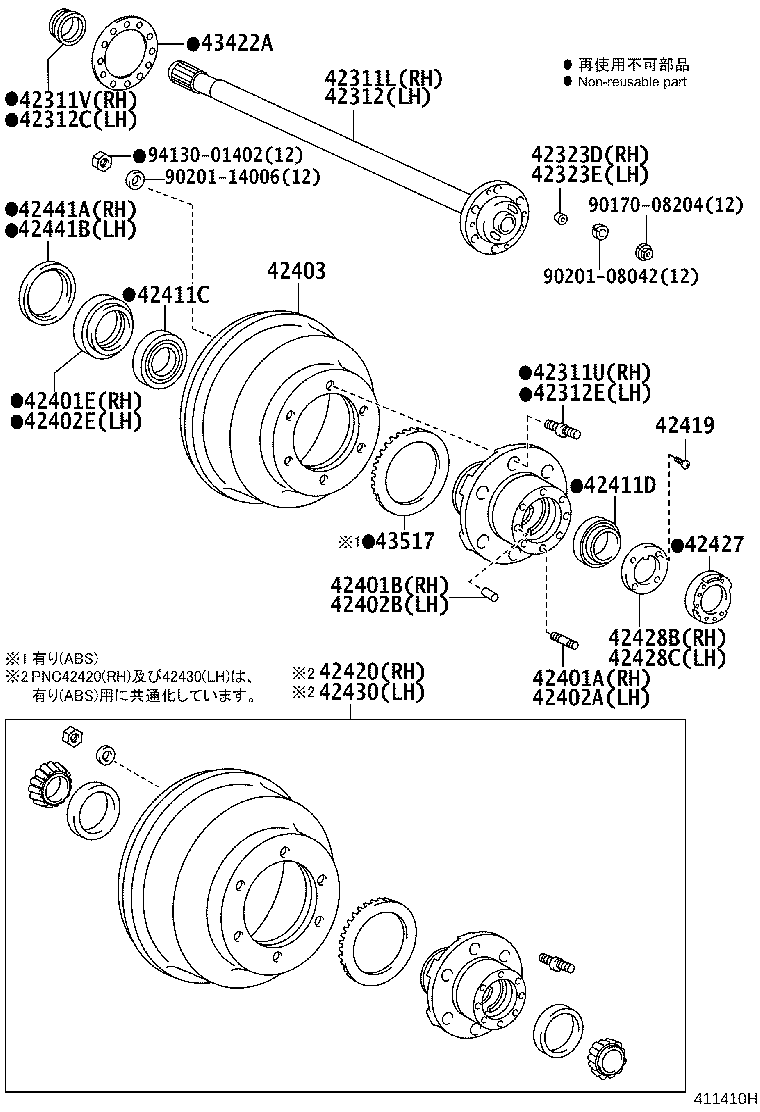

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-25071 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02064 |
TRY230..WT..IV6;KDY221..T2..WT..IV3;TRY230..TS..125T..WT;KDY231..ATM..125T..WT..CBU;KDY231..(T2,TW2)..ATM..WT..(IV3,IV6);KDY220,230,LY220,RZY220,230..(T2,TW2)..WT;KDY231,LY230..(T2,TW2)..MTM..(12T,15T)..WT |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-36003 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-25071 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-36003 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02065 |
TRY230..WT..IV6;KDY221..T2..WT..IV3;TRY230..TS..125T..WT;KDY231..ATM..125T..WT..CBU;KDY231..(T2,TW2)..ATM..WT..(IV3,IV6);KDY220,230,LY220,RZY220,230..(T2,TW2)..WT;KDY231,LY230..(T2,TW2)..MTM..(12T,15T)..WT |
6 | ||
| 42323D - WASHER, CONE (FOR REAR AXLE SHAFT RH) | ||||
| 42323-60010 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
6 | ||
| 42323E - WASHER, CONE (FOR REAR AXLE SHAFT LH) | ||||
| 42323-60010 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
6 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-08325 |
TRY230..WT..IV6;KDY230..TW2..ATM;TRY230..TS..125T..WT;KDY22#,230,RZY220..T2..WT;KDY231,RZY230..(T2,TW2)..WT |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-07057 |
TRY230..WT..IV6;KDY230..TW2..ATM;TRY230..TS..125T..WT;KDY22#,230,RZY220..T2..WT;KDY231,RZY230..(T2,TW2)..WT |
2 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-62001 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-08325 |
TRY230..WT..IV6;KDY230..TW2..ATM;TRY230..TS..125T..WT;KDY22#,230,RZY220..T2..WT;KDY231,RZY230..(T2,TW2)..WT |
6 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-07057 |
TRY230..WT..IV6;KDY230..TW2..ATM;TRY230..TS..125T..WT;KDY22#,230,RZY220..T2..WT;KDY231,RZY230..(T2,TW2)..WT |
2 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-62001 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25110 |
KDY220,230,LY220,230,RZY220,230..(T2,TW2)..WT |
2 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-49084 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT KOYO |
2 | ||
| 90080-36064 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT TIMKEN |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-45087 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT KOYO |
2 | ||
| 90080-36067 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT TIMKEN |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-29015 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
2 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-60011 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-60011 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-29015 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-25110 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-25110 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 43422A - GASKET, REAR AXLE OUTER SHAFT FLANGE | ||||
| 43422-60040 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-25010 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
2 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 90201-08042 | ||||
| 90201-14006 | ||||
| 94130-01402 | ||||
(0107- )KDY280..T3,TW3..TS ; (0107- )KDY281,TRY230..T2,T3,TW3..125T,1T ; (010
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-25071 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42311-25071 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02064 |
TRY230..WT..IV6;KDY221..T2..WT..IV3;TRY230..TS..125T..WT;KDY231..ATM..125T..WT..CBU;KDY231..(T2,TW2)..ATM..WT..(IV3,IV6);KDY220,230,LY220,RZY220,230..(T2,TW2)..WT;KDY231,LY230..(T2,TW2)..MTM..(12T,15T)..WT |
6 | ||
| 90942-02064 |
TRY230..WT..IV6;KDY221..T2..WT..IV3;TRY230..TS..125T..WT;KDY231..ATM..125T..WT..CBU;KDY231..(T2,TW2)..ATM..WT..(IV3,IV6);KDY220,230,LY220,RZY220,230..(T2,TW2)..WT;KDY231,LY230..(T2,TW2)..MTM..(12T,15T)..WT |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-36003 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 90310-36003 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-25071 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42311-25071 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-36003 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 90310-36003 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02065 |
TRY230..WT..IV6;KDY221..T2..WT..IV3;TRY230..TS..125T..WT;KDY231..ATM..125T..WT..CBU;KDY231..(T2,TW2)..ATM..WT..(IV3,IV6);KDY220,230,LY220,RZY220,230..(T2,TW2)..WT;KDY231,LY230..(T2,TW2)..MTM..(12T,15T)..WT |
6 | ||
| 90942-02065 |
TRY230..WT..IV6;KDY221..T2..WT..IV3;TRY230..TS..125T..WT;KDY231..ATM..125T..WT..CBU;KDY231..(T2,TW2)..ATM..WT..(IV3,IV6);KDY220,230,LY220,RZY220,230..(T2,TW2)..WT;KDY231,LY230..(T2,TW2)..MTM..(12T,15T)..WT |
6 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25110 |
KDY220,230,LY220,230,RZY220,230..(T2,TW2)..WT |
2 | ||
| 42431-25110 |
KDY220,230,LY220,230,RZY220,230..(T2,TW2)..WT |
2 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-25110 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42441-25110 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-25110 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 42441-25110 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
1 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-25010 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
2 | ||
| 43517-25010 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT |
2 | ||
