RZY220-TBPDE (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0308)1RZE

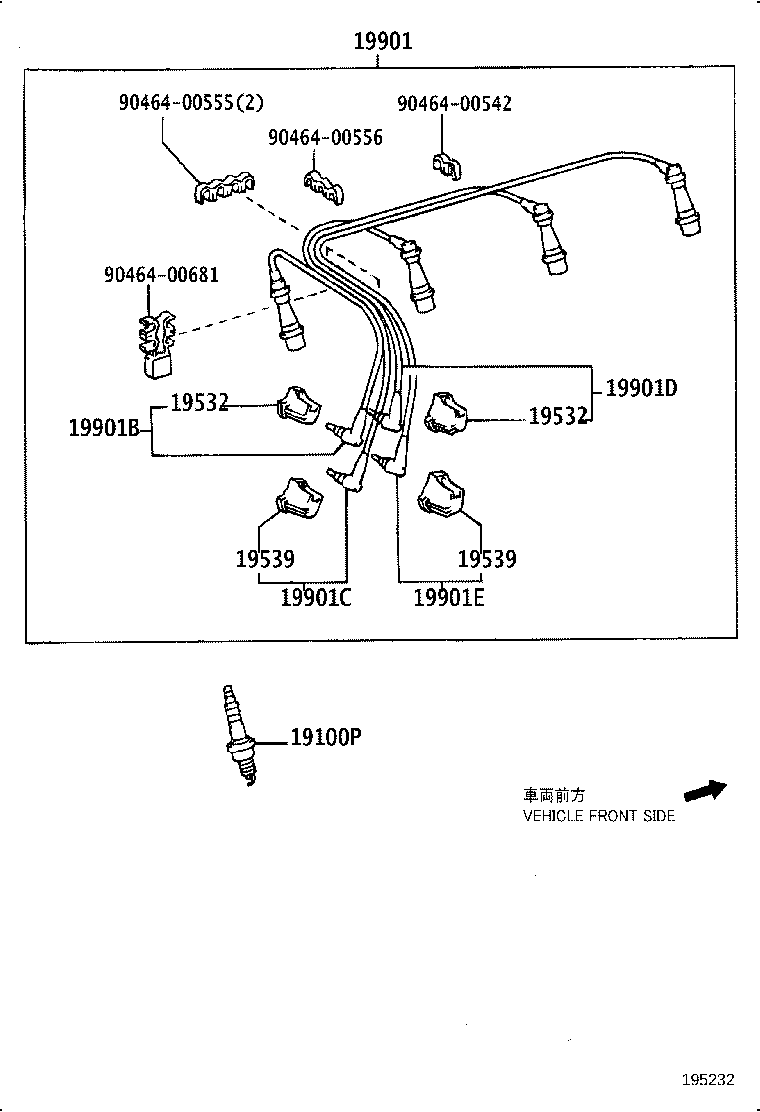

Click highlighted areas on diagram

diagram 19100P 19532 19532 19539 19539 19901 19901B 19901C 19901D 19901E 9046400542 9046400555 9046400556 9046400681
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01223

1RZE..RZY220,230

P16R8

 4
90919-01224

1RZE..RZY220,230

BPR5EP8

 4
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1RZE..RZY220,230

 2
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1RZE..RZY220,230

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74020

1RZE..RZY220,230

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74020

1RZE..RZY220,230

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22371

1RZE..RZY220,230

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15412

1RZE..RZY220,230

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15413

1RZE..RZY220,230

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15414

1RZE..RZY220,230

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15415

1RZE..RZY220,230

 1
Common parts
90464-00542
90464-00555
90464-00556
90464-00681
