RZY220-PSMBE3 (2001)
Toyota Dyna/Toyoace
(0107- )RZY220,230,TRY220,230..MTM
ﾊﾞｯﾃﾘ=34B19L

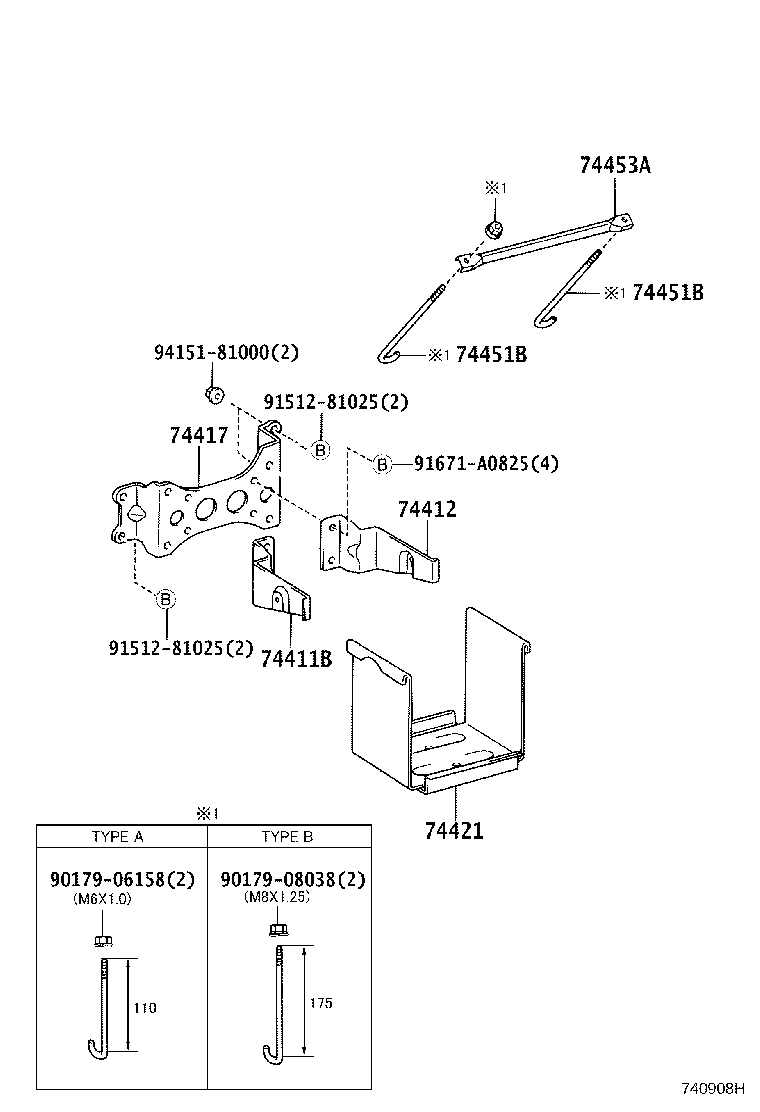

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74411B - BRACKET, BATTERY, FRONT | ||||
| 74411-25180 |
RZY220,230,TRY220,230..MTM |
1 | ||
| 74412 - BRACKET, BATTERY, REAR | ||||
| 74412-25180 |
RZY220,230,TRY220,230..MTM |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25100 |
KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 74421 - HANGER, BATTERY | ||||
| 74421-26020 |
TRY230..MTM;RZY220,230,TRY220;TRY230..ATM..125T ﾊﾞｯﾃﾘ=55D23L |
1 | ||
| 74421-26010 |
RZY220,230,TRY220,230..MTM ﾊﾞﾂﾃﾘ=34B19L |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
KDY270..T3,TW1;KDY220,230,280,RZY220,230,TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
KDY270..T3,TW1;KDY220,230,280,RZY220,230,TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-25090 |
KDY270..T3,TW1;KDY220,230,280,RZY220,230,TRY220,230 |
1 | ||
| 74453-25080 |
TRY230..TB..125T;RZY220,230,TRY220..MTM;TRY230..(T2,T3,T4,TW1,TW3)..MTM ﾊﾞﾂﾃﾘ=34B19L |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08038 | ||||
| 91512-81025 | ||||
| 91671-A0825 | ||||
| 94151-81000 | ||||
(0107- )KDY231..T2,T3,T4,TW3,TW4..CBU,IV3 ; (0107- )KDY220,230,27#,28#,RZY220
ﾊﾞｯﾃﾘ=5#D2#L,8#D26L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25100 |
KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 74417-25100 |
KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25100 |
KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 74417-25100 |
KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 74421 - HANGER, BATTERY | ||||
| 74421-26020 |
TRY230..MTM;RZY220,230,TRY220;TRY230..ATM..125T ﾊﾞｯﾃﾘ=55D23L |
1 | ||
| 74421-26020 |
TRY230..MTM;RZY220,230,TRY220;TRY230..ATM..125T ﾊﾞｯﾃﾘ=55D23L |
1 | ||
| 74421-26010 |
RZY220,230,TRY220,230..MTM ﾊﾞﾂﾃﾘ=34B19L |
1 | ||
| 74421-26010 |
RZY220,230,TRY220,230..MTM ﾊﾞﾂﾃﾘ=34B19L |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
KDY270..T3,TW1;KDY220,230,280,RZY220,230,TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 74451-25020 |
KDY270..T3,TW1;KDY220,230,280,RZY220,230,TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
KDY270..T3,TW1;KDY220,230,280,RZY220,230,TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 74451-25020 |
KDY270..T3,TW1;KDY220,230,280,RZY220,230,TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-25090 |
KDY270..T3,TW1;KDY220,230,280,RZY220,230,TRY220,230 |
1 | ||
| 74453-25090 |
KDY270..T3,TW1;KDY220,230,280,RZY220,230,TRY220,230 |
1 | ||
| 74453-25080 |
TRY230..TB..125T;RZY220,230,TRY220..MTM;TRY230..(T2,T3,T4,TW1,TW3)..MTM ﾊﾞﾂﾃﾘ=34B19L |
1 | ||
| 74453-25080 |
TRY230..TB..125T;RZY220,230,TRY220..MTM;TRY230..(T2,T3,T4,TW1,TW3)..MTM ﾊﾞﾂﾃﾘ=34B19L |
1 | ||
| 74473 - SPACER, BATTERY | ||||
| 74473-36050 |
LY240,290,RZY220,230 ﾊﾞﾂﾃﾘ=55D23L OR D26 X2 |
2 | ||
| 74473-36050 |
LY240,290,RZY220,230 ﾊﾞﾂﾃﾘ=55D23L OR D26 X2 |
2 | ||
| 74473 - SPACER, BATTERY | ||||
| 74473-36050 |
LY240,290,RZY220,230 ﾊﾞﾂﾃﾘ=55D23L OR D26 X2 |
2 | ||
| 74473-36050 |
LY240,290,RZY220,230 ﾊﾞﾂﾃﾘ=55D23L OR D26 X2 |
2 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08038 | ||||
| 91512-81025 | ||||
| 91671-A0825 | ||||
| 94151-81000 | ||||
