RZY220-PSMBE3 (2001)
Toyota Dyna/Toyoace

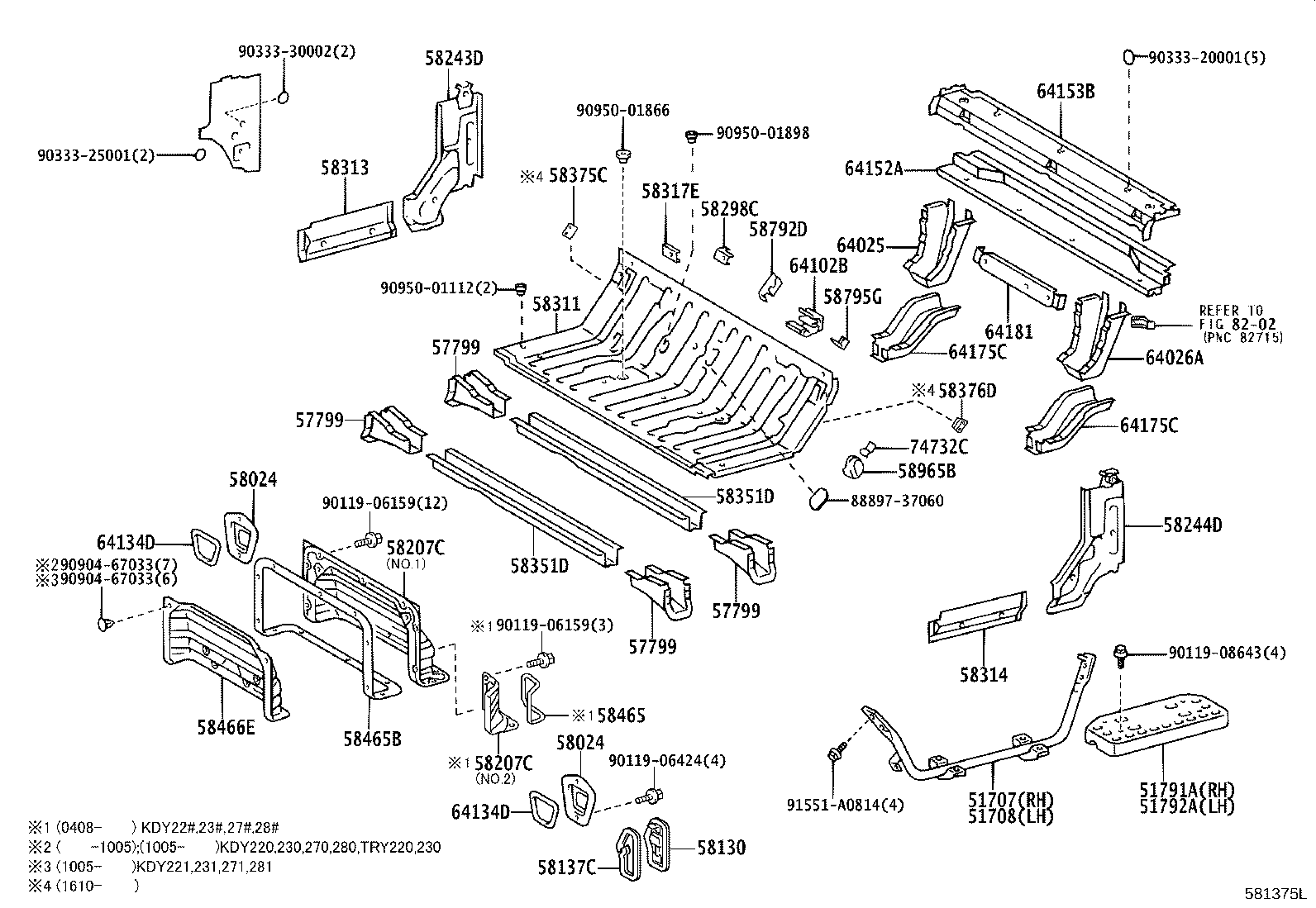

ILLUST NO. 1 OF 2(0107- )TW1,TW2,TW3,TW4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51707 - STEP SUB-ASSY, RH | ||||
| 58307-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 58308-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 51791A - PANEL, STEP, REAR RH | ||||
| 51791-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 51792A - PANEL, STEP, REAR LH | ||||
| 51791-95A00 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 57799 - GUSSET, REAR FLOOR CROSSMEMBER | ||||
| 57799-37060 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
4 | ||
| 57799 - GUSSET, REAR FLOOR CROSSMEMBER | ||||
| 57799-37060 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
4 | ||
| 57799 - GUSSET, REAR FLOOR CROSSMEMBER | ||||
| 57799-37060 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
4 | ||
| 57799 - GUSSET, REAR FLOOR CROSSMEMBER | ||||
| 57799-37060 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
4 | ||
| 58024 - COVER, HEADER PANEL | ||||
| 58227-37060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN |
2 | ||
| 58024 - COVER, HEADER PANEL | ||||
| 58227-37060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN |
2 | ||
| 58130 - COVER ASSY, RESERVE TANK SERVICE HOLE | ||||
| 58106-25010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN |
1 | ||
| 58137C - SEAL, RESERVE TANK SERVICE HOLE COVER | ||||
| 58137-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-37190 |
LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN NO.1 |
1 | ||
| 58207-37180 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｸ-ﾗ),NO.1 |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-37190 |
LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN NO.1 |
1 | ||
| 58207-37180 |
LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｸ-ﾗ),NO.1 |
1 | ||
| 58243D - PANEL, FLOOR SIDE, REAR RH | ||||
| 58043-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 58244D - PANEL, FLOOR SIDE, REAR LH | ||||
| 58044-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 58298C - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-95400 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-25040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾘﾔ ｸ-ﾗ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58311-25030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ﾋ-ﾀ OR ﾘﾔ ｸ-ﾗ) |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-37050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-37050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 58317E - RETAINER, REAR SEAT, NO.2 | ||||
| 58317-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
3 | ||
| 58351D - REINFORCEMENT, REAR FLOOR PANEL | ||||
| 58351-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 58351-37010 |
LY220,230,270,280,RZY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 58351D - REINFORCEMENT, REAR FLOOR PANEL | ||||
| 58351-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 58351-37010 |
LY220,230,270,280,RZY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-37080 |
LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-37130 |
LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN |
1 | ||
| 58792D - SUPPORT, JACK | ||||
| 58792-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 58795G - PLATE, JACK CLAMP | ||||
| 58795-95500 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 58965B - HOLDER, JACK | ||||
| 58965-95400 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 64025 - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64025-37090 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 64026A - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64026-37140 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 64102B - BRACKET SUB-ASSY, JACK HANDLE SUPPORT | ||||
| 64102-95A00 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 64134D - PACKING, HEADER PANEL COVER | ||||
| 64134-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN |
2 | ||
| 64134D - PACKING, HEADER PANEL COVER | ||||
| 64134-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN |
2 | ||
| 64152A - FRAME, BACK, LOWER | ||||
| 64152-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 64153B - FRAME, BACK, REAR | ||||
| 64153-37030 |
KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 64175C - BRACE, REAR MOUNTING BRACKET | ||||
| 64175-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 64175C - BRACE, REAR MOUNTING BRACKET | ||||
| 64175-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 64181 - REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR | ||||
| 64084-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 74732C - BRACKET, TOOL BAG SET BAND | ||||
| 74732-95600 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| Common parts | ||||
| 88897-37060 | ||||
| 90119-06159 | ||||
| 90119-06424 | ||||
| 90119-08643 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90904-67033 | ||||
| 90950-01112 | ||||
| 90950-01866 | ||||
| 90950-01898 | ||||
| 91551-A0814 | ||||
| Linked diagrams | ||||
| 8202 | ||||
