RZY220-PSMBE (2001)
Toyota Dyna/Toyoace
Production
Jul 2001
-
Aug 2003
Engine
1RZE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0107-0308)1RZE

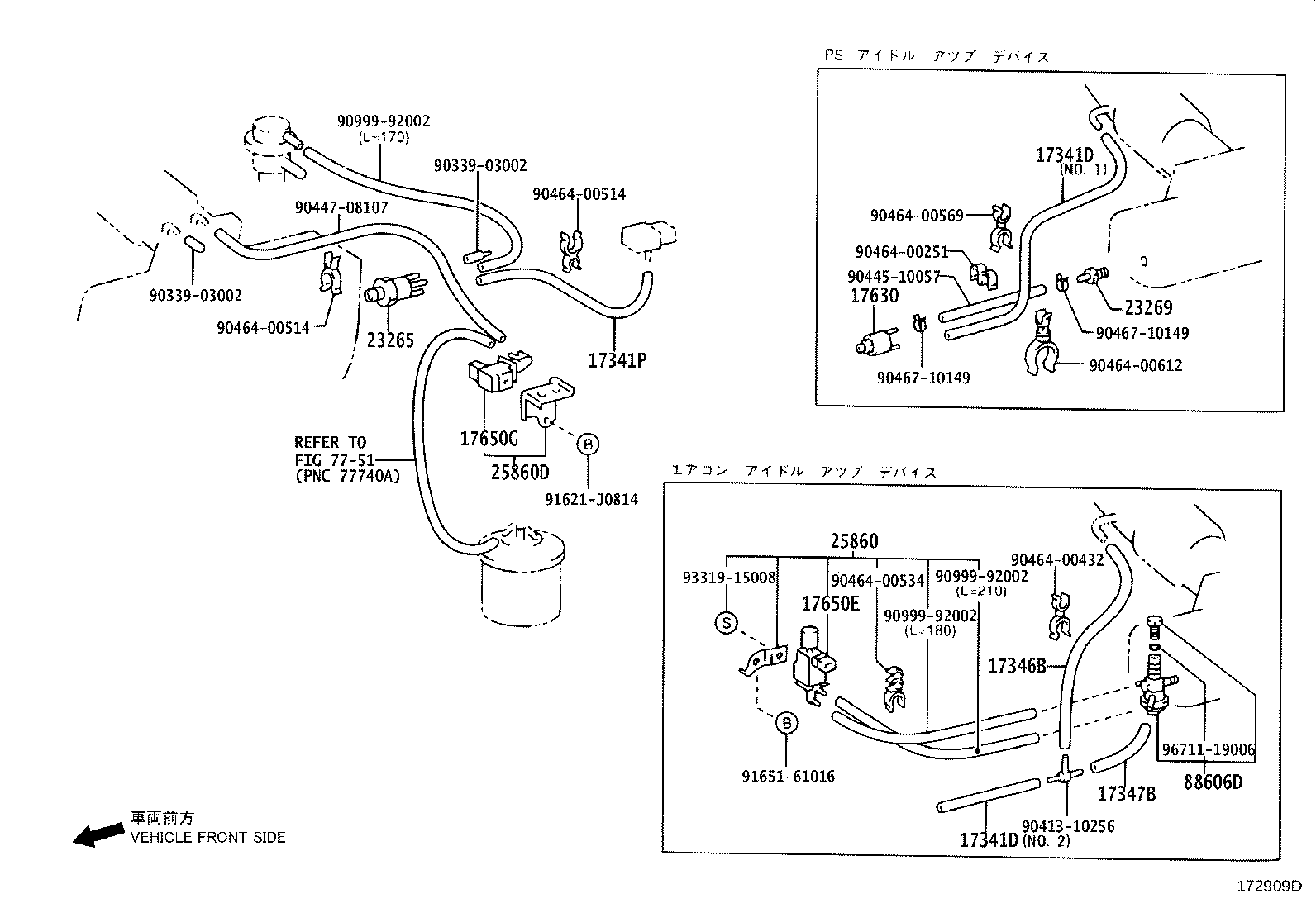

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-75160 |
1RZE..RZY220,230 NO.2 |
1 | ||
| 17341-75030 |
1RZE..RZY220,230 NO.1 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-75160 |
1RZE..RZY220,230 NO.2 |
1 | ||
| 17341-75030 |
1RZE..RZY220,230 NO.1 |
1 | ||
| 17341P - HOSE, AIR | ||||
| 17341-75150 |
1RZE..RZY220,230 |
1 | ||
| 17346B - HOSE, AIR, NO.6 | ||||
| 17346-75040 |
1RZE..RZY220,230 |
1 | ||
| 17347B - HOSE, AIR, NO.7 | ||||
| 17347-75020 |
1RZE..RZY220,230 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-74010 |
1RZE..RZY220,230 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12089 |
1RZE..RZY220,230 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12187 |
1RZE..RZY220,230 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11041 |
1RZE..RZY220,230 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-51026 |
1RZE..RZY220,230 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-75130 |
1RZE..RZY220,230 |
1 | ||
| 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 | ||||
| 25860-75250 |
1RZE..RZY220,230 |
1 | ||
| 88606D - DIAPHRAGM SUB-ASSY | ||||
| 88606-26030 |
RZY220,230 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-10256 | ||||
| 90445-10057 | ||||
| 90447-08107 | ||||
| 90464-00251 | ||||
| 90464-00432 | ||||
| 90464-00514 | ||||
| 90464-00534 | ||||
| 90464-00569 | ||||
| 90464-00612 | ||||
| 90467-10149 | ||||
| 90999-92002 | ||||
| 91621-J0814 | ||||
| 91651-61016 | ||||
| 93319-15008 | ||||
| 96711-19006 | ||||
| Linked diagrams | ||||
| 7751 | ||||
