RZU340-TQMMK3 (2000)
Toyota Dyna/Toyoace
Production
May 2000
-
May 2007
Engine
3RZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )3RZ#

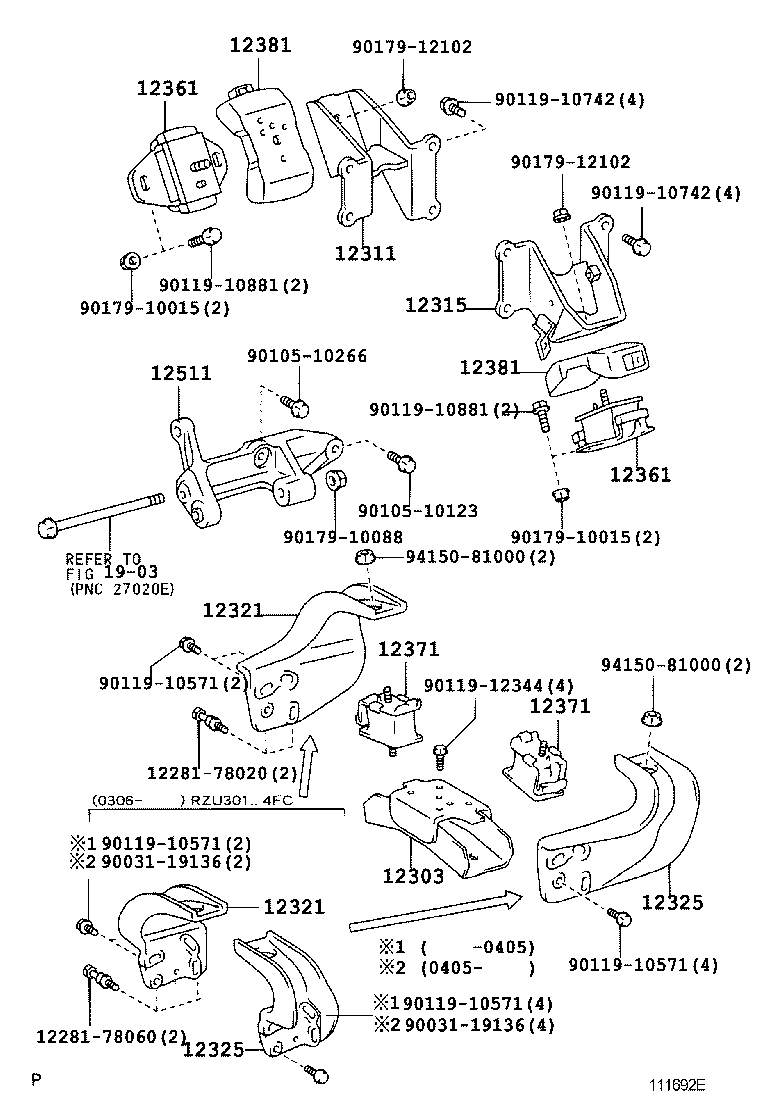

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78010 |
3RZ#..RZU30#,340 |
1 | ||
| 12303-78010 |
3RZ#..RZU30#,340 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-75040 |
3RZ#..RZU30#,340 |
1 | ||
| 12311-75040 |
3RZ#..RZU30#,340 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-75080 |
3RZ#..RZU30#,340 |
1 | ||
| 12315-75080 |
3RZ#..RZU30#,340 |
1 | ||
| 12315-75041 |
3RZ#..RZU300,340 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-58230 |
3RZ#..RZU30#,340..5F |
1 | ||
| 12321-58230 |
3RZ#..RZU30#,340..5F |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-58230 |
3RZ#..RZU30#,340..5F |
1 | ||
| 12321-58230 |
3RZ#..RZU30#,340..5F |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
3RZ#..RZU30#,340..5F |
1 | ||
| 12325-58190 |
3RZ#..RZU30#,340..5F |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
3RZ#..RZU30#,340..5F |
1 | ||
| 12325-58190 |
3RZ#..RZU30#,340..5F |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-75030 |
3RZ#..RZU30#,340 |
2 | ||
| 12361-75030 |
3RZ#..RZU30#,340 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-75030 |
3RZ#..RZU30#,340 |
2 | ||
| 12361-75030 |
3RZ#..RZU30#,340 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
3RZ#..RZU30#,340 |
2 | ||
| 12371-78010 |
3RZ#..RZU30#,340 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
3RZ#..RZU30#,340 |
2 | ||
| 12371-78010 |
3RZ#..RZU30#,340 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-65030 |
3RZ#..RZU30#,340 |
2 | ||
| 12381-65030 |
3RZ#..RZU30#,340 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-65030 |
3RZ#..RZU30#,340 |
2 | ||
| 12381-65030 |
3RZ#..RZU30#,340 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-75041 |
3RZ#..RZU30#,340 |
1 | ||
| 12511-75041 |
3RZ#..RZU30#,340 |
1 | ||
| Common parts | ||||
| 12281-78020 | ||||
| 12281-78060 | ||||
| 90031-19136 | ||||
| 90105-10123 | ||||
| 90105-10266 | ||||
| 90119-10571 | ||||
| 90119-10742 | ||||
| 90119-10881 | ||||
| 90119-12344 | ||||
| 90179-10015 | ||||
| 90179-10088 | ||||
| 90179-12102 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1903 | ||||
