8716 - HEATING & AIR CONDITIONING - WATER PIPING

RZU340-TQMMK (2000)

Toyota Dyna/Toyoace

Production May 2000 - May 2007

Engine 3RZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0005-0406)EFI

Click highlighted areas on diagram

Part #	Description	Period	Qty

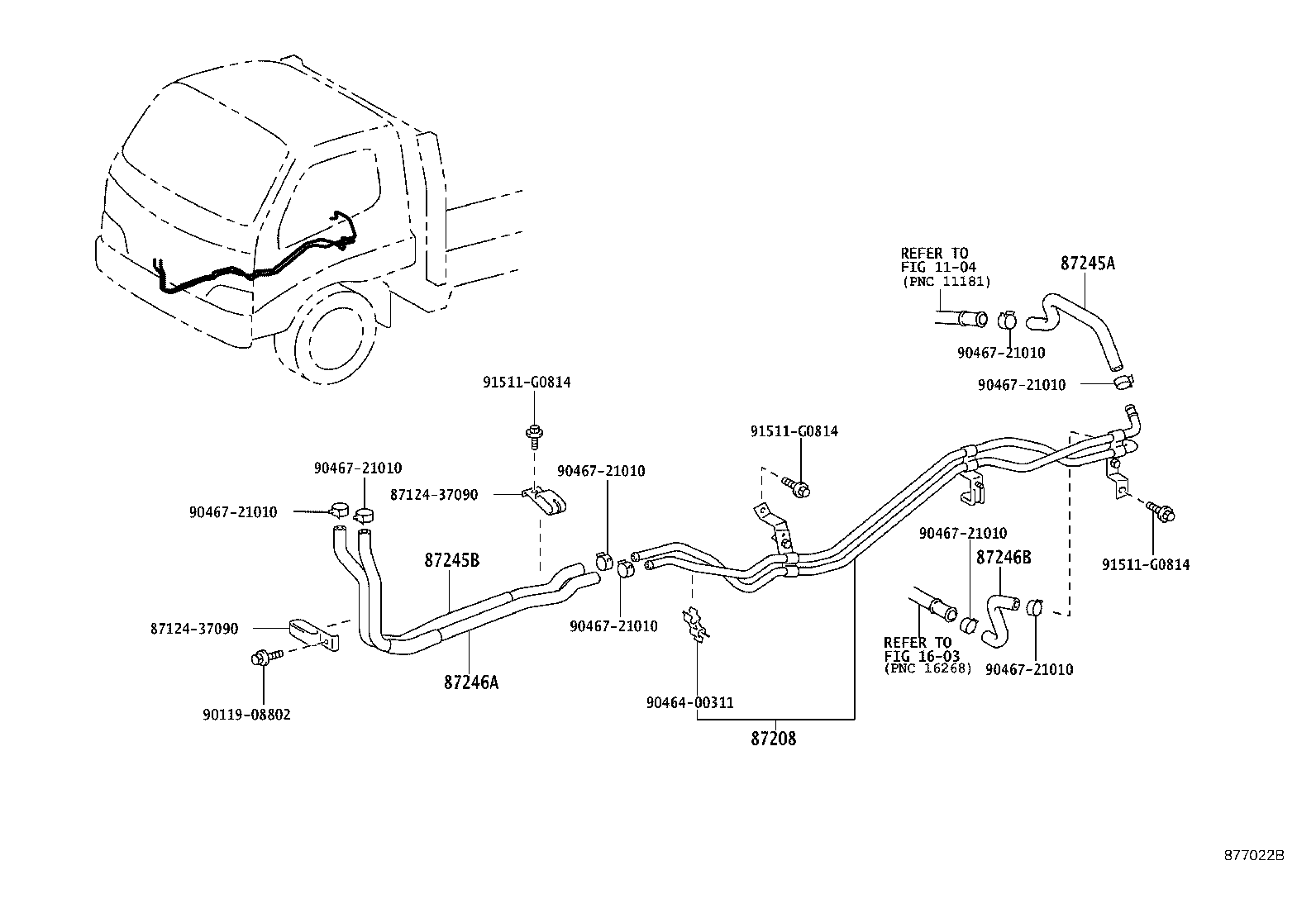

87208 - PIPE SUB-ASSY, HEATER WATER
87208-37390	BZU300,340	06/2004 - 12/2999	1
87208-37370	RZU300,340..EFI	06/2004 - 12/2999	1
87208-37390	BZU300,340	05/2000 - 06/2004	1
87208-37370	RZU300,340..EFI	05/2000 - 06/2004	1
87245A - HOSE, HEATER WATER, INLET A
87245-3V390	RZU300,340..EFI	06/2004 - 12/2999	1
87245-3V390	RZU300,340..EFI	05/2000 - 06/2004	1
87245-3V450	BZU300,340	06/2004 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-3V380	RZU300,340..EFI	05/2000 - 06/2004	1
87245-3V040	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
87245-37A00	XZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	1
87245-3V380	RZU300,340..EFI	06/2004 - 12/2999	1
87245-3V040	BZU300,340	06/2004 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87246-37330	RZU300,340..EFI	05/2000 - 06/2004	1
87246-37190	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
87246-37190	BZU300,340	06/2004 - 12/2999	1
87245-37A00	XZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	1
87246-37330	RZU300,340..EFI	06/2004 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37340	RZU300,340..EFI	05/2000 - 06/2004	1
87246-37390	BZU300,340	05/2000 - 06/2004	1
87246-37340	RZU300,340..EFI	06/2004 - 12/2999	1
87246-37390	BZU300,340	06/2004 - 12/2999	1
Common parts
87124-37090
90119-08802
90464-00311
90467-21010
91511-G0814
Linked diagrams
1104
1603

(0406- )BZU300,340

Click highlighted areas on diagram

Part #	Description	Period	Qty

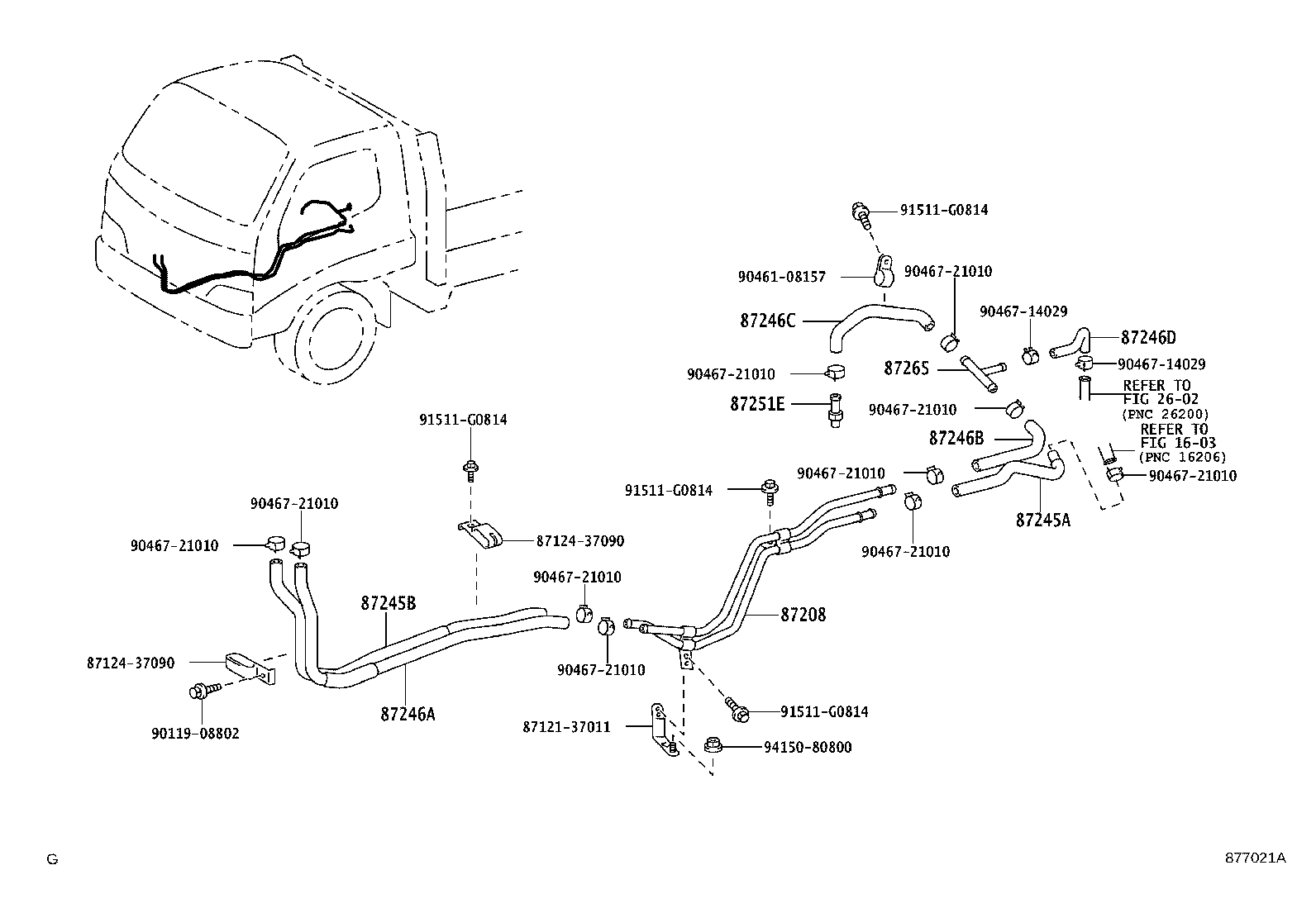

87208 - PIPE SUB-ASSY, HEATER WATER
87208-37390	BZU300,340	06/2004 - 12/2999	1
87208-37370	RZU300,340..EFI	06/2004 - 12/2999	1
87208-37390	BZU300,340	05/2000 - 06/2004	1
87208-37370	RZU300,340..EFI	05/2000 - 06/2004	1
87245A - HOSE, HEATER WATER, INLET A
87245-3V390	RZU300,340..EFI	06/2004 - 12/2999	1
87245-3V390	RZU300,340..EFI	05/2000 - 06/2004	1
87245-3V450	BZU300,340	06/2004 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-3V380	RZU300,340..EFI	05/2000 - 06/2004	1
87245-3V040	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
87245-37A00	XZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	1
87245-3V380	RZU300,340..EFI	06/2004 - 12/2999	1
87245-3V040	BZU300,340	06/2004 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87246-37330	RZU300,340..EFI	05/2000 - 06/2004	1
87246-37190	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
87246-37190	BZU300,340	06/2004 - 12/2999	1
87245-37A00	XZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	1
87246-37330	RZU300,340..EFI	06/2004 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37340	RZU300,340..EFI	05/2000 - 06/2004	1
87246-37390	BZU300,340	05/2000 - 06/2004	1
87246-37340	RZU300,340..EFI	06/2004 - 12/2999	1
87246-37390	BZU300,340	06/2004 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
87246-37400	BZU300,340	05/2000 - 06/2004	1
87246-37400	BZU300,340	06/2004 - 12/2999	1
87246D - HOSE, HEATER WATER, OUTLET D
87246-37430	BZU300,340	06/2004 - 12/2999	1
87246-37430	BZU300,340	05/2000 - 06/2004	1
87251E - JOINT, WATER, NO.2
87251-30200	BZU300,340	05/2000 - 06/2004	1
87251-30200	BZU300,340	06/2004 - 12/2999	1
87265 - CONNECTOR, HEATER WATER HOSE
87265-89110	BZU300,340	06/2004 - 12/2999	1
87265-89110	BZU300,340	05/2000 - 06/2004	1
Common parts
87121-37011
87124-37090
90119-08802
90461-08157
90467-14029
90467-21010
91511-G0814
94150-80800
Linked diagrams
1603
2602

(0406- )EFI

Click highlighted areas on diagram

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-37390	BZU300,340	06/2004 - 12/2999	1
87208-37370	RZU300,340..EFI	06/2004 - 12/2999	1
87208-37390	BZU300,340	05/2000 - 06/2004	1
87208-37370	RZU300,340..EFI	05/2000 - 06/2004	1
87245A - HOSE, HEATER WATER, INLET A
87245-3V390	RZU300,340..EFI	06/2004 - 12/2999	1
87245-3V390	RZU300,340..EFI	05/2000 - 06/2004	1
87245-3V450	BZU300,340	06/2004 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3V390	RZU300,340..EFI	06/2004 - 12/2999	1
87245-3V390	RZU300,340..EFI	05/2000 - 06/2004	1
87245-3V450	BZU300,340	06/2004 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-3V380	RZU300,340..EFI	05/2000 - 06/2004	1
87245-3V040	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
87245-37A00	XZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	1
87245-3V380	RZU300,340..EFI	06/2004 - 12/2999	1
87245-3V040	BZU300,340	06/2004 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87246-37330	RZU300,340..EFI	05/2000 - 06/2004	1
87246-37190	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
87246-37190	BZU300,340	06/2004 - 12/2999	1
87245-37A00	XZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	1
87246-37330	RZU300,340..EFI	06/2004 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37340	RZU300,340..EFI	05/2000 - 06/2004	1
87246-37390	BZU300,340	05/2000 - 06/2004	1
87246-37340	RZU300,340..EFI	06/2004 - 12/2999	1
87246-37390	BZU300,340	06/2004 - 12/2999	1
Common parts
87124-37090
90119-08802
90464-00311
90467-21010
91511-G0814
Linked diagrams
1104
1603

RZU340-TQMMK (2000)

(0005-0406)EFI

(0406- )BZU300,340

(0406- )EFI
