RZU301-TQPMC (2003)

Toyota Dyna/Toyoace

Production Jun 2003 - May 2007
Engine 3RZFPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0406)XZU362..T4..CBU ; (9905-0406)XZU301,302,306,307,312,321,322,331,337,341,

Click highlighted areas on diagram

A443E

diagram 32904 32905 32913 32921 32921C 32921C 32921G 32921G 32922 32923 32923A 32923B 32924 32924A 32924A 32924A 32925 32925 32925A 32925A 32926 32926 32926 32926 32941 32941A 32942 32942A 9011910883 9046212076 9046212076 9046716013 9046716013 9046716013 9046716013 91611B0616 91611B0616 91611B0616 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816
Part # Description Qty Price
32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32906-37050

RZU301..4FC

 1
32906-37050

RZU301..4FC

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-37100

RZU301..4FC

 1
32921-37100

RZU301..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

ｱｳﾄﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20008

RZU301,XZU304,308,334,338,348..4FC

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

ｱｳﾄﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20008

RZU301,XZU304,308,334,338,348..4FC

ｱｳﾄﾚｯﾄ

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

 2
90301-11006

RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

 2
90301-11006

RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-37100

RZU301..4FC

 1
32922-37100

RZU301..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-25010

RZU301,XZU304,308,334,338,348..4FC

 1
32923-25010

XZU301,331..4FC..DSL;RZU301,XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-37020

RZU301..4FC

 1
32924-37020

RZU301..4FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-37080

RZU301..4FC

 1
32925-37080

RZU301..4FC

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-37080

RZU301..4FC

 1
32925-37080

RZU301..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32941 - HOSE, OIL COOLER INLET, NO.1
32941-37090

RZU301..4FC

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32941-37100

RZU301..4FC

 1
32941-37100

RZU301..4FC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-37060

RZU301..4FC

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32942-37070

RZU301..4FC

 1
32942-37070

RZU301..4FC

 1
Common parts
90119-10883
90462-12076
90467-16013
91611-B0616
91611-B0816

(0306-0406)RZU301..4FC

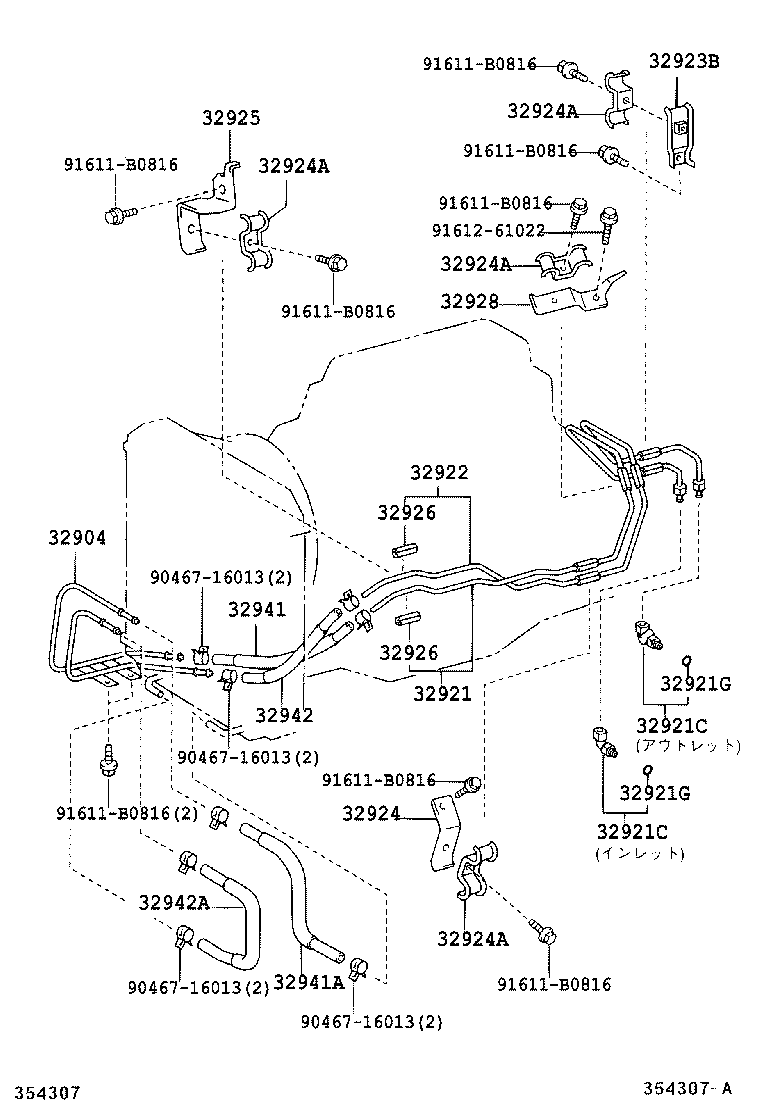

Click highlighted areas on diagram

A443E

diagram 32904 32921 32921C 32921C 32921G 32921G 32922 32923B 32924 32924A 32924A 32924A 32924A 32925 32926 32926 32928 32941 32941A 32942 32942A 9046716013 9046716013 9046716013 9046716013 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 9161261022
Part # Description Qty Price
32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32906-37050

RZU301..4FC

 1
32906-37050

RZU301..4FC

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-37100

RZU301..4FC

 1
32921-37100

RZU301..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

ｱｳﾄﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20008

RZU301,XZU304,308,334,338,348..4FC

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

ｱｳﾄﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20008

RZU301,XZU304,308,334,338,348..4FC

ｱｳﾄﾚｯﾄ

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

 2
90301-11006

RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

 2
90301-11006

RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-37100

RZU301..4FC

 1
32922-37100

RZU301..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-25010

RZU301,XZU304,308,334,338,348..4FC

 1
32923-25010

XZU301,331..4FC..DSL;RZU301,XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-37020

RZU301..4FC

 1
32924-37020

RZU301..4FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-37080

RZU301..4FC

 1
32925-37080

RZU301..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-37020

RZU301..4FC

 1
32928-37020

RZU301..4FC

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-37090

RZU301..4FC

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32941-37100

RZU301..4FC

 1
32941-37100

RZU301..4FC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-37060

RZU301..4FC

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32942-37070

RZU301..4FC

 1
32942-37070

RZU301..4FC

 1
Common parts
90467-16013
91611-B0816
91612-61022

(0406- )RZU301..4FC

Click highlighted areas on diagram

A443E

diagram 32904 32921 32921C 32921C 32921G 32921G 32922 32923B 32924 32924A 32924A 32924A 32924A 32925 32926 32926 32928 32941 32941A 32942 32942A 9046716022 9046716022 9046716022 9046716022 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 9161261022
Part # Description Qty Price
32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32906-37050

RZU301..4FC

 1
32906-37050

RZU301..4FC

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-37100

RZU301..4FC

 1
32921-37100

RZU301..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

ｱｳﾄﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20008

RZU301,XZU304,308,334,338,348..4FC

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

ｱｳﾄﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20007

RZU301..4FC

ｲﾝﾚｯﾄ

 1
90407-20008

RZU301,XZU304,308,334,338,348..4FC

ｱｳﾄﾚｯﾄ

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

 2
90301-11006

RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

 2
90301-11006

RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-37100

RZU301..4FC

 1
32922-37100

RZU301..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-25010

RZU301,XZU304,308,334,338,348..4FC

 1
32923-25010

XZU301,331..4FC..DSL;RZU301,XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-37020

RZU301..4FC

 1
32924-37020

RZU301..4FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

RZU301..4FC

 4
90462-12076

RZU301,XZU304,334..ATM..(DSLL,LPG)

 4
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-37080

RZU301..4FC

 1
32925-37080

RZU301..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32926-60010

RZU301..4FC

長さ=45,内径=12

 8
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-37020

RZU301..4FC

 1
32928-37020

RZU301..4FC

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-37090

RZU301..4FC

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32941-37100

RZU301..4FC

 1
32941-37100

RZU301..4FC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-37060

RZU301..4FC

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32942-37070

RZU301..4FC

 1
32942-37070

RZU301..4FC

 1
Common parts
90467-16022
91611-B0816
91612-61022
