RZU301-TQPMC (2003)
Toyota Dyna/Toyoace
Production
Jun 2003
-
May 2007
Engine
3RZFPE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0306- )RZU301..4FC

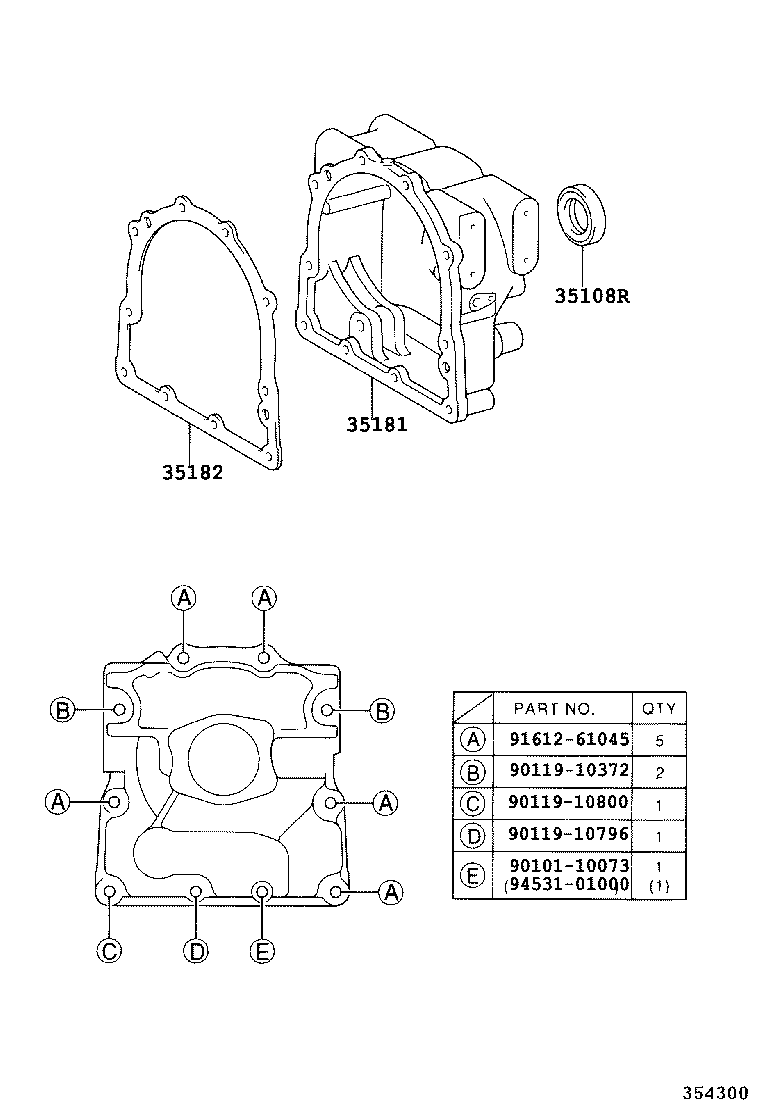

Click highlighted areas on diagram
A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING | ||||
| 90311-46005 |
RZU301,XZU304,308,334,338,348..4FC |
1 | ||
| 90311-46005 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 35181 - HOUSING, EXTENSION (ATM) | ||||
| 35181-37040 |
RZU301..4FC |
1 | ||
| 35181-37040 |
RZU301..4FC |
1 | ||
| 35182 - GASKET, EXTENSION HOUSING (ATM) | ||||
| 35182-60010 |
RZU301,XZU304,308,334,338,348..4FC |
1 | ||
| 35182-60010 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| Common parts | ||||
| 90101-10073 | ||||
| 90119-10372 | ||||
| 90119-10796 | ||||
| 90119-10800 | ||||
| 91612-61045 | ||||
| 94531-01000 | ||||
