RZU301-TQMMC3 (2003)
Toyota Dyna/Toyoace

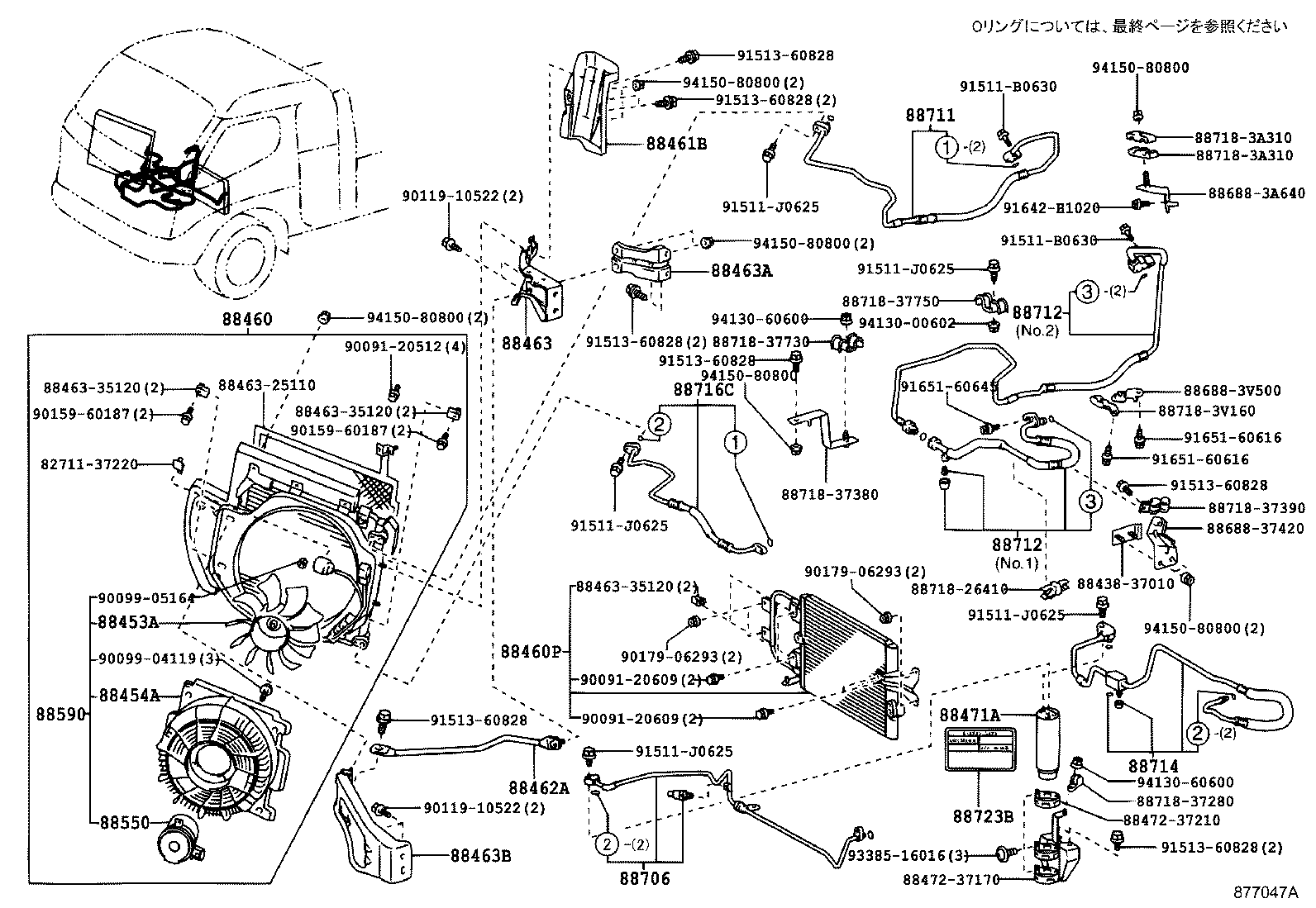

ILLUST NO. 1 OF 2(0406- )RZU30#..LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-37010 |
XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382 |
1 | ||
| 88453-37010 |
XZU304..175T;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-37031 |
XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB |
1 | ||
| 88454-37031 |
XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-37522 |
BZU300,340,RZU30#,340..SCB |
1 | ||
| 88460P - CONDENSER ASSY, COOLER NO.2 | ||||
| 88460-37500 |
BZU300,340,RZU30#..CNG,LPG |
1 | ||
| 88461B - COVER, COOLER CONDENSER | ||||
| 53715-37180 |
XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88462A - HOLDER, CONDENSER | ||||
| 88462-37070 |
XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88462-37070 |
XZU322..DM7,DM8;XZU321..DM7..4NO;XZU302..20T..DSL;XZU306..T4..5F..IV3;XZU312,347..DCB..5F;XZU306..T4..DSL..CBU;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306..T4..4FC..DSL..IV3;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;RZU300,XZU301..SCB..5F..(DSLL,EFI)..1NO;BU301,XZU307,341,342,351..(03S,DM2,DM5,T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL);BU306,346,BZU300,340,RZU301,340,XZU300,330,337,340,346,347,350,352..(SCB,VAN)..(CNG,DSL,EFI,LPG) |
1 | ||
| 88462-37110 |
BZU300,340,RZU30#,340,XZU304..SCB |
1 | ||
| 88462-37130 |
BZU300,340,RZU30#,340,XZU304..SCB |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-37140 |
XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-37150 |
XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB |
1 | ||
| 88463-37150 |
XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-37160 |
XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88471A - TANK, RECEIVER | ||||
| 88471-34010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-37070 |
BZU300,340,RZU30#,340..SCB |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-37130 |
BZU300,340,RZU30#,340..SCB |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-37150 |
BZU300,340,RZU30#..CNG,LPG |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-37711 |
RZU30#,340..SCB |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-37671 |
BZU300,340,RZU301 NO.1 |
1 | ||
| 88712-37671 |
BZU300,340,RZU30#,340 NO.1 |
1 | ||
| 88712-3V291 |
RZU30#,340 NO.2 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-37671 |
BZU300,340,RZU301 NO.1 |
1 | ||
| 88712-37671 |
BZU300,340,RZU30#,340 NO.1 |
1 | ||
| 88712-3V291 |
RZU30#,340 NO.2 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-37361 |
BZU300,340,RZU30#,340 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88721-37660 |
BZU300,340,RZU30#..CNG,LPG |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-27010 |
XZU304,306,308,346..(DCB,VAN)..DSL;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG |
1 | ||
| Common parts | ||||
| 82711-37220 | ||||
| 88438-37010 | ||||
| 88463-25110 | ||||
| 88463-35120 | ||||
| 88472-37170 | ||||
| 88472-37210 | ||||
| 88688-37420 | ||||
| 88688-3A640 | ||||
| 88688-3V500 | ||||
| 88718-26410 | ||||
| 88718-37280 | ||||
| 88718-37380 | ||||
| 88718-37390 | ||||
| 88718-37730 | ||||
| 88718-37750 | ||||
| 88718-3A310 | ||||
| 88718-3V160 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-10522 | ||||
| 90159-60187 | ||||
| 90179-06293 | ||||
| 91511-B0630 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91642-H1020 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 93385-16016 | ||||
| 94130-00602 | ||||
| 94130-60600 | ||||
| 94150-80800 | ||||
