RZU301-TQMMC3 (2003)

Toyota Dyna/Toyoace

Production Jun 2003 - May 2007
Engine 3RZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )RZU30#..LPG

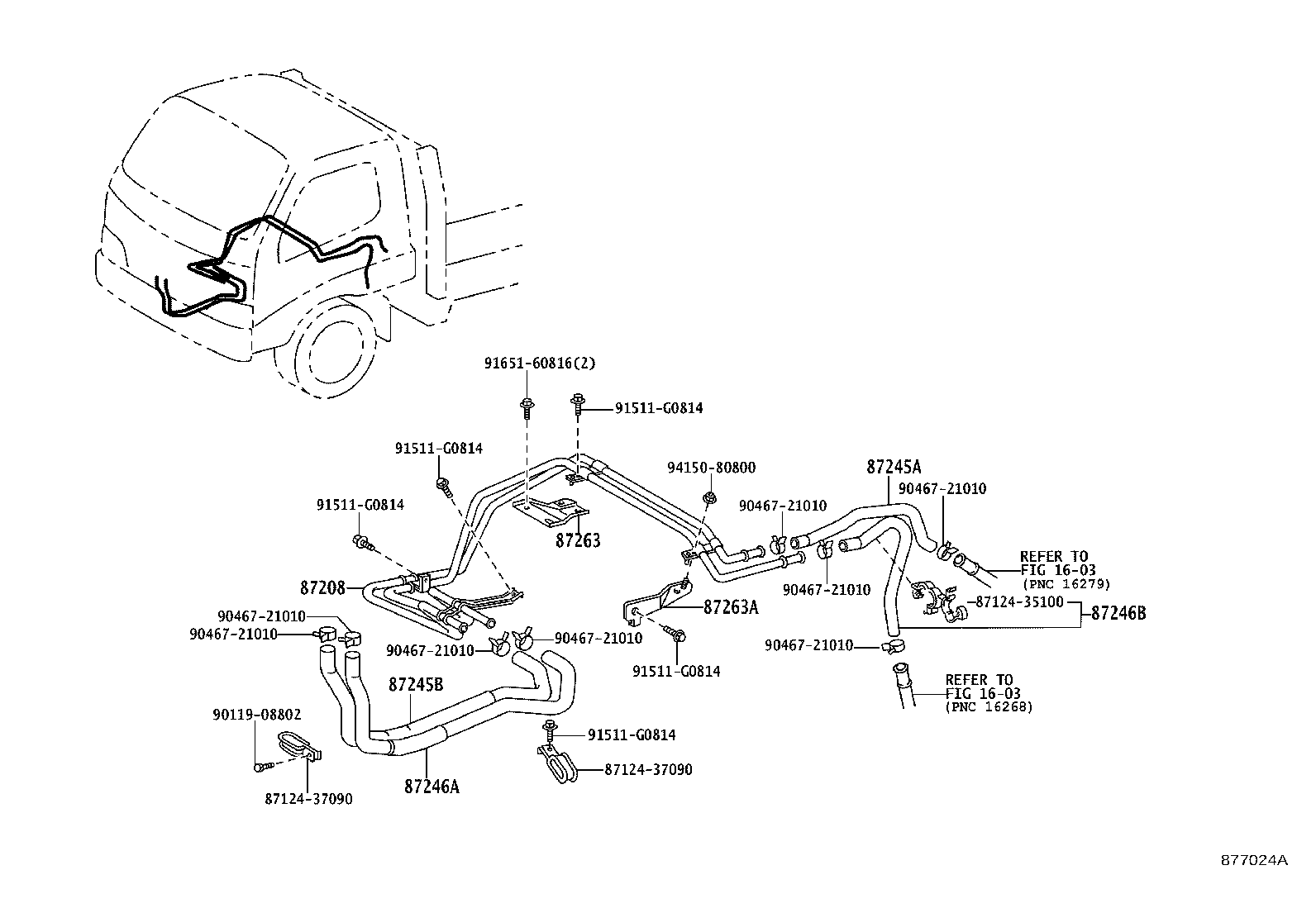

Click highlighted areas on diagram

diagram 1603 1603 8712435100 8712437090 8712437090 87208 87245A 87245B 87246A 87246B 87263 87263A 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 9165160816 9415080800
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-37401

RZU30#..LPG

 1
87208-37401

RZU30#..LPG

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3V440

RZU30#..LPG

 1
87245B - HOSE, HEATER WATER, INLET B
87246-37420

RZU30#..LPG

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3V430

RZU30#..LPG

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37410

RZU30#..LPG

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-37070

RZU30#..LPG

 1
87263-37070

RZU30#..LPG

 1
87263A - BRACKET, HEATER WATER PIPE, NO.2
87263-37080

RZU30#..LPG

 1
87263-37080

RZU30#..LPG

 1
Common parts
87124-35100
87124-37090
90119-08802
90467-21010
91511-G0814
91651-60816
94150-80800
Linked diagrams
1603
