RZU301-TQMMC3 (2003)
Toyota Dyna/Toyoace
Production
Jun 2003
-
May 2007
Engine
3RZFPE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0406- )RZU30#,340

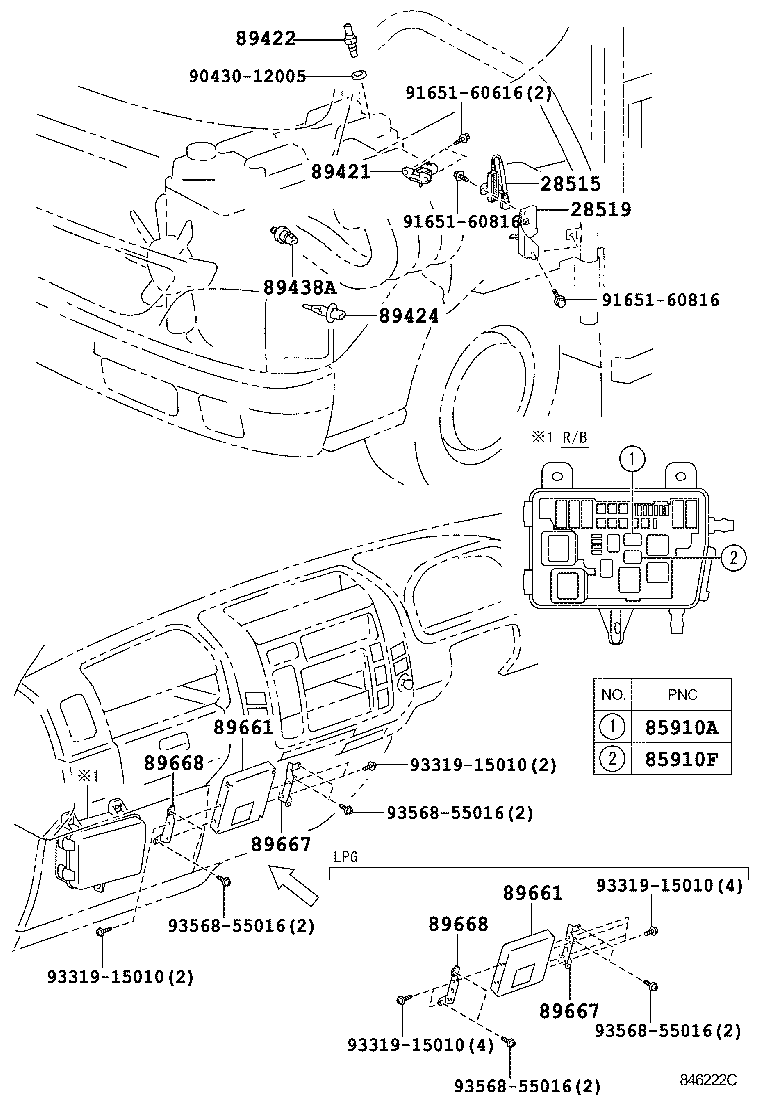

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-73020 |
3RZFPE..RZU30# |
1 | ||
| 28515-73020 |
3RZFPE,3RZFP..RZU30# |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-75010 |
3RZFPE..RZU30# |
1 | ||
| 28519-75010 |
3RZFPE,3RZFP..RZU30# |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-20190 |
RZU30#..LPG |
1 | ||
| 89421-20190 |
RZU30#..LPG |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-35010 |
RZU30#,340 |
1 | ||
| 89422-35010 |
RZU30#,340 |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
RZU30#..LPG |
1 | ||
| 89438A - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-30010 |
RZU30#..LPG |
1 | ||
| 89438-30010 |
RZU30#..LPG |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-37220 |
RZU30#..5F..LPG FUJITSU TEN |
1 | ||
| 89661-37220 |
RZU30#..5F..LPG FUJITSU TEN |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-37220 |
RZU30#..5F..LPG FUJITSU TEN |
1 | ||
| 89661-37220 |
RZU30#..5F..LPG FUJITSU TEN |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-37010 |
RZU30#..LPG |
1 | ||
| 89667-37010 |
RZU30#..LPG |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-37010 |
RZU30#..LPG |
1 | ||
| 89667-37010 |
RZU30#..LPG |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-37010 |
RZU30#..LPG |
1 | ||
| 89668-37010 |
RZU30#..LPG |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-37010 |
RZU30#..LPG |
1 | ||
| 89668-37010 |
RZU30#..LPG |
1 | ||
| Common parts | ||||
| 90430-12005 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 93319-15010 | ||||
| 93568-55016 | ||||
