Toyota Dyna/toyoace RZU301 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
RZU301-TQMMC3 (2003)
8401 - SWITCH & RELAY & COMPUTER

RZU301-TQMMC3 (2003)

Toyota Dyna/Toyoace

Production Jun 2003 - May 2007

Engine 3RZFPE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF10(9905-0406)XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20040	RZU30#,340	06/2004 - 05/2007	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	RZU30#,340 DENSO	06/2004 - 05/2007	1
83530-60020	RZU30#,340 YAZAKI	06/2004 - 05/2007	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-37011	RZU30#,340	06/2004 - 12/2999	1
Common parts
90031-05001
90031-19110
90034-01011
90034-30041
90202-10012
90404-10024

ILLUST NO. 2 OF10(0406- )BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..CNG,DSL,EFI,LPG

Click highlighted areas on diagram

ﾄﾗﾝｽﾐﾂｼﾖﾝ & ﾄﾗﾝｽﾌｱ

Part #	Description	Period	Qty
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210-12040	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84210-12040	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210-12040	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84210-12040	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84225A - SWITCH, SHIFT POSITION
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84225A - SWITCH, SHIFT POSITION
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84225A - SWITCH, SHIFT POSITION
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540-37020	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84540-37020	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540-37020	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84540-37020	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1

ILLUST NO. 2 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ﾄﾗﾝｽﾐﾂｼﾖﾝ & ﾄﾗﾝｽﾌｱ

Part #	Description	Period	Qty
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210-12040	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84210-12040	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210-12040	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84210-12040	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84225A - SWITCH, SHIFT POSITION
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84225A - SWITCH, SHIFT POSITION
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84225A - SWITCH, SHIFT POSITION
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84225-37020	XZU300,301,302,306,31#,32#,330,331,34#,35#..MTM..WT	05/1999 - 05/2000	1
84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540-37020	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84540-37020	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540-37020	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1
84540-37020	BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)	06/2004 - 05/2007	1

ILLUST NO. 4 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

R/B NO.2

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
90987-02025	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
28300 - RELAY ASSY, STARTER
90987-02025	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
28371 - RELAY, IGNITION, NO.1
90987-02009	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
28521A - RELAY, LPG PREHEATER CUT
90987-02025	1BZFPE,3RZFPE..BZU300,340,RZU30#	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 15A,ﾐﾆﾋｭｰｽﾞ,青	06/2004 - 05/2007	1
90982-09008	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 05/2007	1
90982-09009	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 10A,ﾐﾆﾋｭｰｽﾞ,赤	06/2004 - 05/2007	1
90982-09011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 20A,ﾐﾆﾋｭｰｽﾞ,黄	06/2004 - 05/2007	1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-37180	BZU300,340,RZU30#,340	06/2003 - 06/2004	1
82620-37180	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
82622A - COVER, FUSIBLE LINK, UPPER, NO.2
82622-37020	BZU300,340,RZU30#,340	06/2003 - 06/2004	1
82622-37020	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-37060	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
82660-37060	BU30#,346,BZU300,340,RZU301	05/1999 - 06/2004	1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-37060	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
82660-37060	BU30#,346,BZU300,340,RZU301	05/1999 - 06/2004	1
82660D - BLOCK ASSY, RELAY
82660-37070	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82660-37070	BZU300,340,RZU30#,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,LPG	06/2004 - 05/2007	1
82660D - BLOCK ASSY, RELAY
82660-37070	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82660-37070	BZU300,340,RZU30#,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,LPG	06/2004 - 05/2007	1
82660D - BLOCK ASSY, RELAY
82660-37070	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82660-37070	BZU300,340,RZU30#,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,LPG	06/2004 - 05/2007	1
82661 - COVER, RELAY BLOCK, NO.1
82661-37020	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82661-37020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
82661 - COVER, RELAY BLOCK, NO.1
82661-37020	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82661-37020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
82661 - COVER, RELAY BLOCK, NO.1
82661-37020	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82661-37020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37131	RZU30#..LPG	05/2004 - 06/2004	1
82662-37131	RZU30#..LPG	06/2004 - 12/2999	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37131	RZU30#..LPG	05/2004 - 06/2004	1
82662-37131	RZU30#..LPG	06/2004 - 12/2999	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37131	RZU30#..LPG	05/2004 - 06/2004	1
82662-37131	RZU30#..LPG	06/2004 - 12/2999	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37070	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB	06/2003 - 06/2004	1
82663-37070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 05/2007	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37070	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB	06/2003 - 06/2004	1
82663-37070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 05/2007	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37070	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB	06/2003 - 06/2004	1
82663-37070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 05/2007	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37070	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB	06/2003 - 06/2004	1
82663-37070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 05/2007	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37070	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB	06/2003 - 06/2004	1
82663-37070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 05/2007	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37070	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB	06/2003 - 06/2004	1
82663-37070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 05/2007	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-37011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-37011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-37011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB	05/1999 - 06/2004	1
82760-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB	05/1999 - 06/2004	1
82760-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB	05/1999 - 06/2004	1
82760-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB	05/1999 - 06/2004	1
82760-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB	05/1999 - 06/2004	1
82760-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB	05/1999 - 06/2004	1
82760-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
85910T - RELAY, LPG
90987-02012	BZU300,340,RZU30#..CNG,LPG	06/2004 - 12/2999	1
85915 - RELAY, MAIN
90987-02012	BZU300,340,RZU30#..CNG,LPG	06/2004 - 12/2999	1
Common parts
82715-26520
82717-37010
82729-37160
90179-06158
90179-06171
90179-08233
90179-10015
91512-81016
91651-60816
91651-B0820
91651-B0825
94130-00802
Linked diagrams
8202
8405
8414

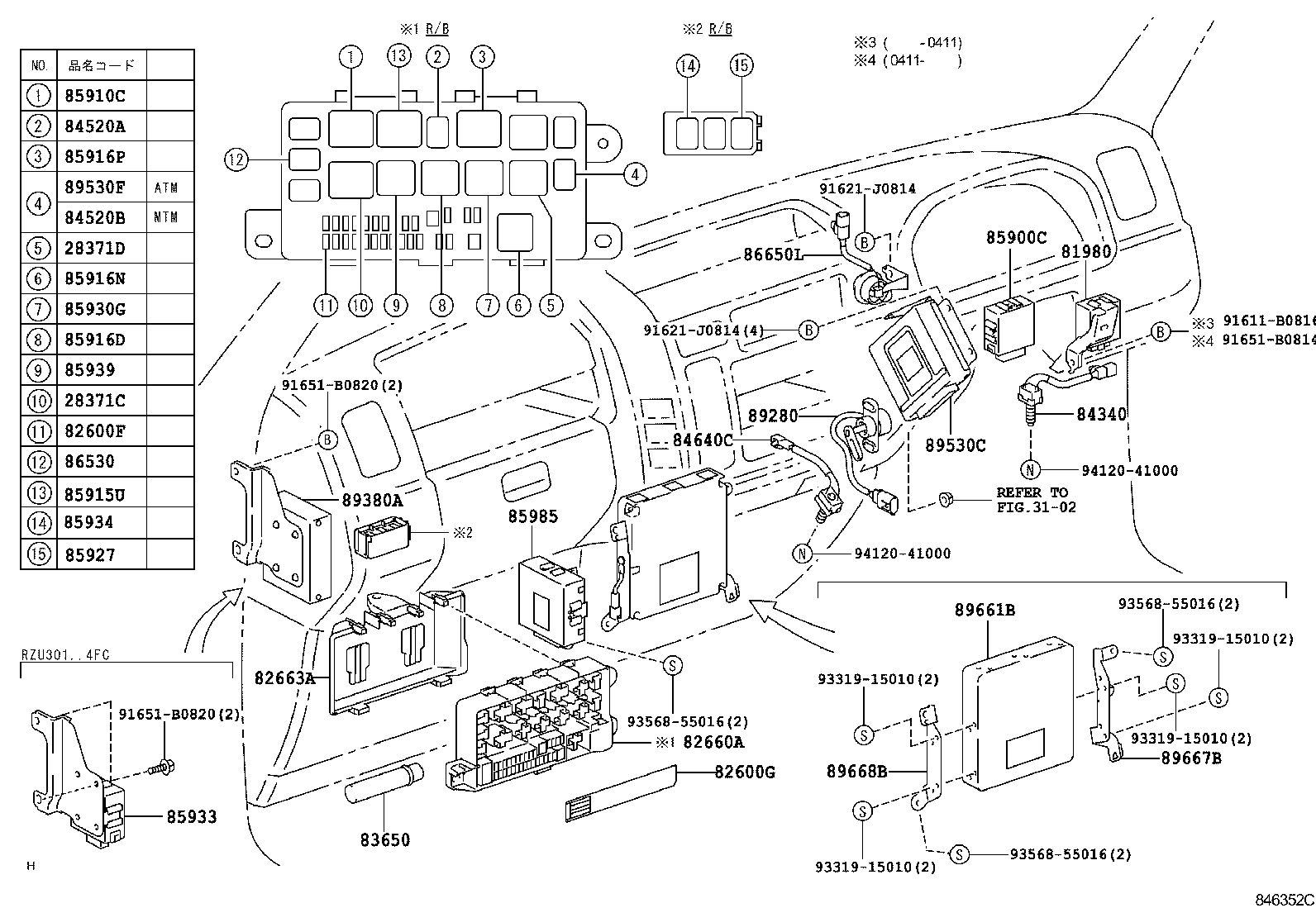

ILLUST NO. 5 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ

Part #	Description	Period	Qty
28371C - RELAY, IGNITION, NO.2
90987-02025	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
28371D - RELAY, IGNITION, NO.3
90987-02009	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-25100	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 15A,ﾐﾆﾋｭｰｽﾞ,青	06/2004 - 05/2007	1
90982-09008	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 05/2007	1
90982-09009	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 10A,ﾐﾆﾋｭｰｽﾞ,赤	06/2004 - 05/2007	1
90982-09011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 20A,ﾐﾆﾋｭｰｽﾞ,黄	06/2004 - 05/2007	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-37280	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82660A - BLOCK ASSY, RELAY, COWL SIDE
82660-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB	05/1999 - 06/2004	1
82660-37030	BZU300,340,RZU30#,340	06/2004 - 05/2005	1
82660C - BLOCK ASSY, RELAY
82660-26150	XZU301..IV6..4NO;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,311,341,346..(DM5,T4)..(20T,30T)..DSLL;BU30#,346,BZU300,340,RZU301,XZU351,352..SCB..(DM5,DM6,T1,T2,T3,T4,T5)	05/1999 - 06/2004	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-37030	BZU300,340,RZU30#,340	06/2004 - 05/2005	1
82663-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB	05/1999 - 06/2004	1
83650 - FUSEE
90986-01005	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
90986-01005	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
84340 - SWITCH ASSY, STOP LAMP
84340-37020	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
84340-37020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
84520A - RELAY, CLUTCH START IG
90987-02012	BZU300,340,RZU301,340..T4..5F..20T..IV3	06/2004 - 12/2999	1
90987-02012	BZU300,340,RZU30#,340..SCB..T4..5F..20T..IV3	06/2003 - 06/2004	1
84520B - RELAY, CLUTCH START
90987-04004	BZU300,340,RZU301,340..T4..5F..20T..IV3	06/2004 - 12/2999	1
90987-04004	BZU300,340,RZU30#,340..SCB..T4..5F..20T..IV3	06/2003 - 06/2004	1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37050	XZU306..5F..DSL;XZU306..T5..DSLL;XZU301..5F..DSL..IV3;XZU306..5F..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);BZU300,340,RZU301..T4..5F..20T..IV3;BU30#,346,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL)	05/1999 - 06/2004	1
84640-37050	BZU300..T4..20T..IV3;BZU340,RZU301,340,XZU305..5F..20T..IV3;XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04010	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85915U - RELAY, FIRE, NO.1
90987-02025	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85916D - RELAY, FOG LAMP
90987-02009	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85916N - RELAY, TAIL LAMP
90987-02009	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85916P - RELAY, HEADLAMP
90987-02025	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85927 - RELAY, COOLING FAN
90987-02012	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
85930G - RELAY, ACC
90987-02009	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85934 - RELAY, MAGNET-CLUTCH
90987-02012	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
85939 - RELAY, POWER WINDOW
90987-02009	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85985 - RELAY, KEY REMINDER
80590-37110	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
86530 - RELAY ASSY, HORN
90987-02012	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
86650L - BUZZER ASSY, VACUUM WARNING
86650-37100	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
89280 - SENSOR ASSY, CLUTCH PEDAL STROKE
89280-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 05/2007	1
89280-37010	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
89380A - COMPUTER ASSY, ES START
89380-37070	BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
Common parts
91611-B0816
91621-J0814
91651-B0820
93319-15010
93568-55016
94120-41000
Linked diagrams
3102
8202

ILLUST NO. 6 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｽｲﾂﾁ 1/2

Part #	Description	Period	Qty
84172 - SWITCH, ROOM LAMP
84270-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB	05/1999 - 06/2004	1
84270-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-25060	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860	BZU300,340,RZU30#,340 14V 0.91W	06/2004 - 12/2999	1
84660C - SWITCH, COOLER
84660-37040	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
84660D - BULB(FOR COOLER SWITCH)
88607-16010	BZU300,340,RZU30#,340 14V 0.065A	06/2004 - 12/2999	1
84873A - SWITCH, RETRACTABLE OUTER MIRROR
84873-37020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
84873-37020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Linked diagrams
8302
8413
8420

ILLUST NO. 1 OF10(0310-0406)XZU304,305,344 ; (0406- )XZU304,305,308,314,334,338,344,348,354,368,3

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20040	RZU30#,340	06/2004 - 05/2007	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	RZU30#,340 DENSO	06/2004 - 05/2007	1
83530-60020	RZU30#,340 YAZAKI	06/2004 - 05/2007	1
Common parts
90034-30041
90119-08676
90179-08233
90202-10012

ILLUST NO. 5 OF10(0406- )BZU300,340,RZU30#,340

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ

Part #	Description	Period	Qty
28371C - RELAY, IGNITION, NO.2
90987-02025	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
28371D - RELAY, IGNITION, NO.3
90987-02009	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-25100	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 15A,ﾐﾆﾋｭｰｽﾞ,青	06/2004 - 05/2007	1
90982-09008	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 05/2007	1
90982-09009	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 10A,ﾐﾆﾋｭｰｽﾞ,赤	06/2004 - 05/2007	1
90982-09011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 20A,ﾐﾆﾋｭｰｽﾞ,黄	06/2004 - 05/2007	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-37280	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82660A - BLOCK ASSY, RELAY, COWL SIDE
82660-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB	05/1999 - 06/2004	1
82660-37030	BZU300,340,RZU30#,340	06/2004 - 05/2005	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-37030	BZU300,340,RZU30#,340	06/2004 - 05/2005	1
82663-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB	05/1999 - 06/2004	1
83650 - FUSEE
90986-01005	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
90986-01005	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
84340 - SWITCH ASSY, STOP LAMP
84340-37020	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
84340-37020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
84520A - RELAY, CLUTCH START IG
90987-02012	BZU300,340,RZU301,340..T4..5F..20T..IV3	06/2004 - 12/2999	1
90987-02012	BZU300,340,RZU30#,340..SCB..T4..5F..20T..IV3	06/2003 - 06/2004	1
84520B - RELAY, CLUTCH START
90987-04004	BZU300,340,RZU301,340..T4..5F..20T..IV3	06/2004 - 12/2999	1
90987-04004	BZU300,340,RZU30#,340..SCB..T4..5F..20T..IV3	06/2003 - 06/2004	1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37050	XZU306..5F..DSL;XZU306..T5..DSLL;XZU301..5F..DSL..IV3;XZU306..5F..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);BZU300,340,RZU301..T4..5F..20T..IV3;BU30#,346,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL)	05/1999 - 06/2004	1
84640-37050	BZU300..T4..20T..IV3;BZU340,RZU301,340,XZU305..5F..20T..IV3;XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04010	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85915U - RELAY, FIRE, NO.1
90987-02025	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85916D - RELAY, FOG LAMP
90987-02009	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85916N - RELAY, TAIL LAMP
90987-02009	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85916P - RELAY, HEADLAMP
90987-02025	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85927 - RELAY, COOLING FAN
90987-02012	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
85930G - RELAY, ACC
90987-02009	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85934 - RELAY, MAGNET-CLUTCH
90987-02012	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
85939 - RELAY, POWER WINDOW
90987-02009	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85985 - RELAY, KEY REMINDER
80590-37110	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
86530 - RELAY ASSY, HORN
90987-02012	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
86650L - BUZZER ASSY, VACUUM WARNING
86650-37100	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
89280 - SENSOR ASSY, CLUTCH PEDAL STROKE
89280-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 05/2007	1
89280-37010	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
89380A - COMPUTER ASSY, ES START
89380-37070	BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
Common parts
91611-B0816
91621-J0814
91651-B0814
91651-B0820
93319-15010
93568-55016
94120-41000
Linked diagrams
3102

ILLUST NO. 6 OF10(0406- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｽｲﾂﾁ

Part #	Description	Period	Qty
84152 - SWITCH, HEADLAMP LEVELING
84152-37020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	05/2005 - 12/2999	1
84172 - SWITCH, ROOM LAMP
84270-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB	05/1999 - 06/2004	1
84270-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
84270B - SWITCH ASSY, BRAKE LOCK
84270-37040	BZU300..T4..LPG;XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU302..5F..IV3..1NO;XZU301..5F..DSLL..IV4;XZU301..DSLL..IV3..4NO;XZU301..T4..4FC..IV3..1NO;BU301,BZU340,XZU350..(DSL,LPG)..1NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;BZU300,XZU306,331..(DM6,T3,T5)..5F..(CNG,DSLL,LPG);XZU300,301,330..(DM6,T3,T4,T5)..5F..(CNG,DSL,LPG)..(IV3,IV6,IV7)	05/1999 - 06/2004	1
84270D - SWITCH ASSY, ES START TIMING
84270-37110	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
84270-37110	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	06/2003 - 06/2004	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-25060	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860	BZU300,340,RZU30#,340 14V 0.91W	06/2004 - 12/2999	1
84660C - SWITCH, COOLER
84660-37040	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
84660D - BULB(FOR COOLER SWITCH)
88607-16010	BZU300,340,RZU30#,340 14V 0.065A	06/2004 - 12/2999	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-37060	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	BZU300,340,RZU30#,340 14V 1.4W	06/2004 - 05/2007	1
84730S - BULB, HEATER BLOWER SWITCH
90010-01154	BZU300,340,RZU30#,340 14V 1.4W,ｷｬｯﾌﾟ付き	06/2004 - 05/2007	1
84873A - SWITCH, RETRACTABLE OUTER MIRROR
84873-37020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
84873-37020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12240	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER
85510-16040	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
85513-12020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-26010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
Linked diagrams
5551
7851
8302
8413
8420

ILLUST NO. 4 OF10(0406- )SCB

Click highlighted areas on diagram

R/B NO.2

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
90987-02025	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
28300 - RELAY ASSY, STARTER
90987-02025	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
28371 - RELAY, IGNITION, NO.1
90987-02009	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
28371 - RELAY, IGNITION, NO.1
90987-02009	1BZ#,3RZ#..BZU300,340,RZU30#,340	06/2004 - 12/2999	1
28521A - RELAY, LPG PREHEATER CUT
90987-02025	1BZFPE,3RZFPE..BZU300,340,RZU30#	06/2004 - 12/2999	1
28521A - RELAY, LPG PREHEATER CUT
90987-02025	1BZFPE,3RZFPE..BZU300,340,RZU30#	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 15A,ﾐﾆﾋｭｰｽﾞ,青	06/2004 - 05/2007	1
90982-09008	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 05/2007	1
90982-09009	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 10A,ﾐﾆﾋｭｰｽﾞ,赤	06/2004 - 05/2007	1
90982-09011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 20A,ﾐﾆﾋｭｰｽﾞ,黄	06/2004 - 05/2007	1
82600F - FUSE, FUSE BLOCK
90982-09010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 15A,ﾐﾆﾋｭｰｽﾞ,青	06/2004 - 05/2007	1
90982-09008	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 05/2007	1
90982-09009	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 10A,ﾐﾆﾋｭｰｽﾞ,赤	06/2004 - 05/2007	1
90982-09011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 20A,ﾐﾆﾋｭｰｽﾞ,黄	06/2004 - 05/2007	1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-37180	BZU300,340,RZU30#,340	06/2003 - 06/2004	1
82620-37180	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
82622A - COVER, FUSIBLE LINK, UPPER, NO.2
82622-37020	BZU300,340,RZU30#,340	06/2003 - 06/2004	1
82622-37020	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-37060	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
82660-37060	BU30#,346,BZU300,340,RZU301	05/1999 - 06/2004	1
82660D - BLOCK ASSY, RELAY
82660-37070	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82660-37070	BZU300,340,RZU30#,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,LPG	06/2004 - 05/2007	1
82660D - BLOCK ASSY, RELAY
82660-37070	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82660-37070	BZU300,340,RZU30#,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,LPG	06/2004 - 05/2007	1
82661 - COVER, RELAY BLOCK, NO.1
82661-37020	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82661-37020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
82661 - COVER, RELAY BLOCK, NO.1
82661-37020	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82661-37020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37131	RZU30#..LPG	05/2004 - 06/2004	1
82662-37131	RZU30#..LPG	06/2004 - 12/2999	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37131	RZU30#..LPG	05/2004 - 06/2004	1
82662-37131	RZU30#..LPG	06/2004 - 12/2999	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37070	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB	06/2003 - 06/2004	1
82663-37070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 05/2007	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37070	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB	06/2003 - 06/2004	1
82663-37070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 05/2007	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-37011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-37011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB	05/1999 - 06/2004	1
82760-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB	05/1999 - 06/2004	1
82760-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
85910T - RELAY, LPG
90987-02012	BZU300,340,RZU30#..CNG,LPG	06/2004 - 12/2999	1
85910T - RELAY, LPG
90987-02012	BZU300,340,RZU30#..CNG,LPG	06/2004 - 12/2999	1
85915 - RELAY, MAIN
90987-02012	BZU300,340,RZU30#..CNG,LPG	06/2004 - 12/2999	1
85915 - RELAY, MAIN
90987-02012	BZU300,340,RZU30#..CNG,LPG	06/2004 - 12/2999	1
Common parts
90179-06158
Linked diagrams
8404
8405
8414

ILLUST NO. 6 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｽｲﾂﾁ 2/2

Part #	Description	Period	Qty
84270B - SWITCH ASSY, BRAKE LOCK
84270-37040	BZU300..T4..LPG;XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU302..5F..IV3..1NO;XZU301..5F..DSLL..IV4;XZU301..DSLL..IV3..4NO;XZU301..T4..4FC..IV3..1NO;BU301,BZU340,XZU350..(DSL,LPG)..1NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;BZU300,XZU306,331..(DM6,T3,T5)..5F..(CNG,DSLL,LPG);XZU300,301,330..(DM6,T3,T4,T5)..5F..(CNG,DSL,LPG)..(IV3,IV6,IV7)	05/1999 - 06/2004	1
84270D - SWITCH ASSY, ES START TIMING
84270-37110	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
84270-37110	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	06/2003 - 06/2004	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-37060	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	BZU300,340,RZU30#,340 14V 1.4W	06/2004 - 05/2007	1
84730S - BULB, HEATER BLOWER SWITCH
90010-01154	BZU300,340,RZU30#,340 14V 1.4W,ｷｬｯﾌﾟ付き	06/2004 - 05/2007	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12240	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER
85510-16040	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
85513-12020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-26010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
Linked diagrams
5551

RZU301-TQMMC3 (2003)

ILLUST NO. 1 OF10(9905-0406)XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

ILLUST NO. 2 OF10(0406- )BZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..CNG,DSL,EFI,LPG

ILLUST NO. 2 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 4 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 5 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 6 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 1 OF10(0310-0406)XZU304,305,344 ; (0406- )XZU304,305,308,314,334,338,344,348,354,368,3

ILLUST NO. 5 OF10(0406- )BZU300,340,RZU30#,340

ILLUST NO. 6 OF10(0406- )

ILLUST NO. 4 OF10(0406- )SCB

ILLUST NO. 6 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Part Price Details
