Toyota Dyna/toyoace RZU301 WIRING & CLAMP

RZU301-TQMMC3 (2003)

Toyota Dyna/Toyoace

Production Jun 2003 - May 2007

Engine 3RZFPE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 6(9905-0406)XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,3

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-37P70	RZU301..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37P70	06/2003 - 06/2004	1
82111-37P60	RZU30#..5F..LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37P60	06/2003 - 06/2004	1
82111-37P60	RZU30#..5F..LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37P60	06/2004 - 12/2999	1
82111-37P70	RZU301..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37P70	06/2004 - 12/2999	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37010	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#	05/1999 - 06/2004	1
82114-37010	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 05/2005	1
82114-37070	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	05/2005 - 12/2999	1
82121 - WIRE, ENGINE
82121-37A50	RZU30#..5F..LPG	06/2003 - 06/2004	1
82121-37A50	RZU30#..5F..LPG	06/2004 - 05/2007	1
82210C - FUSIBLE LINK
90982-08280	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 30A,ﾒｽ端子,桃	06/2004 - 05/2007	1
90982-08203	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒	05/1999 - 06/2004	1
90982-08202	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄	05/1999 - 06/2004	1
90982-08282	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤	05/1999 - 06/2004	1
90982-08246	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青	05/1999 - 06/2004	1
90982-08286	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶	05/1999 - 06/2004	1
90982-08280	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃	05/1999 - 06/2004	1
82666A - HOLDER, CONNECTOR NO.2
82666-37130	XZU302..20T..DSL;XZU321..DM7..4NO;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU301..4FC..20T..DSL;XZU306..4FC..DSLL..IV3;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,306,322..SCB..(DM3,DM6,T3,T5)..5F..DSL;BZU300,XZU306,322,347,372,382..SCB..(DM6,DM7,DM8,T2,T3,T4)..(CNG,DSL,LPG);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,346,35#,362..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
82666-37130	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82672 - COVER, JUNKTION BLOCK
82672-37030	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
82672-37030	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82673 - BRACKET, JUNCTION BLOCK
82670-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82670-37010	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82674B - COVER, JUNCTION BLOCK, LOWER
82674-37010	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
82674-37010	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;BU306,XZU306..(SCB,VAN)..DSL;XZU301,331..5F..DSLL..(CBU,IV4);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82823-22050	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
Common parts
90119-08375
91651-40816
91651-60816
Linked diagrams
8201
8401

ILLUST NO. 3 OF 6(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-37C00	RZU301..5F ﾅｼ(ABS)	06/2003 - 06/2004	1
82131-37B90	RZU30#..5F..LPG	06/2003 - 06/2004	1
82131-37D00	RZU301..5F..IV3 ﾔﾏﾄｳﾝﾕｼﾖｳ	06/2003 - 06/2004	1
82131-37D10	RZU301..5F..IV3 ﾔﾏﾄｳﾝﾕｼﾖｳ & ﾅｼ(ABS)	06/2003 - 06/2004	1
82131-37M40	RZU301..5F..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37M40	06/2004 - 05/2005	1
82131-37M20	RZU301..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37M20	06/2004 - 05/2005	1
82131-37M10	RZU30#..5F..LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37M10	06/2004 - 05/2005	1
82131-37M50	RZU301..5F..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37M50	06/2004 - 05/2005	1
82131-37U90	RZU301..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37U90	05/2005 - 12/2999	1
82131-37U80	RZU30#..5F..LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37U80	05/2005 - 12/2999	1
82131-37V20	RZU301..5F..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37V20	05/2005 - 12/2999	1
82131-37V10	RZU301..5F..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37V10	05/2005 - 12/2999	1
82210C - FUSIBLE LINK
90982-08203	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒	05/1999 - 06/2004	1
90982-08202	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄	05/1999 - 06/2004	1
90982-08282	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤	05/1999 - 06/2004	1
90982-08246	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青	05/1999 - 06/2004	1
90982-08286	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶	05/1999 - 06/2004	1
90982-08280	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃	05/1999 - 06/2004	1
90982-08280	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 30A,ﾒｽ端子,桃	06/2004 - 05/2007	1
82666C - HOLDER, CONNECTOR NO.4
82666-37080	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82666D - HOLDER, CONNECTOR NO.5
82666-37090	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82666E - HOLDER, CONNECTOR NO.6
82666-37120	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82666F - HOLDER, CONNECTOR NO.7
82666-21040	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306,372,382..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362..(DCB,SCB)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
82666G - HOLDER, CONNECTOR NO.8
82666-35040	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306,372,382..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362..(DCB,SCB)..(CBU,IV3,IV6)	05/1999 - 06/2004	3
Common parts
90119-06915
91626-40620
Linked diagrams
8401

ILLUST NO. 4 OF 6(9905-0406)SCB

Click highlighted areas on diagram

ﾎﾞﾃﾞ-

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-37320	RZU300..SCB..(T2,T3,T4);BZU300,340,RZU301,340,XZU30#,33#,34#,368,378,388..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,30T)..(CBU,IV3,IV4)	06/2004 - 12/2999	1
82151-37410	BZU300,340..T3,T4;RZU30#,340,XZU301,304,306,308,33#,341,346,348,368,378,388..SCB..(T1,T2,T3,T4,T5)..(DSL,EFI,LPG)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷｰ)	06/2004 - 12/2999	1
82151-37221	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;BZU300,340,RZU300..DM6,T2,T3,T4;RZU301,340,XZU304,305,306,308,31#,321,33#,34#,35#,368,378,388..(175T,20T,30T)..(CBU,IV3,IV4,IV7) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	06/2004 - 12/2999	1
82151-37380	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,31#,35#,368..(DM2,DM5,T1,T3,T4,T5)..(CBU,IV3,IV7);BZU300,340,RZU30#,340,XZU306,308,321,33#,34#,378,388..(03S,06S,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3) ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾜｲﾔﾚｽﾄﾞｱｷｰ)	06/2004 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-37330	BZU300..CNG;BZU340,RZU301;BZU300..(T3,T4)..LPG ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	06/2003 - 06/2004	1
82152-37300	BZU300,340,RZU301 ﾅｼ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	06/2003 - 06/2004	1
82152-37420	RZU301..5F..IV3 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	06/2004 - 12/2999	1
82152-37350	RZU300..SCB..(T2,T3,T4);BZU300,340,RZU301,340,XZU30#,33#,34#,368,378,388..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,30T)..(CBU,IV3,IV4)	06/2004 - 12/2999	1
82152-37430	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	06/2004 - 12/2999	1
82152-37470	BZU300,340..T3,T4;RZU30#,340,XZU301,304,306,308,33#,341,346,348,368,378,388..SCB..(T1,T2,T3,T4,T5)..(DSL,EFI,LPG)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷｰ)	06/2004 - 12/2999	1
82152-37480	BZU300,340..T3,T4;RZU30#,340,XZU301,304,306,308,33#,341,346,348,368,378,388..SCB..(T1,T2,T3,T4,T5)..(DSL,EFI,LPG)..(CBU,IV3) ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾜｲﾔﾚｽﾄﾞｱｷｰ)	06/2004 - 12/2999	1
82161 - WIRE, FLOOR
82161-37040	XZU362..1NO;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,372,382..SCB	05/1999 - 06/2004	1
82161-37060	XZU362..1NO;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,372,382..SCB..(DSL,DSLL,EFI,LPG) ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	05/1999 - 06/2004	1
82161-37050	XZU362..1NO;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,372,382..SCB ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ)	05/1999 - 06/2004	1
82161-37040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB	06/2004 - 12/2999	1
82161-37050	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
82161-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB..(DCRL,DSL,DSLL,EFI,LPG) ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
82164 - WIRE, FRAME
82137-37220	RZU301..5F ﾀﾞﾝﾌﾟｼﾘｰｽﾞ & ﾅｼ(ABS)	06/2003 - 06/2004	1
82137-37210	BZU300,RZU30#..T2,T4	06/2004 - 12/2999	1
82137-37250	RZU301..5F..IV3 ﾄｸｿｳｼﾔ	06/2004 - 12/2999	1
82164-37B50	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
82165 - WIRE, FRAME, NO.2
82165-37120	RZU301..5F..IV3;XZU301,302,362..DM3,DM5,DM7 ﾀﾞﾝﾌﾟｼﾖｳ	05/1999 - 06/2004	1
82165-37130	XZU301..LPG;XZU331..DSL..IV4;XZU342..DSL..IV3;BU301,XZU371..T3,T4;BZU300..T4..30T..CBU;XZU307..SCB..T4..CBU;XZU301..4FC..DSL..IV4;XZU307..(T2,T5)..5F..CBU;BU301,XZU302..T5..5F..ST..CBU;XZU306,331..(T3,T5)..5F..DSLL;XZU301,372,382..DCB..5F..(IV3,IV4);XZU302,347..SCB..(T3,T4)..5F..20T..CBU;XZU301,302..(T4,T5)..WT..DSL..IV3..4NO;BU306,XZU301,306..SCB..(T2,T4)..5F..CBU..4NO;BZU300,340,RZU30#,340,XZU341..(CNG,EFI,LPG)..IV3 ｱﾘ(ｽｲﾁﾖｸﾘﾌﾄ)	05/1999 - 06/2004	1
82165-37120	XZU301..DM3;RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾖｳ	06/2004 - 05/2005	1
82165-37130	XZU301..ST..CBU;XZU306..SCB..T4;XZU306..DCB..IV3;XZU306..(T2,T5)..IV3;BZU300..T4..30T..CBU;XZU306..(T2,T5)..5F..CBU;XZU301,308..SCB..(T2,T4)..5F..CBU;XZU304,346..SCB..(T4,T5)..5F..DSL..CBU;BZU300,340,RZU30#,340,XZU301,304,305,308,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..(IV3,IV4)	06/2004 - 05/2005	1
82165-37240	BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..(IV3,IV4)	05/2005 - 12/2999	1
82169 - WIRE FRAME, NO.3
82169-37240	BZU300,340,RZU30#,340..(T2,T3,T4)..5F..(EFI,LPG) ｱﾘ(PTO)	06/2004 - 12/2999	1
82169-37250	RZU301..5F..IV3 ﾄｸｿｳｼﾔ	06/2004 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-37550	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB	06/2003 - 06/2004	1
82171-37560	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB ｱﾘ(ｹｲｺｳﾄｳﾙ-ﾑﾗﾝﾌﾟ)	06/2003 - 06/2004	1
82171-37560	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU300,XZU306..SCB..(T2,T3,T4,T5)..(CBU,IV3);BZU300,340,RZU301,340,XZU304,305,308,31#,321,33#,34#,35#,368,378,388..SCB ｱﾘ(ｹｲｺｳﾄｳﾙ-ﾑﾗﾝﾌﾟ)	06/2004 - 12/2999	1
82171-37550	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
82251 - WIRE, SPEED SENSOR
82251-37110	XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,BZU300,RZU30#,XZU302,307,337..(03S,06S,T2,T4,T5)..20T..WT	05/1999 - 06/2004	1
82251-37110	XZU308;XZU336..T2;BZU300,RZU30#,XZU301,304,306,334,338..(03S,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG)	06/2004 - 12/2999	1
82284 - WIRE, EARTH
82284-37030	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,321,322,337,341,342,346,347,351,352	05/1999 - 06/2004	1
82284-37030	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	2
82817-37110	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	2
82817-37110	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
82821A - COVER, CONNECTOR
82821-37050	XZU341..IV3;XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU341..T3..295T..CBU;XZU301..DSLL..IV3..4NO;XZU341..4FC..295T..CBU;XZU301,331..CNG,DSL,LPG;XZU306,372,382..SCB..DSL;XZU341,362..(T3,T4)..(20T,30T)..CBU;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,342,346,347,351,352,371..175T,20T,295T,30T	05/1999 - 06/2004	1
82821-37050	RZU300..DCB;RZU301..5F..IV3;XZU301,304,306..(T3,T4,T5)..(IV6,IV7);BZU300,RZU300,XZU301,304,305,31#,321,35#,368..DM2,DM3,DM5,DM6,DM7	06/2004 - 12/2999	1
Common parts
82712-37081
90119-08103
90119-08375
90119-08827
90129-08007
90463-12011
91615-60816
91651-B0820
93560-15014

ILLUST NO. 2 OF 6(9905-0406)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-37691	BZU300,340,RZU301	06/2003 - 06/2004	1
82141-37870	XZU312..30T;BU30#,346,BZU300;BZU340,RZU30#,340,XZU300,301,302,306,307,311,32#,33#,340,341,342,346,347,35#,362,372,382..MTM..(CBU,IV3,IV6,IV7) ｱﾘ(ES ｽﾀ-ﾄ)	06/2003 - 06/2004	1
82141-37730	XZU301..(T3,T4)..6FC;XZU301..6FC..20T..IV6;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 05/2005	1
82141-37A00	BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV7) ｱﾘ(ES ｽﾀ-ﾄ)	06/2004 - 05/2005	1
82141-37B90	XZU301..(T3,T4)..6FC;XZU301..6FC..20T..IV6;XZU301,368..(DM6,T3,T4,T5)..5F..(CBU,IV3);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,378,388..(DCB,SCB)..(CBU,IV3,IV7)	05/2005 - 12/2999	1
82141-37B80	XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV7) ｱﾘ(ES ｽﾀ-ﾄ)	05/2005 - 12/2999	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-37410	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..CBU,IV3,IV6	06/2004 - 12/2999	1
82219A - WIRE, SENSOR
82219-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
82219-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1

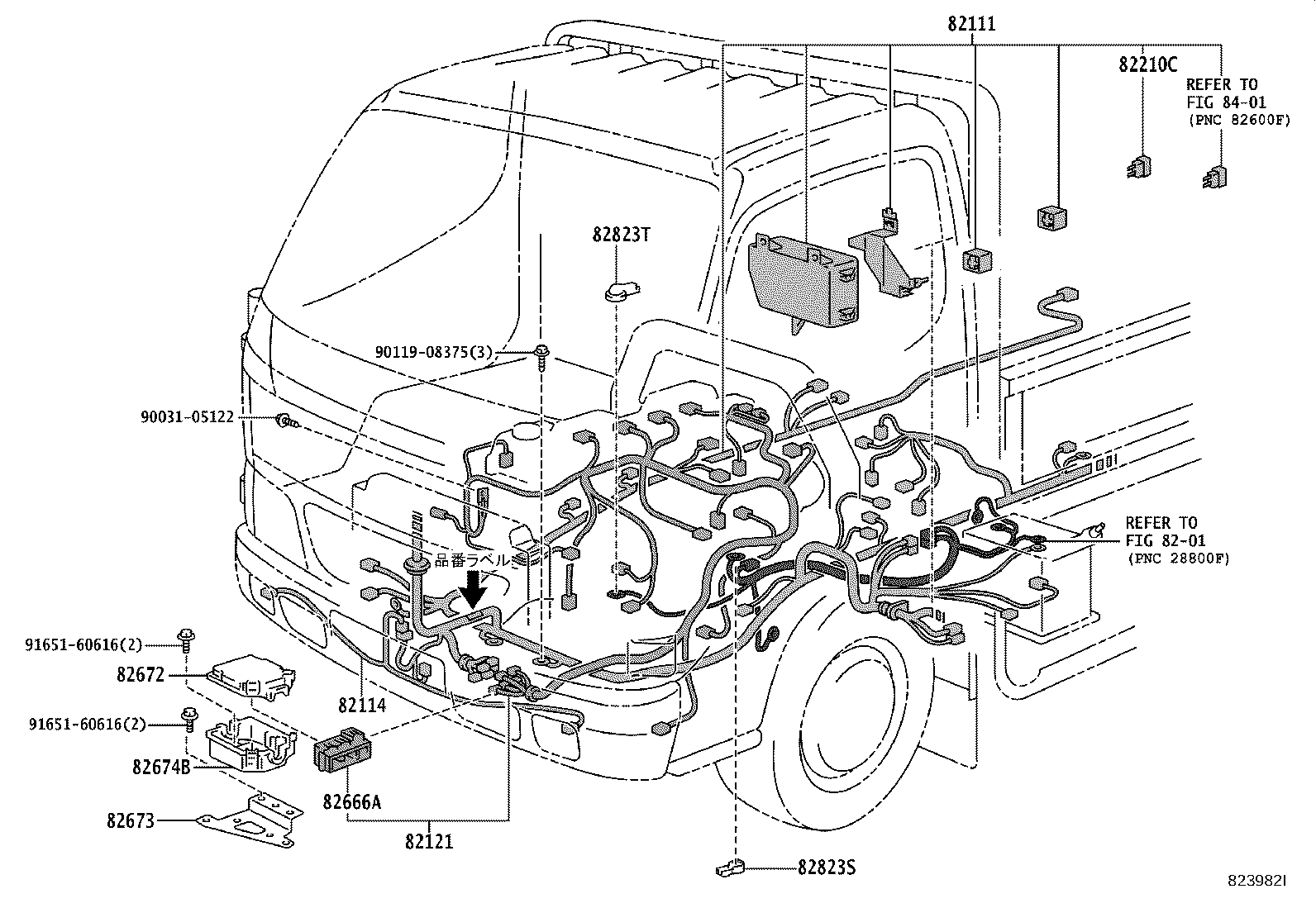

ILLUST NO. 1 OF 6(0406- )RZU30#..LPG

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-37P70	RZU301..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37P70	06/2003 - 06/2004	1
82111-37P60	RZU30#..5F..LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37P60	06/2003 - 06/2004	1
82111-37P60	RZU30#..5F..LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37P60	06/2004 - 12/2999	1
82111-37P70	RZU301..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37P70	06/2004 - 12/2999	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37010	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#	05/1999 - 06/2004	1
82114-37010	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 05/2005	1
82114-37070	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	05/2005 - 12/2999	1
82121 - WIRE, ENGINE
82121-37A50	RZU30#..5F..LPG	06/2003 - 06/2004	1
82121-37A50	RZU30#..5F..LPG	06/2004 - 05/2007	1
82210C - FUSIBLE LINK
90982-08203	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒	05/1999 - 06/2004	1
90982-08202	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄	05/1999 - 06/2004	1
90982-08282	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤	05/1999 - 06/2004	1
90982-08246	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青	05/1999 - 06/2004	1
90982-08286	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶	05/1999 - 06/2004	1
90982-08280	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃	05/1999 - 06/2004	1
90982-08280	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 30A,ﾒｽ端子,桃	06/2004 - 05/2007	1
82666A - HOLDER, CONNECTOR NO.2
82666-37130	XZU302..20T..DSL;XZU321..DM7..4NO;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU301..4FC..20T..DSL;XZU306..4FC..DSLL..IV3;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,306,322..SCB..(DM3,DM6,T3,T5)..5F..DSL;BZU300,XZU306,322,347,372,382..SCB..(DM6,DM7,DM8,T2,T3,T4)..(CNG,DSL,LPG);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,346,35#,362..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
82666-37130	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82672 - COVER, JUNKTION BLOCK
82672-37030	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
82672-37030	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82673 - BRACKET, JUNCTION BLOCK
82670-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82670-37010	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82674B - COVER, JUNCTION BLOCK, LOWER
82674-37010	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
82674-37010	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-35040	RZU30#,340	06/2004 - 05/2007	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;BU306,XZU306..(SCB,VAN)..DSL;XZU301,331..5F..DSLL..(CBU,IV4);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82823-22050	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
Common parts
90031-05122
90119-08375
91651-60616
Linked diagrams
8201
8401

ILLUST NO. 2 OF 6(0406- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-37691	BZU300,340,RZU301	06/2003 - 06/2004	1
82141-37870	XZU312..30T;BU30#,346,BZU300;BZU340,RZU30#,340,XZU300,301,302,306,307,311,32#,33#,340,341,342,346,347,35#,362,372,382..MTM..(CBU,IV3,IV6,IV7) ｱﾘ(ES ｽﾀ-ﾄ)	06/2003 - 06/2004	1
82141-37730	XZU301..(T3,T4)..6FC;XZU301..6FC..20T..IV6;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 05/2005	1
82141-37A00	BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV7) ｱﾘ(ES ｽﾀ-ﾄ)	06/2004 - 05/2005	1
82141-37B90	XZU301..(T3,T4)..6FC;XZU301..6FC..20T..IV6;XZU301,368..(DM6,T3,T4,T5)..5F..(CBU,IV3);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,378,388..(DCB,SCB)..(CBU,IV3,IV7)	05/2005 - 12/2999	1
82141-37B80	XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV7) ｱﾘ(ES ｽﾀ-ﾄ)	05/2005 - 12/2999	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-37410	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..CBU,IV3,IV6	06/2004 - 12/2999	1
82219A - WIRE, SENSOR
82219-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
82219-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1

ILLUST NO. 3 OF 6(0406- )

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-37C00	RZU301..5F ﾅｼ(ABS)	06/2003 - 06/2004	1
82131-37B90	RZU30#..5F..LPG	06/2003 - 06/2004	1
82131-37D00	RZU301..5F..IV3 ﾔﾏﾄｳﾝﾕｼﾖｳ	06/2003 - 06/2004	1
82131-37D10	RZU301..5F..IV3 ﾔﾏﾄｳﾝﾕｼﾖｳ & ﾅｼ(ABS)	06/2003 - 06/2004	1
82131-37M40	RZU301..5F..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37M40	06/2004 - 05/2005	1
82131-37M20	RZU301..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37M20	06/2004 - 05/2005	1
82131-37M10	RZU30#..5F..LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37M10	06/2004 - 05/2005	1
82131-37M50	RZU301..5F..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37M50	06/2004 - 05/2005	1
82131-37U90	RZU301..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37U90	05/2005 - 12/2999	1
82131-37U80	RZU30#..5F..LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37U80	05/2005 - 12/2999	1
82131-37V20	RZU301..5F..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37V20	05/2005 - 12/2999	1
82131-37V10	RZU301..5F..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37V10	05/2005 - 12/2999	1
82210C - FUSIBLE LINK
90982-08203	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒	05/1999 - 06/2004	1
90982-08202	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄	05/1999 - 06/2004	1
90982-08282	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤	05/1999 - 06/2004	1
90982-08246	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青	05/1999 - 06/2004	1
90982-08286	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶	05/1999 - 06/2004	1
90982-08280	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃	05/1999 - 06/2004	1
90982-08280	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 30A,ﾒｽ端子,桃	06/2004 - 05/2007	1
82666L - HOLDER, CONNECTOR NO.9
82666-37150	BZU300,340,RZU30#,340	06/2004 - 05/2005	1
82821E - COVER, CONNECTOR
82821-37080	BZU300,340,RZU30#,340,XZU304	10/2006 - 12/2999	1
Common parts
90119-06915
91626-40620
Linked diagrams
8401

ILLUST NO. 4 OF 6(0406- )SCB

Click highlighted areas on diagram

ﾎﾞﾃﾞｰ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-37320	RZU300..SCB..(T2,T3,T4);BZU300,340,RZU301,340,XZU30#,33#,34#,368,378,388..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,30T)..(CBU,IV3,IV4)	06/2004 - 12/2999	1
82151-37410	BZU300,340..T3,T4;RZU30#,340,XZU301,304,306,308,33#,341,346,348,368,378,388..SCB..(T1,T2,T3,T4,T5)..(DSL,EFI,LPG)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷｰ)	06/2004 - 12/2999	1
82151-37221	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;BZU300,340,RZU300..DM6,T2,T3,T4;RZU301,340,XZU304,305,306,308,31#,321,33#,34#,35#,368,378,388..(175T,20T,30T)..(CBU,IV3,IV4,IV7) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	06/2004 - 12/2999	1
82151-37380	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,31#,35#,368..(DM2,DM5,T1,T3,T4,T5)..(CBU,IV3,IV7);BZU300,340,RZU30#,340,XZU306,308,321,33#,34#,378,388..(03S,06S,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3) ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾜｲﾔﾚｽﾄﾞｱｷｰ)	06/2004 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-37330	BZU300..CNG;BZU340,RZU301;BZU300..(T3,T4)..LPG ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	06/2003 - 06/2004	1
82152-37300	BZU300,340,RZU301 ﾅｼ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	06/2003 - 06/2004	1
82152-37420	RZU301..5F..IV3 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	06/2004 - 12/2999	1
82152-37350	RZU300..SCB..(T2,T3,T4);BZU300,340,RZU301,340,XZU30#,33#,34#,368,378,388..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,30T)..(CBU,IV3,IV4)	06/2004 - 12/2999	1
82152-37430	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	06/2004 - 12/2999	1
82152-37470	BZU300,340..T3,T4;RZU30#,340,XZU301,304,306,308,33#,341,346,348,368,378,388..SCB..(T1,T2,T3,T4,T5)..(DSL,EFI,LPG)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷｰ)	06/2004 - 12/2999	1
82152-37480	BZU300,340..T3,T4;RZU30#,340,XZU301,304,306,308,33#,341,346,348,368,378,388..SCB..(T1,T2,T3,T4,T5)..(DSL,EFI,LPG)..(CBU,IV3) ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾜｲﾔﾚｽﾄﾞｱｷｰ)	06/2004 - 12/2999	1
82161 - WIRE, FLOOR
82161-37040	XZU362..1NO;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,372,382..SCB	05/1999 - 06/2004	1
82161-37060	XZU362..1NO;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,372,382..SCB..(DSL,DSLL,EFI,LPG) ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	05/1999 - 06/2004	1
82161-37050	XZU362..1NO;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,372,382..SCB ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ)	05/1999 - 06/2004	1
82161-37040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB	06/2004 - 12/2999	1
82161-37050	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
82161-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#..SCB..(DCRL,DSL,DSLL,EFI,LPG) ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
82164 - WIRE, FRAME
82137-37220	RZU301..5F ﾀﾞﾝﾌﾟｼﾘｰｽﾞ & ﾅｼ(ABS)	06/2003 - 06/2004	1
82137-37210	BZU300,RZU30#..T2,T4	06/2004 - 12/2999	1
82137-37250	RZU301..5F..IV3 ﾄｸｿｳｼﾔ	06/2004 - 12/2999	1
82164-37B50	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
82165 - WIRE, FRAME, NO.2
82165-37120	RZU301..5F..IV3;XZU301,302,362..DM3,DM5,DM7 ﾀﾞﾝﾌﾟｼﾖｳ	05/1999 - 06/2004	1
82165-37130	XZU301..LPG;XZU331..DSL..IV4;XZU342..DSL..IV3;BU301,XZU371..T3,T4;BZU300..T4..30T..CBU;XZU307..SCB..T4..CBU;XZU301..4FC..DSL..IV4;XZU307..(T2,T5)..5F..CBU;BU301,XZU302..T5..5F..ST..CBU;XZU306,331..(T3,T5)..5F..DSLL;XZU301,372,382..DCB..5F..(IV3,IV4);XZU302,347..SCB..(T3,T4)..5F..20T..CBU;XZU301,302..(T4,T5)..WT..DSL..IV3..4NO;BU306,XZU301,306..SCB..(T2,T4)..5F..CBU..4NO;BZU300,340,RZU30#,340,XZU341..(CNG,EFI,LPG)..IV3 ｱﾘ(ｽｲﾁﾖｸﾘﾌﾄ)	05/1999 - 06/2004	1
82165-37120	XZU301..DM3;RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾖｳ	06/2004 - 05/2005	1
82165-37130	XZU301..ST..CBU;XZU306..SCB..T4;XZU306..DCB..IV3;XZU306..(T2,T5)..IV3;BZU300..T4..30T..CBU;XZU306..(T2,T5)..5F..CBU;XZU301,308..SCB..(T2,T4)..5F..CBU;XZU304,346..SCB..(T4,T5)..5F..DSL..CBU;BZU300,340,RZU30#,340,XZU301,304,305,308,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..(IV3,IV4)	06/2004 - 05/2005	1
82165-37240	BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..(IV3,IV4)	05/2005 - 12/2999	1
82169 - WIRE FRAME, NO.3
82169-37240	BZU300,340,RZU30#,340..(T2,T3,T4)..5F..(EFI,LPG) ｱﾘ(PTO)	06/2004 - 12/2999	1
82169-37250	RZU301..5F..IV3 ﾄｸｿｳｼﾔ	06/2004 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-37550	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB	06/2003 - 06/2004	1
82171-37560	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB ｱﾘ(ｹｲｺｳﾄｳﾙ-ﾑﾗﾝﾌﾟ)	06/2003 - 06/2004	1
82171-37560	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU300,XZU306..SCB..(T2,T3,T4,T5)..(CBU,IV3);BZU300,340,RZU301,340,XZU304,305,308,31#,321,33#,34#,35#,368,378,388..SCB ｱﾘ(ｹｲｺｳﾄｳﾙ-ﾑﾗﾝﾌﾟ)	06/2004 - 12/2999	1
82171-37550	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 12/2999	1
82251 - WIRE, SPEED SENSOR
82251-37110	XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,BZU300,RZU30#,XZU302,307,337..(03S,06S,T2,T4,T5)..20T..WT	05/1999 - 06/2004	1
82251-37110	XZU308;XZU336..T2;BZU300,RZU30#,XZU301,304,306,334,338..(03S,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG)	06/2004 - 12/2999	1
82284 - WIRE, EARTH
82284-37030	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,321,322,337,341,342,346,347,351,352	05/1999 - 06/2004	1
82284-37030	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	2
82817-37110	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	2
82817-37110	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
82821A - COVER, CONNECTOR
82821-37050	XZU341..IV3;XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU341..T3..295T..CBU;XZU301..DSLL..IV3..4NO;XZU341..4FC..295T..CBU;XZU301,331..CNG,DSL,LPG;XZU306,372,382..SCB..DSL;XZU341,362..(T3,T4)..(20T,30T)..CBU;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,342,346,347,351,352,371..175T,20T,295T,30T	05/1999 - 06/2004	1
82821-37050	RZU300..DCB;RZU301..5F..IV3;XZU301,304,306..(T3,T4,T5)..(IV6,IV7);BZU300,RZU300,XZU301,304,305,31#,321,35#,368..DM2,DM3,DM5,DM6,DM7	06/2004 - 12/2999	1
Common parts
82712-37081
90119-08103
90119-08375
90119-08827
90129-08007
90463-12011
91651-B0825
93560-15014

ILLUST NO. 5 OF 6(0310- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82702-37291
82702-37310
82702-37321
82702-37360
82702-37372
82715-37C50
82715-37C80
82715-37C90
82715-37D00
82715-37D10
82715-37D20
82715-37D30
82715-37D80
82715-37E30
82715-37E40
82715-37F10
82715-3V500
82715-3V690
87121-37011
90031-05123
90031-05124
90031-05141
90179-06158
91651-B0820

RZU301-TQMMC3 (2003)

ILLUST NO. 1 OF 6(9905-0406)XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,3

ILLUST NO. 3 OF 6(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 4 OF 6(9905-0406)SCB

ILLUST NO. 2 OF 6(9905-0406)

ILLUST NO. 1 OF 6(0406- )RZU30#..LPG

ILLUST NO. 2 OF 6(0406- )

ILLUST NO. 3 OF 6(0406- )

ILLUST NO. 4 OF 6(0406- )SCB

ILLUST NO. 5 OF 6(0310- )

Part Price Details
