RZU301-TQMMC3 (2003)
Toyota Dyna/Toyoace

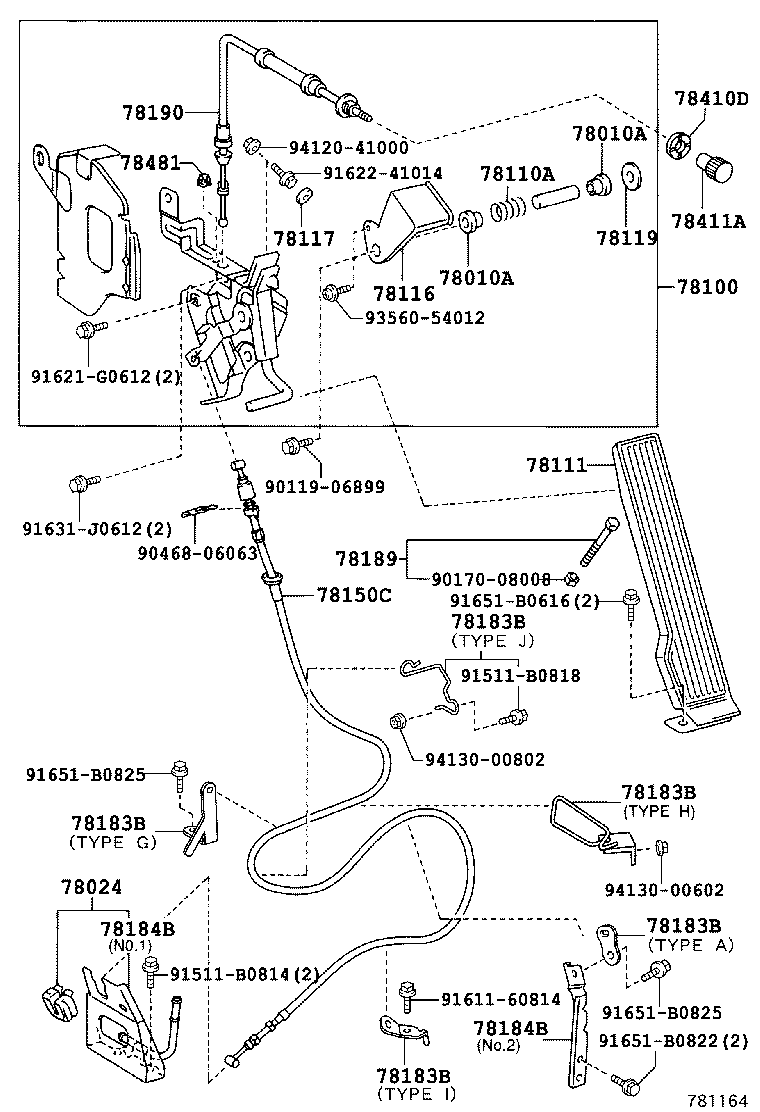

ILLUST NO. 1 OF 2(0703- )RZU30#..LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
BZU300,340,RZU30#,340 |
2 | ||
| 90386-08065 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,320,330,340,350 |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
BZU300,340,RZU30#,340 |
2 | ||
| 90386-08065 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,320,330,340,350 |
2 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-37020 |
RZU30#..LPG |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37700 |
BZU300,340,RZU30#..CNG,LPG |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03243 |
BZU300,340,RZU30#,340 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 78110-95410 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 78116 - COVER, ACCELERATOR PEDAL ROD | ||||
| 78116-37010 |
BZU300,340,RZU30#,340 |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06038 |
BZU300,340,RZU30#,340 |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-95J00 |
BZU300,340,RZU30#,340 |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-37561 |
RZU30#..5F..LPG |
1 | ||
| 78150-37560 |
RZU30#..5F..LPG |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78184-37450 |
RZU30#,340..SCB ﾀｲﾌﾟ G |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU30#,340..SCB ﾀｲﾌﾟ G |
1 | ||
| 78183-37350 |
RZU30#..LPG ﾀｲﾌﾟ I |
1 | ||
| 78183-37270 |
BZU300,340,RZU30#,340..SCB ﾀｲﾌﾟ H |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37500 |
RZU30#..LPG ﾀｲﾌﾟ I |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78184-37450 |
RZU30#,340..SCB ﾀｲﾌﾟ G |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU30#,340..SCB ﾀｲﾌﾟ G |
1 | ||
| 78183-37350 |
RZU30#..LPG ﾀｲﾌﾟ I |
1 | ||
| 78183-37270 |
BZU300,340,RZU30#,340..SCB ﾀｲﾌﾟ H |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37500 |
RZU30#..LPG ﾀｲﾌﾟ I |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU30#,340..SCB ﾀｲﾌﾟ G |
1 | ||
| 78183-37350 |
RZU30#..LPG ﾀｲﾌﾟ I |
1 | ||
| 78183-37270 |
BZU300,340,RZU30#,340..SCB ﾀｲﾌﾟ H |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37450 |
RZU30#,340..SCB ﾀｲﾌﾟ G |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37500 |
RZU30#..LPG ﾀｲﾌﾟ I |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78184-37450 |
RZU30#,340..SCB ﾀｲﾌﾟ G |
1 | ||
| 78183-37321 |
RZU30#,340..SCB ﾀｲﾌﾟ G |
1 | ||
| 78183-37350 |
RZU30#..LPG ﾀｲﾌﾟ I |
1 | ||
| 78183-37270 |
BZU300,340,RZU30#,340..SCB ﾀｲﾌﾟ H |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37500 |
RZU30#..LPG ﾀｲﾌﾟ I |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78184-37450 |
RZU30#,340..SCB ﾀｲﾌﾟ G |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU30#,340..SCB ﾀｲﾌﾟ G |
1 | ||
| 78183-37350 |
RZU30#..LPG ﾀｲﾌﾟ I |
1 | ||
| 78183-37270 |
BZU300,340,RZU30#,340..SCB ﾀｲﾌﾟ H |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37500 |
RZU30#..LPG ﾀｲﾌﾟ I |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37080 |
RZU30#..LPG NO.1 |
1 | ||
| 78184-37120 |
RZU30#..LPG NO.2 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37080 |
RZU30#..LPG NO.1 |
1 | ||
| 78184-37120 |
RZU30#..LPG NO.2 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37060 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#..CNG,DSL,LPG |
1 | ||
| 78208-37060 |
BZU300,340,RZU30#..CNG,LPG |
1 | ||
| 78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE | ||||
| 78190-37010 |
BZU300,340,RZU30#..CNG,LPG |
1 | ||
| 78190-37010 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,XZU300,320,330,340,350..CNG,DSL,LPG |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,XZU300,320,330,340,350..CNG,DSL,LPG |
1 | ||
| 78314-95010 |
BZU300,340,RZU30#..CNG,LPG |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-95J01 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,XZU300,320,330,340,350..CNG,DSL,LPG |
1 | ||
| 78411-95J01 |
BZU300,340,RZU30#,XZU30#,31#,321,33#,34#,35#,368,378,388..CNG,DCRL,DSL,DSLL,LPG |
1 | ||
| 78481 - CLAMP, THROTTLE WIRE | ||||
| 78481-37010 |
BZU300,340,RZU30#..CNG,LPG |
1 | ||
| Common parts | ||||
| 90119-06899 | ||||
| 90170-08008 | ||||
| 90468-06063 | ||||
| 91511-B0814 | ||||
| 91511-B0818 | ||||
| 91611-60814 | ||||
| 91621-G0612 | ||||
| 91622-41014 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 93560-54012 | ||||
| 94120-41000 | ||||
| 94130-00602 | ||||
| 94130-00802 | ||||
