Toyota Dyna/toyoace RZU301 FUEL TANK & TUBE

RZU301-TQMMC3 (2003)

Toyota Dyna/Toyoace

Production Jun 2003 - May 2007

Engine 3RZFPE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77100U - TANK SUB-ASSY, FUEL
77001-37371	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	04/2004 - 06/2004	1
77001-37371	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2004 - 05/2005	1
77001-37372	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2005 - 12/2999	1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37150	BZU300,340,RZU30#..LPG	06/2004 - 12/2999	2
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37150	BZU300,340,RZU30#..LPG	06/2004 - 12/2999	2
77633 - STAY, FUEL TANK
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77609-37041	BZU300..T4..20T..LPG;BZU340,RZU30#..T4..LPG	06/2004 - 12/2999	2
77633 - STAY, FUEL TANK
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77609-37041	BZU300..T4..20T..LPG;BZU340,RZU30#..T4..LPG	06/2004 - 12/2999	2
77651B - CUSHION, FUEL TANK
77651-36120	BZU300,340,RZU30#..LPG	06/2004 - 12/2999	4
77651B - CUSHION, FUEL TANK
77651-36120	BZU300,340,RZU30#..LPG	06/2004 - 12/2999	4
Common parts
90179-10015
91611-B0616
91626-40616
91642-81035
91642-81040
91645-C1032
93319-A4010
94130-00802
94130-01002
94612-11001
96132-51100
96132-51300

ILLUST NO. 1 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾀﾝｸ(ｻﾌﾞﾀﾝｸｱﾘ)

Part #	Description	Period	Qty
77100U - TANK SUB-ASSY, FUEL
77001-37371	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	04/2004 - 06/2004	1
77001-37371	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2004 - 05/2005	1
77001-37372	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2005 - 12/2999	1
77633 - STAY, FUEL TANK
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77609-37041	BZU300..T4..20T..LPG;BZU340,RZU30#..T4..LPG	06/2004 - 12/2999	2
77651B - CUSHION, FUEL TANK
77651-36120	BZU300,340,RZU30#..LPG	06/2004 - 12/2999	4
77651B - CUSHION, FUEL TANK
77651-36120	BZU300,340,RZU30#..LPG	06/2004 - 12/2999	4
Common parts
90179-10015
90202-09047
90250-03031
90386-08164
90401-12007
90405-10008
90461-07033
90467-15012
90480-14006
91626-40616
91642-81035
91642-81040
91645-C1032
93319-15010
93319-A4010
94130-00802
96132-51100
96132-51300
96713-19017
96713-24011

ILLUST NO. 2 OF 3(9905-0406)XZU307,337..DCB,SCB..4FC ; (9905-0406)XZU31#,346..SCB..DM5,T4..DSL ; (99

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ(LH ﾌﾚ-ﾑｾｼﾞﾒﾝﾀ)

Part #	Description	Period	Qty
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37690	RZU30#..LPG NO.2	06/2004 - 12/2999	1
77206-37690	RZU30#..LPG NO.2	06/2004 - 12/2999	1
77206-37690	RZU30#..LPG NO.2	06/2004 - 12/2999	1
77206-37670	RZU30#..LPG NO.1	06/2004 - 12/2999	1
77206-37670	RZU30#..LPG NO.1	06/2004 - 12/2999	1
77206-37670	RZU30#..LPG NO.1	06/2004 - 12/2999	1
Common parts
90467-18008
96132-51300
Linked diagrams
2302

ILLUST NO. 3 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙｸﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
90119-08676
90119-08830
90119-08A33
90129-08007
91626-60816
91641-80816
91642-81025
91651-60816

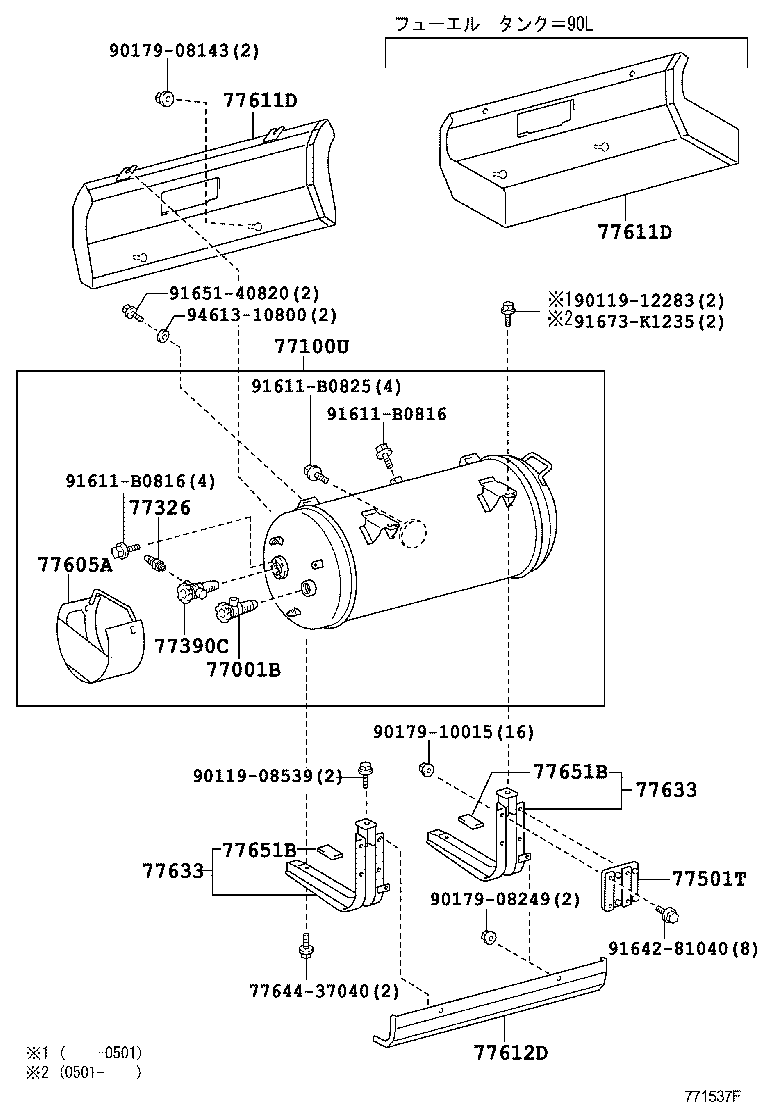

ILLUST NO. 1 OF 2(0406- )LPG

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77001B - VALVE (FOR LPG TANK)
90977-01024	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG	06/2004 - 12/2999	1
77100U - TANK SUB-ASSY, FUEL
77001-37371	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	04/2004 - 06/2004	1
77001-37371	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2004 - 05/2005	1
77001-37372	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2005 - 12/2999	1
77326 - CONNECTOR, AUXILIARY FUEL TANK CAP
77326-36010	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG	06/2004 - 12/2999	1
77390C - VALVE, FUEL TANK INLET
90977-01016	BZU300,340,RZU30#..LPG	06/2004 - 12/2999	1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37150	BZU300,340,RZU30#..LPG	06/2004 - 12/2999	2
77605A - COVER SUB-ASSY, FUEL TANK VALVE HANDLE
77605-25010	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG	01/2005 - 12/2999	1
77611D - COVER, FUEL TANK, RH
77611-37030	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2004 - 12/2999	1
77611D - COVER, FUEL TANK, RH
77611-37030	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2004 - 12/2999	1
77612D - COVER, FUEL TANK, LH
77612-37050	BZU300..T4..20T..LPG;BZU340,RZU30#..T4..LPG	06/2004 - 05/2007	1
77633 - STAY, FUEL TANK
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77609-37041	BZU300..T4..20T..LPG;BZU340,RZU30#..T4..LPG	06/2004 - 12/2999	2
77633 - STAY, FUEL TANK
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77609-37041	BZU300..T4..20T..LPG;BZU340,RZU30#..T4..LPG	06/2004 - 12/2999	2
77651B - CUSHION, FUEL TANK
77651-36120	BZU300,340,RZU30#..LPG	06/2004 - 12/2999	4
77651B - CUSHION, FUEL TANK
77651-36120	BZU300,340,RZU30#..LPG	06/2004 - 12/2999	4
Common parts
77644-37040
90119-08539
90119-12283
90179-08143
90179-08249
90179-10015
91611-B0816
91611-B0825
91642-81040
91651-40820
91673-K1235
94613-10800

ILLUST NO. 2 OF 2(0406- )XZU308,33#,354..SCB..T3,T4 ; (0406-)XZU301..6FC..20T..IV3..1NO ; (04

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37690	RZU30#..LPG NO.2	06/2004 - 12/2999	1
77206-37670	RZU30#..LPG NO.1	06/2004 - 12/2999	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37690	RZU30#..LPG NO.2	06/2004 - 12/2999	1
77206-37670	RZU30#..LPG NO.1	06/2004 - 12/2999	1
Common parts
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77100U - TANK SUB-ASSY, FUEL
77001-37371	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	04/2004 - 06/2004	1
77001-37371	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	04/2004 - 06/2004	1
77001-37371	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2004 - 05/2005	1
77001-37371	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2004 - 05/2005	1
77001-37372	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2005 - 12/2999	1
77001-37372	BZU300..20T..LPG;BZU340,RZU30#..T4..LPG 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L)	06/2005 - 12/2999	1
77633 - STAY, FUEL TANK
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77609-37041	BZU300..T4..20T..LPG;BZU340,RZU30#..T4..LPG	06/2004 - 12/2999	2
77609-37041	BZU300..T4..20T..LPG;BZU340,RZU30#..T4..LPG	06/2004 - 12/2999	2
Common parts
90179-10015
91611-B0616
91626-40616
91642-81025
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

RZU301-TQMMC3 (2003)

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362

ILLUST NO. 1 OF 3(9905-0406)

ILLUST NO. 2 OF 3(9905-0406)XZU307,337..DCB,SCB..4FC ; (9905-0406)XZU31#,346..SCB..DM5,T4..DSL ; (99

ILLUST NO. 3 OF 3(9905-0406)

ILLUST NO. 1 OF 2(0406- )LPG

ILLUST NO. 2 OF 2(0406- )XZU308,33#,354..SCB..T3,T4 ; (0406-)XZU301..6FC..20T..IV3..1NO ; (04

ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3
