Toyota Dyna/toyoace RZU301 BRAKE TUBE & CLAMP

RZU301-TQMMC3 (2003)

Toyota Dyna/Toyoace

Production Jun 2003 - May 2007

Engine 3RZFPE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

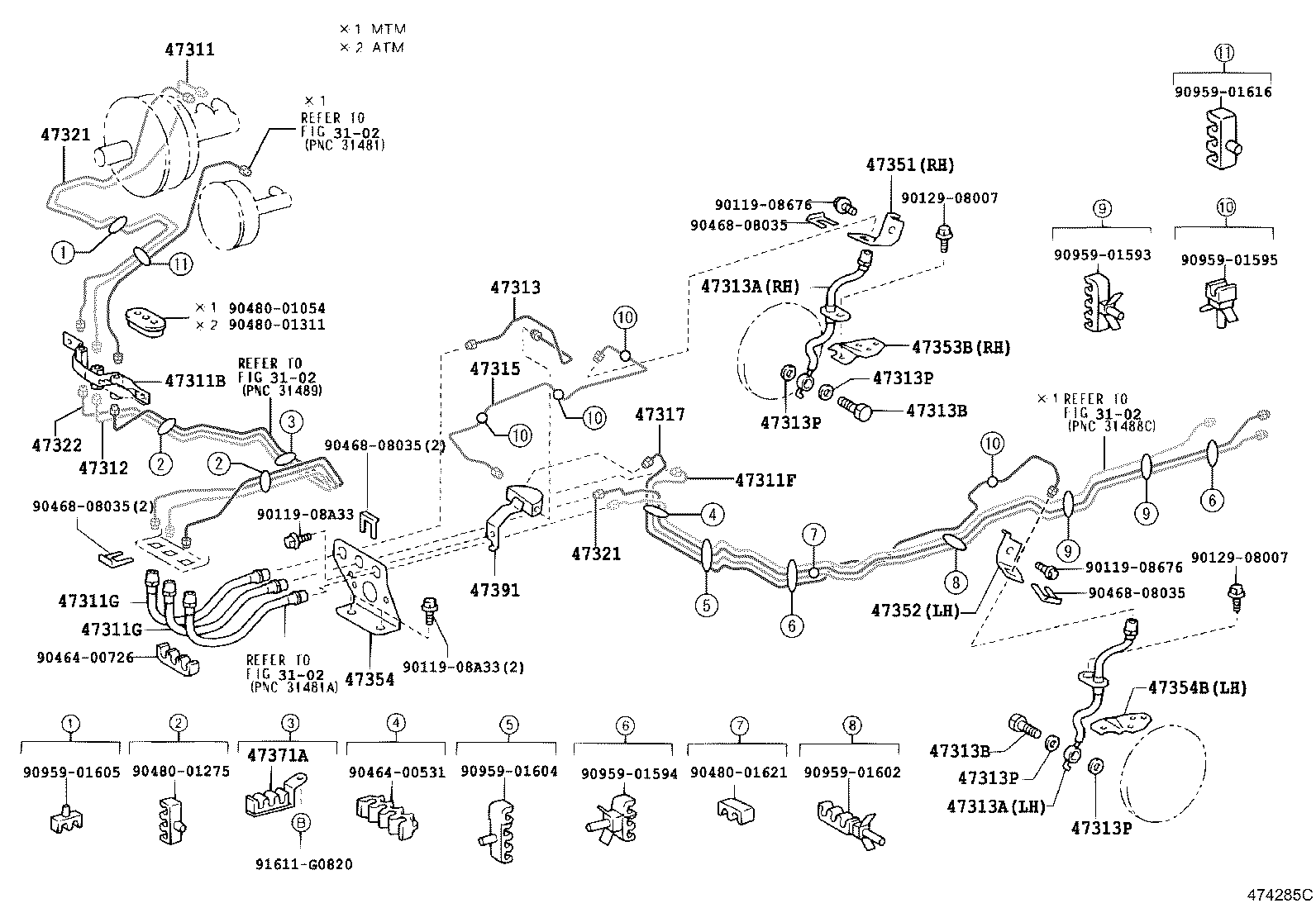

ILLUST NO. 1 OF 4(9905-0406)BU301,BZU300,340,RZU30#,XZU300,301,302,330,331,340,341,350

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37161	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
47311-37162	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2006 - 12/2999	1
47311-37161	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47391-37010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37200	XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..DCB,SCB	05/1999 - 06/2004	1
47311-37200	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47311-37380	RZU301..5F ﾅｼ(ABS)	06/2004 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02A79	BZU300,340,RZU30#,340	06/2004 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02A79	BZU300,340,RZU30#,340	06/2004 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BZU300,RZU30#	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47315 - TUBE, FRONT BRAKE, NO.5
47315-37070	XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)	05/1999 - 03/2002	1
47315-37073	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47315-37370	RZU301..5F ﾅｼ(ABS)	06/2004 - 12/2999	1
47315-37073	XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)	12/2003 - 06/2004	1
47315-37191	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-37122	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47317-37430	RZU301..5F ﾅｼ(ABS)	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37370	RZU301..5F	06/2004 - 05/2007	1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37200	XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..DCB,SCB	05/1999 - 06/2004	1
47321-37200	BZU300,340,RZU30#,340..5F	06/2004 - 05/2007	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
47322-37200	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 05/2007	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BZU300,RZU30#	06/2004 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-37111	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354-37160	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354-37160	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-37050	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47371-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350	05/1999 - 06/2004	1
Common parts
90119-08676
90119-08A33
90129-08007
90464-00726
90467-14006
90468-08035
90480-01054
90480-01275
90480-01311
90959-01593
90959-01594
90959-01595
90959-01602
90959-01605
90959-01616
91611-G0820
94130-00802
Linked diagrams
3102

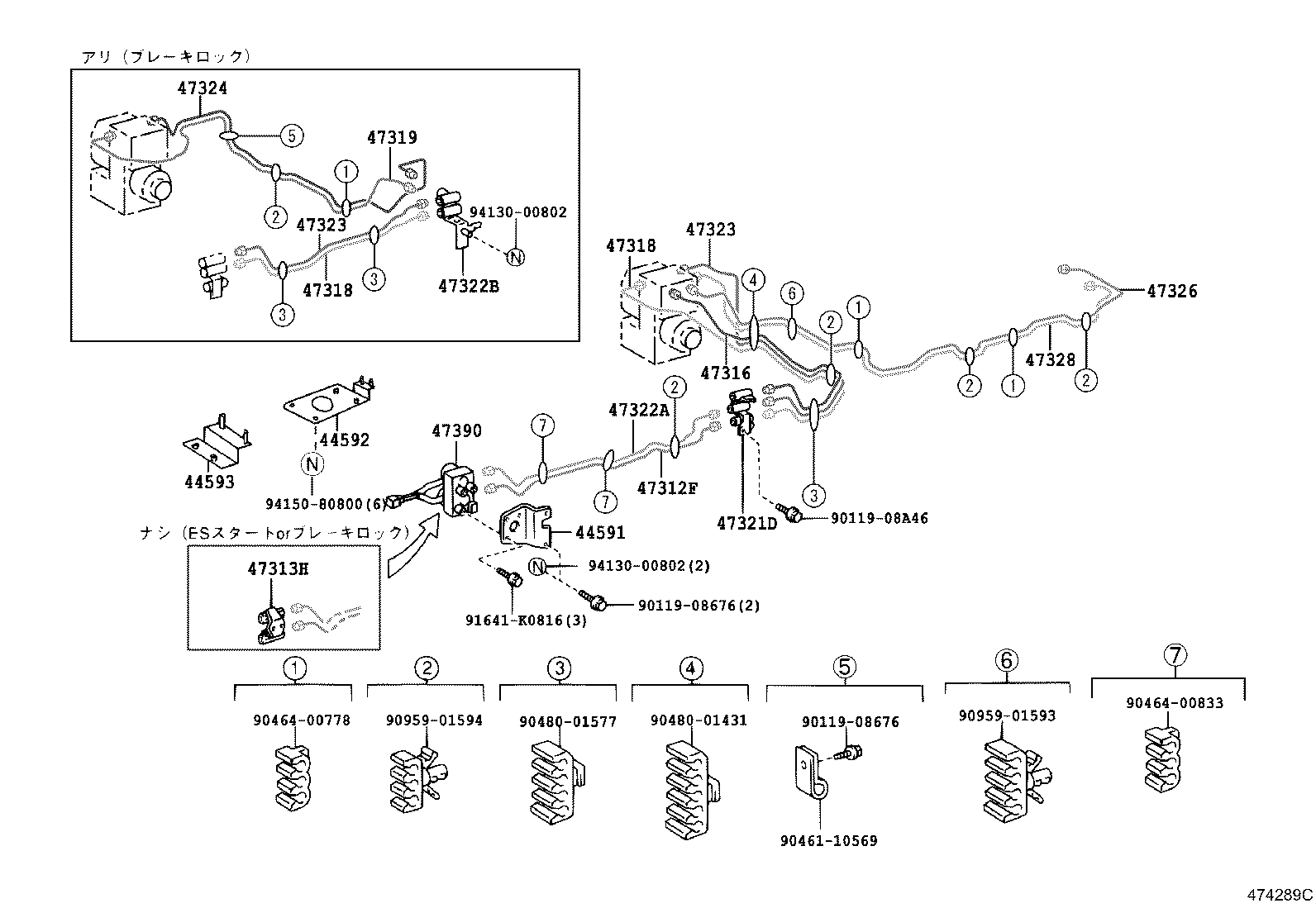

ILLUST NO. 2 OF 4(9905-0406)BZU300..DM6 ; (9905-0406)RZU301..5F..IV3 ; (9905-0406)BU301,XZU301..20T

Click highlighted areas on diagram

Part #	Description	Period	Qty
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-37050	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44591-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB	05/1999 - 06/2004	1
44592 - BRACKET, BRAKE ACTUATOR, NO.2
44592-37030	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
44593 - BRACKET, BRAKE ACTUATOR, NO.3
44591-37070	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BZU300,RZU30#	06/2004 - 12/2999	1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4	06/2003 - 06/2004	1
90904-12076	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-37110	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47316-37180	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47316-37180	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
47316-37110	BZU300,340,RZU30#,340..T2,T3,T4 NO.5	06/2004 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02B29	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	2
90947-02B29	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
90947-02B29	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02B29	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	2
90947-02B29	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
90947-02B29	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	2
47318 - TUBE, FRONT BRAKE, NO.8
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47318-37180	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47318-37150	RZU301..5F..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47318-37180	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47318-37150	RZU301..5F..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2004 - 12/2999	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-37060	XZU331..T3..5F..IV3;XZU306..5F..DSLL..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU350..(T3,T4)..(DSL,LPG);XZU300,301,330..(T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12059	XZU331..DSL..IV4;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;XZU301..5F..30T..(IV4,IV6);XZU301..4FC..30T..DSL..(IV4,IV6);XZU302,331,342,346..5F..(CNG,DSLL,LPG);BU301,BZU300,340,RZU301,XZU350,371..1NO;XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO	05/1999 - 06/2004	1
90412-10229	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4	06/2004 - 12/2999	1
90412-12059	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BZU300,RZU30#	06/2004 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13055	BZU300..DM6,T3;BZU300..T4..LPG;XZU306..5F..DSLL..IV3;BZU340,XZU350..DSL,LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,330..(DM6,T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
90904-13055	XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..(IV3,IV4);XZU302..(DM6,T3,T4,T5)..WT..(DSL,LPG)..IV3;BU30#,XZU300,301,306,307,330,350..(DM6,T3,T4,T5)..WT..(IV3,IV4,IV6,IV7)	05/1999 - 06/2002	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47323-37150	BZU300..DM6;RZU301..5F..IV3 NO.4	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47323-37200	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47323-37150	BZU300..DM6;RZU301..5F..IV3 NO.4	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47323-37200	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-12051	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
90904-13052	XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS)	06/2003 - 06/2004	1
90412-12051	XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4	06/2004 - 12/2999	1
90904-13052	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) NO.3	06/2004 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37310	XZU331..T3..5F..IV3;XZU306..5F..DSLL..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU350..(T3,T4)..(DSL,LPG);XZU300,301,330..(T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
47326 - TUBE, REAR BRAKE, NO.6
47326-37170	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47326-37330	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47326-37170	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47326-37330	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6 ｱﾘ(ABS) JINKAI & DUMP	06/2004 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37200	BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T	05/1999 - 06/2004	1
47327-37530	XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS)	06/2003 - 06/2004	1
47327-37200	XZU336..T2;BZU300,RZU30#,XZU301,304,306,308,334,338..(03S,06S,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG)	06/2004 - 12/2999	1
47327-37530	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37010	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47328-37180	RZU301..5F..IV3 ﾅｼ(ABS)	06/2003 - 06/2004	1
47328-37010	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47328-37180	RZU301..5F..IV3 ｱﾘ(ABS) JINKAI & DUMP	06/2004 - 12/2999	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37060	XZU336..T2;BZU300,RZU30#,XZU301,304,306,308,334,338..(03S,06S,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG)	06/2004 - 12/2999	1
47329-37060	BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T	05/1999 - 06/2004	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-37050	BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T	05/1999 - 06/2004	1
47345-37050	BZU300,340,RZU30#,340,XZU301,304,306,308,334,336,338,34#,35#..(03S,06S,DM2,DM5,T2,T4)..20T	06/2004 - 12/2999	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-37050	BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T	05/1999 - 06/2004	1
47345-37050	BZU300,340,RZU30#,340,XZU301,304,306,308,334,336,338,34#,35#..(03S,06S,DM2,DM5,T2,T4)..20T	06/2004 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37110	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47353-37110	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47353-37240	BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47353-37240	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT	06/2004 - 12/2999	1
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37020	BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
Common parts
90034-61046
90119-08676
90119-08A46
90461-10569
90464-00778
90464-00833
90468-08035
90480-01431
90480-01577
90949-01006
90959-01593
90959-01594
91612-B1020
91615-60816
91641-K0816
91651-60614
94130-00802
94150-80800

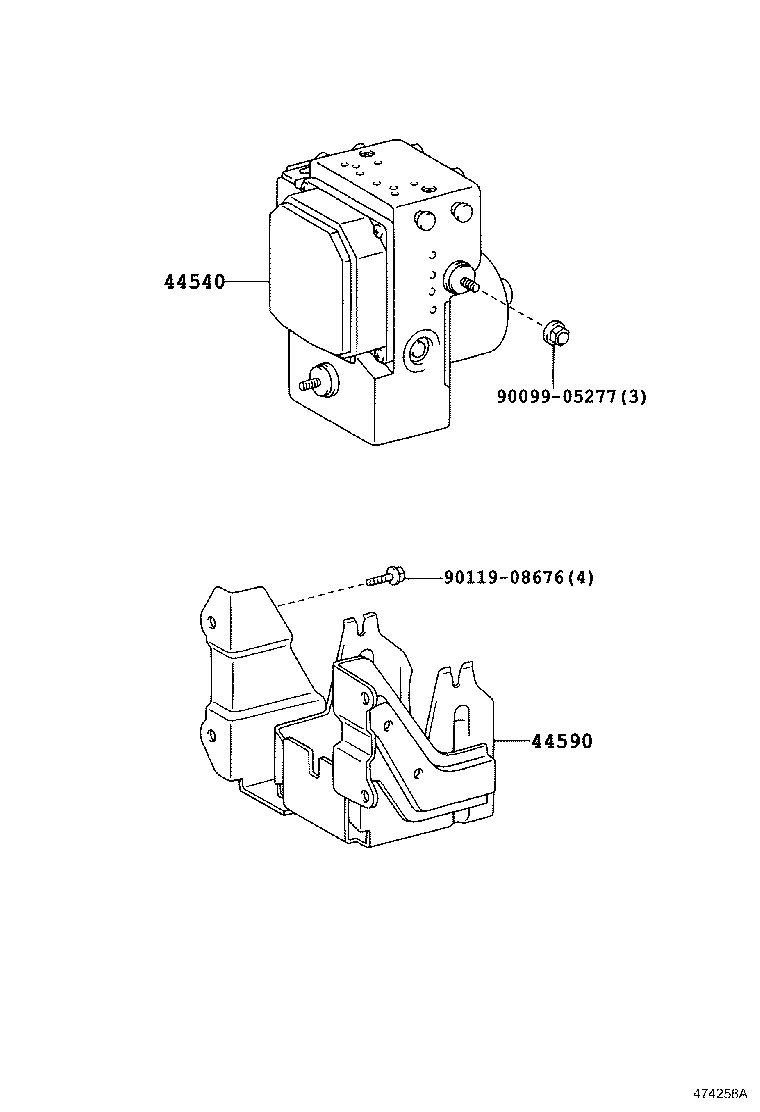

ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｱﾘ(ABS)

Part #	Description	Period	Qty
44540 - ACTUATOR ASSY, ABS & TRACTION
44050-37020	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-37010	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44590-37010	XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
Common parts
90099-05277
90119-08676

ILLUST NO. 3 OF 5(0406- )03S..ATM ; (0406- )XZU306..SCB,VAN..03S,T4..5F..CBU,IV3 ; (0406- )

Click highlighted areas on diagram

W/O(ABS) CLAMP:LH SIDE=2,RH SIDE=3

Part #	Description	Period	Qty
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02B29	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	2
90947-02B29	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
90947-02B29	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	2
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-12051	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
90904-13052	XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS)	06/2003 - 06/2004	1
90412-12051	XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4	06/2004 - 12/2999	1
90904-13052	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) NO.3	06/2004 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37200	BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T	05/1999 - 06/2004	1
47327-37530	XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS)	06/2003 - 06/2004	1
47327-37200	XZU336..T2;BZU300,RZU30#,XZU301,304,306,308,334,338..(03S,06S,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG)	06/2004 - 12/2999	1
47327-37530	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37060	XZU336..T2;BZU300,RZU30#,XZU301,304,306,308,334,338..(03S,06S,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG)	06/2004 - 12/2999	1
47329-37060	BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T	05/1999 - 06/2004	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-37050	BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T	05/1999 - 06/2004	1
47345-37050	BZU300,340,RZU30#,340,XZU301,304,306,308,334,336,338,34#,35#..(03S,06S,DM2,DM5,T2,T4)..20T	06/2004 - 12/2999	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-37050	BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T	05/1999 - 06/2004	1
47345-37050	BZU300,340,RZU30#,340,XZU301,304,306,308,334,336,338,34#,35#..(03S,06S,DM2,DM5,T2,T4)..20T	06/2004 - 12/2999	1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47353-37240	BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47353-37240	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT	06/2004 - 12/2999	1
Common parts
90034-61046
90119-08676
90129-08007
90468-08035
90949-01006
91612-B1020
91651-60614

ILLUST NO. 3 OF 5(0406- )XZU368..T4 ; (0406- )BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..20

Click highlighted areas on diagram

W(ABS) CLAMP:LH SIDE=2,RH SIDE=3

Part #	Description	Period	Qty
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02B29	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	2
90947-02B29	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
90947-02B29	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02B29	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	2
90947-02B29	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
90947-02B29	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	2
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-12051	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
90904-13052	XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS)	06/2003 - 06/2004	1
90412-12051	XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4	06/2004 - 12/2999	1
90904-13052	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) NO.3	06/2004 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37200	BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T	05/1999 - 06/2004	1
47327-37530	XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS)	06/2003 - 06/2004	1
47327-37200	XZU336..T2;BZU300,RZU30#,XZU301,304,306,308,334,338..(03S,06S,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG)	06/2004 - 12/2999	1
47327-37530	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37060	XZU336..T2;BZU300,RZU30#,XZU301,304,306,308,334,338..(03S,06S,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG)	06/2004 - 12/2999	1
47329-37060	BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T	05/1999 - 06/2004	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-37050	BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T	05/1999 - 06/2004	1
47345-37050	BZU300,340,RZU30#,340,XZU301,304,306,308,334,336,338,34#,35#..(03S,06S,DM2,DM5,T2,T4)..20T	06/2004 - 12/2999	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-37050	BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T	05/1999 - 06/2004	1
47345-37050	BZU300,340,RZU30#,340,XZU301,304,306,308,334,336,338,34#,35#..(03S,06S,DM2,DM5,T2,T4)..20T	06/2004 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37110	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47353-37110	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47353-37240	BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47353-37240	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT	06/2004 - 12/2999	1
Common parts
90034-61046
90119-08676
90129-08007
90468-08035
90949-01006
91612-B1020
91651-60614

ILLUST NO. 5 OF 5(0406- )RZU301,XZU301,304,308..SCB,VAN..03S,06S,T4..5F,6FC..20T..DSL,LPG

Click highlighted areas on diagram

W(LSPV)

Part #	Description	Period	Qty
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-37010	XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
04477-37010	XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
04477-37010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
04477-37010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-37090	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47910-37090	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47910-37090	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
47910-37090	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
47920 - SPRING ASSY, LOAD SENSING
47920-37070	XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307..(SCB,VAN)..(03S,06S,T4)..5F	06/2003 - 06/2004	1
47920-37070	XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307..(SCB,VAN)..(03S,06S,T4)..5F	06/2003 - 06/2004	1
47920-37070	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47920-37070	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90387-08099	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
90387-08099	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90387-08099	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
90387-08099	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
90467-31110	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
90467-31110	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
90467-31110	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90202-10103	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90202-10103	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
90202-10103	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90202-10103	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90202-10103	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
90202-10103	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
47924-35010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
47924-35010	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
47924-35010	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
47924-35010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
47924-35010	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
47924-35010	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	2
47931 - BRACKET, LOAD SENSING VALVE
47931-37020	XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F	07/2003 - 06/2004	1
47931-37020	XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F	07/2003 - 06/2004	1
47931-37020	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 05/2007	1
47931-37020	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 05/2007	1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-37060	XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
47933-37060	XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
47933-37060	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47933-37060	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
47935-35030	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
47935-35030	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47935-35030	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
90387-08099	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-26020	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47936-26020	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47936-26020	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
47936-26020	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47937-60010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47937-60010	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
47937-60010	XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T	06/2003 - 06/2004	1
Common parts
90119-08A33
90170-08016
90179-08204
90201-08062
90201-23360
91131-50840
91611-B0816
94130-00802
94612-10800

ILLUST NO. 4 OF 5(0406- )BZU300,340,RZU30#,340

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44540 - ACTUATOR ASSY, ABS & TRACTION
44050-37020	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-37010	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44590-37010	XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
Common parts
90099-05277
90119-08676

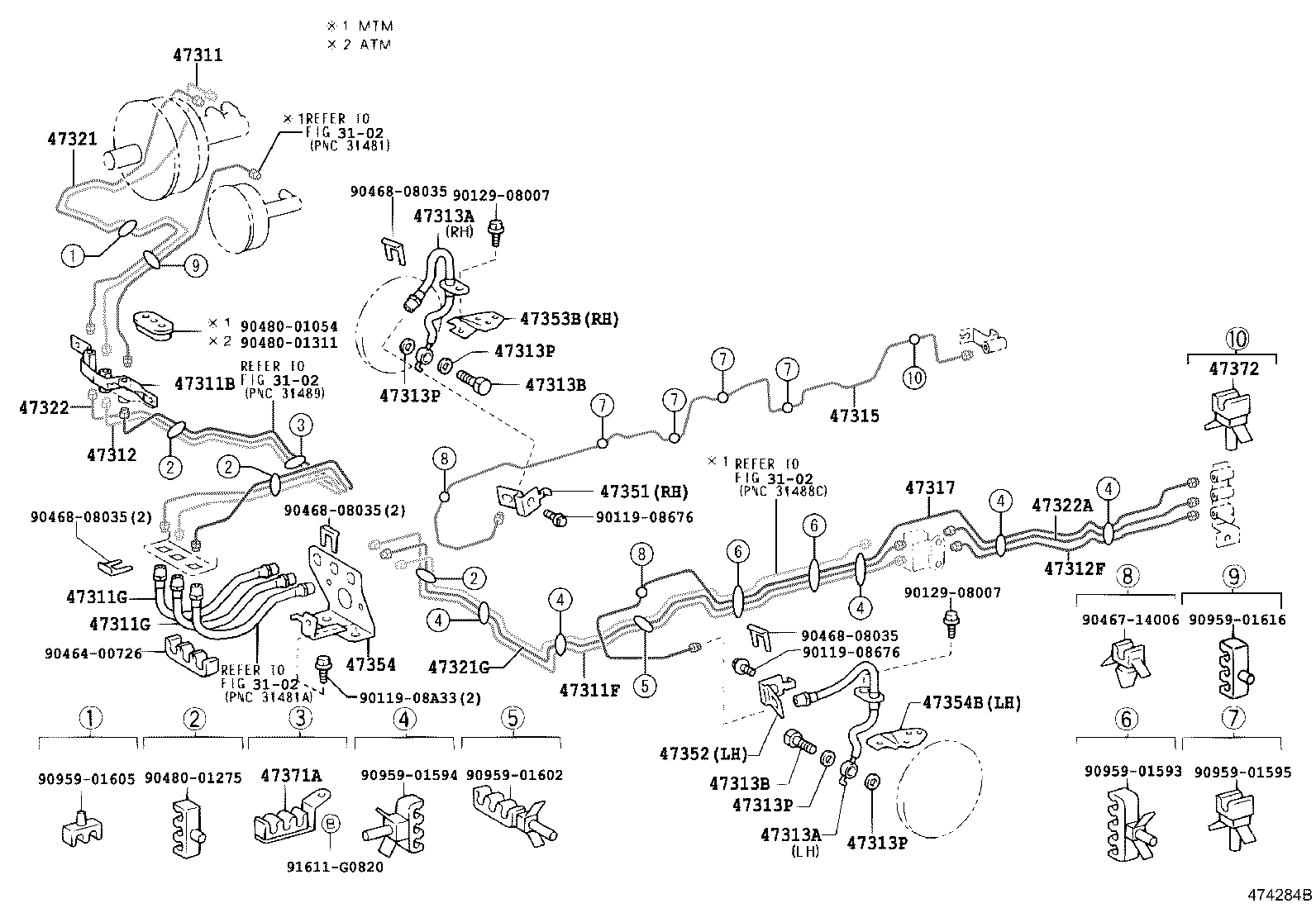

ILLUST NO. 1 OF 5(0406- )BZU300,340,RZU30#,340

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37161	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
47311-37162	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2006 - 12/2999	1
47311-37161	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47391-37010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37200	XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..DCB,SCB	05/1999 - 06/2004	1
47311-37200	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47311-37380	RZU301..5F ﾅｼ(ABS)	06/2004 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02A79	BZU300,340,RZU30#,340	06/2004 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02A79	BZU300,340,RZU30#,340	06/2004 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BZU300,RZU30#	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47315 - TUBE, FRONT BRAKE, NO.5
47315-37070	XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)	05/1999 - 03/2002	1
47315-37073	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47315-37370	RZU301..5F ﾅｼ(ABS)	06/2004 - 12/2999	1
47315-37073	XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)	12/2003 - 06/2004	1
47315-37191	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-37122	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47317-37430	RZU301..5F ﾅｼ(ABS)	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37370	RZU301..5F	06/2004 - 05/2007	1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37200	XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..DCB,SCB	05/1999 - 06/2004	1
47321-37200	BZU300,340,RZU30#,340..5F	06/2004 - 05/2007	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
47322-37200	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 05/2007	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BZU300,RZU30#	06/2004 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-37111	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354-37160	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-37050	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47371-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350	05/1999 - 06/2004	1
Common parts
90119-08676
90119-08A33
90129-08007
90464-00726
90467-14006
90468-08035
90480-01054
90480-01275
90480-01311
90959-01593
90959-01594
90959-01595
90959-01602
90959-01605
90959-01616
91611-G0820
Linked diagrams
3102

ILLUST NO. 1 OF 5(0406- )RZU301..5F

Click highlighted areas on diagram

W/O(ABS)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37161	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
47311-37162	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2006 - 12/2999	1
47311-37161	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47391-37010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37200	XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..DCB,SCB	05/1999 - 06/2004	1
47311-37200	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47311-37380	RZU301..5F ﾅｼ(ABS)	06/2004 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02A79	BZU300,340,RZU30#,340	06/2004 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02A79	BZU300,340,RZU30#,340	06/2004 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37240	RZU301..5F;BU306,XZU307..VAN	06/2003 - 06/2004	1
47313-37240	RZU301..5F	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47315 - TUBE, FRONT BRAKE, NO.5
47315-37070	XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)	05/1999 - 03/2002	1
47315-37073	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47315-37370	RZU301..5F ﾅｼ(ABS)	06/2004 - 12/2999	1
47315-37073	XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)	12/2003 - 06/2004	1
47315-37191	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-37122	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47317-37430	RZU301..5F ﾅｼ(ABS)	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37370	RZU301..5F	06/2004 - 05/2007	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37370	RZU301..5F	06/2004 - 05/2007	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
47322-37200	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 05/2007	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-37111	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354-37160	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37060	XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307,351,352..(SCB,VAN)..(03S,06S,DM5,T4)..5F	06/2003 - 06/2004	1
47391-37060	RZU301..5F	06/2004 - 12/2999	1
Common parts
90119-08676
90119-08A33
90129-08007
90464-00531
90464-00726
90468-08035
90480-01054
90480-01275
90480-01311
90480-01621
90959-01593
90959-01594
90959-01595
90959-01602
90959-01604
90959-01605
90959-01616
91611-G0820
Linked diagrams
3102

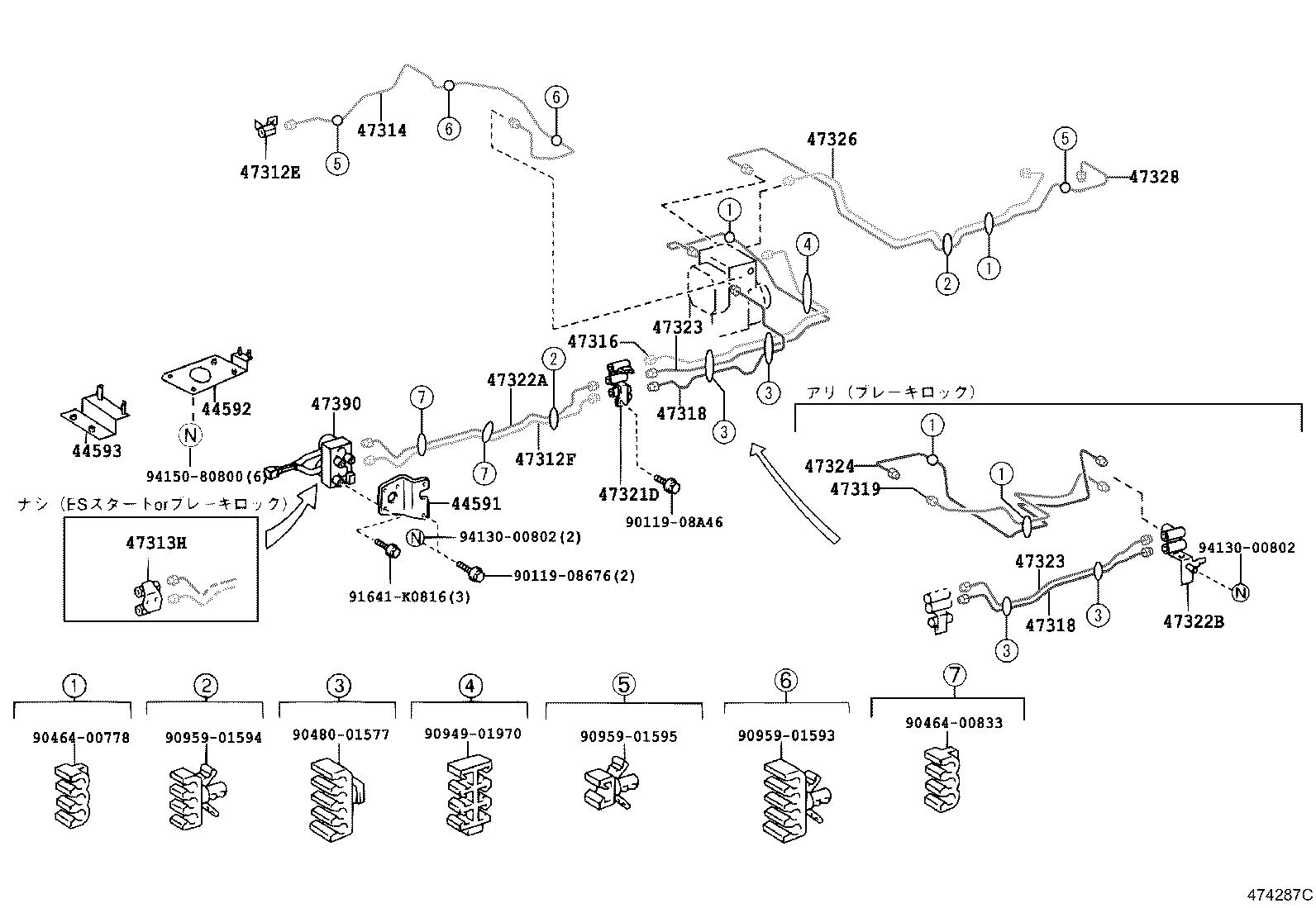

ILLUST NO. 2 OF 5(0406- )BZU300,RZU30#..DM5,T2,T3,T4

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-37050	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44591-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB	05/1999 - 06/2004	1
44592 - BRACKET, BRAKE ACTUATOR, NO.2
44592-37030	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
44593 - BRACKET, BRAKE ACTUATOR, NO.3
44591-37070	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-12060	BZU300,RZU30#..T2,T3,T4	06/2004 - 12/2999	1
90412-12060	XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,331..5F..DSLL..(CBU,IV4);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,33#,350..(03S,06S,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BZU300,RZU30#	06/2004 - 12/2999	1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4	06/2003 - 06/2004	1
90904-12076	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-37170	XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7)	05/1999 - 11/2000	1
47314-37171	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-37110	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47316-37180	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47316-37180	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
47316-37110	BZU300,340,RZU30#,340..T2,T3,T4 NO.5	06/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47318-37180	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47318-37150	RZU301..5F..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47318-37180	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47318-37150	RZU301..5F..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2004 - 12/2999	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-37060	XZU331..T3..5F..IV3;XZU306..5F..DSLL..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU350..(T3,T4)..(DSL,LPG);XZU300,301,330..(T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12059	XZU331..DSL..IV4;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;XZU301..5F..30T..(IV4,IV6);XZU301..4FC..30T..DSL..(IV4,IV6);XZU302,331,342,346..5F..(CNG,DSLL,LPG);BU301,BZU300,340,RZU301,XZU350,371..1NO;XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO	05/1999 - 06/2004	1
90412-10229	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4	06/2004 - 12/2999	1
90412-12059	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BZU300,RZU30#	06/2004 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13055	BZU300..DM6,T3;BZU300..T4..LPG;XZU306..5F..DSLL..IV3;BZU340,XZU350..DSL,LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,330..(DM6,T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
90904-13055	XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..(IV3,IV4);XZU302..(DM6,T3,T4,T5)..WT..(DSL,LPG)..IV3;BU30#,XZU300,301,306,307,330,350..(DM6,T3,T4,T5)..WT..(IV3,IV4,IV6,IV7)	05/1999 - 06/2002	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47323-37150	BZU300..DM6;RZU301..5F..IV3 NO.4	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47323-37200	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47323-37150	BZU300..DM6;RZU301..5F..IV3 NO.4	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47323-37200	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37310	XZU331..T3..5F..IV3;XZU306..5F..DSLL..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU350..(T3,T4)..(DSL,LPG);XZU300,301,330..(T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
47326 - TUBE, REAR BRAKE, NO.6
47326-37170	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47326-37330	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47326-37170	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47326-37330	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6 ｱﾘ(ABS) JINKAI & DUMP	06/2004 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37010	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47328-37180	RZU301..5F..IV3 ﾅｼ(ABS)	06/2003 - 06/2004	1
47328-37010	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47328-37180	RZU301..5F..IV3 ｱﾘ(ABS) JINKAI & DUMP	06/2004 - 12/2999	1
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37020	BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
Common parts
90119-08676
90119-08A46
90464-00778
90464-00833
90480-01577
90949-01970
90959-01593
90959-01594
90959-01595
91641-K0816
94130-00802
94150-80800

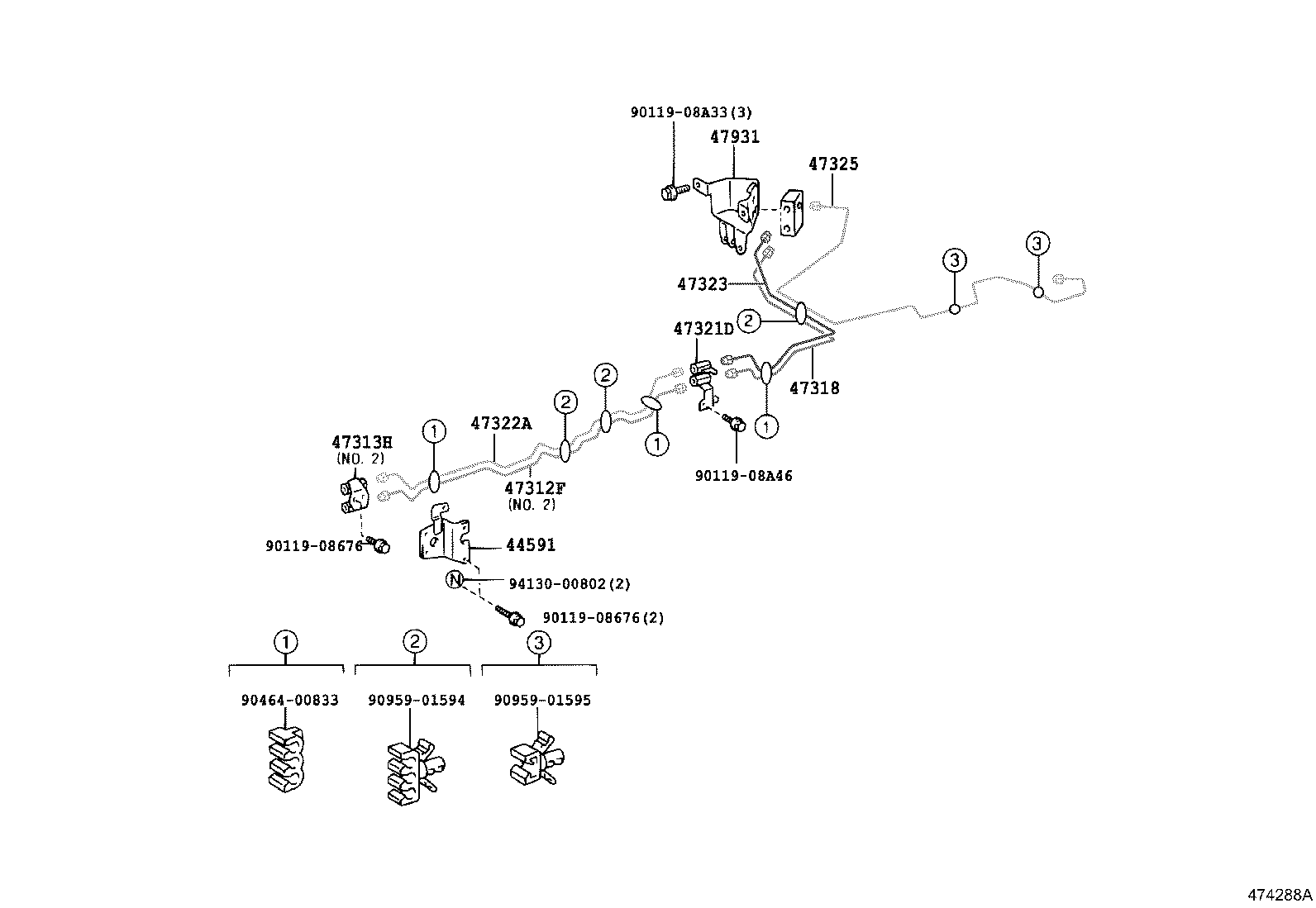

ILLUST NO. 2 OF 5(0406- )RZU301..5F

Click highlighted areas on diagram

W/O(ABS)

Part #	Description	Period	Qty
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-37050	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44591-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB	05/1999 - 06/2004	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BZU300,RZU30#	06/2004 - 12/2999	1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4	06/2003 - 06/2004	1
90904-12076	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47318-37180	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47318-37150	RZU301..5F..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2004 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12059	XZU331..DSL..IV4;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;XZU301..5F..30T..(IV4,IV6);XZU301..4FC..30T..DSL..(IV4,IV6);XZU302,331,342,346..5F..(CNG,DSLL,LPG);BU301,BZU300,340,RZU301,XZU350,371..1NO;XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO	05/1999 - 06/2004	1
90412-10229	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4	06/2004 - 12/2999	1
90412-12059	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BZU300,RZU30#	06/2004 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47323-37150	BZU300..DM6;RZU301..5F..IV3 NO.4	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47323-37200	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37210	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47931 - BRACKET, LOAD SENSING VALVE
47931-37020	XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F	07/2003 - 06/2004	1
47931-37020	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 05/2007	1
Common parts
90119-08676
90119-08A33
90119-08A46
90464-00833
90959-01594
90959-01595
94130-00802

ILLUST NO. 2 OF 5(0406- )BZU300..DM6 ; (0406- )RZU30#..SCB..T4..5F..20T..IV3

Click highlighted areas on diagram

W(ABS) JINKAI & DUMP

Part #	Description	Period	Qty
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-37050	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44591-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB	05/1999 - 06/2004	1
44592 - BRACKET, BRAKE ACTUATOR, NO.2
44592-37030	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
44593 - BRACKET, BRAKE ACTUATOR, NO.3
44591-37070	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BZU300,RZU30#	06/2004 - 12/2999	1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4	06/2003 - 06/2004	1
90904-12076	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-37110	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47316-37180	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47316-37180	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
47316-37110	BZU300,340,RZU30#,340..T2,T3,T4 NO.5	06/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47318-37180	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47318-37150	RZU301..5F..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47318-37180	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47318-37150	RZU301..5F..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2004 - 12/2999	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-37060	XZU331..T3..5F..IV3;XZU306..5F..DSLL..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU350..(T3,T4)..(DSL,LPG);XZU300,301,330..(T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12059	XZU331..DSL..IV4;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;XZU301..5F..30T..(IV4,IV6);XZU301..4FC..30T..DSL..(IV4,IV6);XZU302,331,342,346..5F..(CNG,DSLL,LPG);BU301,BZU300,340,RZU301,XZU350,371..1NO;XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO	05/1999 - 06/2004	1
90412-10229	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4	06/2004 - 12/2999	1
90412-12059	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BZU300,RZU30#	06/2004 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13055	BZU300..DM6,T3;BZU300..T4..LPG;XZU306..5F..DSLL..IV3;BZU340,XZU350..DSL,LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,330..(DM6,T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
90904-13055	XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..(IV3,IV4);XZU302..(DM6,T3,T4,T5)..WT..(DSL,LPG)..IV3;BU30#,XZU300,301,306,307,330,350..(DM6,T3,T4,T5)..WT..(IV3,IV4,IV6,IV7)	05/1999 - 06/2002	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47323-37150	BZU300..DM6;RZU301..5F..IV3 NO.4	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47323-37200	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37150	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47323-37150	BZU300..DM6;RZU301..5F..IV3 NO.4	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47323-37200	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37310	XZU331..T3..5F..IV3;XZU306..5F..DSLL..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU350..(T3,T4)..(DSL,LPG);XZU300,301,330..(T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
47326 - TUBE, REAR BRAKE, NO.6
47326-37170	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47326-37330	RZU30#..SCB..T4..5F..20T..IV3 ﾀﾞﾝﾌﾟｼﾘｰｽﾞ	06/2003 - 06/2004	1
47326-37170	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47326-37330	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6 ｱﾘ(ABS) JINKAI & DUMP	06/2004 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37010	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47328-37180	RZU301..5F..IV3 ﾅｼ(ABS)	06/2003 - 06/2004	1
47328-37010	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47328-37180	RZU301..5F..IV3 ｱﾘ(ABS) JINKAI & DUMP	06/2004 - 12/2999	1
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37020	BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
Common parts
90119-08676
90119-08A46
90461-10569
90464-00778
90464-00833
90480-01431
90480-01577
90959-01593
90959-01594
91641-K0816
94130-00802
94150-80800

RZU301-TQMMC3 (2003)

ILLUST NO. 1 OF 4(9905-0406)BU301,BZU300,340,RZU30#,XZU300,301,302,330,331,340,341,350

ILLUST NO. 2 OF 4(9905-0406)BZU300..DM6 ; (9905-0406)RZU301..5F..IV3 ; (9905-0406)BU301,XZU301..20T

ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 3 OF 5(0406- )03S..ATM ; (0406- )XZU306..SCB,VAN..03S,T4..5F..CBU,IV3 ; (0406- )

ILLUST NO. 3 OF 5(0406- )XZU368..T4 ; (0406- )BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..20

ILLUST NO. 5 OF 5(0406- )RZU301,XZU301,304,308..SCB,VAN..03S,06S,T4..5F,6FC..20T..DSL,LPG

ILLUST NO. 4 OF 5(0406- )BZU300,340,RZU30#,340

ILLUST NO. 1 OF 5(0406- )BZU300,340,RZU30#,340

ILLUST NO. 1 OF 5(0406- )RZU301..5F

ILLUST NO. 2 OF 5(0406- )BZU300,RZU30#..DM5,T2,T3,T4

ILLUST NO. 2 OF 5(0406- )RZU301..5F

ILLUST NO. 2 OF 5(0406- )BZU300..DM6 ; (0406- )RZU30#..SCB..T4..5F..20T..IV3

Part Price Details
