RZU301-TQMMC3 (2003)
Toyota Dyna/Toyoace
Production
Jun 2003
-
May 2007
Engine
3RZFPE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0406)XZU341 ; (9905-0406)XZU300,301,302,306,307,31#,32#,33#,340,342,346,347,3
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21018 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
BU30#,346,BZU300,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-37030 |
RZU30#,340 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-37030 |
RZU30#,340 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-37020 |
RZU30#,340 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-37020 |
RZU30#,340 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-37050 |
RZU30#,340 |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
RZU30#,340 |
1 | ||
| Common parts | ||||
| 90029-11402 | ||||
| 90031-05008 | ||||
| 90119-10901 | ||||

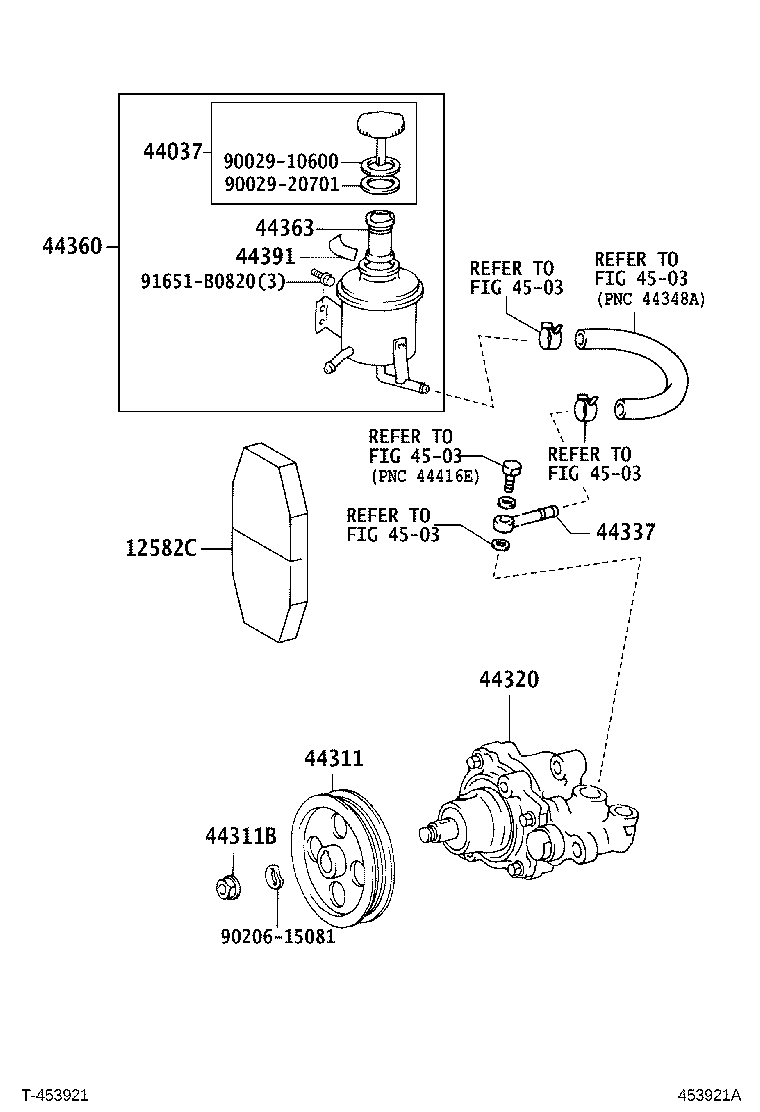

(0406- )RZU30#,340
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12582C - INSULATOR, POWER STEERING PUMP | ||||
| 12582-75010 |
3RZ#..RZU30#,340 |
1 | ||
| 44037 - COVER SUB-ASSY, OIL RESERVOIR | ||||
| 44037-36080 |
RZU30#,340 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-36060 |
RZU30#,340 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90029-07001 |
RZU30#,340 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-37030 |
RZU30#,340 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-37020 |
RZU30#,340 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-37050 |
RZU30#,340 |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
RZU30#,340 |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-36020 |
RZU30#,340 |
1 | ||
| Common parts | ||||
| 90029-10600 | ||||
| 90029-20701 | ||||
| 90206-15081 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 4503 | ||||
