RZU301-TQMMC3 (2003)
Toyota Dyna/Toyoace
(0406- )RZU30#,340
M153

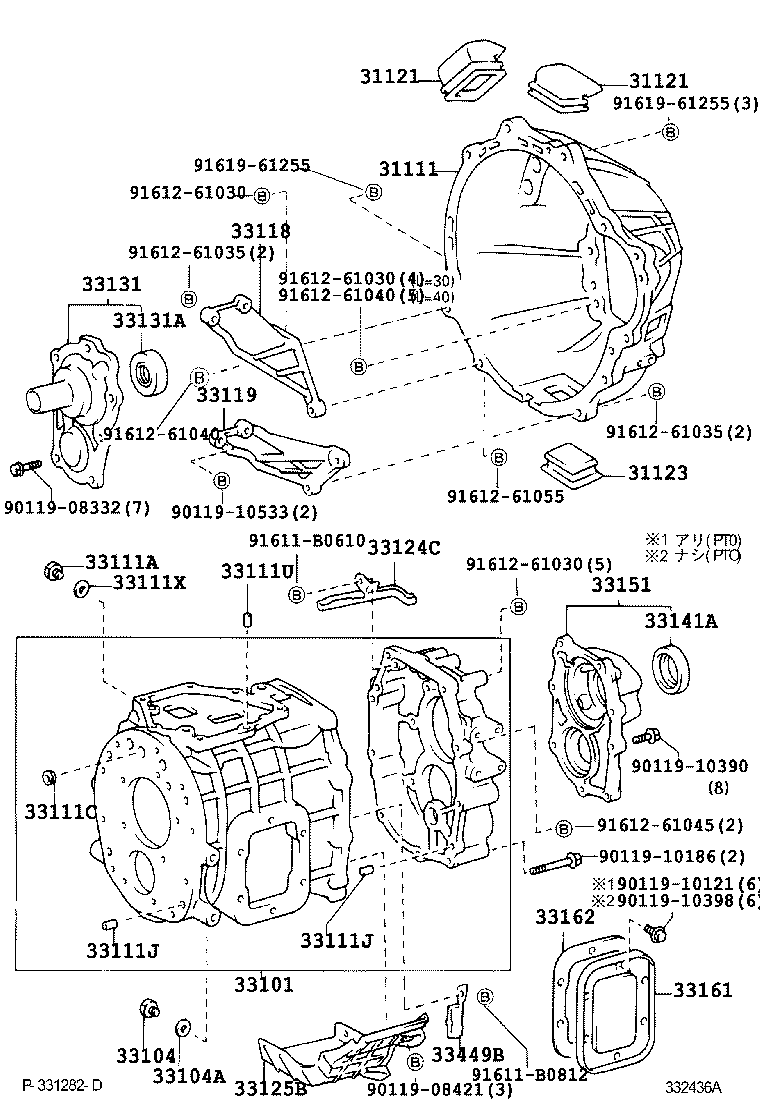

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36331 |
RZU30#,340..5F |
1 | ||
| 31111-36331 |
RZU30#,340..5F |
1 | ||
| 31111-36331 |
RZU30#,340..5F |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU304,334..5F..DSL;BZU300,340,RZU30#,340,XZU308,31#,321,338,348,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 31121-28041 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU304,334..5F..DSL;BZU300,340,RZU30#,340,XZU308,31#,321,338,348,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 31121-28041 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31121-36040 |
RZU30#,340..5F |
1 | ||
| 31121-36040 |
RZU30#,340..5F |
1 | ||
| 31121-36040 |
RZU300..EFI;RZU301,340..5F;RZU300..30T..LPG |
1 | ||
| 31121-36040 |
BZU300,340,RZU30#,340..5F |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36084 |
RZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG) |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU341..6F..(DSLL,LPG);XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);RZU300,XZU321..5F..30T..(DSL,LPG)..1NO;BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,321,330,331,372,382..(DM8,T2,T3,T4)..5F..(20T,30T)..(DSL,DSLL,EFI);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90341-18006 |
RZU300..20T;BZU300,340,RZU301,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG) |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90430-18008 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
BZU300..T4..CBU;XZU301..CNG,LPG;XZU301..5F..IV4;BZU300,XZU321..DM6,DM8;XZU341..6F..(DSLL,LPG);XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);RZU300,XZU321..5F..30T..(DSL,LPG)..1NO;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,31#,320,330,331,372,382..5F..(20T,30T)..(DSL,DSLL,EFI);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90341-18006 |
RZU300..20T;BZU300,340,RZU301,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG) |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11600 |
RZU30#,340..5F |
3 | ||
| 96411-11600 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
RZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG) 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337..5F 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
RZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG) 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337..5F 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=11,外径=11 |
1 | ||
| 90253-13017 |
RZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG) 長さ=12,外径=13 |
2 | ||
| 90253-13017 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=12,外径=13 |
2 | ||
| 90253-11001 |
RZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG) 長さ=11,外径=11 |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 90430-18008 |
RZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG) |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-37030 |
RZU30#,340 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-37050 |
RZU30#,340 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337..5F |
1 | ||
| 33124-36030 |
RZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG) |
1 | ||
| 33125B - RECEIVER, MANUAL TRANSMISSION CASE | ||||
| 33125-36020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33125-36020 |
RZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG) |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36060 |
BU30#,346,RZU30#,340..5F |
1 | ||
| 33018-36060 |
RZU30#,340..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
BU30#,346,RZU30#,340..5F |
1 | ||
| 90311-32012 |
RZU30#,340..5F |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-48011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337..5F |
1 | ||
| 90311-48011 |
XZU354..1NO;RZU30#,340,XZU30#,33#,34#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36031 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337..5F |
1 | ||
| 33017-36031 |
RZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG) |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BZU300,340,RZU30#,340..(DM6,T2,T3,T4)..5F ｱﾘ(PTO) |
1 | ||
| 33161-36010 |
XZU302..T3;XZU302..5F..4NO;XZU301..CNG,LPG;XZU306..T5..5F..DSL;BZU300..(DM6,T4)..IV3;XZU341..6F..(DSLL,LPG);XZU301,312..DCB..5F..DSL;RZU300,XZU312..30T..(DSL,LPG);XZU301,311..5F..(295T,30T)..4NO;XZU301,306..(DM3,T3,T4)..5F..(20T,295T);BU301,RZU300,XZU331..(T1,T2,T3,T4,T5)..5F..(DSL,EFI);BU306,346,RZU301,340,XZU300,307,330,337,341,342,346,347,351,352,362,372..5F..(20T,30T) ｱﾘ(PTO) |
1 | ||
| 33161-36040 |
RZU30#,340..(T2,T3,T4)..5F |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33162-36020 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#..5F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33449-36010 |
RZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-08421 | ||||
| 90119-10121 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 90119-10398 | ||||
| 90119-10533 | ||||
| 91611-B0610 | ||||
| 91611-B0812 | ||||
| 91612-61030 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91612-61055 | ||||
| 91619-61255 | ||||
