RZU301-TQMMC3 (2003)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(9905-0406)MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37161 |
BZU300..DM6,T3;BZU300..T4..LPG;BZU340,XZU368..(T3,T4)..(DCRL,DSL,LPG);RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) ｱﾘ(PTO ｸﾗﾂﾁ ｽｲﾂﾁ) |
1 | ||
| 31301-37170 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31301-37170 |
XZU31#,35#,368..5F;BZU300,340,RZU30#,340,XZU30#,321,33#,34#,378,388..(03S,06S,DM3,DM6,DM7,T1,T2,T3,T4,T5)..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90959-03344 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 90959-03394 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 90541-06036 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 90386-13007 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 90386-13007 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 91111-41035 |
BZU300,340,RZU30#,340..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31321-14020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 31323 - BRACKET, CLUTCH PEDAL | ||||
| 31302-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 91112-61070 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 90387-10004 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM 長さ=23.5 |
1 | ||
| 90240-08006 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 90386-08002 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37011 |
BZU300..DM6,T3;BZU300..T4..LPG;BZU340,XZU368..(T3,T4)..(DCRL,DSL,LPG);RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90179-06204 | ||||
| 90468-14017 | ||||
| 91641-80818 | ||||
| 94120-41000 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8413 | ||||
ILLUST NO. 1 OF 2(0406- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37161 |
BZU300..DM6,T3;BZU300..T4..LPG;BZU340,XZU368..(T3,T4)..(DCRL,DSL,LPG);RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) ｱﾘ(PTO ｸﾗﾂﾁ ｽｲﾂﾁ) |
1 | ||
| 31301-37170 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31301-37170 |
XZU31#,35#,368..5F;BZU300,340,RZU30#,340,XZU30#,321,33#,34#,378,388..(03S,06S,DM3,DM6,DM7,T1,T2,T3,T4,T5)..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90959-03344 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 90959-03394 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 90541-06036 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 90386-13007 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 90386-13007 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 91111-41035 |
BZU300,340,RZU30#,340..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31321-14020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 31323 - BRACKET, CLUTCH PEDAL | ||||
| 31302-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 91112-61070 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 90387-10004 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM 長さ=23.5 |
1 | ||
| 90240-08006 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 90386-08002 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37011 |
BZU300..DM6,T3;BZU300..T4..LPG;BZU340,XZU368..(T3,T4)..(DCRL,DSL,LPG);RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90179-06204 | ||||
| 90468-14017 | ||||
| 91641-80818 | ||||
| 91651-B0820 | ||||
| 94120-41000 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8413 | ||||

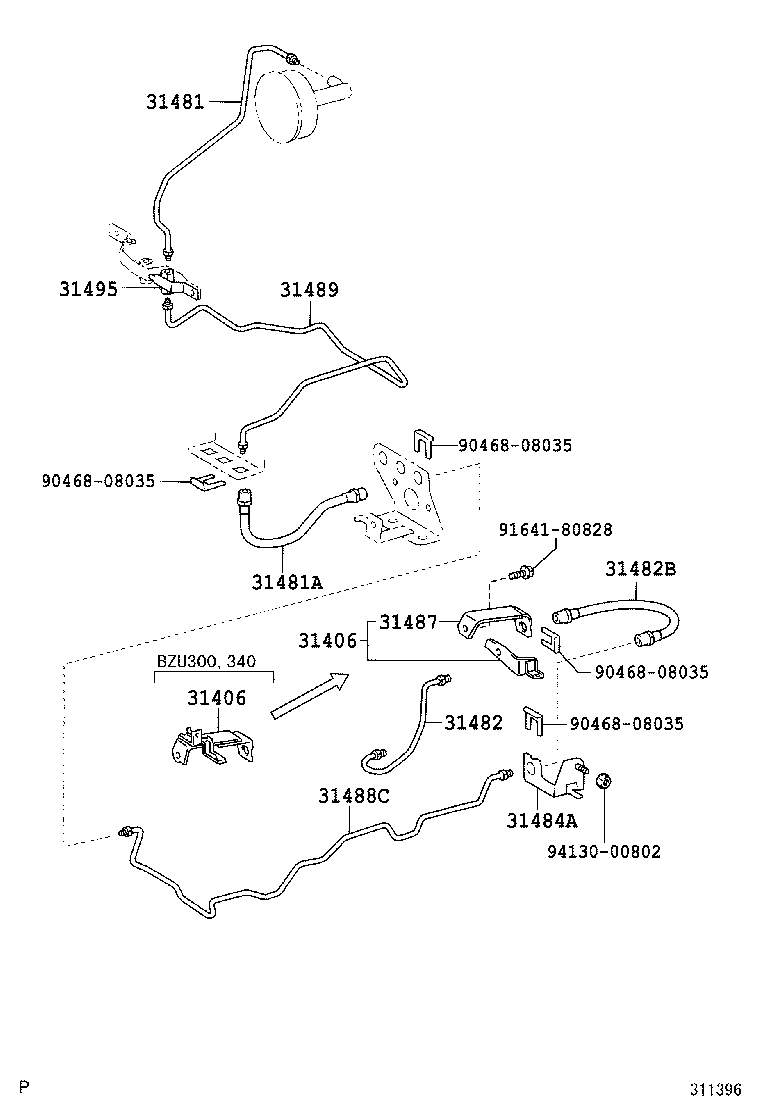

ILLUST NO. 2 OF 2(0406- )BZU300,340,RZU30#,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-37030 |
RZU30#,340..5F |
1 | ||
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-37030 |
RZU30#,340..5F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-37121 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 31481-37120 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31481-37121 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01143 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..DSLL..(CBU,IV4);XZU301,306,362..(DM3,DM5,DM6,T3,T4,T5)..5F..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#..MTM |
1 | ||
| 90931-01143 |
BZU300,340,RZU30#,340..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-37140 |
RZU30#,340..5F |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 31486-37060 |
BZU300,340,RZU30#,340..5F |
1 | ||
| 90931-01142 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 90931-01142 |
BZU300,340,RZU30#,340..5F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-37150 |
XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306..SCB..5F..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,347,350..(DCB,SCB)..MTM..(CBU,IV3,IV6) |
1 | ||
| 31484-37150 |
BZU300,340,RZU30#,340..5F |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-37120 |
RZU30#,340..5F |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31488-37290 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..(DCB,SCB)..5F |
1 | ||
| 31488-37410 |
RZU301..5F |
1 | ||
| 31488-37290 |
BZU300,340,RZU30#,340..5F ｱﾘ(ABS) |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31481-37130 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31481-37130 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F..(CBU,IV3,IV4,IV6) |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 31495-37010 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| Common parts | ||||
| 90468-08035 | ||||
| 91641-80828 | ||||
| 94130-00802 | ||||
