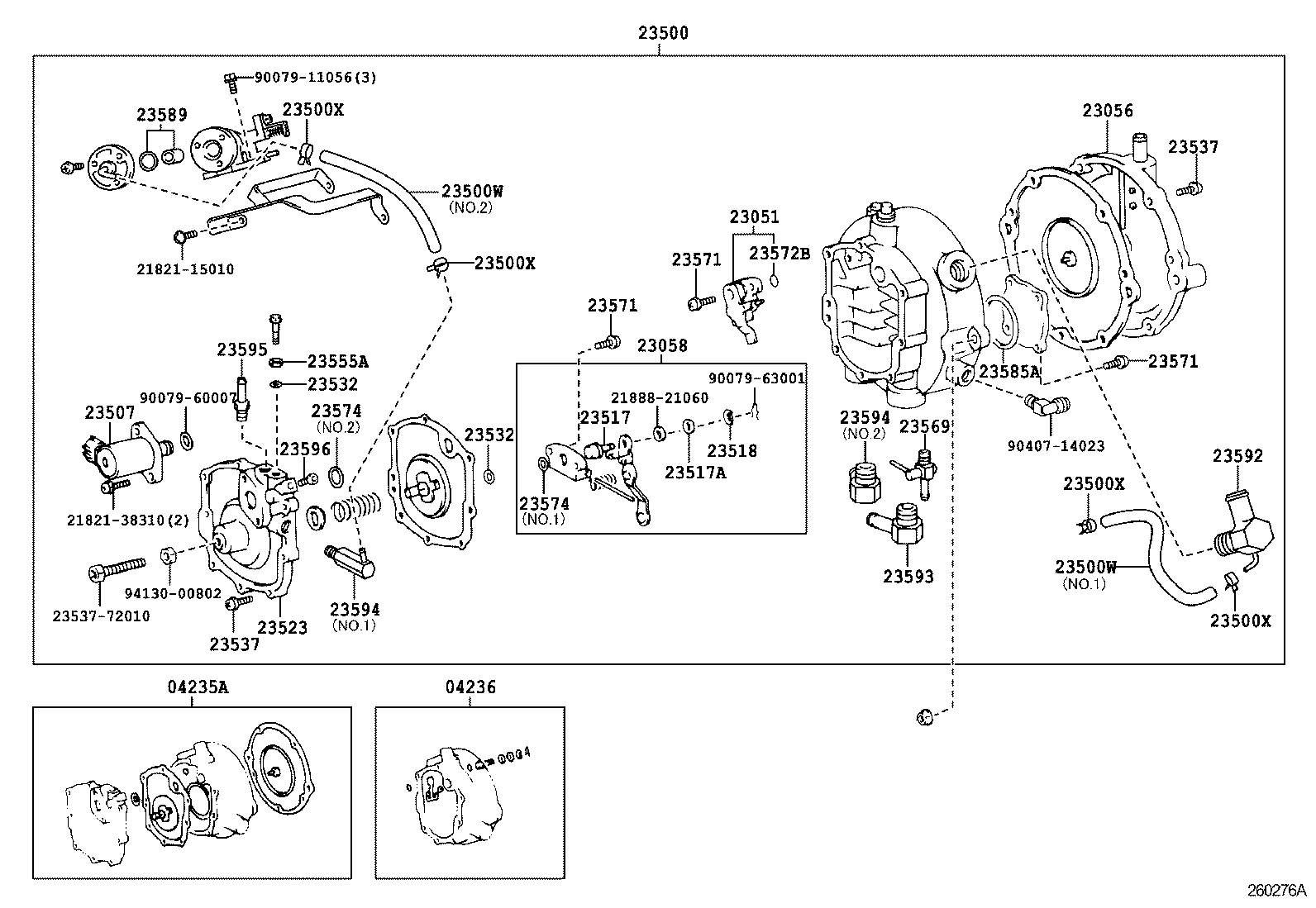

RZU301-TQMMC3 (2003)
Toyota Dyna/Toyoace
(0406- )3RZFPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04235A - DIAPHRAGM KIT, LPG REGULATOR, W/O VALVE | ||||
| 04235-75010 |
3RZFPE..RZU30# |
1 | ||
| 04236 - VALVE KIT, LPG REGULATOR | ||||
| 04236-75030 |
3RZFPE..RZU30# |
1 | ||
| 23051 - VALVE SUB-ASSY, 1ST | ||||
| 23051-73170 |
3RZFPE..RZU30# |
1 | ||
| 23056 - COVER SUB-ASSY, 2ND REGULATOR | ||||
| 23056-75031 |
3RZFPE..RZU30# |
1 | ||
| 23058 - VALVE SUB-ASSY, 2ND | ||||
| 23058-48010 |
3RZFPE..RZU30# |
1 | ||
| 23500 - REGULATOR ASSY, LPG(CNG) | ||||
| 23500-75042 |
3RZFPE..RZU30# |
1 | ||
| 23500W - HOSE, FUEL(FOR LPG REGULATOR) | ||||
| 90079-71022 |
3RZFPE..RZU30# NO.2 |
1 | ||
| 90079-71021 |
3RZFPE..RZU30# NO.1 |
1 | ||
| 23500W - HOSE, FUEL(FOR LPG REGULATOR) | ||||
| 90079-71022 |
3RZFPE..RZU30# NO.2 |
1 | ||
| 90079-71021 |
3RZFPE..RZU30# NO.1 |
1 | ||
| 23500X - CLIP(FOR LPG REGULATOR FUEL HOSE) | ||||
| 96132-51000 |
3RZFPE..RZU30# |
4 | ||
| 23500X - CLIP(FOR LPG REGULATOR FUEL HOSE) | ||||
| 96132-51000 |
3RZFPE..RZU30# |
4 | ||
| 23500X - CLIP(FOR LPG REGULATOR FUEL HOSE) | ||||
| 96132-51000 |
3RZFPE..RZU30# |
4 | ||
| 23500X - CLIP(FOR LPG REGULATOR FUEL HOSE) | ||||
| 96132-51000 |
3RZFPE..RZU30# |
4 | ||
| 23507 - VALVE SUB-ASSY, SOLENOID REGULATOR | ||||
| 23507-48050 |
3RZFPE..RZU30# |
1 | ||
| 23517 - VALVE, ELASTIC FACE | ||||
| 23517-75010 |
3RZFPE..RZU30# |
1 | ||
| 23517A - WASHER(FOR ELASTIC FACE VALVE SET) | ||||
| 21535-10010 |
3RZFPE..RZU30# |
1 | ||
| 23518 - WASHER, WAVE(FOR ELASTIC FACE VALVE SET) | ||||
| 23518-40010 |
3RZFPE..RZU30# |
1 | ||
| 23523 - COVER, 1ST REGULATOR | ||||
| 23523-75030 |
3RZFPE..RZU30# |
1 | ||
| 23532 - RING, O, NO.2(FOR BULB) | ||||
| 23532-40010 |
3RZFPE..RZU301 |
2 | ||
| 23532-40010 |
3RZFPE..RZU30# |
2 | ||
| 23532 - RING, O, NO.2(FOR BULB) | ||||
| 23532-40010 |
3RZFPE..RZU301 |
2 | ||
| 23532-40010 |
3RZFPE..RZU30# |
2 | ||
| 23537 - SCREW(FOR 2ND REGULATOR COVER SET) | ||||
| 21821-31140 |
3RZFPE..RZU30# |
15 | ||
| 23537 - SCREW(FOR 2ND REGULATOR COVER SET) | ||||
| 21821-31140 |
3RZFPE..RZU30# |
15 | ||
| 23555A - WASHER, IDLE ADJUST SCREW | ||||
| 21885-26040 |
3RZFPE..RZU30# |
1 | ||
| 23569 - COCK, DRAIN | ||||
| 23569-40010 |
3RZFPE..RZU30# |
1 | ||
| 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) | ||||
| 23571-72010 |
3RZFPE..RZU30# |
9 | ||
| 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) | ||||
| 23571-72010 |
3RZFPE..RZU30# |
9 | ||
| 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) | ||||
| 23571-72010 |
3RZFPE..RZU30# |
9 | ||
| 23572B - PACKING | ||||
| 23532-44020 |
3RZFPE..RZU30# |
1 | ||
| 23574 - RING, O, NO.1(FOR BULB) | ||||
| 23574-44021 |
3RZFPE..RZU30# NO.1 |
1 | ||
| 23574-72010 |
3RZFPE..RZU30# NO.2 |
1 | ||
| 23574 - RING, O, NO.1(FOR BULB) | ||||
| 23574-44021 |
3RZFPE..RZU30# NO.1 |
1 | ||
| 23574-72010 |
3RZFPE..RZU30# NO.2 |
1 | ||
| 23585A - RING, O(FOR PREHEATER) | ||||
| 23585-75010 |
3RZFPE..RZU30# |
1 | ||
| 23589 - FILTER, LPG REGULATOR | ||||
| 23589-79015 |
3RZFPE..RZU30# |
1 | ||
| 23592 - UNION, NO.2, FUEL HOSE | ||||
| 23592-75031 |
3RZFPE..RZU30# |
1 | ||
| 23593 - UNION, NO.3 | ||||
| 23593-75010 |
3RZFPE..RZU30# |
1 | ||
| 23594 - UNION, NO.4, WATER HOSE | ||||
| 23594-73170 |
3RZFPE..RZU30# NO.1 |
1 | ||
| 23594-75010 |
3RZFPE..RZU30# NO.2 |
1 | ||
| 23594 - UNION, NO.4, WATER HOSE | ||||
| 23594-73170 |
3RZFPE..RZU30# NO.1 |
1 | ||
| 23594-75010 |
3RZFPE..RZU30# NO.2 |
1 | ||
| 23595 - UNION, NO.5 | ||||
| 23119-45020 |
3RZFPE..RZU30# |
1 | ||
| 23596 - PLUG(FOR LPG REGULATOR BODY) | ||||
| 23596-72010 |
3RZFPE..RZU30# |
2 | ||
| Common parts | ||||
| 21821-15010 | ||||
| 21821-38310 | ||||
| 21888-21060 | ||||
| 23537-72010 | ||||
| 90079-11056 | ||||
| 90079-60007 | ||||
| 90079-63001 | ||||
| 90407-14023 | ||||
| 94130-00802 | ||||
