RZU301-TQMMC3 (2003)
Toyota Dyna/Toyoace
(0406- )N04C..XZU378..IV4 ; (0406- )N04C..XZU308,378,388..SCB..IV3 ; (0406-
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 90099-10223 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 90099-10223 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||

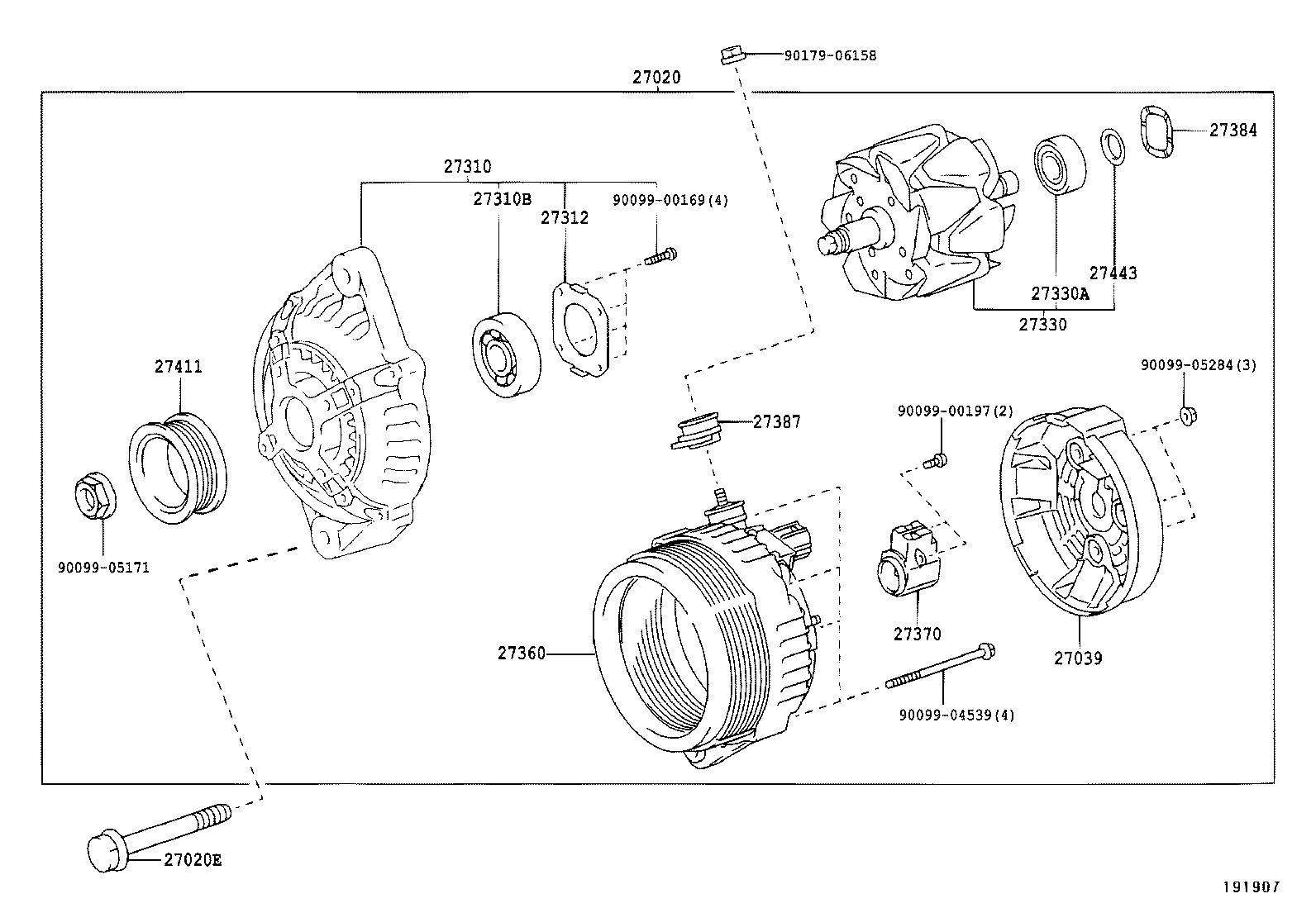

(0306- )3RZ#
12V 150A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27039-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 90099-10223 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27312-72100 |
1BZ#,3RZFPE..BZU300,340,RZU301 12V 150A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10222 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-75250 |
3RZ#..RZU30#,340 |
1 | ||
| 27360-75250 |
3RZ#..RZU30#,340 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27370-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 27384-50030 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27387-20130 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
S05D..XZU301..T4..5F..DSL..CBU;S05D..XZU306,321,331,341..SCB..5F..DSL;S05D..XZU301..(DM6,T3,T4,T5)..5F..(20T,30T)..DSL..IV3;S05D..XZU301,351..(DM2,DM3,DM6,T3,T5)..5F..(20T,30T)..(CBU,IV6);S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU311,346,351..(DM5,DM6,T2,T3,T4)..(CNG,DSL,EFI,LPG) |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
