Toyota Dyna/toyoace RZU300 FUEL TANK & TUBE

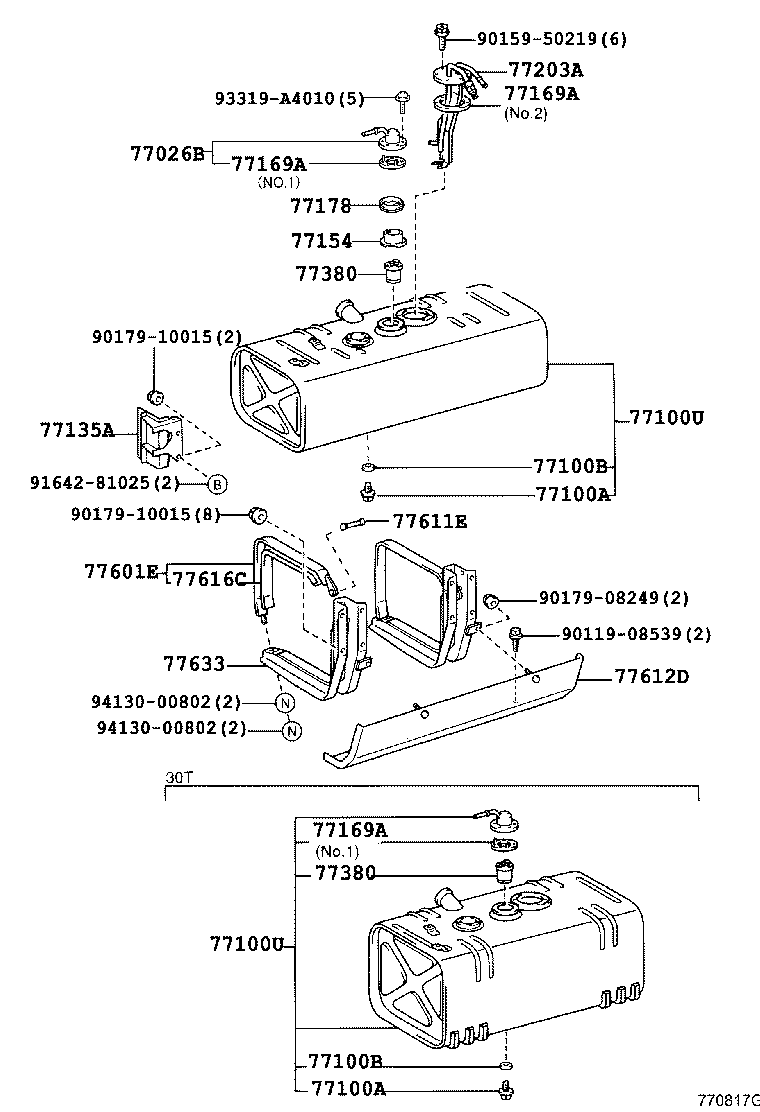

RZU300-TQMQK3 (2000)

Toyota Dyna/Toyoace

Production May 2000 - May 2007

Engine 3RZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾀﾝｸ(ｻﾌﾞﾀﾝｸｱﾘ)

Part #	Description	Period	Qty
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37360	RZU340;RZU300..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/2000 - 01/2003	1
77001-37361	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37361	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37362	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 12/2999	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77169-32010	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77169-14020	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77169-32010	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77169-32010	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77169-14020	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77169-32010	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77601E - BAND SUB-ASSY, FUEL TANK
77601-36150	RZU340;RZU300..30T..EFI	05/2000 - 06/2002	2
77601-36150	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 ﾌﾕ-ｴﾙﾀﾝｸ=780X385X310	06/2002 - 06/2004	2
77601-36150	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	06/2004 - 09/2006	2
77601-37040	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	10/2006 - 12/2999	2
77611E - PIN, FUEL TANK BAND
77629-36010	RZU300,340..SCB..EFI;BU346,XZU340,341,342,346,347..SCB..T3..(20T,295T,30T,35T)..DSL	05/1999 - 06/2004	2
77629-36010	RZU300,340..SCB..EFI	06/2004 - 12/2999	2
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77609-37030	RZU340;RZU300..30T..EFI ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/2000 - 06/2002	2
77609-37030	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 ﾌﾕ-ｴﾙﾀﾝｸ=385X310	06/2002 - 06/2004	2
77609-37030	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	06/2004 - 12/2999	2
Common parts
90179-10015
90202-09047
90250-03031
90386-08164
90401-12007
90405-10008
90461-07033
90467-15012
90480-14006
91626-40616
91642-81035
91642-81040
91645-C1032
93319-15010
93319-A4010
94130-00802
96132-51100
96132-51300
96713-19017
96713-24011

ILLUST NO. 2 OF 3(9905-0406)XZU307,337..DCB,SCB..4FC ; (9905-0406)XZU31#,346..SCB..DM5,T4..DSL ; (99

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ(LH ﾌﾚ-ﾑｾｼﾞﾒﾝﾀ)

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37400	RZU300..SCB..EFI	05/2000 - 06/2004	1
77205-37400	RZU300..SCB..EFI	05/2000 - 06/2004	1
77205-37400	RZU300..SCB..EFI	05/2000 - 06/2004	1
77205-37400	RZU300..SCB..EFI	06/2004 - 12/2999	1
77205-37400	RZU300..SCB..EFI	06/2004 - 12/2999	1
77205-37400	RZU300..SCB..EFI	06/2004 - 12/2999	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37630	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77206-37630	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77206-37630	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77206-37630	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77206-37630	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77206-37630	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
Common parts
90467-18008
96132-51300
Linked diagrams
2302

ILLUST NO. 3 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙｸﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
90119-08676
90119-08830
90119-08A33
90129-08007
91626-60816
91641-80816
91642-81025
91651-60816

ILLUST NO. 1 OF 2(0005-0406)SCB..EFI

Click highlighted areas on diagram

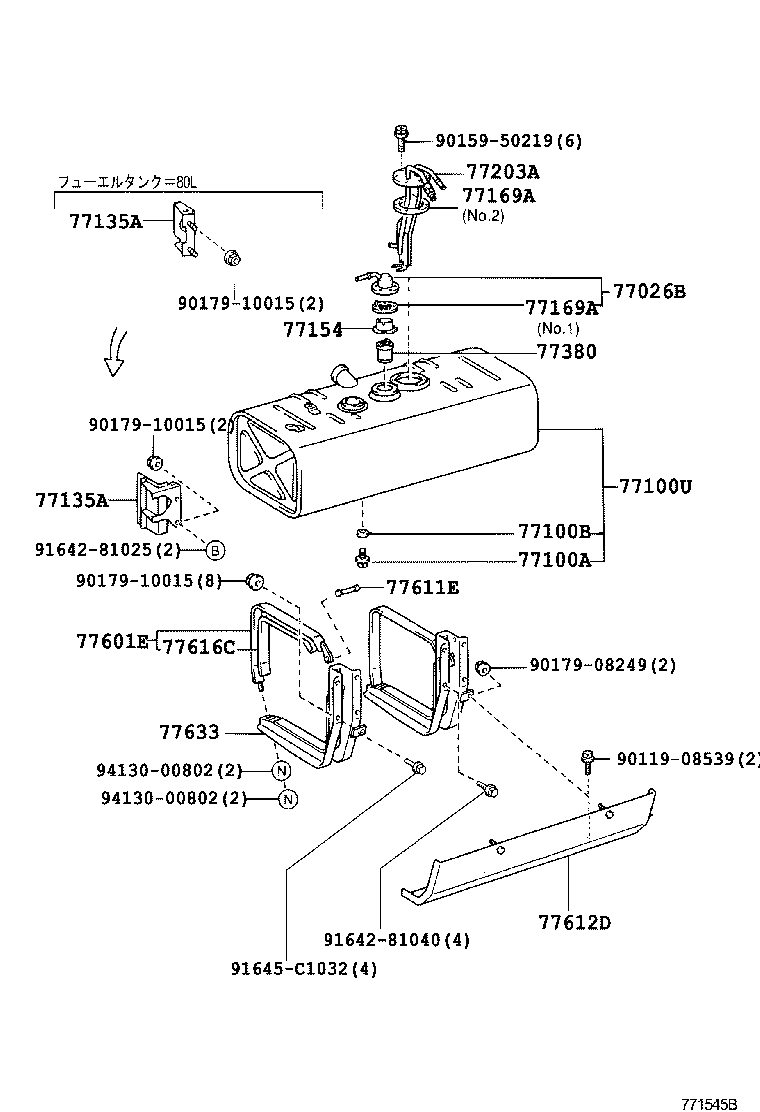

ﾌﾕ-ｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010	RZU300,340..EFI	06/2004 - 01/2006	1
77026-37010	RZU300,340..EFI	05/2000 - 06/2004	1
77026-37010	RZU300,340..SCB..EFI	02/2006 - 12/2999	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37360	RZU340;RZU300..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/2000 - 01/2003	1
77001-37361	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37361	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37362	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 12/2999	1
77100U - TANK SUB-ASSY, FUEL
77001-37360	RZU340;RZU300..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/2000 - 01/2003	1
77001-37361	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37361	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37362	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 12/2999	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT
77154-25010	RZU300,340..EFI	05/2000 - 06/2004	1
77154-25010	RZU300,340..EFI	06/2004 - 01/2006	1
77154-25010	RZU300,340..SCB..EFI	02/2006 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77169-32010	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77169-14020	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77169-32010	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77169-32010	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77169-14020	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77169-32010	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77169-32010	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77169-14020	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77169-32010	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-44010	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-37061	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 ﾌﾕ-ｴﾙﾀﾝｸ=780X385X310	06/2002 - 06/2004	1
77203-37061	RZU340;RZU300..30T..EFI ﾌﾕ-ｴﾙﾀﾝｸ=780X385X310	06/2004 - 12/2999	1
77203-37061	RZU340;RZU300..30T..EFI	05/2000 - 06/2002	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	RZU300,340..EFI	05/2000 - 06/2004	1
77380-26010	RZU300,340..SCB..EFI	02/2006 - 12/2999	1
77380-26010	RZU300,340..EFI	06/2004 - 01/2006	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	RZU300,340..EFI	05/2000 - 06/2004	1
77380-26010	RZU300,340..SCB..EFI	02/2006 - 12/2999	1
77380-26010	RZU300,340..EFI	06/2004 - 01/2006	1
77601E - BAND SUB-ASSY, FUEL TANK
77601-36150	RZU340;RZU300..30T..EFI	05/2000 - 06/2002	2
77601-36150	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 ﾌﾕ-ｴﾙﾀﾝｸ=780X385X310	06/2002 - 06/2004	2
77601-36150	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	06/2004 - 09/2006	2
77601-37040	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	10/2006 - 12/2999	2
77611E - PIN, FUEL TANK BAND
77629-36010	RZU300,340..SCB..EFI;BU346,XZU340,341,342,346,347..SCB..T3..(20T,295T,30T,35T)..DSL	05/1999 - 06/2004	2
77629-36010	RZU300,340..SCB..EFI	06/2004 - 12/2999	2
77612D - COVER, FUEL TANK, LH
77612-37040	RZU340;RZU300..30T..EFI	05/2000 - 06/2004	1
77612-37040	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	06/2004 - 05/2007	1
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77609-37030	RZU340;RZU300..30T..EFI ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/2000 - 06/2002	2
77609-37030	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 ﾌﾕ-ｴﾙﾀﾝｸ=385X310	06/2002 - 06/2004	2
77609-37030	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	06/2004 - 12/2999	2
Common parts
90119-08539
90159-50219
90179-08249
90179-10015
91642-81025
93319-A4010
94130-00802

ILLUST NO. 2 OF 2(0005-0306)SCB..EFI

Click highlighted areas on diagram

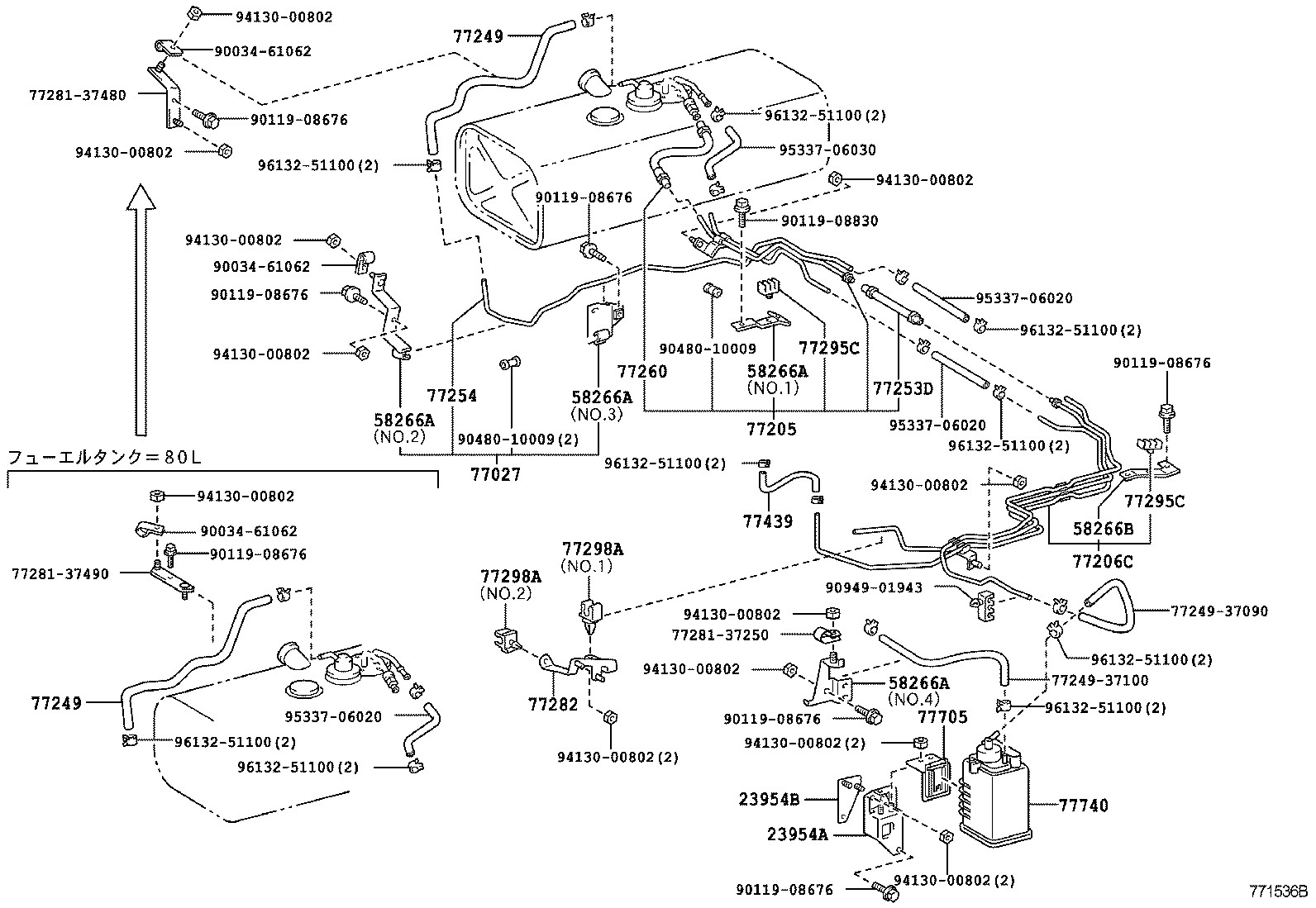

ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ

Part #	Description	Period	Qty
23954A - BRACKET, CHARCOAL CANISTER, NO.1
23954-78020	3RZFE..RZU300,340..SCB	05/2000 - 06/2003	1
23954-78021	3RZFE..RZU300,340..SCB	06/2004 - 12/2999	1
23954-78021	3RZFE..RZU300,340..SCB	06/2003 - 06/2004	1
23954B - BRACKET, CHARCOAL CANISTER, NO.2
23954-78030	3RZFE..RZU300,340..SCB	06/2004 - 12/2999	1
23954-78030	3RZFE..RZU300,340..SCB	05/2000 - 06/2004	1
58266A - BRACKET, FUEL TUBE CLAMP
58266-37220	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
58266-37270	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
58266-37270	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	06/2004 - 12/2999	1
58266-37220	RZU300,340..SCB..EFI NO.4	06/2004 - 12/2999	1
58266-37280	BZU300,340,RZU300,340..SCB..(CNG,EFI) NO.1	06/2004 - 12/2999	1
58266A - BRACKET, FUEL TUBE CLAMP
58266-37220	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
58266-37270	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
58266-37270	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	06/2004 - 12/2999	1
58266-37220	RZU300,340..SCB..EFI NO.4	06/2004 - 12/2999	1
58266-37280	BZU300,340,RZU300,340..SCB..(CNG,EFI) NO.1	06/2004 - 12/2999	1
58266A - BRACKET, FUEL TUBE CLAMP
58266-37220	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
58266-37270	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
58266-37270	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	06/2004 - 12/2999	1
58266-37220	RZU300,340..SCB..EFI NO.4	06/2004 - 12/2999	1
58266-37280	BZU300,340,RZU300,340..SCB..(CNG,EFI) NO.1	06/2004 - 12/2999	1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-37050	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77027-37050	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37400	RZU300..SCB..EFI	05/2000 - 06/2004	1
77205-37400	RZU300..SCB..EFI	06/2004 - 12/2999	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37630	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77206-37630	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77249 - HOSE, FUEL EMISSION
77249-37040	RZU300..SCB..EFI NO.2	05/2000 - 06/2003	1
77249-37050	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2003	1
77249-37140	RZU300..SCB..EFI	06/2003 - 06/2004	1
77249-37140	RZU300..SCB..EFI	06/2004 - 12/2999	1
77249 - HOSE, FUEL EMISSION
77249-37040	RZU300..SCB..EFI NO.2	05/2000 - 06/2003	1
77249-37050	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2003	1
77249-37140	RZU300..SCB..EFI	06/2003 - 06/2004	1
77249-37140	RZU300..SCB..EFI	06/2004 - 12/2999	1
77253D - HOSE, FUEL
90923-01406	RZU300..SCB..EFI NO.2	05/2000 - 06/2004	1
90923-01409	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
90923-01409	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
77253D - HOSE, FUEL
90923-01406	RZU300..SCB..EFI NO.2	05/2000 - 06/2004	1
90923-01409	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
90923-01409	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
77254 - TUBE, FUEL EMISSION, NO.1
77261-37050	RZU300,340..EFI	06/2004 - 12/2999	1
77261-37050	RZU300,340..EFI	05/2000 - 06/2004	1
77260 - HOSE ASSY, FUEL MAIN
90923-01406	RZU300..SCB..EFI	06/2004 - 12/2999	1
77282 - BRACKET, FUEL MAIN TUBE, NO.2
77282-37010	RZU300,340..EFI	05/2000 - 06/2004	1
77282-37010	RZU300,340..EFI	06/2004 - 12/2999	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-37070	RZU300,340..EFI NO.1	09/2000 - 06/2004	1
77298-37020	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77298-37010	RZU300,340..EFI NO.1	05/2000 - 09/2000	1
77298-37020	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77298-37070	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-37070	RZU300,340..EFI NO.1	09/2000 - 06/2004	1
77298-37020	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77298-37010	RZU300,340..EFI NO.1	05/2000 - 09/2000	1
77298-37020	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77298-37070	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77439 - HOSE, FUEL RETURN
77439-37020	RZU300,340..EFI	06/2004 - 12/2999	1
77439-37020	RZU300,340..EFI	06/2003 - 06/2004	1
77439-37010	RZU300,340..EFI	05/2000 - 06/2003	1
77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER
77705-37030	RZU300,340..SCB..EFI	06/2003 - 06/2004	1
77705-37030	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77705-37020	RZU300,340..SCB..EFI	05/2000 - 06/2003	1
77740 - CANISTER ASSY, CHARCOAL
77740-52050	RZU300,340..EFI	06/2004 - 12/2999	1
77740-37070	RZU300,340..EFI	05/2000 - 06/2003	1
77740-52050	RZU300,340..EFI	06/2003 - 06/2004	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-37030	RZU300,340..SCB..EFI	05/2000 - 06/2003	1
Common parts
77249-37070
77281-37480
77281-37490
90034-61057
90119-08676
90119-08830
90461-12365
90467-12067
90480-10009
90949-01943
94130-00802
95333-06020
95333-06030

ILLUST NO. 2 OF 2(0306-0406)SCB..EFI

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ

Part #	Description	Period	Qty
23954A - BRACKET, CHARCOAL CANISTER, NO.1
23954-78020	3RZFE..RZU300,340..SCB	05/2000 - 06/2003	1
23954-78021	3RZFE..RZU300,340..SCB	06/2004 - 12/2999	1
23954-78021	3RZFE..RZU300,340..SCB	06/2003 - 06/2004	1
23954B - BRACKET, CHARCOAL CANISTER, NO.2
23954-78030	3RZFE..RZU300,340..SCB	06/2004 - 12/2999	1
23954-78030	3RZFE..RZU300,340..SCB	05/2000 - 06/2004	1
58266A - BRACKET, FUEL TUBE CLAMP
58266-37220	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
58266-37270	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
58266-37270	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	06/2004 - 12/2999	1
58266-37220	RZU300,340..SCB..EFI NO.4	06/2004 - 12/2999	1
58266-37280	BZU300,340,RZU300,340..SCB..(CNG,EFI) NO.1	06/2004 - 12/2999	1
58266A - BRACKET, FUEL TUBE CLAMP
58266-37220	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
58266-37270	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
58266-37270	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	06/2004 - 12/2999	1
58266-37220	RZU300,340..SCB..EFI NO.4	06/2004 - 12/2999	1
58266-37280	BZU300,340,RZU300,340..SCB..(CNG,EFI) NO.1	06/2004 - 12/2999	1
58266A - BRACKET, FUEL TUBE CLAMP
58266-37220	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
58266-37270	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
58266-37270	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	06/2004 - 12/2999	1
58266-37220	RZU300,340..SCB..EFI NO.4	06/2004 - 12/2999	1
58266-37280	BZU300,340,RZU300,340..SCB..(CNG,EFI) NO.1	06/2004 - 12/2999	1
58266B - BRACKET, FUEL TUBE CLAMP
58266-37250	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
58266-37250	RZU300,340..SCB..EFI	06/2003 - 06/2004	1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-37050	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77027-37050	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37400	RZU300..SCB..EFI	05/2000 - 06/2004	1
77205-37400	RZU300..SCB..EFI	06/2004 - 12/2999	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37630	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77206-37630	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77249 - HOSE, FUEL EMISSION
77249-37040	RZU300..SCB..EFI NO.2	05/2000 - 06/2003	1
77249-37050	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2003	1
77249-37140	RZU300..SCB..EFI	06/2003 - 06/2004	1
77249-37140	RZU300..SCB..EFI	06/2004 - 12/2999	1
77253D - HOSE, FUEL
90923-01406	RZU300..SCB..EFI NO.2	05/2000 - 06/2004	1
90923-01409	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
90923-01409	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
77253D - HOSE, FUEL
90923-01406	RZU300..SCB..EFI NO.2	05/2000 - 06/2004	1
90923-01409	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
90923-01409	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
77254 - TUBE, FUEL EMISSION, NO.1
77261-37050	RZU300,340..EFI	06/2004 - 12/2999	1
77261-37050	RZU300,340..EFI	05/2000 - 06/2004	1
77260 - HOSE ASSY, FUEL MAIN
90923-01406	RZU300..SCB..EFI	06/2004 - 12/2999	1
77282 - BRACKET, FUEL MAIN TUBE, NO.2
77282-37010	RZU300,340..EFI	05/2000 - 06/2004	1
77282-37010	RZU300,340..EFI	06/2004 - 12/2999	1
77295C - GROMMET, FUEL TUBE
77295-37020	RZU300,340..SCB..EFI	06/2004 - 12/2999	3
77295-37020	RZU300,340..SCB..EFI	06/2003 - 06/2004	3
77298A - CLAMP, FUEL TUBE, NO.4
77298-37070	RZU300,340..EFI NO.1	09/2000 - 06/2004	1
77298-37020	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77298-37010	RZU300,340..EFI NO.1	05/2000 - 09/2000	1
77298-37020	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77298-37070	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-37070	RZU300,340..EFI NO.1	09/2000 - 06/2004	1
77298-37020	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77298-37010	RZU300,340..EFI NO.1	05/2000 - 09/2000	1
77298-37020	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77298-37070	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77439 - HOSE, FUEL RETURN
77439-37020	RZU300,340..EFI	06/2004 - 12/2999	1
77439-37020	RZU300,340..EFI	06/2003 - 06/2004	1
77439-37010	RZU300,340..EFI	05/2000 - 06/2003	1
77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER
77705-37030	RZU300,340..SCB..EFI	06/2003 - 06/2004	1
77705-37030	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77705-37020	RZU300,340..SCB..EFI	05/2000 - 06/2003	1
77740 - CANISTER ASSY, CHARCOAL
77740-52050	RZU300,340..EFI	06/2004 - 12/2999	1
77740-37070	RZU300,340..EFI	05/2000 - 06/2003	1
77740-52050	RZU300,340..EFI	06/2003 - 06/2004	1
Common parts
77249-37090
77249-37100
77281-37250
77281-37480
77281-37490
90034-61057
90119-08676
90119-08830
90461-12365
90467-12067
90480-10009
90949-01943
94130-00802
95337-06020
95337-06030

ILLUST NO. 2 OF 2(0406- )SCB..EFI

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
23954A - BRACKET, CHARCOAL CANISTER, NO.1
23954-78020	3RZFE..RZU300,340..SCB	05/2000 - 06/2003	1
23954-78021	3RZFE..RZU300,340..SCB	06/2004 - 12/2999	1
23954-78021	3RZFE..RZU300,340..SCB	06/2003 - 06/2004	1
23954B - BRACKET, CHARCOAL CANISTER, NO.2
23954-78030	3RZFE..RZU300,340..SCB	06/2004 - 12/2999	1
23954-78030	3RZFE..RZU300,340..SCB	05/2000 - 06/2004	1
58266A - BRACKET, FUEL TUBE CLAMP
58266-37220	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
58266-37270	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
58266-37270	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	06/2004 - 12/2999	1
58266-37220	RZU300,340..SCB..EFI NO.4	06/2004 - 12/2999	1
58266-37280	BZU300,340,RZU300,340..SCB..(CNG,EFI) NO.1	06/2004 - 12/2999	1
58266A - BRACKET, FUEL TUBE CLAMP
58266-37220	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
58266-37270	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
58266-37270	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	06/2004 - 12/2999	1
58266-37220	RZU300,340..SCB..EFI NO.4	06/2004 - 12/2999	1
58266-37280	BZU300,340,RZU300,340..SCB..(CNG,EFI) NO.1	06/2004 - 12/2999	1
58266A - BRACKET, FUEL TUBE CLAMP
58266-37220	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
58266-37270	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
58266-37270	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	06/2004 - 12/2999	1
58266-37220	RZU300,340..SCB..EFI NO.4	06/2004 - 12/2999	1
58266-37280	BZU300,340,RZU300,340..SCB..(CNG,EFI) NO.1	06/2004 - 12/2999	1
58266A - BRACKET, FUEL TUBE CLAMP
58266-37220	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
58266-37270	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
58266-37270	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	05/2000 - 06/2004	1
58266-37290	RZU300,340..EFI NO.3	06/2004 - 12/2999	1
58266-37220	RZU300,340..SCB..EFI NO.4	06/2004 - 12/2999	1
58266-37280	BZU300,340,RZU300,340..SCB..(CNG,EFI) NO.1	06/2004 - 12/2999	1
58266B - BRACKET, FUEL TUBE CLAMP
58266-37250	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
58266-37250	RZU300,340..SCB..EFI	06/2003 - 06/2004	1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-37050	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77027-37050	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37400	RZU300..SCB..EFI	05/2000 - 06/2004	1
77205-37400	RZU300..SCB..EFI	06/2004 - 12/2999	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37630	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77206-37630	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77249 - HOSE, FUEL EMISSION
77249-37040	RZU300..SCB..EFI NO.2	05/2000 - 06/2003	1
77249-37050	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2003	1
77249-37140	RZU300..SCB..EFI	06/2003 - 06/2004	1
77249-37140	RZU300..SCB..EFI	06/2004 - 12/2999	1
77249 - HOSE, FUEL EMISSION
77249-37040	RZU300..SCB..EFI NO.2	05/2000 - 06/2003	1
77249-37050	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2003	1
77249-37140	RZU300..SCB..EFI	06/2003 - 06/2004	1
77249-37140	RZU300..SCB..EFI	06/2004 - 12/2999	1
77253D - HOSE, FUEL
90923-01406	RZU300..SCB..EFI NO.2	05/2000 - 06/2004	1
90923-01409	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
90923-01409	RZU300,340..SCB..EFI NO.1	05/2000 - 06/2004	1
77254 - TUBE, FUEL EMISSION, NO.1
77261-37050	RZU300,340..EFI	06/2004 - 12/2999	1
77261-37050	RZU300,340..EFI	05/2000 - 06/2004	1
77260 - HOSE ASSY, FUEL MAIN
90923-01406	RZU300..SCB..EFI	06/2004 - 12/2999	1
77282 - BRACKET, FUEL MAIN TUBE, NO.2
77282-37010	RZU300,340..EFI	05/2000 - 06/2004	1
77282-37010	RZU300,340..EFI	06/2004 - 12/2999	1
77295C - GROMMET, FUEL TUBE
77295-37020	RZU300,340..SCB..EFI	06/2004 - 12/2999	3
77295-37020	RZU300,340..SCB..EFI	06/2003 - 06/2004	3
77295C - GROMMET, FUEL TUBE
77295-37020	RZU300,340..SCB..EFI	06/2004 - 12/2999	3
77295-37020	RZU300,340..SCB..EFI	06/2003 - 06/2004	3
77298A - CLAMP, FUEL TUBE, NO.4
77298-37070	RZU300,340..EFI NO.1	09/2000 - 06/2004	1
77298-37020	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77298-37010	RZU300,340..EFI NO.1	05/2000 - 09/2000	1
77298-37020	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77298-37070	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-37070	RZU300,340..EFI NO.1	09/2000 - 06/2004	1
77298-37020	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77298-37010	RZU300,340..EFI NO.1	05/2000 - 09/2000	1
77298-37020	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77298-37070	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77439 - HOSE, FUEL RETURN
77439-37020	RZU300,340..EFI	06/2004 - 12/2999	1
77439-37020	RZU300,340..EFI	06/2003 - 06/2004	1
77439-37010	RZU300,340..EFI	05/2000 - 06/2003	1
77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER
77705-37030	RZU300,340..SCB..EFI	06/2003 - 06/2004	1
77705-37030	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77705-37020	RZU300,340..SCB..EFI	05/2000 - 06/2003	1
77740 - CANISTER ASSY, CHARCOAL
77740-52050	RZU300,340..EFI	06/2004 - 12/2999	1
77740-37070	RZU300,340..EFI	05/2000 - 06/2003	1
77740-52050	RZU300,340..EFI	06/2003 - 06/2004	1
Common parts
77249-37090
77249-37100
77281-37250
77281-37480
77281-37490
90034-61062
90119-08676
90119-08830
90480-10009
90949-01943
94130-00802
95337-06020
95337-06030
96132-51100

ILLUST NO. 1 OF 2(0406- )SCB..EFI

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010	RZU300,340..EFI	06/2004 - 01/2006	1
77026-37010	RZU300,340..EFI	05/2000 - 06/2004	1
77026-37010	RZU300,340..SCB..EFI	02/2006 - 12/2999	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37360	RZU340;RZU300..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/2000 - 01/2003	1
77001-37361	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37361	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37362	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 12/2999	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT
77154-25010	RZU300,340..EFI	05/2000 - 06/2004	1
77154-25010	RZU300,340..EFI	06/2004 - 01/2006	1
77154-25010	RZU300,340..SCB..EFI	02/2006 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77169-32010	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77169-14020	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77169-32010	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77169-32010	RZU300,340..EFI NO.2	06/2004 - 12/2999	1
77169-14020	RZU300,340..EFI NO.1	06/2004 - 12/2999	1
77169-32010	RZU300,340..EFI NO.2	05/2000 - 06/2004	1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-37061	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 ﾌﾕ-ｴﾙﾀﾝｸ=780X385X310	06/2002 - 06/2004	1
77203-37061	RZU340;RZU300..30T..EFI ﾌﾕ-ｴﾙﾀﾝｸ=780X385X310	06/2004 - 12/2999	1
77203-37061	RZU340;RZU300..30T..EFI	05/2000 - 06/2002	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	RZU300,340..EFI	05/2000 - 06/2004	1
77380-26010	RZU300,340..SCB..EFI	02/2006 - 12/2999	1
77380-26010	RZU300,340..EFI	06/2004 - 01/2006	1
77601E - BAND SUB-ASSY, FUEL TANK
77601-36150	RZU340;RZU300..30T..EFI	05/2000 - 06/2002	2
77601-36150	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 ﾌﾕ-ｴﾙﾀﾝｸ=780X385X310	06/2002 - 06/2004	2
77601-36150	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	06/2004 - 09/2006	2
77601-37040	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	10/2006 - 12/2999	2
77611E - PIN, FUEL TANK BAND
77629-36010	RZU300,340..SCB..EFI;BU346,XZU340,341,342,346,347..SCB..T3..(20T,295T,30T,35T)..DSL	05/1999 - 06/2004	2
77629-36010	RZU300,340..SCB..EFI	06/2004 - 12/2999	2
77612D - COVER, FUEL TANK, LH
77612-37040	RZU340;RZU300..30T..EFI	05/2000 - 06/2004	1
77612-37040	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	06/2004 - 05/2007	1
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77609-37030	RZU340;RZU300..30T..EFI ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/2000 - 06/2002	2
77609-37030	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 ﾌﾕ-ｴﾙﾀﾝｸ=385X310	06/2002 - 06/2004	2
77609-37030	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	06/2004 - 12/2999	2
Common parts
90119-08539
90159-50219
90179-08249
90179-10015
91642-81025
91642-81040
91645-C1032
94130-00802

ILLUST NO. 2 OF 2(0406- )XZU308,33#,354..SCB..T3,T4 ; (0406-)XZU301..6FC..20T..IV3..1NO ; (04

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37400	RZU300..SCB..EFI	05/2000 - 06/2004	1
77205-37400	RZU300..SCB..EFI	06/2004 - 12/2999	1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37400	RZU300..SCB..EFI	05/2000 - 06/2004	1
77205-37400	RZU300..SCB..EFI	06/2004 - 12/2999	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37630	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77206-37630	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37630	RZU300,340..SCB..EFI	05/2000 - 06/2004	1
77206-37630	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
Common parts
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37360	RZU340;RZU300..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/2000 - 01/2003	1
77001-37360	RZU340;RZU300..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/2000 - 01/2003	1
77001-37361	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37361	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37361	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37361	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37362	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 12/2999	1
77001-37362	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 12/2999	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77609-37030	RZU340;RZU300..30T..EFI ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/2000 - 06/2002	2
77609-37030	RZU340;RZU300..30T..EFI ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/2000 - 06/2002	2
77609-37030	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 ﾌﾕ-ｴﾙﾀﾝｸ=385X310	06/2002 - 06/2004	2
77609-37030	RZU340;RZU300..30T..CBU;RZU300..SCB..(T3,T4)..EFI..IV3 ﾌﾕ-ｴﾙﾀﾝｸ=385X310	06/2002 - 06/2004	2
77609-37030	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	06/2004 - 12/2999	2
77609-37030	RZU340;RZU300..DM5,T3;RZU300..T4..30T..EFI	06/2004 - 12/2999	2
Common parts
90179-10015
91611-B0616
91626-40616
91642-81025
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

RZU300-TQMQK3 (2000)

ILLUST NO. 1 OF 3(9905-0406)

ILLUST NO. 2 OF 3(9905-0406)XZU307,337..DCB,SCB..4FC ; (9905-0406)XZU31#,346..SCB..DM5,T4..DSL ; (99

ILLUST NO. 3 OF 3(9905-0406)

ILLUST NO. 1 OF 2(0005-0406)SCB..EFI

ILLUST NO. 2 OF 2(0005-0306)SCB..EFI

ILLUST NO. 2 OF 2(0306-0406)SCB..EFI

ILLUST NO. 2 OF 2(0406- )SCB..EFI

ILLUST NO. 1 OF 2(0406- )SCB..EFI

ILLUST NO. 2 OF 2(0406- )XZU308,33#,354..SCB..T3,T4 ; (0406-)XZU301..6FC..20T..IV3..1NO ; (04

ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3

Part Price Details
