Toyota Dyna/toyoace RZU300 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
RZU300-TQMQK3 (2000)
5152 - SUSPENSION CROSSMEMBER & UNDER COVER

RZU300-TQMQK3 (2000)

Toyota Dyna/Toyoace

Production May 2000 - May 2007

Engine 3RZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

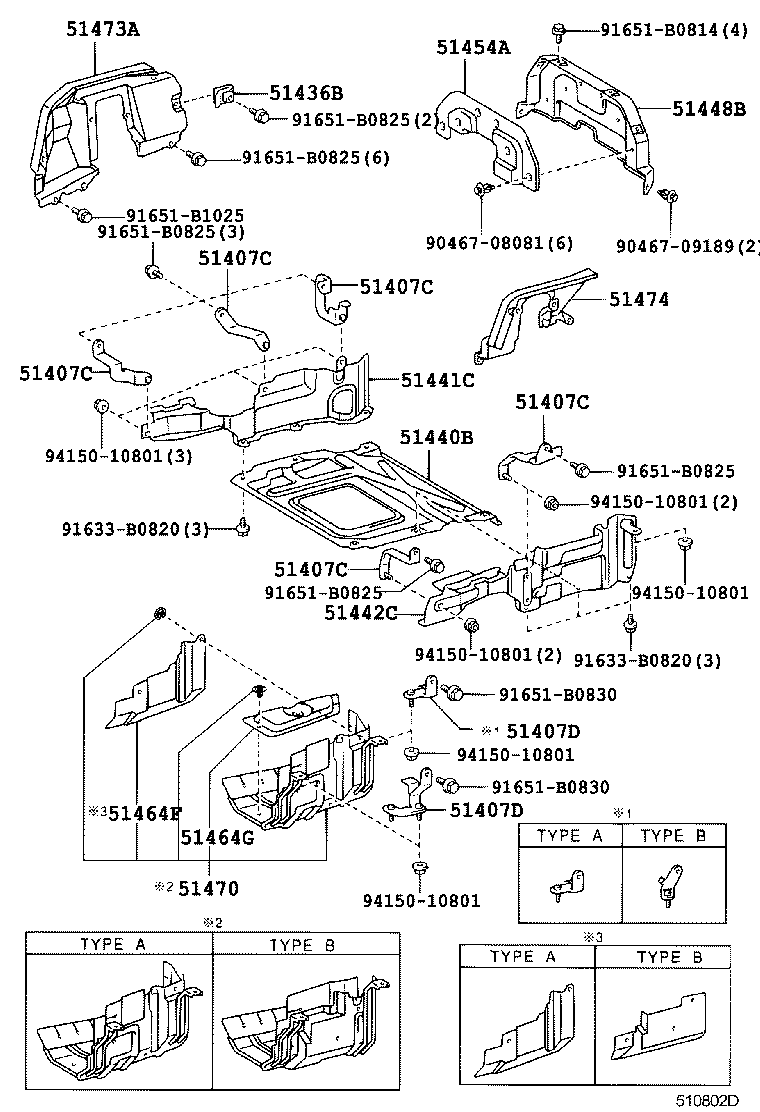

ILLUST NO. 1 OF 2(9905-0206)RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35# ; (0209-0406)R

Click highlighted areas on diagram

Part #	Description	Period	Qty
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51436-37080	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	2
51448B - SHUTTER, ENGINE REAR SIDE
51448-37030	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
51448-37030	RZU301,340..5F;RZU300..SCB..EFI	06/2002 - 06/2004	1
51470 - COVER ASSY, TRANSMISSION UNDER
51470-37290	XZU301..DSLL..4NO;XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU300,XZU302,341,342..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BZU300,340,RZU301,340,XZU300,330,331,340..(T3,T4)..MTM..(DSL,EFI,LPG)	06/2002 - 06/2004	1
51470-37170	RZU300..SCB..EFI;BZU340,RZU301..5F..LPG;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51473-37180	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51474-37120	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
Common parts
90467-09189
90467-11020
91651-B0814
91651-B0825
91651-B0830
91651-B1025
94150-80800

ILLUST NO. 2 OF 2(9905-0406)

Click highlighted areas on diagram

ﾌﾂｸ

Part #	Description	Period	Qty
51961C - HOOK, FRONT
51961-37040	XZU302..1NO;BZU300..T4..30T;XZU382..30T..IV3;XZU301..DSLL..IV3..4NO;XZU302..(295T,30T)..4NO;BU301,BZU300,340..DM6,T3;XZU301..(DM3,T5)..(295T,30T);XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU31#,321,322,341..295T,30T;XZU301,331..(DM6,T3,T4)..(CNG,DSL,LPG) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
51961-37040	XZU301..20T..1NO;XZU378..30T..DCRL;BZU300,XZU304,305..DM6,T3;BZU300,XZU304..(T4,T5)..30T;BZU340,RZU300,XZU301,31#,321,331,334,341,344,354,368,388..30T,35T,40T TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51962 - HOOK, NO.2
51961-36040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51961-36040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51962 - HOOK, NO.2
51961-36040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51961-36040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51963-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51964-37040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
90178-14007
91112-81460
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

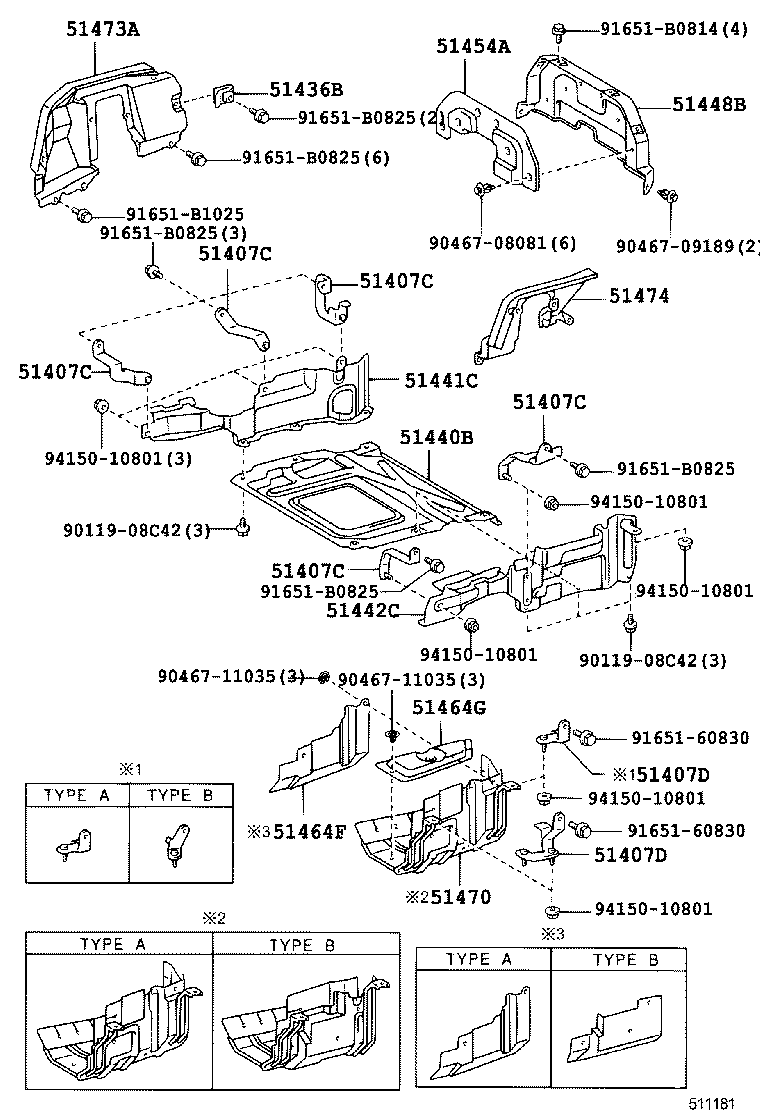

ILLUST NO. 1 OF 2(0406- )BZU300,340,XZU334..5F..CNG,DSLL ; (0406- )RZU301,XZU301,304,331,334,3

Click highlighted areas on diagram

Part #	Description	Period	Qty
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51436-37080	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	2
51436-37080	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51473-37180	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51473-37180	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51473-37180	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51474-37120	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51474-37120	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51474-37120	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
Common parts
90467-09189
91651-B0814
91651-B0825

ILLUST NO. 1 OF 2(9905-0406)BU301 ; (0206-0406)XZU301,331..4FC..DSLL ; (0306-0406)CNG ; (0306-0406)R

Click highlighted areas on diagram

Part #	Description	Period	Qty
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51436-37080	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	2
51436-37080	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51473-37180	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51473-37180	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51473-37180	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51474-37120	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51474-37120	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51474-37120	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
Common parts
90467-09189
91651-B0814
91651-B0825

ILLUST NO. 1 OF 2(9905-0406)BU306,346 ; (0406- )XZU378..IV4 ;(0406- )XZU306,308,336,338,346,3

Click highlighted areas on diagram

Part #	Description	Period	Qty
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51436-37080	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51473-37180	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51474-37120	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
Common parts
90467-09189
91651-B0814
91651-B0825

ILLUST NO. 1 OF 2(0206-0209)RZU300..LPG ; (0206-0406)EFI

Click highlighted areas on diagram

Part #	Description	Period	Qty
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37200	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37220	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 左側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37320	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾘﾔ	06/2002 - 06/2004	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37320	RZU301..5F;XZU301..DM3..IV3;RZU300,340,XZU304,334..5F..(20T,30T)..(DSL,EFI) 右側ﾘﾔ	06/2004 - 12/2999	1
51407-37200	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407-37220	RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI) 左側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37190	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37200	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37220	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 左側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37320	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾘﾔ	06/2002 - 06/2004	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37320	RZU301..5F;XZU301..DM3..IV3;RZU300,340,XZU304,334..5F..(20T,30T)..(DSL,EFI) 右側ﾘﾔ	06/2004 - 12/2999	1
51407-37200	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407-37220	RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI) 左側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37190	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37200	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37220	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 左側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37320	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾘﾔ	06/2002 - 06/2004	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37320	RZU301..5F;XZU301..DM3..IV3;RZU300,340,XZU304,334..5F..(20T,30T)..(DSL,EFI) 右側ﾘﾔ	06/2004 - 12/2999	1
51407-37200	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407-37220	RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI) 左側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37190	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37200	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37220	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 左側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37320	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾘﾔ	06/2002 - 06/2004	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37320	RZU301..5F;XZU301..DM3..IV3;RZU300,340,XZU304,334..5F..(20T,30T)..(DSL,EFI) 右側ﾘﾔ	06/2004 - 12/2999	1
51407-37200	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407-37220	RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI) 左側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37190	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37200	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37220	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 左側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37320	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾘﾔ	06/2002 - 06/2004	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37320	RZU301..5F;XZU301..DM3..IV3;RZU300,340,XZU304,334..5F..(20T,30T)..(DSL,EFI) 右側ﾘﾔ	06/2004 - 12/2999	1
51407-37200	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407-37220	RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI) 左側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37190	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37070	XZU301..DSLL..4NO;XZU306,307..SCB..5F..CBU;RZU300,XZU347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2002 - 06/2004	1
51407-37250	XZU301..DSLL..4NO;XZU341..MTM..(DSL,DSLL);XZU307,347..(DCB,VAN)..5F;RZU300,XZU301,302,342..5F..(DSL,EFI);BZU300,340,RZU301,340,XZU300,31#,330,331,340,35#..MTM..(DSL,DSLL,EFI,LPG) ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37250	RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG) ﾌﾛﾝﾄ	06/2004 - 12/2004	1
51407-37070	BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2004 - 12/2999	1
51407-37251	RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG) ﾌﾛﾝﾄ	01/2005 - 12/2999	1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37070	XZU301..DSLL..4NO;XZU306,307..SCB..5F..CBU;RZU300,XZU347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2002 - 06/2004	1
51407-37250	XZU301..DSLL..4NO;XZU341..MTM..(DSL,DSLL);XZU307,347..(DCB,VAN)..5F;RZU300,XZU301,302,342..5F..(DSL,EFI);BZU300,340,RZU301,340,XZU300,31#,330,331,340,35#..MTM..(DSL,DSLL,EFI,LPG) ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37250	RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG) ﾌﾛﾝﾄ	06/2004 - 12/2004	1
51407-37070	BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2004 - 12/2999	1
51407-37251	RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG) ﾌﾛﾝﾄ	01/2005 - 12/2999	1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51436-37080	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	2
51440B - COVER ASSY, ENGINE FRONT UNDER, CENTER
51440-37180	RZU301..5F;RZU300,340..EFI	06/2004 - 12/2999	1
51440-37180	RZU301..5F;RZU300,340..EFI	06/2002 - 06/2004	1
51441C - COVER, ENGINE UNDER, RH
51440-37160	RZU300,340	06/2002 - 09/2002	1
51440-37160	RZU301..5F;RZU300,340..EFI	06/2004 - 12/2999	1
51440-37160	RZU301..5F;RZU300,340..EFI	09/2002 - 06/2004	1
51442C - COVER, ENGINE UNDER, LH
51440-37170	RZU301..5F;RZU300,340..EFI	06/2004 - 12/2999	1
51440-37170	RZU301..5F;RZU300,340..EFI	06/2002 - 06/2004	1
51448B - SHUTTER, ENGINE REAR SIDE
51448-37030	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
51448-37030	RZU301,340..5F;RZU300..SCB..EFI	06/2002 - 06/2004	1
51454A - SILENCER, ENGINE REAR COVER
51454-37140	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
51454-37140	RZU301,340..5F;RZU300..SCB..EFI	06/2002 - 06/2004	1
51464F - SILENCER, TRANSMISSION UNDER
51464-37120	XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;RZU300,XZU306,307,347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
51464-37120	BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51464G - SILENCER, TRANSMISSION UNDER
51464-37140	RZU300,XZU306,308,346..(SCB,VAN)..5F..(DSL,EFI)..(CBU,IV3);BZU300,340,RZU301,340,XZU301,304,33#,341,348,368,378,388..(T1,T2,T3,T4,T5)..5F..(20T,30T)..(DSL,EFI,LPG)..(CBU,IV3)	06/2004 - 12/2999	1
51464-37140	XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU341..MTM..(DSL,DSLL);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU300,XZU302,306,307,342,347..SCB..(T2,T3,T4,T5)..5F..(DSL,EFI);BZU300,340,RZU301,340,XZU300,33#,340,346..(T2,T3,T4)..MTM..(DSL,DSLL,EFI,LPG)	06/2002 - 06/2004	1
51470 - COVER ASSY, TRANSMISSION UNDER
51470-37290	XZU301..DSLL..4NO;XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU300,XZU302,341,342..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BZU300,340,RZU301,340,XZU300,330,331,340..(T3,T4)..MTM..(DSL,EFI,LPG)	06/2002 - 06/2004	1
51470-37170	RZU300..SCB..EFI;BZU340,RZU301..5F..LPG;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51473-37180	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51474-37120	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
Common parts
90467-08081
90467-09189
91633-B0820
91651-B0814
91651-B0825
91651-B0830
91651-B1025
94150-10801

ILLUST NO. 2 OF 2(0406- )

Click highlighted areas on diagram

ﾌﾂｸ

Part #	Description	Period	Qty
51961C - HOOK, FRONT
51961-37040	XZU302..1NO;BZU300..T4..30T;XZU382..30T..IV3;XZU301..DSLL..IV3..4NO;XZU302..(295T,30T)..4NO;BU301,BZU300,340..DM6,T3;XZU301..(DM3,T5)..(295T,30T);XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU31#,321,322,341..295T,30T;XZU301,331..(DM6,T3,T4)..(CNG,DSL,LPG) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
51961-37040	XZU301..20T..1NO;XZU378..30T..DCRL;BZU300,XZU304,305..DM6,T3;BZU300,XZU304..(T4,T5)..30T;BZU340,RZU300,XZU301,31#,321,331,334,341,344,354,368,388..30T,35T,40T TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51962 - HOOK, NO.2
51961-36040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51961-36040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51962 - HOOK, NO.2
51961-36040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51961-36040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51963-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51964-37040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
90178-14007
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

ILLUST NO. 1 OF 2(0406- )EFI

Click highlighted areas on diagram

Part #	Description	Period	Qty
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37200	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37220	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 左側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37320	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾘﾔ	06/2002 - 06/2004	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37320	RZU301..5F;XZU301..DM3..IV3;RZU300,340,XZU304,334..5F..(20T,30T)..(DSL,EFI) 右側ﾘﾔ	06/2004 - 12/2999	1
51407-37200	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407-37220	RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI) 左側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37190	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37200	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37220	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 左側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37320	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾘﾔ	06/2002 - 06/2004	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37320	RZU301..5F;XZU301..DM3..IV3;RZU300,340,XZU304,334..5F..(20T,30T)..(DSL,EFI) 右側ﾘﾔ	06/2004 - 12/2999	1
51407-37200	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407-37220	RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI) 左側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37190	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37200	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37220	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 左側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37320	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾘﾔ	06/2002 - 06/2004	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37320	RZU301..5F;XZU301..DM3..IV3;RZU300,340,XZU304,334..5F..(20T,30T)..(DSL,EFI) 右側ﾘﾔ	06/2004 - 12/2999	1
51407-37200	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407-37220	RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI) 左側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37190	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37200	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37220	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 左側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37320	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾘﾔ	06/2002 - 06/2004	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37320	RZU301..5F;XZU301..DM3..IV3;RZU300,340,XZU304,334..5F..(20T,30T)..(DSL,EFI) 右側ﾘﾔ	06/2004 - 12/2999	1
51407-37200	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407-37220	RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI) 左側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37190	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37200	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37220	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,32#,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 左側ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37320	XZU301..DSLL..4NO;XZU301..SCB..5F..DSL;RZU301,XZU312..SCB..5F;RZU300,340,XZU300,302,311,330,331,340,341,342,35#..MTM..(DSL,DSLL,EFI)..(CBU,IV3,IV6) 右側ﾘﾔ	06/2002 - 06/2004	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2002 - 06/2004	1
51407-37320	RZU301..5F;XZU301..DM3..IV3;RZU300,340,XZU304,334..5F..(20T,30T)..(DSL,EFI) 右側ﾘﾔ	06/2004 - 12/2999	1
51407-37200	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407-37220	RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI) 左側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37190	RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI) 右側ﾌﾛﾝﾄ	06/2004 - 12/2999	1
51407-37330	RZU301..5F;RZU300,340..EFI 左側ｾﾝﾀｰ	06/2004 - 12/2999	1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37070	XZU301..DSLL..4NO;XZU306,307..SCB..5F..CBU;RZU300,XZU347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2002 - 06/2004	1
51407-37250	XZU301..DSLL..4NO;XZU341..MTM..(DSL,DSLL);XZU307,347..(DCB,VAN)..5F;RZU300,XZU301,302,342..5F..(DSL,EFI);BZU300,340,RZU301,340,XZU300,31#,330,331,340,35#..MTM..(DSL,DSLL,EFI,LPG) ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37250	RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG) ﾌﾛﾝﾄ	06/2004 - 12/2004	1
51407-37070	BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2004 - 12/2999	1
51407-37251	RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG) ﾌﾛﾝﾄ	01/2005 - 12/2999	1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37070	XZU301..DSLL..4NO;XZU306,307..SCB..5F..CBU;RZU300,XZU347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2002 - 06/2004	1
51407-37250	XZU301..DSLL..4NO;XZU341..MTM..(DSL,DSLL);XZU307,347..(DCB,VAN)..5F;RZU300,XZU301,302,342..5F..(DSL,EFI);BZU300,340,RZU301,340,XZU300,31#,330,331,340,35#..MTM..(DSL,DSLL,EFI,LPG) ﾌﾛﾝﾄ	06/2002 - 06/2004	1
51407-37250	RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG) ﾌﾛﾝﾄ	06/2004 - 12/2004	1
51407-37070	BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2004 - 12/2999	1
51407-37251	RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG) ﾌﾛﾝﾄ	01/2005 - 12/2999	1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51436-37080	XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368	06/2004 - 12/2999	2
51440B - COVER ASSY, ENGINE FRONT UNDER, CENTER
51440-37180	RZU301..5F;RZU300,340..EFI	06/2004 - 12/2999	1
51440-37180	RZU301..5F;RZU300,340..EFI	06/2002 - 06/2004	1
51441C - COVER, ENGINE UNDER, RH
51440-37160	RZU300,340	06/2002 - 09/2002	1
51440-37160	RZU301..5F;RZU300,340..EFI	06/2004 - 12/2999	1
51440-37160	RZU301..5F;RZU300,340..EFI	09/2002 - 06/2004	1
51442C - COVER, ENGINE UNDER, LH
51440-37170	RZU301..5F;RZU300,340..EFI	06/2004 - 12/2999	1
51440-37170	RZU301..5F;RZU300,340..EFI	06/2002 - 06/2004	1
51448B - SHUTTER, ENGINE REAR SIDE
51448-37030	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
51448-37030	RZU301,340..5F;RZU300..SCB..EFI	06/2002 - 06/2004	1
51454A - SILENCER, ENGINE REAR COVER
51454-37140	RZU300,340..SCB..EFI	06/2004 - 12/2999	1
51454-37140	RZU301,340..5F;RZU300..SCB..EFI	06/2002 - 06/2004	1
51464F - SILENCER, TRANSMISSION UNDER
51464-37120	XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;RZU300,XZU306,307,347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
51464-37120	BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51464G - SILENCER, TRANSMISSION UNDER
51464-37140	RZU300,XZU306,308,346..(SCB,VAN)..5F..(DSL,EFI)..(CBU,IV3);BZU300,340,RZU301,340,XZU301,304,33#,341,348,368,378,388..(T1,T2,T3,T4,T5)..5F..(20T,30T)..(DSL,EFI,LPG)..(CBU,IV3)	06/2004 - 12/2999	1
51464-37140	XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU341..MTM..(DSL,DSLL);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU300,XZU302,306,307,342,347..SCB..(T2,T3,T4,T5)..5F..(DSL,EFI);BZU300,340,RZU301,340,XZU300,33#,340,346..(T2,T3,T4)..MTM..(DSL,DSLL,EFI,LPG)	06/2002 - 06/2004	1
51470 - COVER ASSY, TRANSMISSION UNDER
51470-37290	XZU301..DSLL..4NO;XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU300,XZU302,341,342..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BZU300,340,RZU301,340,XZU300,330,331,340..(T3,T4)..MTM..(DSL,EFI,LPG)	06/2002 - 06/2004	1
51470-37170	RZU300..SCB..EFI;BZU340,RZU301..5F..LPG;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51473-37180	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352	05/1999 - 06/2004	1
51474-37120	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
Common parts
90119-08C42
90467-08081
90467-09189
90467-11035
91651-60830
91651-B0814
91651-B0825
91651-B1025
94150-10801

RZU300-TQMQK3 (2000)

ILLUST NO. 1 OF 2(9905-0206)RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35# ; (0209-0406)R

ILLUST NO. 2 OF 2(9905-0406)

ILLUST NO. 1 OF 2(0406- )BZU300,340,XZU334..5F..CNG,DSLL ; (0406- )RZU301,XZU301,304,331,334,3

ILLUST NO. 1 OF 2(9905-0406)BU301 ; (0206-0406)XZU301,331..4FC..DSLL ; (0306-0406)CNG ; (0306-0406)R

ILLUST NO. 1 OF 2(9905-0406)BU306,346 ; (0406- )XZU378..IV4 ;(0406- )XZU306,308,336,338,346,3

ILLUST NO. 1 OF 2(0206-0209)RZU300..LPG ; (0206-0406)EFI

ILLUST NO. 2 OF 2(0406- )

ILLUST NO. 1 OF 2(0406- )EFI

Part Price Details
