RZU300-TQMQK3 (2000)
Toyota Dyna/Toyoace

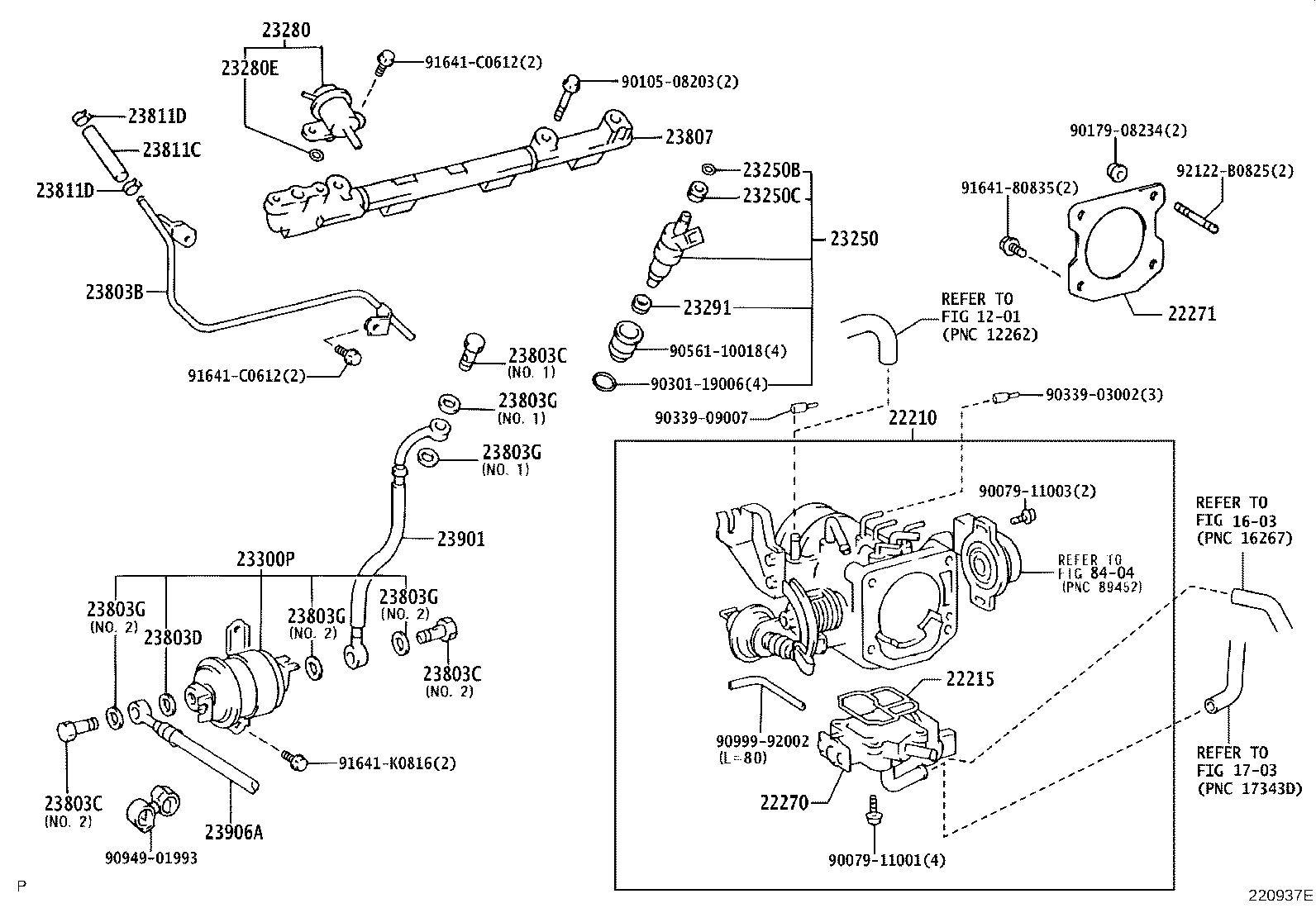

ILLUST NO. 1 OF 2(0005-0306)3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-75250 |
3RZFE..RZU300,340 |
1 | ||
| 22210-75280 |
3RZFE..RZU300,340 |
1 | ||
| 22210-75250 |
3RZFE..RZU300,340 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-7A680 |
3RZFE..RZU300,340 |
1 | ||
| 22215-7A680 |
3RZFE..RZU300,340 |
1 | ||
| 22215-75050 |
3RZFE..RZU300,340 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-75030 |
3RZFE..RZU300,340 |
1 | ||
| 22270-75051 |
3RZFE..RZU300,340 |
1 | ||
| 22270-75051 |
3RZFE..RZU300,340 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-75020 |
3RZFE..RZU300,340 |
1 | ||
| 22271-75020 |
3RZFE..RZU300,340 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-79095 |
3RZFE..RZU300,340 |
4 | ||
| 23209-79135 |
3RZFE..RZU300,340 |
4 | ||
| 23209-79135 |
3RZFE..RZU300,340 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
3RZFE..RZU300,340 |
4 | ||
| 90301-07024 |
3RZFE..RZU300,340 |
4 | ||
| 90301-07037 |
3RZFE..RZU300,340 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3RZFE..RZU300,340 |
4 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-75020 |
3RZFE..RZU300,340 |
1 | ||
| 23280-75020 |
3RZFE..RZU300,340 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07024 |
3RZFE..RZU300,340 |
1 | ||
| 90301-07037 |
3RZFE..RZU300,340 |
1 | ||
| 90301-07024 |
3RZFE..RZU300,340 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-73010 |
3RZFE..RZU300,340 |
4 | ||
| 23291-73010 |
3RZFE..RZU300,340 |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79595 |
3RZFE..RZU300,340 |
1 | ||
| 23300-79446 |
3RZFE..RZU300,340 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-75060 |
3RZFE..RZU300,340 |
1 | ||
| 23803-75060 |
3RZFE..RZU300,340 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
3RZFE..RZU300,340 |
1 | ||
| 90430-12026 |
3RZFE..RZU300,340 |
1 | ||
| 23803G - GASKET(FOR FUEL HOSE) | ||||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23803G - GASKET(FOR FUEL HOSE) | ||||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23803G - GASKET(FOR FUEL HOSE) | ||||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23803G - GASKET(FOR FUEL HOSE) | ||||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23803G - GASKET(FOR FUEL HOSE) | ||||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-75022 |
3RZFE..RZU300,340 |
1 | ||
| 23807-75022 |
3RZFE..RZU300,340 |
1 | ||
| 23807-75021 |
3RZFE..RZU300,340 |
1 | ||
| 23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR) | ||||
| 23271-75100 |
3RZFE..RZU300,340 |
1 | ||
| 23271-75100 |
3RZFE..RZU300,340 |
1 | ||
| 23811D - CLIP, HOSE(FOR FUEL HOSE) | ||||
| 96135-51100 |
3RZFE..RZU300,340 |
2 | ||
| 96135-51100 |
3RZFE..RZU300,340 |
2 | ||
| 23811D - CLIP, HOSE(FOR FUEL HOSE) | ||||
| 96135-51100 |
3RZFE..RZU300,340 |
2 | ||
| 96135-51100 |
3RZFE..RZU300,340 |
2 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-75050 |
3RZFE..RZU300,340 |
1 | ||
| 23901-75050 |
3RZFE..RZU300,340 |
1 | ||
| 23906A - HOSE SUB-ASSY, FUEL | ||||
| 23906-75050 |
3RZFE..RZU300,340 |
1 | ||
| 23906-75050 |
3RZFE..RZU300,340 |
1 | ||
| Common parts | ||||
| 90079-11001 | ||||
| 90079-11003 | ||||
| 90105-08203 | ||||
| 90179-08234 | ||||
| 90301-19006 | ||||
| 90339-03002 | ||||
| 90339-09007 | ||||
| 90561-10018 | ||||
| 90949-01993 | ||||
| 90999-92002 | ||||
| 91641-80835 | ||||
| 91641-C0612 | ||||
| 91641-K0816 | ||||
| 92122-B0825 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1703 | ||||
| 8404 | ||||

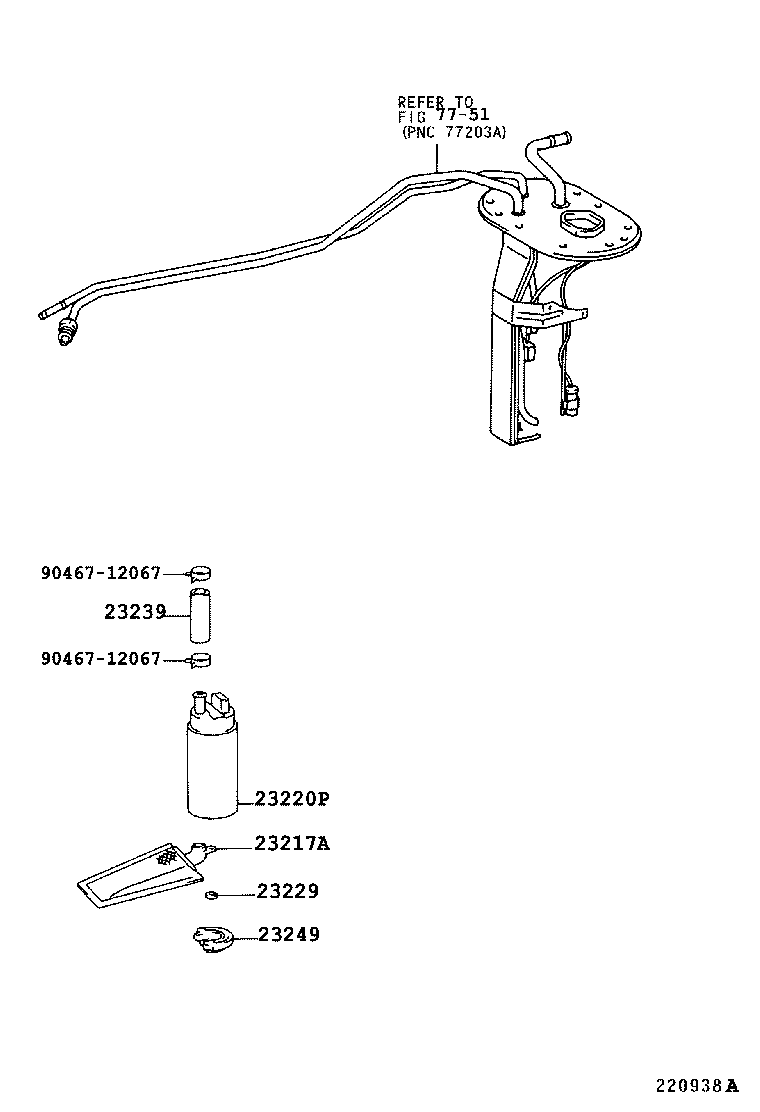

ILLUST NO. 2 OF 2(0005- )3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46011 |
3RZFE..RZU300,340..SCB |
1 | ||
| 23217-46011 |
3RZFE..RZU300,340..SCB |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46010 |
3RZFE..RZU300,340 |
1 | ||
| 23221-46010 |
3RZFE..RZU300,340 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3RZFE..RZU300,340 |
1 | ||
| 23229-16010 |
3RZFE..RZU300,340 |
1 | ||
| 23239 - HOSE | ||||
| 23239-11010 |
3RZFE..RZU300,340 |
1 | ||
| 23239-11010 |
3RZFE..RZU300,340 |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
3RZFE..RZU300,340 |
1 | ||
| 23249-74610 |
3RZFE..RZU300,340 |
1 | ||
| Common parts | ||||
| 90467-12067 | ||||
| Linked diagrams | ||||
| 7751 | ||||

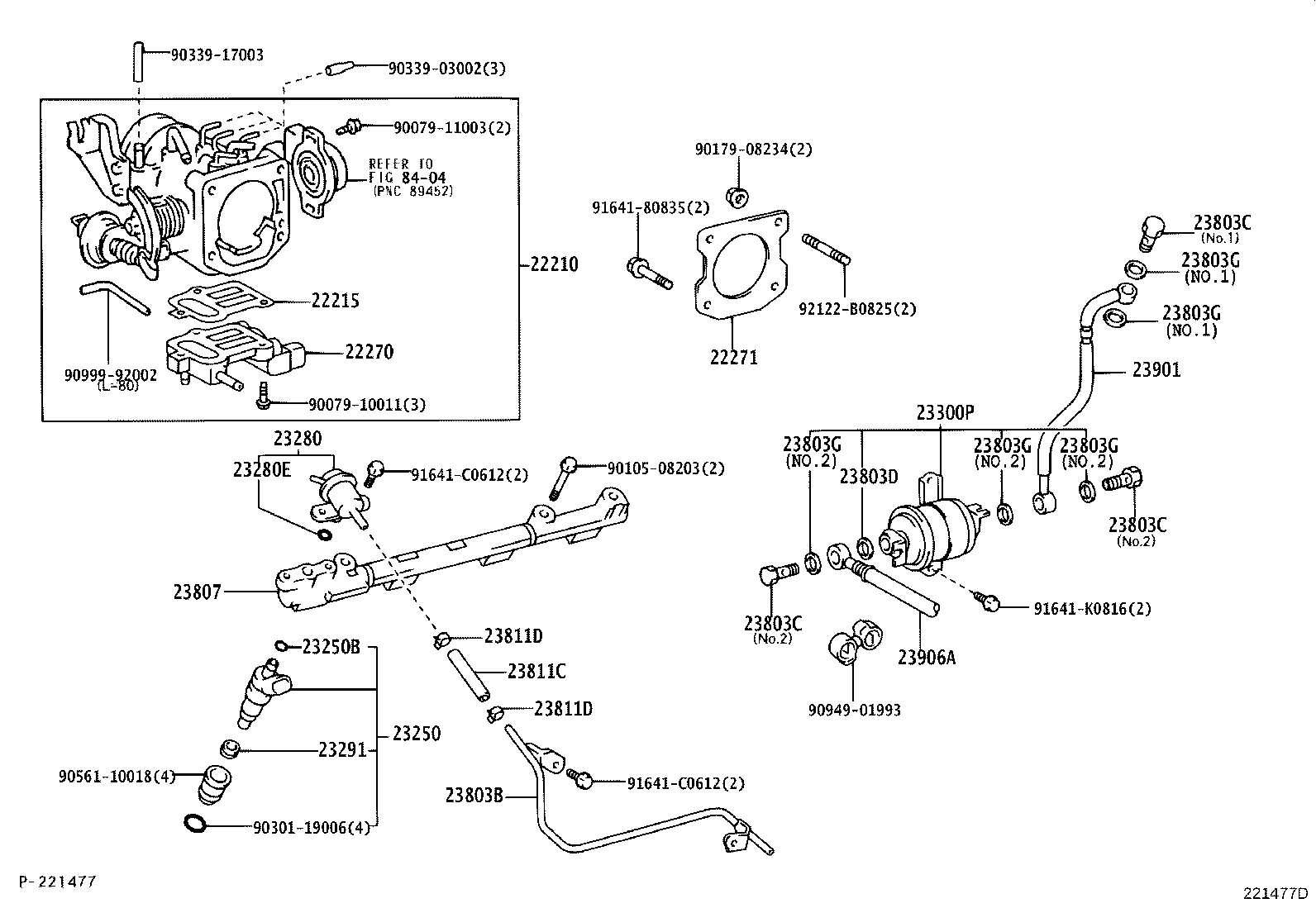

ILLUST NO. 1 OF 2(0306- )3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-75250 |
3RZFE..RZU300,340 |
1 | ||
| 22210-75280 |
3RZFE..RZU300,340 |
1 | ||
| 22210-75250 |
3RZFE..RZU300,340 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-7A680 |
3RZFE..RZU300,340 |
1 | ||
| 22215-7A680 |
3RZFE..RZU300,340 |
1 | ||
| 22215-75050 |
3RZFE..RZU300,340 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-75030 |
3RZFE..RZU300,340 |
1 | ||
| 22270-75051 |
3RZFE..RZU300,340 |
1 | ||
| 22270-75051 |
3RZFE..RZU300,340 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-75020 |
3RZFE..RZU300,340 |
1 | ||
| 22271-75020 |
3RZFE..RZU300,340 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-79095 |
3RZFE..RZU300,340 |
4 | ||
| 23209-79135 |
3RZFE..RZU300,340 |
4 | ||
| 23209-79135 |
3RZFE..RZU300,340 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
3RZFE..RZU300,340 |
4 | ||
| 90301-07024 |
3RZFE..RZU300,340 |
4 | ||
| 90301-07037 |
3RZFE..RZU300,340 |
4 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-75020 |
3RZFE..RZU300,340 |
1 | ||
| 23280-75020 |
3RZFE..RZU300,340 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07024 |
3RZFE..RZU300,340 |
1 | ||
| 90301-07037 |
3RZFE..RZU300,340 |
1 | ||
| 90301-07024 |
3RZFE..RZU300,340 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-73010 |
3RZFE..RZU300,340 |
4 | ||
| 23291-73010 |
3RZFE..RZU300,340 |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79595 |
3RZFE..RZU300,340 |
1 | ||
| 23300-79446 |
3RZFE..RZU300,340 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-75060 |
3RZFE..RZU300,340 |
1 | ||
| 23803-75060 |
3RZFE..RZU300,340 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12033 |
3RZFE..RZU300,340 NO.1 |
1 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 90401-12097 |
3RZFE..RZU300,340 NO.2 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
3RZFE..RZU300,340 |
1 | ||
| 90430-12026 |
3RZFE..RZU300,340 |
1 | ||
| 23803G - GASKET(FOR FUEL HOSE) | ||||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23803G - GASKET(FOR FUEL HOSE) | ||||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23803G - GASKET(FOR FUEL HOSE) | ||||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23803G - GASKET(FOR FUEL HOSE) | ||||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23803G - GASKET(FOR FUEL HOSE) | ||||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 23279-74010 |
3RZFE..RZU300,340 NO.1 |
2 | ||
| 90430-12026 |
3RZFE..RZU300,340 NO.2 |
3 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-75022 |
3RZFE..RZU300,340 |
1 | ||
| 23807-75022 |
3RZFE..RZU300,340 |
1 | ||
| 23807-75021 |
3RZFE..RZU300,340 |
1 | ||
| 23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR) | ||||
| 23271-75100 |
3RZFE..RZU300,340 |
1 | ||
| 23271-75100 |
3RZFE..RZU300,340 |
1 | ||
| 23811D - CLIP, HOSE(FOR FUEL HOSE) | ||||
| 96135-51100 |
3RZFE..RZU300,340 |
2 | ||
| 96135-51100 |
3RZFE..RZU300,340 |
2 | ||
| 23811D - CLIP, HOSE(FOR FUEL HOSE) | ||||
| 96135-51100 |
3RZFE..RZU300,340 |
2 | ||
| 96135-51100 |
3RZFE..RZU300,340 |
2 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-75050 |
3RZFE..RZU300,340 |
1 | ||
| 23901-75050 |
3RZFE..RZU300,340 |
1 | ||
| 23906A - HOSE SUB-ASSY, FUEL | ||||
| 23906-75050 |
3RZFE..RZU300,340 |
1 | ||
| 23906-75050 |
3RZFE..RZU300,340 |
1 | ||
| Common parts | ||||
| 90079-10011 | ||||
| 90079-11003 | ||||
| 90105-08203 | ||||
| 90179-08234 | ||||
| 90301-19006 | ||||
| 90339-03002 | ||||
| 90339-17003 | ||||
| 90561-10018 | ||||
| 90949-01993 | ||||
| 90999-92002 | ||||
| 91641-80835 | ||||
| 91641-C0612 | ||||
| 91641-K0816 | ||||
| 92122-B0825 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
