RZU300-PQMMK3 (2000)
Toyota Dyna/Toyoace

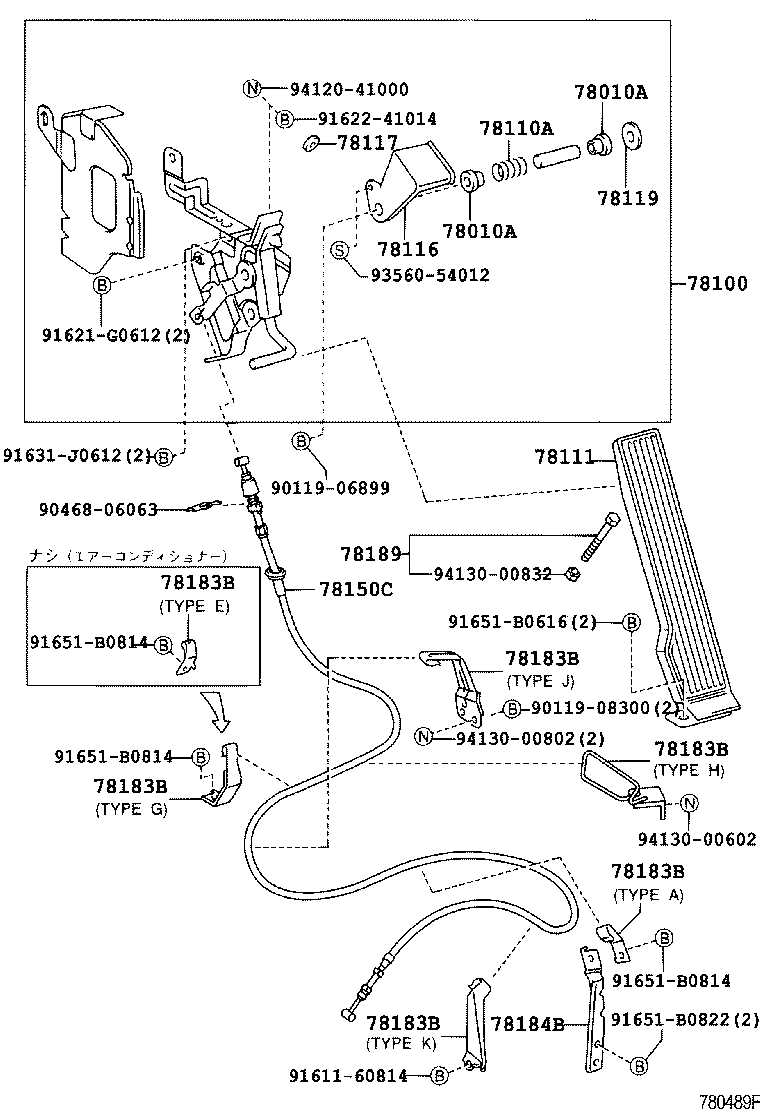

ILLUST NO. 1 OF 2(0005-0703)EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
BZU300,340,RZU30#,340 |
2 | ||
| 90386-08065 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,320,330,340,350 |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
BZU300,340,RZU30#,340 |
2 | ||
| 90386-08065 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,320,330,340,350 |
2 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37690 |
RZU300,340..EFI |
1 | ||
| 78100-37690 |
RZU300,340..EFI |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03243 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340 |
1 | ||
| 90959-03243 |
BZU300,340,RZU30#,340 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 78110-95410 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 78116 - COVER, ACCELERATOR PEDAL ROD | ||||
| 78116-37010 |
BZU300,340,RZU30#,340 |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06036 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90541-06038 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90541-06038 |
BZU300,340,RZU30#,340 |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-95J00 |
BZU300,340,RZU30#,340 |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-37550 |
RZU300,340..EFI |
1 | ||
| 78150-37551 |
RZU300,340..EFI |
1 | ||
| 78150-37551 |
RZU300,340..EFI |
1 | ||
| 78150-37552 |
RZU300,340..EFI |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37120 |
RZU300,340..EFI |
1 | ||
| 78184-37120 |
RZU301,340;RZU300..EFI;RZU300..30T..LPG NO.2 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37070 |
RZU300,340..EFI |
1 | ||
| Common parts | ||||
| 90119-06899 | ||||
| 90119-08300 | ||||
| 90468-06063 | ||||
| 91611-60814 | ||||
| 91621-G0612 | ||||
| 91622-41014 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
| 91651-B0814 | ||||
| 91651-B0822 | ||||
| 93560-54012 | ||||
| 94120-41000 | ||||
| 94130-00602 | ||||
| 94130-00802 | ||||
| 94130-00832 | ||||

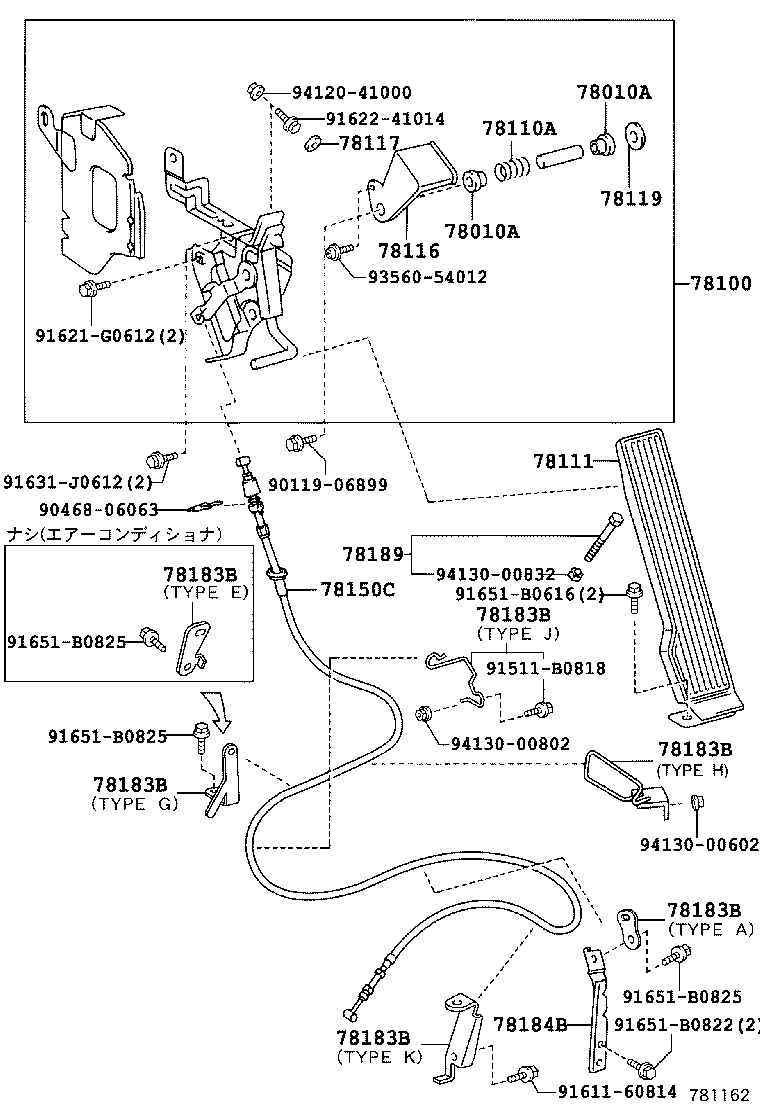

ILLUST NO. 1 OF 2(0703- )EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
BZU300,340,RZU30#,340 |
2 | ||
| 90386-08065 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,320,330,340,350 |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
BZU300,340,RZU30#,340 |
2 | ||
| 90386-08065 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,320,330,340,350 |
2 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37690 |
RZU300,340..EFI |
1 | ||
| 78100-37690 |
RZU300,340..EFI |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03243 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340 |
1 | ||
| 90959-03243 |
BZU300,340,RZU30#,340 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 78110-95410 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 78116 - COVER, ACCELERATOR PEDAL ROD | ||||
| 78116-37010 |
BZU300,340,RZU30#,340 |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06036 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90541-06038 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90541-06038 |
BZU300,340,RZU30#,340 |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-95J00 |
BZU300,340,RZU30#,340 |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-37550 |
RZU300,340..EFI |
1 | ||
| 78150-37551 |
RZU300,340..EFI |
1 | ||
| 78150-37551 |
RZU300,340..EFI |
1 | ||
| 78150-37552 |
RZU300,340..EFI |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
BU30#,346,RZU300,340;XZU301,302,341,342..CNG,LPG TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37360 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37321 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
BU30#,346,RZU30#,340 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37270 |
BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37320 |
RZU300,XZU301,302,341,342..CNG,EFI,LPG;BU30#,346,RZU340,XZU300,320,330,340,350..SCB,VAN TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37300 |
BU30#,346,RZU30#,340..DCB,SCB TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37260 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 78183-37370 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37490 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37300 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184-37480 |
RZU30#,340 ﾀｲﾌﾟ A |
1 | ||
| 78183-37361 |
RZU300,340..EFI ﾀｲﾌﾟ K |
1 | ||
| 78183-37420 |
RZU30#,340 ﾀｲﾌﾟ J |
1 | ||
| 78184-37510 |
RZU300..DCB ﾀｲﾌﾟ E |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37120 |
RZU300,340..EFI |
1 | ||
| 78184-37120 |
RZU301,340;RZU300..EFI;RZU300..30T..LPG NO.2 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37070 |
RZU300,340..EFI |
1 | ||
| Common parts | ||||
| 90119-06899 | ||||
| 90468-06063 | ||||
| 91511-B0818 | ||||
| 91611-60814 | ||||
| 91621-G0612 | ||||
| 91622-41014 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 93560-54012 | ||||
| 94120-41000 | ||||
| 94130-00602 | ||||
| 94130-00802 | ||||
| 94130-00832 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
