RZU300-PQMMK3 (2000)
Toyota Dyna/Toyoace
(0005-0306)3RZ#
12V 70A,90A

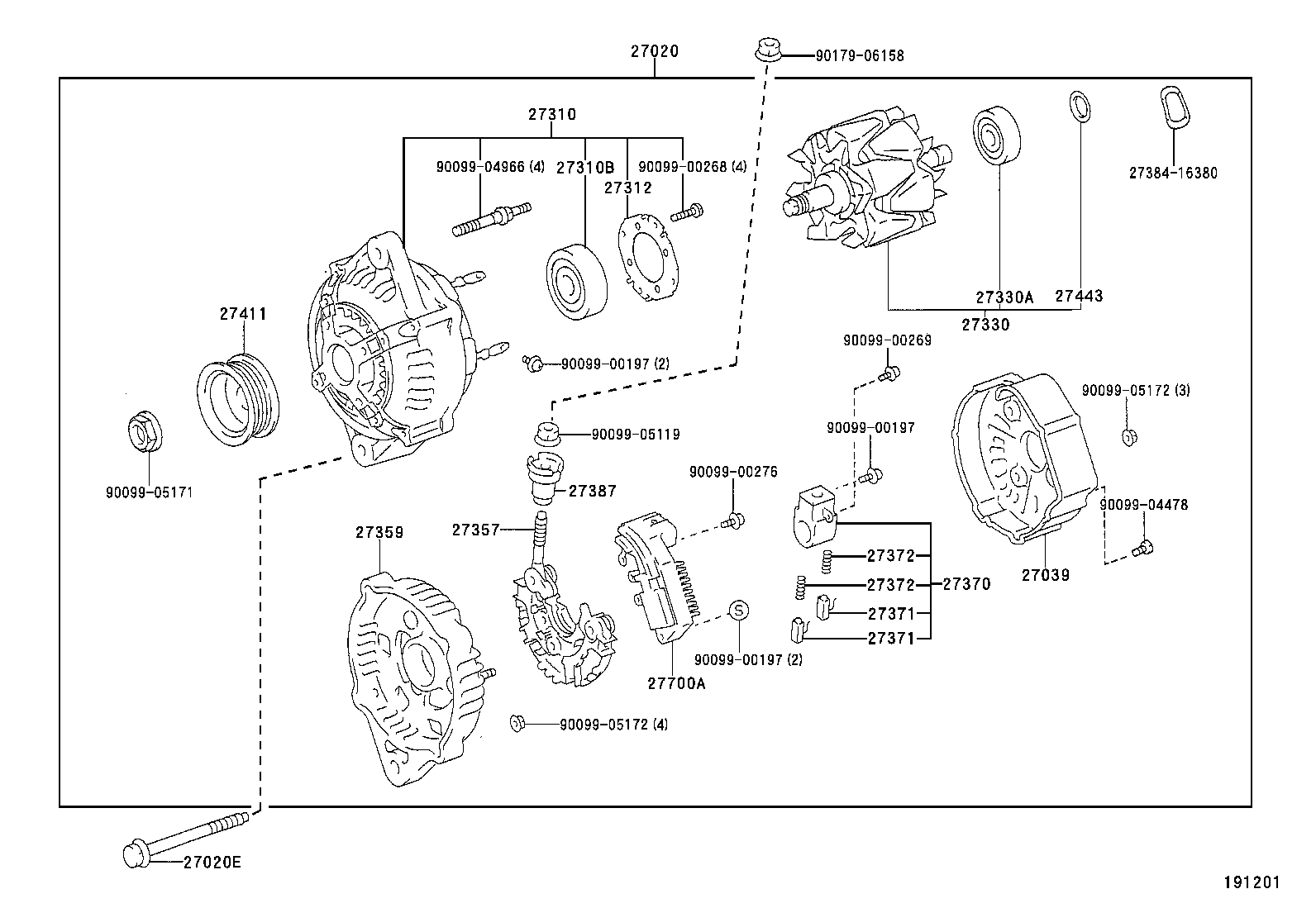

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75150 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27060-75270 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27039-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27039-67100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72280 |
3RZ#..RZU300,340 |
1 | ||
| 27310-75160 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10199 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 90099-10192 |
3RZ#..RZU300,340 |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 90099-10223 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27312-72100 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27312-42010 |
3RZ#..RZU300,340 |
1 | ||
| 27312-72100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27330-74550 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 90099-10140 |
3RZ#..RZU300,340 |
1 | ||
| 90099-10222 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16310 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27357-67100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-75160 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
3RZ#..RZU300,340 |
1 | ||
| 27370-75060 |
15B#,3RZ#..RZU300,340,XZU301,302,341,342 |
1 | ||
| 27370-35060 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27370-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27370-75060 |
S05D..XZU306,311,341,346,351..DSLL;S05D,15B#,3RZ#..RZU300,340,XZU301,302,341,342..(CNG,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 27370-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZ#..RZU300,340 |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZ#..RZU300,340 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-87501 |
4B,3RZ#..BU30#,346,RZU300,340 |
2 | ||
| 27372-63020 |
4B,3RZ#..BU30#,346,RZU300,340 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-87501 |
4B,3RZ#..BU30#,346,RZU300,340 |
2 | ||
| 27372-63020 |
4B,3RZ#..BU30#,346,RZU300,340 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27387-70171 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27387-20130 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27411-16150 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27443-63020 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27443-63020 |
S05D..XZU301..T4..5F..DSL..CBU;S05D..XZU306,321,331,341..SCB..5F..DSL;S05D..XZU301..(DM6,T3,T4,T5)..5F..(20T,30T)..DSL..IV3;S05D..XZU301,351..(DM2,DM3,DM6,T3,T5)..5F..(20T,30T)..(CBU,IV6);S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU311,346,351..(DM5,DM6,T2,T3,T4)..(CNG,DSL,EFI,LPG) |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-75020 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27700-46050 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
(0406- )N04C..XZU378..IV4 ; (0406- )N04C..XZU308,378,388..SCB..IV3 ; (0406-
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75150 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27060-75150 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27060-75270 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27060-75270 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72280 |
3RZ#..RZU300,340 |
1 | ||
| 27310-72280 |
3RZ#..RZU300,340 |
1 | ||
| 27310-75160 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27310-75160 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10199 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 90099-10199 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 90099-10192 |
3RZ#..RZU300,340 |
1 | ||
| 90099-10192 |
3RZ#..RZU300,340 |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 90099-10223 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 90099-10223 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27330-67100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27330-74550 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27330-74550 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27411-42030 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27411-16150 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27411-16150 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
(0306- )3RZ#
12V 150A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75150 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27060-75270 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27060-75300 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 90105-10221 |
3RZ#..RZU30#,340 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27039-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27039-67100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72280 |
3RZ#..RZU300,340 |
1 | ||
| 27310-75160 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10199 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 90099-10192 |
3RZ#..RZU300,340 |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 90099-10223 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 90099-10142 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27312-72100 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27312-42010 |
3RZ#..RZU300,340 |
1 | ||
| 27312-72100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27330-74550 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 90099-10140 |
3RZ#..RZU300,340 |
1 | ||
| 90099-10222 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-75250 |
3RZ#..RZU30#,340 |
1 | ||
| 27360-75250 |
3RZ#..RZU30#,340 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
3RZ#..RZU300,340 |
1 | ||
| 27370-75060 |
15B#,3RZ#..RZU300,340,XZU301,302,341,342 |
1 | ||
| 27370-35060 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27370-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27370-75060 |
S05D..XZU306,311,341,346,351..DSLL;S05D,15B#,3RZ#..RZU300,340,XZU301,302,341,342..(CNG,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 27370-58460 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 27384-50030 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27387-70171 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27387-20130 |
1BZ#,3RZ#..BZU300,340,RZU30#,340 12V 150A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3RZ#..RZU300,340 12V 90A |
1 | ||
| 27411-16150 |
3RZ#..RZU300,340 12V 70A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27411-75250 |
3RZ#..RZU30#,340 12V 150A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27443-63020 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27443-63020 |
S05D..XZU301..T4..5F..DSL..CBU;S05D..XZU306,321,331,341..SCB..5F..DSL;S05D..XZU301..(DM6,T3,T4,T5)..5F..(20T,30T)..DSL..IV3;S05D..XZU301,351..(DM2,DM3,DM6,T3,T5)..5F..(20T,30T)..(CBU,IV6);S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU311,346,351..(DM5,DM6,T2,T3,T4)..(CNG,DSL,EFI,LPG) |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
