RZU300-PQMMK (2000)

Toyota Dyna/Toyoace

Production May 2000 - May 2007
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )RZU30#,340

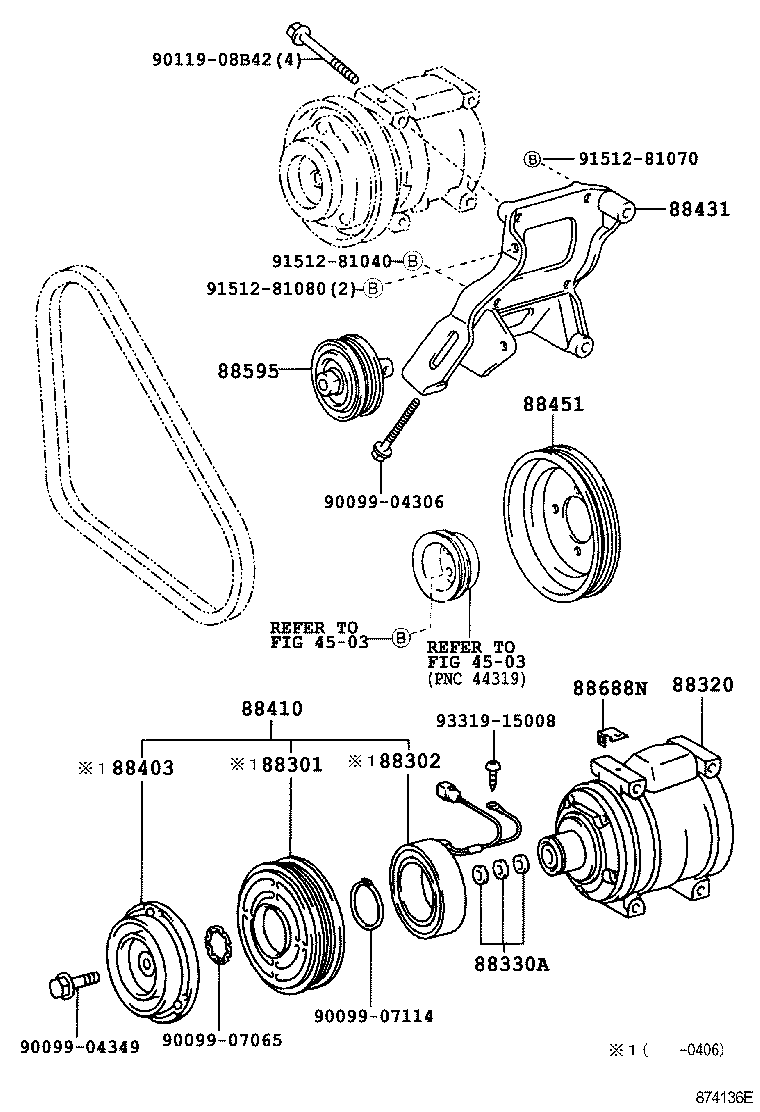

Click highlighted areas on diagram

diagram 4503 4503 88301 88302 88320 88330A 88403 88410 88431 88451 88595 88688N 9009904306 9009904349 9009907065 9009907114 9011908B42 9151281040 9151281070 9151281080 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-37030

RZU30#,340

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

BZU300,340,RZU30#,340,XZU301,302,341,342..CNG,EFI,LPG

 1
88320 - COMPRESSOR ASSY, COOLER
88320-37080

RZU30#,340

 1
88320-37080

RZU30#,340

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
88335-14020

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
88410 - CLUTCH ASSY, MAGNET
88410-37110

RZU30#,340

 1
88410-37110

RZU30#,340

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88345-37131

RZU301,340;RZU300..EFI;RZU300..30T..LPG

 1
88345-37131

RZU30#,340

 1
88451 - PULLEY, CRANKSHAFT
88451-95J01

RZU30#,340

 1
88451-95J01

RZU30#,340

 1
88451-95J01

RZU300,340

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35080

RZU30#,340

 1
88440-35080

RZU300,340

 1
88440-35080

RZU30#,340

 1
88688N - BRACKET, COOLER
88688-25200

RZU30#,340

 1
88688-25200

RZU300,340

 1
88688-25200

RZU30#,340

 1
Common parts
90099-04306
90099-04349
90099-07065
90099-07114
90119-08B42
91512-81040
91512-81070
91512-81080
93319-15008
Linked diagrams
4503
