Toyota Dyna/toyoace RZU300 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
RZU300-PQMMK (2000)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

RZU300-PQMMK (2000)

Toyota Dyna/Toyoace

Production May 2000 - May 2007

Engine 3RZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

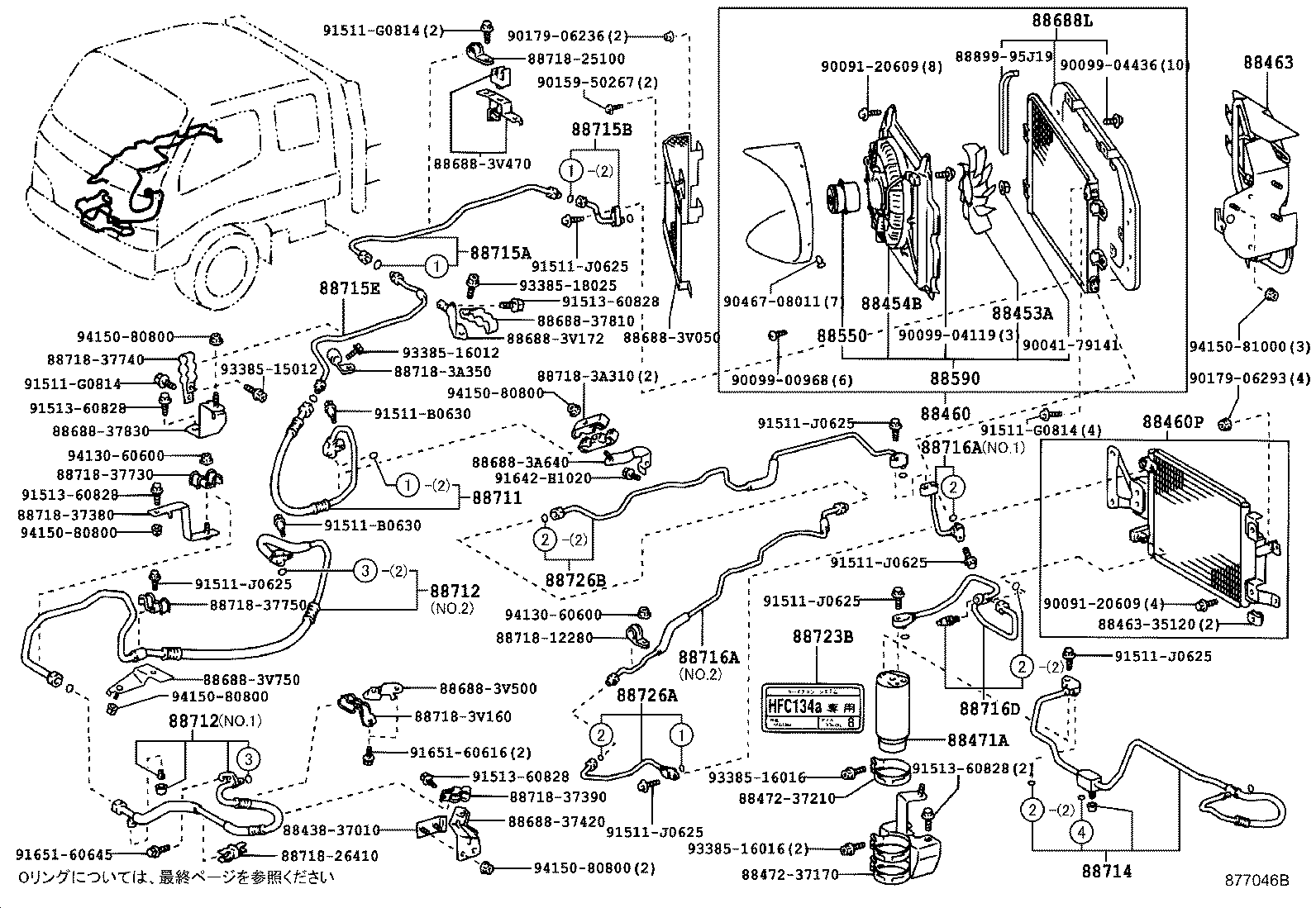

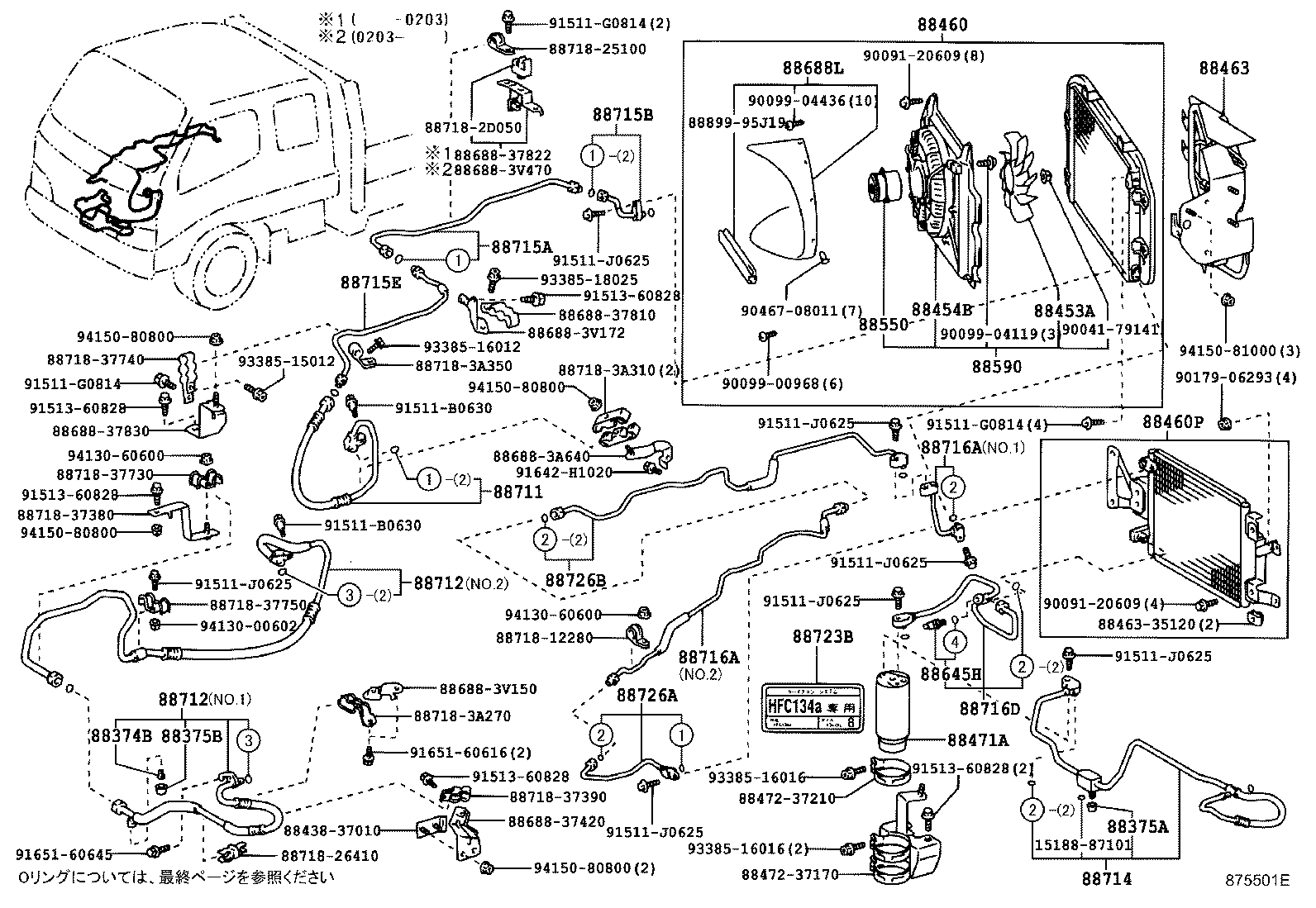

ILLUST NO. 1 OF 2(0005-0108)RZU300..DCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU301,331..IV4;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU300,330,340,350..T2,T3,T4	09/2001 - 06/2002	1
88374-30010	RZU300..EFI;RZU300..30T..LPG;XZU301,331..DSL..IV4;BU30#,346,RZU340,XZU306,307,337,346,347..(SCB,VAN)..WT..(DSL,EFI) NO.1	06/2002 - 06/2004	1
88374-30010	BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG NO.1	05/2000 - 09/2001	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88453-37010	XZU304..175T;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG	06/2004 - 12/2999	1
88454B - SHROUD, FAN
88454-37040	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307..DCB	05/1999 - 06/2004	1
88454-37040	RZU300..DCB	06/2004 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-37460	RZU300..DCB	05/2000 - 06/2004	1
88460-37460	RZU300..DCB	06/2004 - 05/2007	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37011	RZU300..DCB	06/2004 - 12/2999	1
88471A - TANK, RECEIVER
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-28100	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-34010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37080	RZU300..DCB	05/2000 - 06/2004	1
88550-37080	RZU300..DCB	06/2004 - 05/2007	1
88590 - BLOWER ASSY, W/SHROUD
88590-37140	RZU300..DCB	05/2000 - 06/2004	1
88590-37140	RZU300..DCB	06/2004 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37720	RZU300..DCB	05/2000 - 06/2004	1
88711-37720	RZU300..DCB	06/2004 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V291	RZU300,340..EFI NO.2	06/2001 - 06/2002	1
88712-3V310	RZU300..DCB NO.2	05/2000 - 06/2001	1
88712-37670	RZU300,340,XZU301,302,341,342..CNG,EFI,LPG NO.1	05/2000 - 12/2002	1
88712-3V291	RZU301,340;RZU300..EFI;RZU300..30T..LPG NO.2	06/2002 - 06/2004	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712-37671	BZU300,340,RZU30#,340 NO.1	06/2004 - 12/2999	1
88712-3V291	RZU30#,340 NO.2	06/2004 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V291	RZU300,340..EFI NO.2	06/2001 - 06/2002	1
88712-3V310	RZU300..DCB NO.2	05/2000 - 06/2001	1
88712-37670	RZU300,340,XZU301,302,341,342..CNG,EFI,LPG NO.1	05/2000 - 12/2002	1
88712-3V291	RZU301,340;RZU300..EFI;RZU300..30T..LPG NO.2	06/2002 - 06/2004	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712-37671	BZU300,340,RZU30#,340 NO.1	06/2004 - 12/2999	1
88712-3V291	RZU30#,340 NO.2	06/2004 - 12/2999	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37480	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37360	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352	08/2001 - 12/2002	1
88721-37361	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU306,307,31#,32#,331,337,346,347,351,352	12/2002 - 06/2004	1
88721-37361	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37251	RZU300..DCB	05/2000 - 06/2004	1
88715-37251	RZU300..DCB	06/2004 - 12/2999	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37261	RZU300..DCB	06/2004 - 12/2999	1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-37340	RZU300..DCB	05/2000 - 06/2004	1
88715-37340	RZU300..DCB	06/2004 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37830	RZU300..DCB NO.1	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.2	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.1	05/2000 - 06/2004	1
88716-37830	RZU300..DCB NO.2	05/2000 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37830	RZU300..DCB NO.1	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.2	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.1	05/2000 - 06/2004	1
88716-37830	RZU300..DCB NO.2	05/2000 - 06/2004	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37440	BU30#,RZU300,XZU307..DCB	05/1999 - 08/2001	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-37740	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	BU30#,RZU300,XZU307,347..DCB	02/2002 - 03/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88733-27010	XZU304,306,308,346..(DCB,VAN)..DSL;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG	06/2004 - 12/2999	1
Common parts
88438-37010
88472-37160
88688-37420
88688-37810
88688-37820
88688-37830
88688-3A640
88688-3V050
88688-3V150
88688-3V170
88718-12280
88718-25100
88718-26410
88718-2D050
88718-37380
88718-37390
88718-37730
88718-37740
88718-3A270
88718-3A310
88718-3A350
88899-95J19
90041-79141
90091-20609
90099-00968
90099-04119
90099-04436
90159-50267
90179-06236
90467-08011
91511-B0630
91511-G0814
91511-J0625
91513-60828
91642-H1020
91651-60616
91651-60645
93385-16012
94130-00602
94130-60600
94150-80800
94150-81000

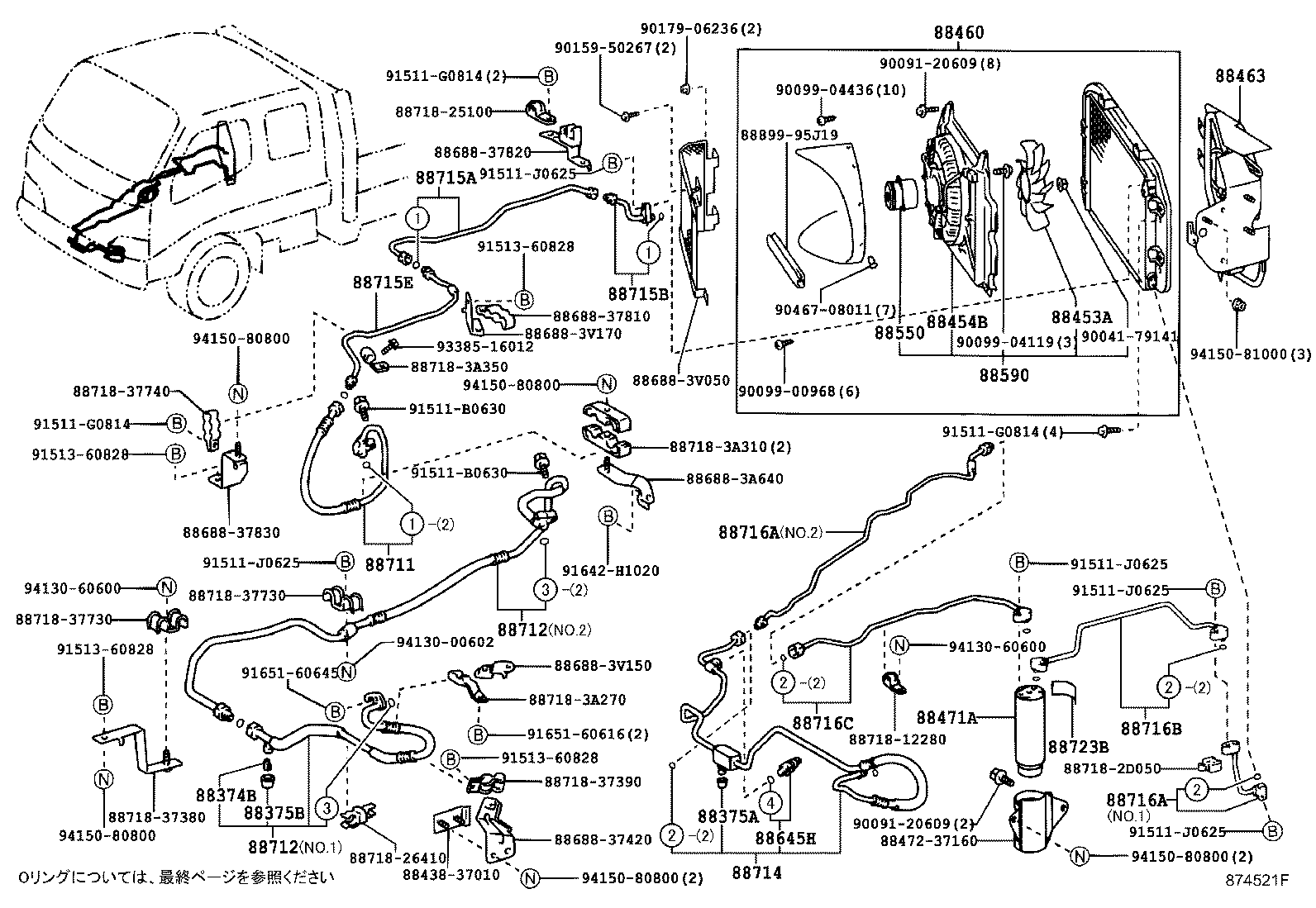

ILLUST NO. 1 OF 2(0108-0406)RZU300..DCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU301,331..IV4;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU300,330,340,350..T2,T3,T4	09/2001 - 06/2002	1
88374-30010	RZU300..EFI;RZU300..30T..LPG;XZU301,331..DSL..IV4;BU30#,346,RZU340,XZU306,307,337,346,347..(SCB,VAN)..WT..(DSL,EFI) NO.1	06/2002 - 06/2004	1
88374-30010	BU301,RZU300,340..T2,T3,T4;XZU301,302,341,342..CNG,LPG NO.1	05/2000 - 09/2001	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88453-37010	XZU304..175T;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG	06/2004 - 12/2999	1
88454B - SHROUD, FAN
88454-37040	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307..DCB	05/1999 - 06/2004	1
88454-37040	RZU300..DCB	06/2004 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-37460	RZU300..DCB	05/2000 - 06/2004	1
88460-37460	RZU300..DCB	06/2004 - 05/2007	1
88460P - CONDENSER ASSY, COOLER NO.2
88460-37530	RZU300,340..EFI	08/2001 - 06/2004	1
88460-37530	RZU300,340..EFI	06/2004 - 05/2007	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37011	RZU300..DCB	06/2004 - 12/2999	1
88471A - TANK, RECEIVER
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-28100	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-34010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37080	RZU300..DCB	05/2000 - 06/2004	1
88550-37080	RZU300..DCB	06/2004 - 05/2007	1
88590 - BLOWER ASSY, W/SHROUD
88590-37140	RZU300..DCB	05/2000 - 06/2004	1
88590-37140	RZU300..DCB	06/2004 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88688L - BRACKET, CONDENSER PACKING
88688-3V320	RZU300..DCB	06/2004 - 12/2999	1
88688-3V320	BU30#,RZU300,XZU307..DCB	08/2001 - 06/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37720	RZU300..DCB	05/2000 - 06/2004	1
88711-37720	RZU300..DCB	06/2004 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V291	RZU300,340..EFI NO.2	06/2001 - 06/2002	1
88712-3V310	RZU300..DCB NO.2	05/2000 - 06/2001	1
88712-37670	RZU300,340,XZU301,302,341,342..CNG,EFI,LPG NO.1	05/2000 - 12/2002	1
88712-3V291	RZU301,340;RZU300..EFI;RZU300..30T..LPG NO.2	06/2002 - 06/2004	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712-37671	BZU300,340,RZU30#,340 NO.1	06/2004 - 12/2999	1
88712-3V291	RZU30#,340 NO.2	06/2004 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V291	RZU300,340..EFI NO.2	06/2001 - 06/2002	1
88712-3V310	RZU300..DCB NO.2	05/2000 - 06/2001	1
88712-37670	RZU300,340,XZU301,302,341,342..CNG,EFI,LPG NO.1	05/2000 - 12/2002	1
88712-3V291	RZU301,340;RZU300..EFI;RZU300..30T..LPG NO.2	06/2002 - 06/2004	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712-37671	BZU300,340,RZU30#,340 NO.1	06/2004 - 12/2999	1
88712-3V291	RZU30#,340 NO.2	06/2004 - 12/2999	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37480	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37360	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352	08/2001 - 12/2002	1
88721-37361	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU306,307,31#,32#,331,337,346,347,351,352	12/2002 - 06/2004	1
88721-37361	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37251	RZU300..DCB	05/2000 - 06/2004	1
88715-37251	RZU300..DCB	06/2004 - 12/2999	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37261	RZU300..DCB	06/2004 - 12/2999	1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-37340	RZU300..DCB	05/2000 - 06/2004	1
88715-37340	RZU300..DCB	06/2004 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37830	RZU300..DCB NO.1	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.2	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.1	05/2000 - 06/2004	1
88716-37830	RZU300..DCB NO.2	05/2000 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37830	RZU300..DCB NO.1	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.2	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.1	05/2000 - 06/2004	1
88716-37830	RZU300..DCB NO.2	05/2000 - 06/2004	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88726-37110	RZU300,340	08/2001 - 06/2002	1
88726-37110	RZU300,340..EFI	06/2002 - 06/2004	1
88726-37110	RZU300,340..EFI	06/2004 - 12/2999	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	BU30#,RZU300,XZU307,347..DCB	02/2002 - 03/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88733-27010	XZU304,306,308,346..(DCB,VAN)..DSL;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG	06/2004 - 12/2999	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-37120	RZU300..DCB	06/2004 - 12/2999	1
88726-37120	RZU300..DCB	08/2001 - 06/2004	1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-37130	BU30#,RZU300,XZU307..DCB	08/2001 - 06/2004	1
88726-37130	RZU300..DCB	06/2004 - 12/2999	1
Common parts
15188-87101
88438-37010
88463-35120
88472-37170
88472-37210
88688-37420
88688-37810
88688-37822
88688-37830
88688-3A640
88688-3V150
88688-3V172
88688-3V470
88718-12280
88718-25100
88718-26410
88718-2D050
88718-37380
88718-37390
88718-37730
88718-37740
88718-37750
88718-3A270
88718-3A310
88718-3A350
88899-95J19
90041-79141
90091-20609
90099-00968
90099-04119
90099-04436
90179-06293
90467-08011
91511-B0630
91511-G0814
91511-J0625
91513-60828
91642-H1020
91651-60616
91651-60645
93385-15012
93385-16012
93385-16016
93385-18025
94130-00602
94130-60600
94150-80800
94150-81000

ILLUST NO. 1 OF 2(0406- )RZU300..DCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88453-37010	XZU304..175T;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG	06/2004 - 12/2999	1
88454B - SHROUD, FAN
88454-37040	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307..DCB	05/1999 - 06/2004	1
88454-37040	RZU300..DCB	06/2004 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-37460	RZU300..DCB	05/2000 - 06/2004	1
88460-37460	RZU300..DCB	06/2004 - 05/2007	1
88460P - CONDENSER ASSY, COOLER NO.2
88460-37530	RZU300,340..EFI	08/2001 - 06/2004	1
88460-37530	RZU300,340..EFI	06/2004 - 05/2007	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37011	RZU300..DCB	06/2004 - 12/2999	1
88471A - TANK, RECEIVER
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-28100	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-34010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37080	RZU300..DCB	05/2000 - 06/2004	1
88550-37080	RZU300..DCB	06/2004 - 05/2007	1
88590 - BLOWER ASSY, W/SHROUD
88590-37140	RZU300..DCB	05/2000 - 06/2004	1
88590-37140	RZU300..DCB	06/2004 - 12/2999	1
88688L - BRACKET, CONDENSER PACKING
88688-3V320	RZU300..DCB	06/2004 - 12/2999	1
88688-3V320	BU30#,RZU300,XZU307..DCB	08/2001 - 06/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37720	RZU300..DCB	05/2000 - 06/2004	1
88711-37720	RZU300..DCB	06/2004 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V291	RZU300,340..EFI NO.2	06/2001 - 06/2002	1
88712-3V310	RZU300..DCB NO.2	05/2000 - 06/2001	1
88712-37670	RZU300,340,XZU301,302,341,342..CNG,EFI,LPG NO.1	05/2000 - 12/2002	1
88712-3V291	RZU301,340;RZU300..EFI;RZU300..30T..LPG NO.2	06/2002 - 06/2004	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712-37671	BZU300,340,RZU30#,340 NO.1	06/2004 - 12/2999	1
88712-3V291	RZU30#,340 NO.2	06/2004 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V291	RZU300,340..EFI NO.2	06/2001 - 06/2002	1
88712-3V310	RZU300..DCB NO.2	05/2000 - 06/2001	1
88712-37670	RZU300,340,XZU301,302,341,342..CNG,EFI,LPG NO.1	05/2000 - 12/2002	1
88712-3V291	RZU301,340;RZU300..EFI;RZU300..30T..LPG NO.2	06/2002 - 06/2004	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712-37671	BZU300,340,RZU30#,340 NO.1	06/2004 - 12/2999	1
88712-3V291	RZU30#,340 NO.2	06/2004 - 12/2999	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37480	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37360	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352	08/2001 - 12/2002	1
88721-37361	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU306,307,31#,32#,331,337,346,347,351,352	12/2002 - 06/2004	1
88721-37361	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37251	RZU300..DCB	05/2000 - 06/2004	1
88715-37251	RZU300..DCB	06/2004 - 12/2999	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37261	RZU300..DCB	06/2004 - 12/2999	1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-37340	RZU300..DCB	05/2000 - 06/2004	1
88715-37340	RZU300..DCB	06/2004 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37830	RZU300..DCB NO.1	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.2	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.1	05/2000 - 06/2004	1
88716-37830	RZU300..DCB NO.2	05/2000 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37830	RZU300..DCB NO.1	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.2	06/2004 - 12/2999	1
88716-37610	RZU300..DCB NO.1	05/2000 - 06/2004	1
88716-37830	RZU300..DCB NO.2	05/2000 - 06/2004	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88726-37110	RZU300,340	08/2001 - 06/2002	1
88726-37110	RZU300,340..EFI	06/2002 - 06/2004	1
88726-37110	RZU300,340..EFI	06/2004 - 12/2999	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	BU30#,RZU300,XZU307,347..DCB	02/2002 - 03/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88733-27010	XZU304,306,308,346..(DCB,VAN)..DSL;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG	06/2004 - 12/2999	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-37120	RZU300..DCB	06/2004 - 12/2999	1
88726-37120	RZU300..DCB	08/2001 - 06/2004	1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-37130	BU30#,RZU300,XZU307..DCB	08/2001 - 06/2004	1
88726-37130	RZU300..DCB	06/2004 - 12/2999	1
Common parts
88438-37010
88463-35120
88472-37170
88472-37210
88688-37420
88688-37810
88688-37830
88688-3A640
88688-3V050
88688-3V172
88688-3V470
88688-3V500
88688-3V750
88718-12280
88718-25100
88718-26410
88718-37380
88718-37390
88718-37730
88718-37740
88718-37750
88718-3A310
88718-3A350
88718-3V160
88899-95J19
90041-79141
90091-20609
90099-00968
90099-04119
90099-04436
90159-50267
90179-06236
90179-06293
90467-08011
91511-B0630
91511-G0814
91511-J0625
91513-60828
91642-H1020
91651-60616
91651-60645
93385-15012
93385-16012
93385-16016
93385-18025
94130-60600
94150-80800
94150-81000

RZU300-PQMMK (2000)

ILLUST NO. 1 OF 2(0005-0108)RZU300..DCB

ILLUST NO. 1 OF 2(0108-0406)RZU300..DCB

ILLUST NO. 1 OF 2(0406- )RZU300..DCB

Part Price Details
