RU30-QRPTQ3 (1979)

Toyota Dyna/Toyoace

Production Apr 1979 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

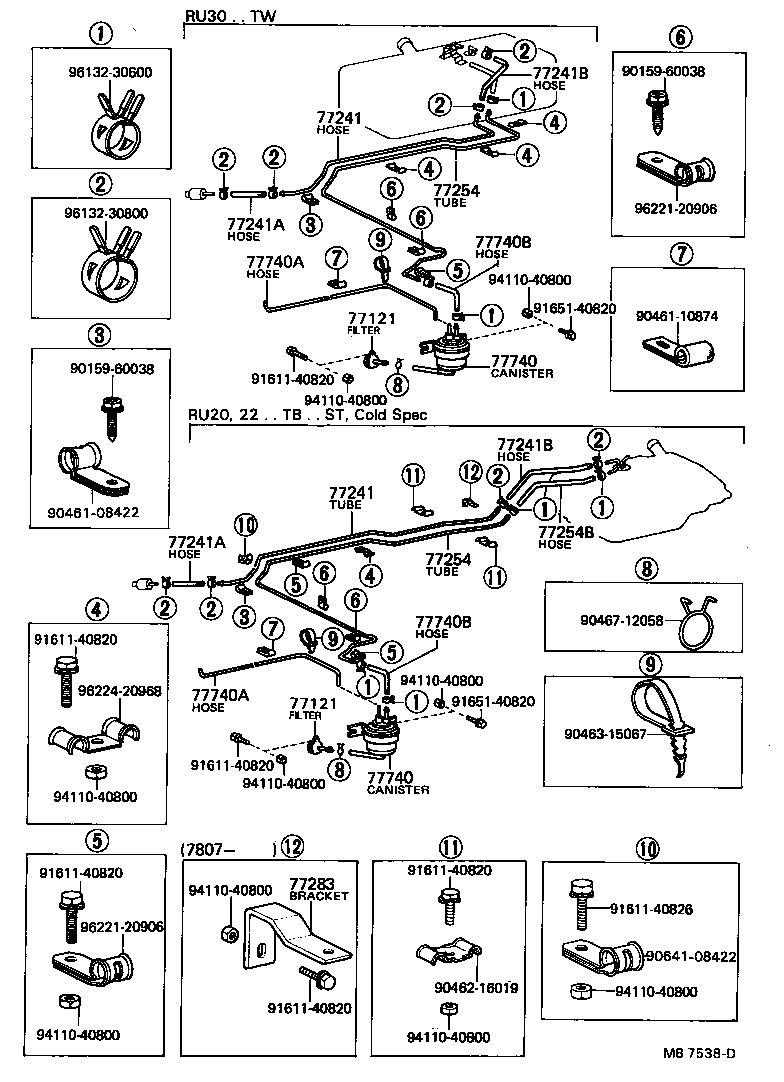

ILLUST NO. 2 OF 2(7708-8204)RU30..06S ; (7708- )RU2#..TB..ST

Click highlighted areas on diagram

diagram 77121 77121 77241 77241 77241A 77241A 77241B 77241B 77254 77254 77254B 77283 77740 77740 77740A 77740A 77740B 77740B 9015960038 9015960038 9046108422 9046110874 9046216019 9046315067 9046712058 9064108422 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140826 9165140820 9165140820 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9613230600 9613230800 9622120906 9622120906 9622420968
Part # Description Qty Price
77121 - PROTECTOR, FUEL TUBE
77243-36010

HU26,30,40,50,JU20,WU26,40,50

 1
77258-36010

RU2#,3#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

HU26,30,40,50,JU20,WU26,40,50

 1
77258-36010

RU2#,3#

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36490

RU30..06S

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36490

RU30..06S

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08010

RU30;RU20..SRF,T1,T2,TW1,TW2

*H,L=100,内径=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08010

RU30;RU20..SRF,T1,T2,TW1,TW2

*H,L=100,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08028

RU30..06S

*H,L=280,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08028

RU30..06S

*H,L=280,内径=7.6

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-36070

RU30..06S

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-36070

RU30..06S

 1
77740 - CANISTER ASSY, CHARCOAL
77740-36050

RU20,30

 1
77740 - CANISTER ASSY, CHARCOAL
77740-36050

RU20,30

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-08170

RU30;RU20..ST

長さ=1200

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-08170

RU30;RU20..ST

長さ=1200

 1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
95332-06013

RU20,30

*H,L=130

 1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
95332-06013

RU20,30

*H,L=130

 1
Common parts
90159-60038
90461-08422
90461-10874
90462-16019
90463-15067
90467-12058
90641-08422
91611-40820
91611-40826
91651-40820
94110-40800
96132-30600
96132-30800
96221-20906
96224-20968
