RU30-QRPTQ3 (1979)

Toyota Dyna/Toyoace

Production Apr 1979 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7904- )5R..RU22..M51 ; (7904- )5R..RU20..BTP ; (7904- )5R..RU20..T3..ST ;

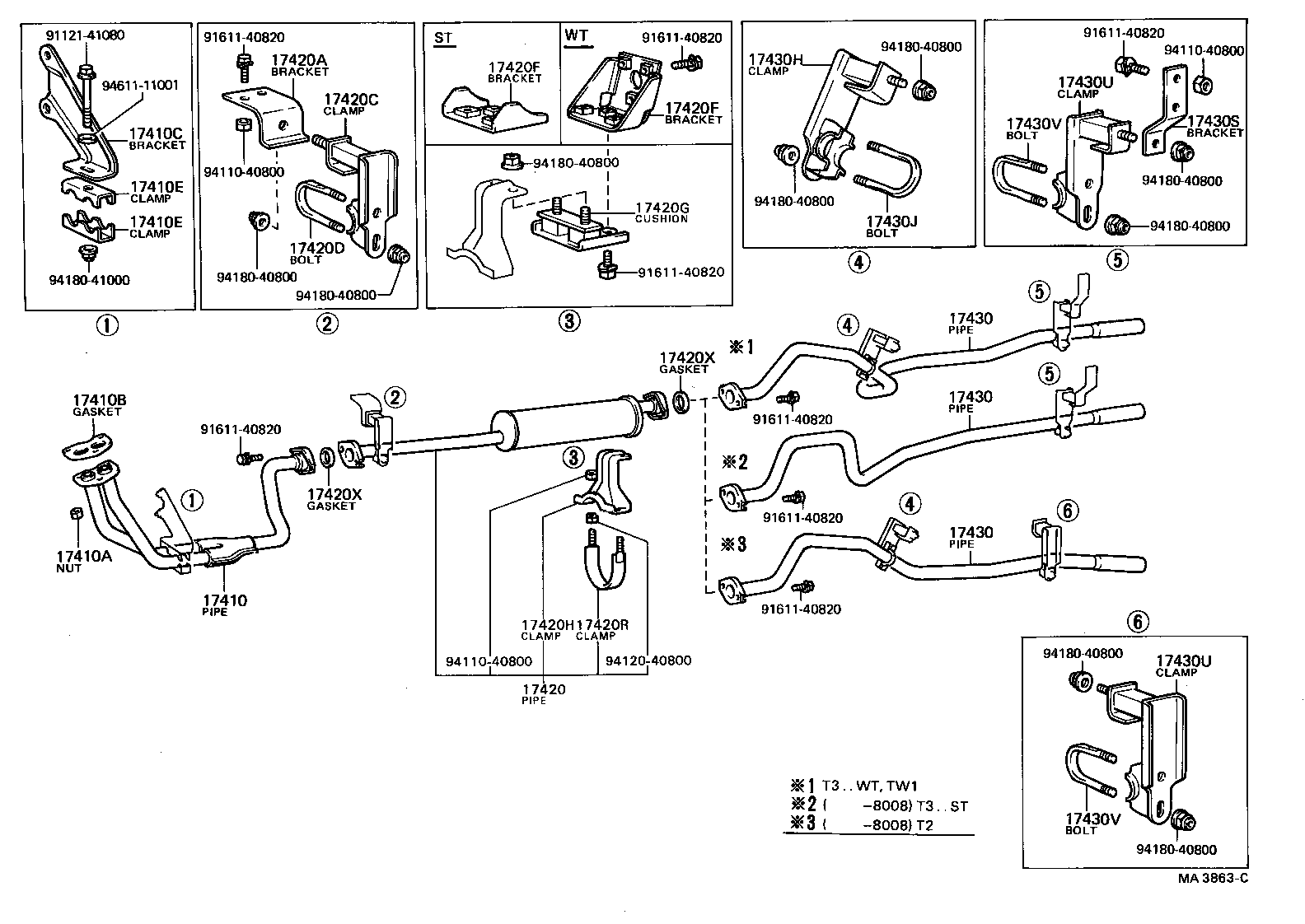

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410E 17410E 17420X 17430 17430 17430A 17430A 17430B 17430C 17430C 17430E 17430E 17430H 17430J 17430S 17430S 17430U 17430U 17430V 17430V 9112141080 9161140820 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9412040800 9412040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000 9461111001
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-44160

5R..RU30..WT

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

5R..RU2#,3#

 3
17410B - GASKET, EXHAUST PIPE
17451-41010

5R..RU2#,3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44050

5R..RU20,30

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04036

5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP

UPR

 1
90917-04035

5R..RU20,30

LWR

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04036

5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP

UPR

 1
90917-04035

5R..RU20,30

LWR

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

5R..RU30;2J,5R..JU20,RU20..ST

RR

 1
90917-06008

5R..RU30;2J,5R..JU20,RU20..ST

FR

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44100

5R..RU30..WT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44100

5R..RU30..WT

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-56050

5R..RU30

FRAME SIDE

 1
17576-56010

2J,5R..JU20,RU20,30

MUFFLER SIDE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-56050

5R..RU30

FRAME SIDE

 1
17576-56010

2J,5R..JU20,RU20,30

MUFFLER SIDE

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-14001

2J,5R..JU20,RU20,30

 2
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
17578-56010

2J,5R..JU20,RU20,30

 1
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
17578-56010

2J,5R..JU20,RU20,30

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17573-44050

5R..RU30

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17573-44050

5R..RU30

 1
Common parts
91121-41080
91611-40820
94110-40800
94120-40800
94180-40800
94180-41000
94611-11001

(7904- )5R..RU3#

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410E 17410E 17420 17420A 17420C 17420D 17420F 17420F 17420G 17420H 17420R 17420X 17420X 17430 17430 17430 17430H 17430J 17430S 17430U 17430U 17430V 17430V 9112141080 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9412040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000 9461111001
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-44160

5R..RU30..WT

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

5R..RU2#,3#

 3
17410B - GASKET, EXHAUST PIPE
17451-41010

5R..RU2#,3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44050

5R..RU20,30

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04036

5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP

UPR

 1
90917-04035

5R..RU20,30

LWR

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04036

5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP

UPR

 1
90917-04035

5R..RU20,30

LWR

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

5R..RU30;2J,5R..JU20,RU20..ST

RR

 1
90917-06008

5R..RU30;2J,5R..JU20,RU20..ST

FR

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

5R..RU30;2J,5R..JU20,RU20..ST

RR

 1
90917-06008

5R..RU30;2J,5R..JU20,RU20..ST

FR

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44100

5R..RU30..WT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44100

5R..RU30..WT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44100

5R..RU30..WT

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17573-44050

5R..RU30

 1
Common parts
91121-41080
91611-40820
94110-40800
94120-40800
94180-40800
94180-41000
94611-11001

(7904-8008)H

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410E 17410F 17420 17420F 17420G 17420H 17420R 17420X 17430 17430H 17430J 17430S 17430U 17430V 9161140820 9161140820 9161140820 9161140820 9161140820 9161160850 9411040800 9411040800 9412040800 9418040800 9418040800 9418040800 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-44160

5R..RU30..WT

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

5R..RU2#,3#

 3
17410B - GASKET, EXHAUST PIPE
17451-41010

5R..RU2#,3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44050

5R..RU20,30

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04036

5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP

UPR

 1
90917-04035

5R..RU20,30

LWR

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

5R..RU30;2J,5R..JU20,RU20..ST

RR

 1
90917-06008

5R..RU30;2J,5R..JU20,RU20..ST

FR

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44100

5R..RU30..WT

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17573-44050

5R..RU30

 1
Common parts
91611-40820
91611-60850
94110-40800
94120-40800
94180-40800
