RU30-QRPT (1977)

Toyota Dyna/Toyoace

Production Aug 1977 - Apr 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )TR..06S

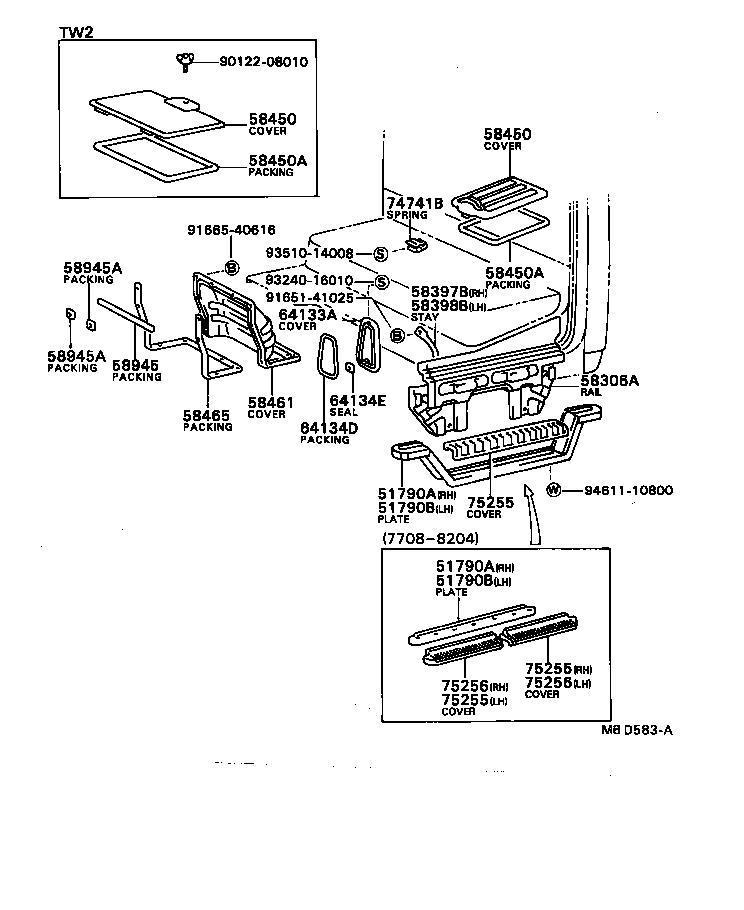

Click highlighted areas on diagram

diagram 51790A 51790A 51790B 51790B 58306A 58397B 58398B 58450 58450 58450A 58450A 58461 58465 58945 58945A 58945A 64133A 64134D 64134E 74741B 75255 75255 75255 75256 75256 9012208010 9165141025 9166540616 9324016010 9351014008 9461110800
Part # Description Qty Price
51790A - PLATE SUB-ASSY, REAR STEP, RH
58303-95400

JU20,RU20,30..TR..06S

 1
51790A - PLATE SUB-ASSY, REAR STEP, RH
58303-95400

JU20,RU20,30..TR..06S

 1
51790B - PLATE SUB-ASSY, REAR STEP, LH
58304-95400

JU20,RU20,30

 1
51790B - PLATE SUB-ASSY, REAR STEP, LH
58304-95400

JU20,RU20,30

 1
58450 - COVER ASSY, BATTERY SERVICE HOLE
65305-95401

JU20,RU2#,30..TR..06S

400X235

 1
58450 - COVER ASSY, BATTERY SERVICE HOLE
65305-95401

JU20,RU2#,30..TR..06S

400X235

 1
58450A - PACKING, BATTERY SERVICE HOLE COVER
65352-95401

JU20,RU2#,30..TR..06S

400X235(L=1100)

 1
58450A - PACKING, BATTERY SERVICE HOLE COVER
65352-95401

JU20,RU2#,30..TR..06S

400X235(L=1100)

 1
58461 - COVER, TRANSMISSION SERVICE HOLE
58409-95403

JU20,RU20,30..SRF,TW1,TW2

W/O HEADER MAT

 1
58409-95401

JU20,RU20,30..SRF,TW1,TW2

 1
58465 - PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1
58465-95402

JU20,RU2#,30..SRF,TW1,TW2

 1
58945 - PACKING, TRANSMISSION SERVICE HOLE COVER
58466-95402

JU20,RU2#,30..SRF,TW1,TW2

 1
58945A - PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1
64138-95400

JU20,RU2#,30..SRF,TW1,TW2

 2
58945A - PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1
64138-95400

JU20,RU2#,30..SRF,TW1,TW2

 2
64133A - COVER, HEADER PANEL
64133-95400

JU20,RU2#,30..TR..06S

 2
64134D - PACKING, HEADER PANEL COVER
64134-95400

JU20,RU2#,30..TR..06S

 2
64134E - SEAL, HEADER PANEL COVER
64138-95400

JU20,RU2#,30..TR..06S

 2
75255 - COVER, STEP PLATE REAR, NO.1
75253-95401

JU20,RU20,30..TR..06S

 2
75255 - COVER, STEP PLATE REAR, NO.1
75253-95401

JU20,RU20,30..TR..06S

 2
75255 - COVER, STEP PLATE REAR, NO.1
75253-95401

JU20,RU20,30..TR..06S

 2
75256 - COVER, STEP PLATE REAR, NO.2
75254-95400

JU20,RU20,30..TR..06S

 2
75256 - COVER, STEP PLATE REAR, NO.2
75254-95400

JU20,RU20,30..TR..06S

 2
Common parts
90122-08010
91651-41025
91665-40616
93240-16010
93510-14008
94611-10800
