RU22D-QRT3 (1982)

Toyota Dyna/Toyoace

Production Apr 1982 - Aug 1984
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

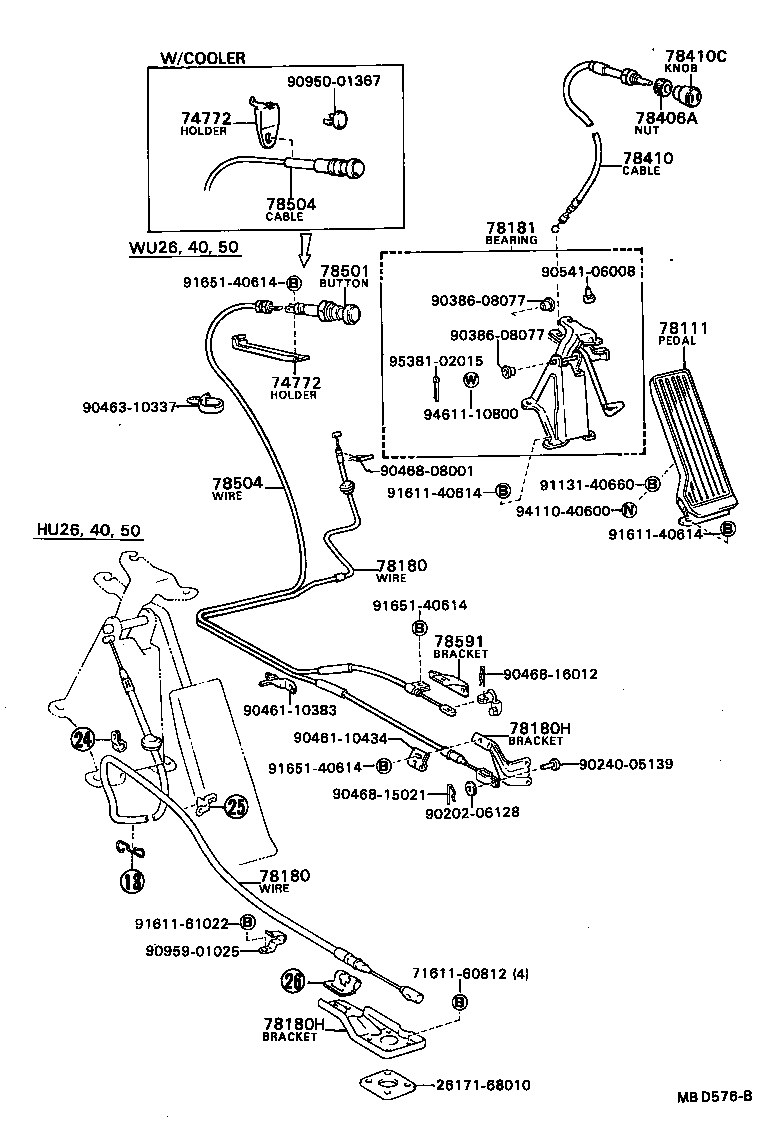

ILLUST NO. 2 OF 3(8204- )HU26,40,50,WU26,40,50

Click highlighted areas on diagram

diagram 2617168010 7161160812 74772 74772 78111 78180 78180 78180H 78180H 78181 78406A 78410 78410C 78501 78504 78504 78591 9020206128 9024005139 9038608077 9038608077 9046110383 9046110434 9046310337 9046808001 9046815021 9046816012 9054106008 9095001367 9095901025 9113140660 9161140614 9161140614 9161161022 9165140614 9165140614 9165140614 9411040600 9461110800 9538102015
Part # Description Qty Price
74772 - HOLDER, STOP AND THROTTLE WIRE
74772-95407

WU26,40,50

 1
74772-95408

WU26,40,50

W/COOLER

 1
74772 - HOLDER, STOP AND THROTTLE WIRE
74772-95407

WU26,40,50

 1
74772-95408

WU26,40,50

W/COOLER

 1
78111 - PEDAL, ACCELERATOR
78110-95410

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95457

WU26,40,50

 1
78150-95442

RU2#,3#

 1
78150-95452

HU26,40,50

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95457

WU26,40,50

 1
78150-95442

RU2#,3#

 1
78150-95452

HU26,40,50

 1
78180H - BRACKET, ACCELERATOR CONTROL CABLE
78184-95401

WU26,40,50

 1
78184-90B01

HU26,40,50

 1
78180H - BRACKET, ACCELERATOR CONTROL CABLE
78184-95401

WU26,40,50

 1
78184-90B01

HU26,40,50

 1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78180-95448

HU26,40,50,WU26,40,50

 1
78180-95445

RU2#,3#

 1
78501 - BUTTON SUB-ASSY, STOP
78501-95402

WU26,40,50

 1
78504 - WIRE SUB-ASSY, STOP FLEXIBLE
78504-95425

WU26,40,50

 1
78510-95400

WU26,40,50

W/COOLER

 1
78504 - WIRE SUB-ASSY, STOP FLEXIBLE
78504-95425

WU26,40,50

 1
78510-95400

WU26,40,50

W/COOLER

 1
78591 - BRACKET, STOP WIRE
78518-95401

WU26,40,50

 1
Common parts
26171-68010
71611-60812
90202-06128
90240-05139
90386-08077
90461-10383
90461-10434
90463-10337
90468-08001
90468-15021
90468-16012
90541-06008
90950-01367
90959-01025
91131-40660
91611-40614
91611-61022
91651-40614
94110-40600
94611-10800
95381-02015
