RU22-QRLT3 (1982)

Toyota Dyna/Toyoace

Production Apr 1982 - Aug 1984
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )5R

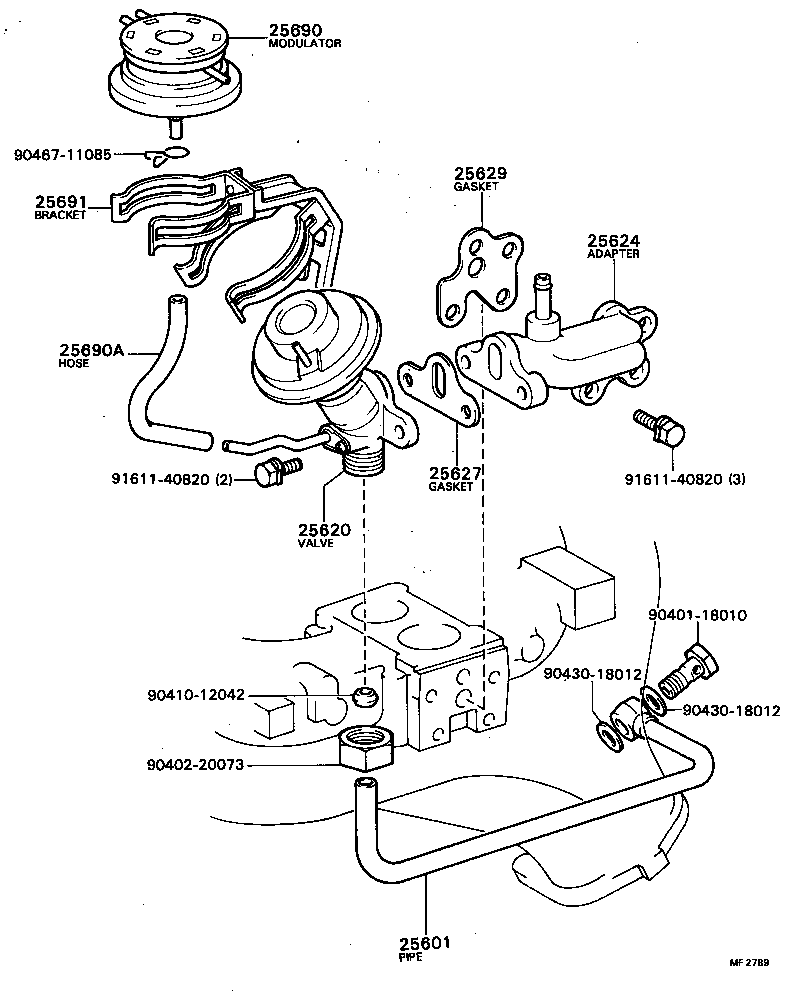

Click highlighted areas on diagram

diagram 25601 25620 25624 25627 25629 25690 25690A 25691 9040118010 9040220073 9041012042 9043018012 9043018012 9046711085 9161140820 9161140820
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-44030

5R..RU22,32

 1
25620 - VALVE ASSY, EGR
25620-44060

5R..RU22,32

 1
25624 - ADAPTER, EGR VALVE
25607-44020

5R..RU22,32

 1
25627 - GASKET, EGR VALVE
25627-44010

5R..RU22,32

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-44020

5R..RU22,32

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-44020

5R..RU22,32

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90910-05137

5R..RU22,32

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-44030

5R..RU22,32

 1
Common parts
90401-18010
90402-20073
90410-12042
90430-18012
90467-11085
91611-40820
