RU22-QRLT3 (1982)

Toyota Dyna/Toyoace

Production Apr 1982 - Aug 1984
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )5R

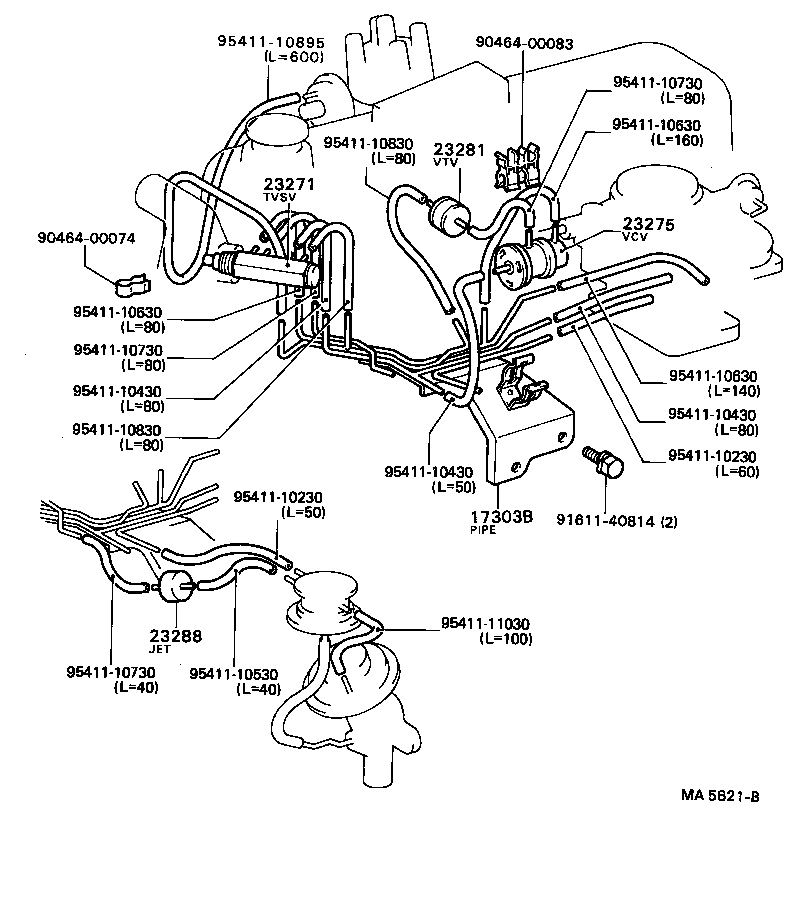

Click highlighted areas on diagram

diagram 17303B 23271 23275 23281 23288 9046400074 9046400083 9161140814 9541110230 9541110230 9541110430 9541110430 9541110430 9541110530 9541110630 9541110630 9541110630 9541110730 9541110730 9541110730 9541110830 9541110830 9541110895 9541111030
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-44010

5R..RU22,32

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02059

5R..RU22,32

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03131

5R..RU22,32

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01041

5R..RU22,32

 1
23288 - JET, NO.1
90925-04003

5R..RU22,32

 1
Common parts
90464-00074
90464-00083
91611-40814
95411-10230
95411-10430
95411-10530
95411-10630
95411-10730
95411-10830
95411-10895
95411-11030
