RU20V-QR (1977)
Toyota Dyna/Toyoace

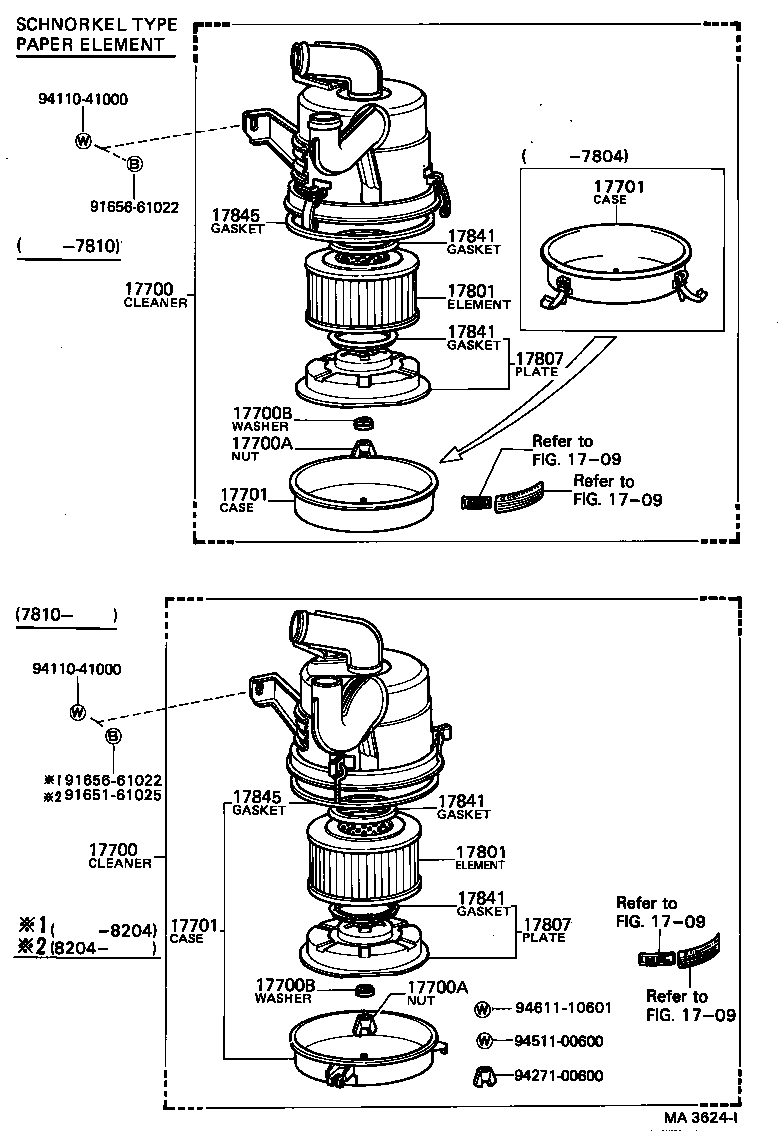

ILLUST NO. 1 OF 2(7708- )5R..RU2#..H50 ; (7904- )5R..RU20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-44310 |
5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-44310 |
5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
5R..RU2#,3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
5R..RU2#,3# |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
5R..RU2#,3# |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
5R..RU2#,3# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-44070 |
5R..RU2#,3# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-44070 |
5R..RU2#,3# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
5R..RU20,30 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
5R..RU20,30 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
5R..RU2#,3# |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
5R..RU2#,3# |
1 | ||
| Common parts | ||||
| 91651-61025 | ||||
| 91656-61022 | ||||
| 94110-41000 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 2(7708-8204)5R..TR,V ; (7712-8204)5R..RU20..H50 ;(7904-8204)5R..RU20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06309 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 90116-06309 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 90116-06309 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17861-44090 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 17861-44090 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 17861-44090 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
5R..RU2#,3# |
1 | ||
| 90430-72114 |
5R..RU2#,3# |
1 | ||
| 90430-72114 |
5R..RU2#,3# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| Common parts | ||||
| 17772-95400 | ||||
| 90109-08025 | ||||
| 90119-08171 | ||||
| 90159-40089 | ||||
| 90159-50105 | ||||
| 90179-08040 | ||||
| 90210-06023 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 93560-55014 | ||||
| 94271-00600 | ||||
| 94612-11200 | ||||
ILLUST NO. 2 OF 2(7708-8204)H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06309 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 90116-06309 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 90116-06309 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17861-44090 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 17861-44090 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 17861-44090 |
5R..RU30;5R..RU20..T3..ST;5R..RU20..KKT..BTP;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU;5R..RU20..SRF,T1,T2,TW1,TW2 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
5R..RU2#,3# |
1 | ||
| 90430-72114 |
5R..RU2#,3# |
1 | ||
| 90430-72114 |
5R..RU2#,3# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| Common parts | ||||
| 17772-95400 | ||||
| 90109-08025 | ||||
| 90119-08171 | ||||
| 90159-40089 | ||||
| 90159-50105 | ||||
| 90179-08040 | ||||
| 90210-06023 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 93560-55014 | ||||
| 94271-00600 | ||||
| 94612-11200 | ||||
ILLUST NO. 2 OF 2(7708-8008)5R..TR,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| Common parts | ||||
| 17772-95400 | ||||
| 90109-08025 | ||||
| 90119-08171 | ||||
| 90159-40089 | ||||
| 90159-50105 | ||||
| 91611-60820 | ||||
| 93560-55014 | ||||
| 94110-40800 | ||||
| 94612-11200 | ||||
ILLUST NO. 2 OF 2(7708-8008)H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17701-95401 |
5R..RU20,30..M51 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30..M51 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17767-95404 |
5R..RU20,30 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17805-56010 |
5R..RU20,30 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881-44030 |
5R..RU2#,3#..M51 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10780 |
5R..RU20,30 ID=78 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 96111-10670 |
5R..RU20,30..M51 ID=67 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30..M51 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882-56040 |
5R..RU20,30 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17883-95400 |
5R..RU20,30..M51 |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| 96111-10780 |
5R..RU20,30..M51 ID=78 |
2 | ||
| Common parts | ||||
| 17772-95400 | ||||
| 90109-08025 | ||||
| 90119-08171 | ||||
| 90159-40089 | ||||
| 90159-50105 | ||||
| 91611-60820 | ||||
| 93560-55014 | ||||
| 94110-40800 | ||||
| 94612-11200 | ||||
ILLUST NO. 1 OF 2(7708- )5R..TR,V ; (7712- )5R..RU2#..H50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-44310 |
5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP |
1 | ||
| 17700-44310 |
5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP |
1 | ||
| 17700-44310 |
5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP |
1 | ||
| 17700-44310 |
5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-44310 |
5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP |
1 | ||
| 17700-44310 |
5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP |
1 | ||
| 17700-44310 |
5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP |
1 | ||
| 17700-44310 |
5R..RU30;5R..RU20..ST;5R..RU20..M51..WT..CBU;5R..RU20..M51..WT..ATP |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
5R..RU2#,3# |
1 | ||
| 94271-00800 |
5R..RU2#,3# |
1 | ||
| 94271-00800 |
5R..RU2#,3# |
1 | ||
| 94271-00800 |
5R..RU2#,3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
5R..RU2#,3# |
1 | ||
| 94271-00800 |
5R..RU2#,3# |
1 | ||
| 94271-00800 |
5R..RU2#,3# |
1 | ||
| 94271-00800 |
5R..RU2#,3# |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
5R..RU2#,3# |
1 | ||
| 90210-08004 |
5R..RU2#,3# |
1 | ||
| 90210-08004 |
5R..RU2#,3# |
1 | ||
| 90210-08004 |
5R..RU2#,3# |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
5R..RU2#,3# |
1 | ||
| 90210-08004 |
5R..RU2#,3# |
1 | ||
| 90210-08004 |
5R..RU2#,3# |
1 | ||
| 90210-08004 |
5R..RU2#,3# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-38070 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17701-44260 |
5R..RU20,30 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-44070 |
5R..RU2#,3# |
1 | ||
| 17801-44070 |
5R..RU2#,3# |
1 | ||
| 17801-44070 |
5R..RU2#,3# |
1 | ||
| 17801-44070 |
5R..RU2#,3# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-44070 |
5R..RU2#,3# |
1 | ||
| 17801-44070 |
5R..RU2#,3# |
1 | ||
| 17801-44070 |
5R..RU2#,3# |
1 | ||
| 17801-44070 |
5R..RU2#,3# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
5R..RU20,30 |
1 | ||
| 17807-56010 |
5R..RU20,30 |
1 | ||
| 17807-56010 |
5R..RU20,30 |
1 | ||
| 17807-56010 |
5R..RU20,30 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
5R..RU20,30 |
1 | ||
| 17807-56010 |
5R..RU20,30 |
1 | ||
| 17807-56010 |
5R..RU20,30 |
1 | ||
| 17807-56010 |
5R..RU20,30 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17841-56010 |
5R..RU20,30 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
5R..RU2#,3# |
1 | ||
| 17845-56020 |
5R..RU2#,3# |
1 | ||
| 17845-56020 |
5R..RU2#,3# |
1 | ||
| 17845-56020 |
5R..RU2#,3# |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
5R..RU2#,3# |
1 | ||
| 17845-56020 |
5R..RU2#,3# |
1 | ||
| 17845-56020 |
5R..RU2#,3# |
1 | ||
| 17845-56020 |
5R..RU2#,3# |
1 | ||
| Common parts | ||||
| 91651-61022 | ||||
| 91651-61025 | ||||
| 91656-61022 | ||||
| 94110-41000 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 1709 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
