RU20D-QRTU3 (1977)

Toyota Dyna/Toyoace

Production Aug 1977 - Apr 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7904)H

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410E 17410F 17430 17430 17430A 17430B 17430E 17510 17510R 9011908141 9161140820 9161140840 9161141028 9161160850 9161160850 9411040800 9411040800 9411040800 9411041000 9418040800 9451100800 9461210800 9461310800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-44190

5R..RU20..KKT

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-44190

5R..RU20..KKT

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

5R..RU2#,3#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

5R..RU2#,3#

 3
17410B - GASKET, EXHAUST PIPE
17451-41010

5R..RU2#,3#

 1
17410B - GASKET, EXHAUST PIPE
17451-41010

5R..RU2#,3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44050

5R..RU20,30

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04035

5R..RU20,30

LWR

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44031

5R..RU20..WT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44031

5R..RU20..WT

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-44031

5R..RU20..WT

FRAME SIDE

 1
17576-56010

2J,5R..JU20,RU20,30

MUFFLER SIDE

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-14001

2J,5R..JU20,RU20,30

 2
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
17578-56010

2J,5R..JU20,RU20

 1
17578-56010

2J,5R..JU20,RU20,30

 1
Common parts
90119-08141
91611-40820
91611-40840
91611-41028
91611-60850
94110-40800
94110-41000
94180-40800
94511-00800
94612-10800
94613-10800

(7708-7904)5R..RU20..WT ; (7904-8001)5R..RU20..TSK ; (7904-8001)5R..RU20..T3..WT

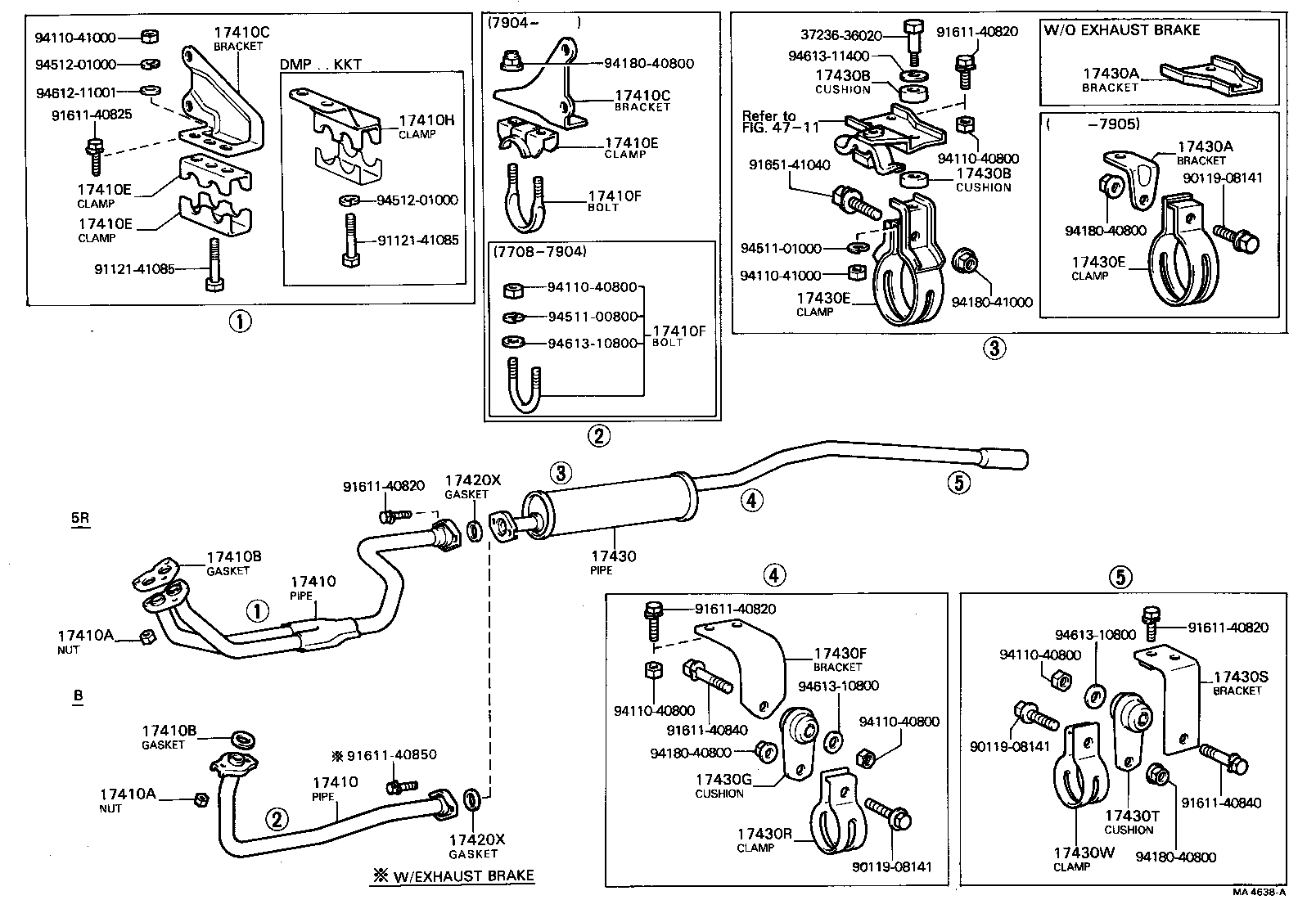

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17410E 17410E 17410E 17410F 17410F 17410H 17420X 17420X 17430 17430A 17430A 17430B 17430B 17430E 17430E 17430F 17430G 17430R 17430S 17430T 17430W 3723636020 4711 9011908141 9011908141 9011908141 9112141085 9112141085 9161140820 9161140820 9161140820 9161140820 9161140825 9161140840 9161140840 9161140850 9165141040 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000 9411041000 9418040800 9418040800 9418040800 9418040800 9418041000 9451100800 9451101000 9451201000 9451201000 9461211001 9461310800 9461310800 9461310800 9461311400
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-44190

5R..RU20..KKT

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-44190

5R..RU20..KKT

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

5R..RU2#,3#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

5R..RU2#,3#

 3
17410B - GASKET, EXHAUST PIPE
17451-41010

5R..RU2#,3#

 1
17410B - GASKET, EXHAUST PIPE
17451-41010

5R..RU2#,3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44050

5R..RU20,30

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44050

5R..RU20,30

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04035

5R..RU20,30

LWR

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04035

5R..RU20,30

LWR

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04035

5R..RU20,30

LWR

 1
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17504-44010

5R..RU20..KKT

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

5R..RU20..WT

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

5R..RU20..WT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44031

5R..RU20..WT

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-44031

5R..RU20..WT

FRAME SIDE

 1
17576-56010

2J,5R..JU20,RU20,30

MUFFLER SIDE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-44031

5R..RU20..WT

FRAME SIDE

 1
17576-56010

2J,5R..JU20,RU20,30

MUFFLER SIDE

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-14001

2J,5R..JU20,RU20,30

 2
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-14001

2J,5R..JU20,RU20,30

 2
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
17578-56010

2J,5R..JU20,RU20

 1
17578-56010

2J,5R..JU20,RU20,30

 1
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
17578-56010

2J,5R..JU20,RU20

 1
17578-56010

2J,5R..JU20,RU20,30

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17573-44040

5R..RU20..WT

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
90917-08004

2J,5R..JU20,RU20,30

 1
17430R - CLAMP NO.2, EXHAUST TAIL PIPE (FOR CENTER)
90461-23087

2J,5R..JU20,RU20,30

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-44020

5R..RU20..WT

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08004

2J,5R..JU20,RU20,30

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23087

2J,5R..JU20,RU20,30

 1
Common parts
37236-36020
90119-08141
91121-41085
91611-40820
91611-40825
91611-40840
91611-40850
91651-41040
94110-40800
94110-41000
94180-40800
94180-41000
94511-00800
94511-01000
94512-01000
94612-11001
94613-10800
94613-11400
Linked diagrams
4711
