RU20D-QRTU (1977)

Toyota Dyna/Toyoace

Production Aug 1977 - Apr 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )20T..KKT

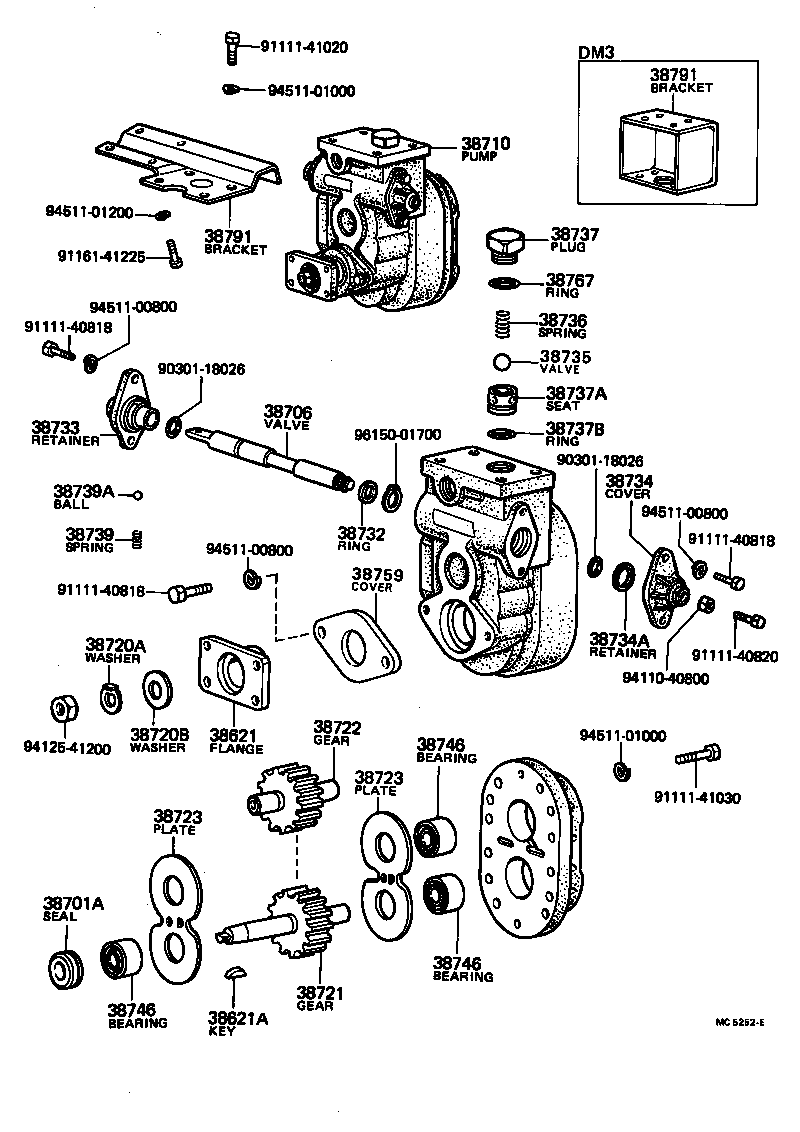

Click highlighted areas on diagram

diagram 38621 38621A 38701A 38706 38710 38720A 38720B 38721 38722 38723 38723 38732 38733 38734 38734A 38735 38736 38737 38737A 38737B 38739 38739A 38746 38746 38746 38759 38767 38791 38791 9030118026 9030118026 9111140818 9111140818 9111140818 9111140820 9111141020 9111141030 9116141225 9411040800 9412541200 9451100800 9451100800 9451100800 9451101000 9451101000 9451101200 9615001700
Part # Description Qty Price
38621 - FLANGE, OIL PUMP DRIVE SHAFT
38611-93101

RU20..KKT

 1
38621A - KEY, OIL PUMP DRIVE SHAFT FLANGE
90280-07002

RU20..KKT

 1
38701A - SEAL, OIL (FOR OIL PUMP BODY)
90311-22001

RU20..KKT

 1
38706 - VALVE SET, OIL PUMP
38731-93101

RU20..KKT

 1
38710 - PUMP ASSY, OIL
38710-93101

RU20..KKT

 1
38720A - WASHER, LOCK (FOR OIL PUMP DRIVE SHAFT)
90214-12001

RU20..KKT

 1
38720B - WASHER, OIL PUMP DRIVE SHAFT
94612-11200

RU20..KKT

 1
38721 - GEAR, OIL PUMP DRIVE
38721-93101

RU20..KKT

 1
38722 - GEAR, OIL PUMP COUNTER
38722-93101

RU20..KKT

 1
38723 - PLATE, OIL PUMP GEAR SIDE
38723-93101

RU20..KKT

 2
38723 - PLATE, OIL PUMP GEAR SIDE
38723-93101

RU20..KKT

 2
38732 - RING, BACK UP
38732-93101

RU20..KKT

 1
38733 - RETAINER, PLUNGER
38733-93101

RU20..KKT

 1
38734 - COVER, PLUNGER
38734-93101

RU20..KKT

 1
38734A - RETAINER, O RING (FOR PLUNGER COVER)
38739-93101

RU20..KKT

 1
38735 - VALVE, CHECK (FOR OIL PUMP)
90360-16001

RU20..KKT

 1
38736 - SPRING, CHECK VALVE
90501-12005

RU20..20T..KKT

 1
38737 - PLUG, CHECK VALVE
90341-28001

RU20..KKT

 1
38737A - SEAT, CHECK VALVE
38737-93101

RU20..KKT

 1
38737B - RING, O (FOR CHECK VALVE SEAT)
96710-02021

RU20..KKT

 1
38739 - SPRING, PLUNGER NEUTRAL INDICATING BALL
90501-08001

RU20..KKT

 2
38739A - BALL, PLUNGER NEUTRAL INDICATING
90360-06004

RU20..KKT

 2
38746 - BEARING, OIL PUMP SHAFT
90364-22001

RU20..KKT

 4
38746 - BEARING, OIL PUMP SHAFT
90364-22001

RU20..KKT

 4
38746 - BEARING, OIL PUMP SHAFT
90364-22001

RU20..KKT

 4
38759 - COVER, SEAL (FOR OIL PUMP BODY)
38759-93102

RU20..20T..KKT

 1
38767 - RING, O (FOR CHECK VALVE SPRING)
90301-29001

RU20..20T..KKT

 1
38791 - BRACKET, OIL PUMP
38791-93101

RU20..KKT

 1
38791 - BRACKET, OIL PUMP
38791-93101

RU20..KKT

 1
Common parts
90301-18026
91111-40818
91111-40820
91111-41020
91111-41030
91161-41225
94110-40800
94125-41200
94511-00800
94511-01000
94511-01200
96150-01700
