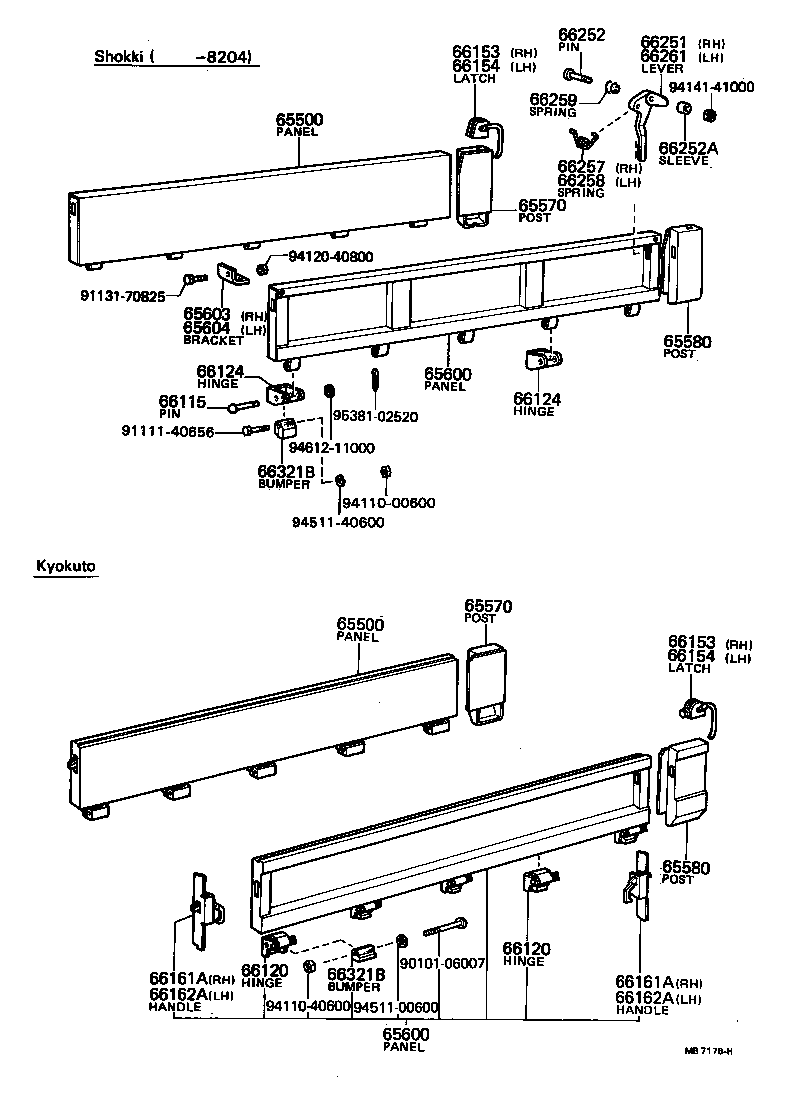

RU20D-QRT3 (1977)
Toyota Dyna/Toyoace
(7708-8008)RU30..TS ; (7708-8008)RU20..T3..TS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-95411 |
JU20,RU20..T3..TS |
1 | ||
| 65501-96309 |
RU20..TSK |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-95409 |
JU20,RU20..T3..TS |
1 | ||
| 65501-96309 |
RU20..TSK |
1 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 66110-95407 |
JU20,RU20..T3..TS 1ST,2ND,5TH,6TH |
8 | ||
| 66110-95409 |
JU20,RU20..T3..TS 3RD,4TH |
4 | ||
| 66120B - RETAINER, SIDE GATE HINGE, LOWER | ||||
| 66115-95012 |
JU20,RU20..T3..TS |
8 | ||
| 66120B - RETAINER, SIDE GATE HINGE, LOWER | ||||
| 66115-95012 |
JU20,RU20..T3..TS |
8 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-95400 |
JU20,RU2#,30..TS |
14 | ||
| Common parts | ||||
| 91111-40816 | ||||
| 91521-40816 | ||||
| 93311-18016 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
(7708-8204)RU20..H50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-95411 |
JU20,RU20..T3..TS |
1 | ||
| 65501-96309 |
RU20..TSK |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-95411 |
JU20,RU20..T3..TS |
1 | ||
| 65501-96309 |
RU20..TSK |
1 | ||
| 65570 - POST ASSY, SIDE PANEL REAR END, RH | ||||
| 65202-96306 |
RU20..TSK |
1 | ||
| 65570 - POST ASSY, SIDE PANEL REAR END, RH | ||||
| 65202-96306 |
RU20..TSK |
1 | ||
| 65580 - POST ASSY, SIDE PANEL REAR END, LH | ||||
| 65203-96306 |
RU20..TSK |
1 | ||
| 65580 - POST ASSY, SIDE PANEL REAR END, LH | ||||
| 65203-96306 |
RU20..TSK |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-95409 |
JU20,RU20..T3..TS |
1 | ||
| 65501-96309 |
RU20..TSK |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-95409 |
JU20,RU20..T3..TS |
1 | ||
| 65501-96309 |
RU20..TSK |
1 | ||
| 65603 - BRACKET SUB-ASSY, ROLLER ARM, RH | ||||
| 65675-96303 |
WU26..CBU;HU26,RU2#..TSK |
1 | ||
| 65604 - BRACKET SUB-ASSY, ROLLER ARM, LH | ||||
| 65675-96303 |
WU26..CBU;HU26,RU2#..TSK |
1 | ||
| 66115 - PIN, GATE HINGE | ||||
| 66233-96303 |
RU2#..TSK |
12 | ||
| 66116-92703 |
RU22..T3;RU20..T3..WT..ATP;RU20..T3..WT..CBU;JU20,RU20..TB..ST |
12 | ||
| 66116-92703 |
HU30,40,50,RU3#,WU40,50..T3 |
16 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 66110-95407 |
JU20,RU20..T3..TS 1ST,2ND,5TH,6TH |
8 | ||
| 66110-95409 |
JU20,RU20..T3..TS 3RD,4TH |
4 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 66110-95407 |
JU20,RU20..T3..TS 1ST,2ND,5TH,6TH |
8 | ||
| 66110-95409 |
JU20,RU20..T3..TS 3RD,4TH |
4 | ||
| 66124 - HINGE, SIDE GATE, FEMALE | ||||
| 66111-92702 |
RU22..T3;RU20..T3..WT..ATP;RU20..T3..WT..CBU;JU20,RU20..TB..ST |
12 | ||
| 66232-96303 |
RU2#..TSK W/O BUMPER |
8 | ||
| 66111-92702 |
HU30,40,50,RU3#,WU40,50..T3 |
16 | ||
| 66235-96305 |
RU2#..TSK W/BUMPER |
4 | ||
| 66124 - HINGE, SIDE GATE, FEMALE | ||||
| 66111-92702 |
RU22..T3;RU20..T3..WT..ATP;RU20..T3..WT..CBU;JU20,RU20..TB..ST |
12 | ||
| 66232-96303 |
RU2#..TSK W/O BUMPER |
8 | ||
| 66111-92702 |
HU30,40,50,RU3#,WU40,50..T3 |
16 | ||
| 66235-96305 |
RU2#..TSK W/BUMPER |
4 | ||
| 66153 - LATCH, TAIL GATE FEMALE, RH | ||||
| 66201-96302 |
RU20..TSK |
1 | ||
| 66153 - LATCH, TAIL GATE FEMALE, RH | ||||
| 66201-96302 |
RU20..TSK |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66202-96301 |
RU20..TSK |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66202-96301 |
RU20..TSK |
1 | ||
| 66251 - LEVER, SIDE GATE STOPPER, RH | ||||
| 66261-96303 |
RU20..TSK RR |
1 | ||
| 66251-96303 |
RU20..TSK FR |
1 | ||
| 66252 - PIN, SIDE GATE STOPPER | ||||
| 66252-96303 |
RU20..TSK |
2 | ||
| 66252A - SLEEVE, SIDE GATE STOPPER | ||||
| 66259-96303 |
RU20..TSK |
2 | ||
| 66257 - SPRING, SIDE GATE LOCK, RH | ||||
| 90508-35335 |
RU20..TSK RR |
1 | ||
| 90508-35334 |
RU20..TSK FR |
1 | ||
| 66258 - SPRING, SIDE GATE LOCK, LH | ||||
| 90508-35334 |
RU20..TSK RR |
1 | ||
| 90508-35335 |
RU20..TSK FR |
1 | ||
| 66259 - SPRING, SIDE GATE STOPPER | ||||
| 90502-26054 |
WU26..CBU;HU26,RU2#..TSK |
2 | ||
| 66261 - LEVER, SIDE GATE STOPPER, LH | ||||
| 66251-96303 |
RU20..TSK RR |
1 | ||
| 66261-96303 |
RU20..TSK FR |
1 | ||
| 66321B - BUMPER, GATE RUBBER | ||||
| 66321-96304 |
RU2#..TSK |
4 | ||
| 66321B - BUMPER, GATE RUBBER | ||||
| 66321-96304 |
RU2#..TSK |
4 | ||
| Common parts | ||||
| 90101-06007 | ||||
| 91111-40656 | ||||
| 91131-70825 | ||||
| 94110-00600 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94141-41000 | ||||
| 94511-00600 | ||||
| 94511-40600 | ||||
| 94612-11000 | ||||
| 95381-02520 | ||||
