RU20D-QRT (1977)
6556 - REAR BODY SUB FRAME

RU20D-QRT (1977)

Toyota Dyna/Toyoace

Production Aug 1977 - Apr 1979

Engine 5R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7708- )RU2#..TSK

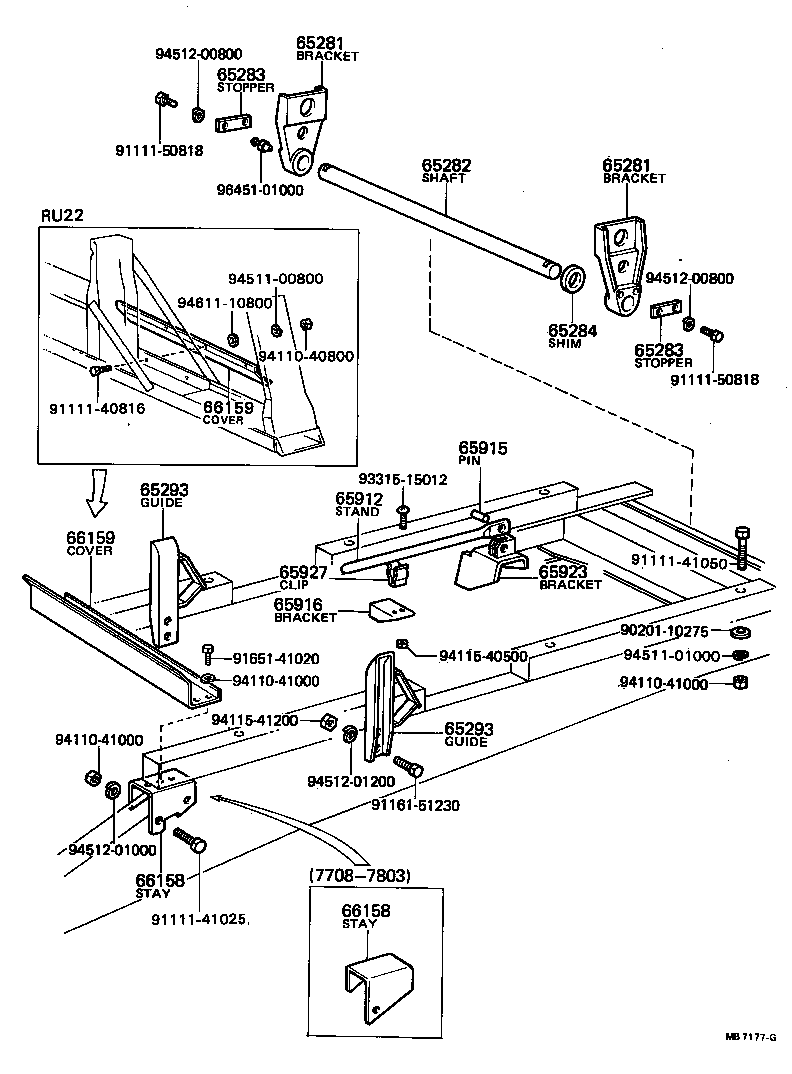

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
65281 - BRACKET, BEZEL HINGE
65281-96302	RU20..TSK	08/1977 - 04/1979	2
65281 - BRACKET, BEZEL HINGE
65281-96302	RU20..TSK	08/1977 - 04/1979	2
65282 - SHAFT, BEZEL HINGE
65282-96307	WU26..CBU;HU26,RU2#..TSK	08/1977 - 08/1984	1
65283 - STOPPER, BEZEL HINGE SHAFT
65283-96301	WU26..CBU;HU26,RU2#..TSK	08/1977 - 08/1984	2
65283 - STOPPER, BEZEL HINGE SHAFT
65283-96301	WU26..CBU;HU26,RU2#..TSK	08/1977 - 08/1984	2
65284 - SHIM, BEZEL HINGE BRACKET
65285-96301	WU26..CBU;HU26,RU2#..TSK T=1.2	08/1977 - 08/1984	2
65284-96301	WU26..CBU;HU26,RU2#..TSK T=0.8	08/1977 - 08/1984	2
65286-96301	WU26..CBU;HU26,RU2#..TSK T=2.3	08/1977 - 08/1984	2
65293 - GUIDE, VESSEL
65601-96305	RU20..TSK RH	08/1977 - 04/1979	1
65602-96305	RU20..TSK LH	08/1977 - 04/1979	1
65293 - GUIDE, VESSEL
65601-96305	RU20..TSK RH	08/1977 - 04/1979	1
65602-96305	RU20..TSK LH	08/1977 - 04/1979	1
65912 - STAND, BEZEL
65911-96307	RU20..TSK	08/1977 - 04/1979	1
65915 - PIN, BEZEL STAND
65915-96305	WU26..CBU;HU26,RU2#..TSK	08/1977 - 08/1984	1
65916 - BRACKET, BAR CLAMP
65916-96303	RU2#..TSK	08/1977 - 08/1984	1
65923 - BRACKET, BEZEL STAND
65903-96304	RU2#..TSK	08/1977 - 08/1984	1
65927 - CLIP, BAR
65927-96303	WU26..CBU;HU26,RU2#..TSK	08/1977 - 08/1984	1
Common parts
90201-10275
91111-40816
91111-41025
91111-41050
91111-50818
91161-51230
91651-41020
93315-15012
94110-40800
94110-41000
94115-40500
94115-41200
94511-00800
94511-01000
94512-00800
94512-01000
94512-01200
94611-10800
96451-01000
