RU20-QRP3 (1977)

Toyota Dyna/Toyoace

Production Aug 1977 - Apr 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

diagram 8371295A00 8371295A00 8371296A00 87205 87205 87205 87240 87240 87240 87245A 87245A 87245A 87245E 87245E 87245E 87246A 87246A 87246A 87251 87251 87251 8729195400 8729195400 8729195400 8729195401 8729195401 8729195401 9046024039 9046024039 9046024039 9046108029 9046108157 9046108287 9046108287 9046108287 9046110240 9046110240 9046110240 9046110240 9046110241 9046110241 9046110241 9046110279 9046110279 9046110279 9046820002 9161140812 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140820 9161140820 9161140825 9161140825 9161140825 9411040800 9411040800 9411040800 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87205-39040

RU20,30..TR..06S

RR HEATER

 1
87251-95400

RU2#,3#

FR HEATER

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87205-39040

RU20,30..TR..06S

RR HEATER

 1
87251-95400

RU2#,3#

FR HEATER

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87205-39040

RU20,30..TR..06S

RR HEATER

 1
87251-95400

RU2#,3#

FR HEATER

 1
87240 - VALVE ASSY, HEATER WATER
87240-95400

HU30,JU20,RU2#,3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95400

HU30,JU20,RU2#,3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95400

HU30,JU20,RU2#,3#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95405

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95405

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95405

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20070

HU30,JU20,RU20,30

 1
87252-36060

RU2#,30..TR..06S

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20070

HU30,JU20,RU20,30

 1
87252-36060

RU2#,30..TR..06S

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20070

HU30,JU20,RU20,30

 1
87252-36060

RU2#,30..TR..06S

RR HEATER

 1
Common parts
83712-95A00
83712-96A00
87291-95400
87291-95401
90460-24039
90461-08029
90461-08157
90461-08287
90461-10240
90461-10241
90461-10279
90468-20002
91611-40812
91611-40816
91611-40820
91611-40825
94110-40800
96112-10250

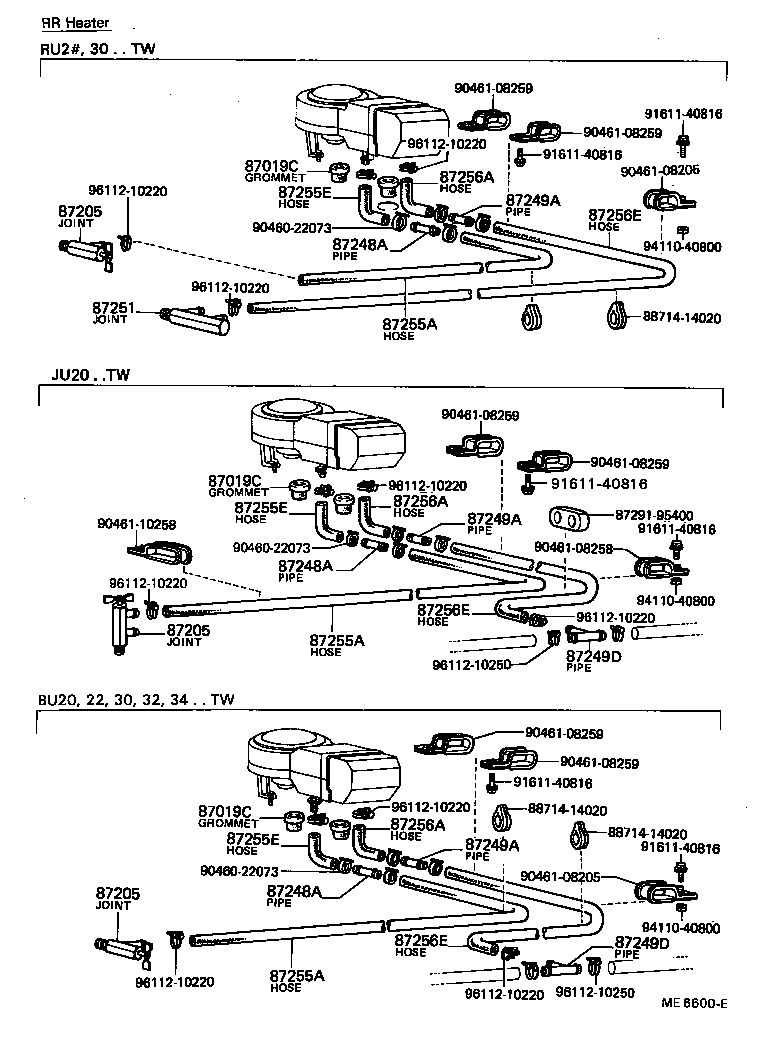

ILLUST NO. 2 OF 2(7708- )TR..06S

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87205 87205 87205 87248A 87248A 87248A 87249A 87249A 87249A 87249D 87249D 87251 87255A 87255A 87255A 87255E 87255E 87255E 87256A 87256A 87256A 87256E 87256E 87256E 8729195400 8871414020 8871414020 8871414020 9046022073 9046022073 9046022073 9046108205 9046108205 9046108258 9046108259 9046108259 9046108259 9046108259 9046108259 9046108259 9046110258 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9411040800 9411040800 9411040800 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-26004

JU20,RU2#,30..TR..06S

REAR HEATER

 2
87019C - GROMMET, HEATER HOSE
90480-26004

JU20,RU2#,30..TR..06S

REAR HEATER

 2
87019C - GROMMET, HEATER HOSE
90480-26004

JU20,RU2#,30..TR..06S

REAR HEATER

 2
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87205-39040

RU20,30..TR..06S

RR HEATER

 1
87251-95400

RU2#,3#

FR HEATER

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87205-39040

RU20,30..TR..06S

RR HEATER

 1
87251-95400

RU2#,3#

FR HEATER

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87205-39040

RU20,30..TR..06S

RR HEATER

 1
87251-95400

RU2#,3#

FR HEATER

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95401

JU20,RU20,30..TR..06S

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95401

JU20,RU20,30..TR..06S

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95401

JU20,RU20,30..TR..06S

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95401

JU20,RU20,30..TR..06S

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95401

JU20,RU20,30..TR..06S

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95401

JU20,RU20,30..TR..06S

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20070

HU30,JU20,RU20,30

 1
87252-36060

RU2#,30..TR..06S

RR HEATER

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-21000

RU2#,30..TR..06S

*H,L=840

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-21000

RU2#,30..TR..06S

*H,L=840

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-21000

RU2#,30..TR..06S

*H,L=840

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95404

JU20,RU2#,30..TR..06S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95404

JU20,RU2#,30..TR..06S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95404

JU20,RU2#,30..TR..06S

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95404

JU20,RU2#,30..TR..06S

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95404

JU20,RU2#,30..TR..06S

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95404

JU20,RU2#,30..TR..06S

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99552-22000

RU2#,30..TR..06S

*H,L=1300

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99552-22000

RU2#,30..TR..06S

*H,L=1300

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99552-22000

RU2#,30..TR..06S

*H,L=1300

 1
Common parts
87291-95400
88714-14020
90460-22073
90461-08205
90461-08258
90461-08259
90461-10258
91611-40816
94110-40800
96112-10220
96112-10250
