RU20-QRP3 (1977)

Toyota Dyna/Toyoace

Production Aug 1977 - Apr 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )HU26,WU26 ; (7708- )JU20,RU2#..T1,TW1

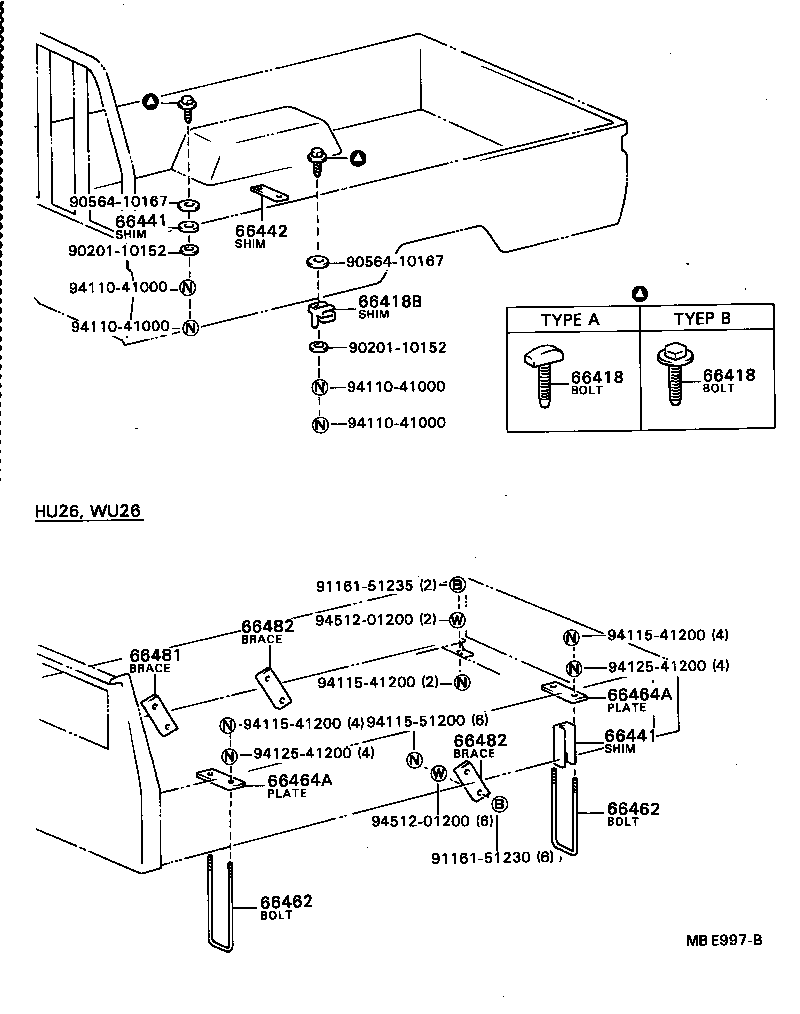

Click highlighted areas on diagram

diagram 66418 66418 66418B 66441 66441 66442 66462 66462 66464A 66464A 66481 66482 66482 9020110152 9020110152 9056410167 9056410167 9116151230 9116151235 9411041000 9411041000 9411041000 9411041000 9411541200 9411541200 9411541200 9411551200 9412541200 9412541200 9451201200 9451201200
Part # Description Qty Price
66418 - BOLT, MOUNTING
66418-95400

JU20,RU2#..T1,TW1,TW2

TYPE A

 4
90119-10004

JU20,RU2#..T1,TW1,TW2

TYPE B

 6
66418 - BOLT, MOUNTING
66418-95400

JU20,RU2#..T1,TW1,TW2

TYPE A

 4
90119-10004

JU20,RU2#..T1,TW1,TW2

TYPE B

 6
Common parts
90201-10152
90564-10167
91161-51230
91161-51235
94110-41000
94115-41200
94115-51200
94125-41200
94512-01200
