RU20-QR3 (1977)

Toyota Dyna/Toyoace

Production Aug 1977 - Apr 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

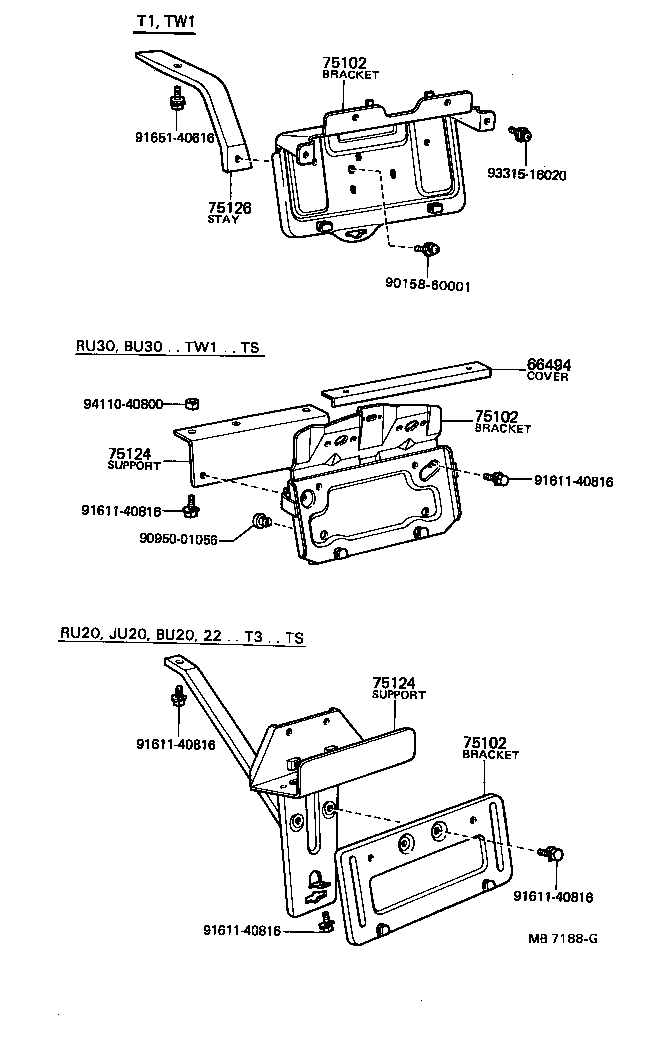

ILLUST NO. 2 OF 2(7708- )TS

Click highlighted areas on diagram

diagram 66494 75102 75102 75102 75124 75124 75126 9015860001 9095001056 9161140816 9161140816 9161140816 9161140816 9161140816 9165140616 9331516020 9411040800
Part # Description Qty Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

RU2#,3#..IV3

 1
66490-95017

JU20,RU20..T1,TW1

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

RU2#,3#..IV3

 1
66490-95017

JU20,RU20..T1,TW1

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

RU2#,3#..IV3

 1
66490-95017

JU20,RU20..T1,TW1

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
66407-95011

JU20,RU2#..T1,TW1

 1
Common parts
90158-60001
90950-01056
91611-40816
91651-40616
93315-16020
94110-40800

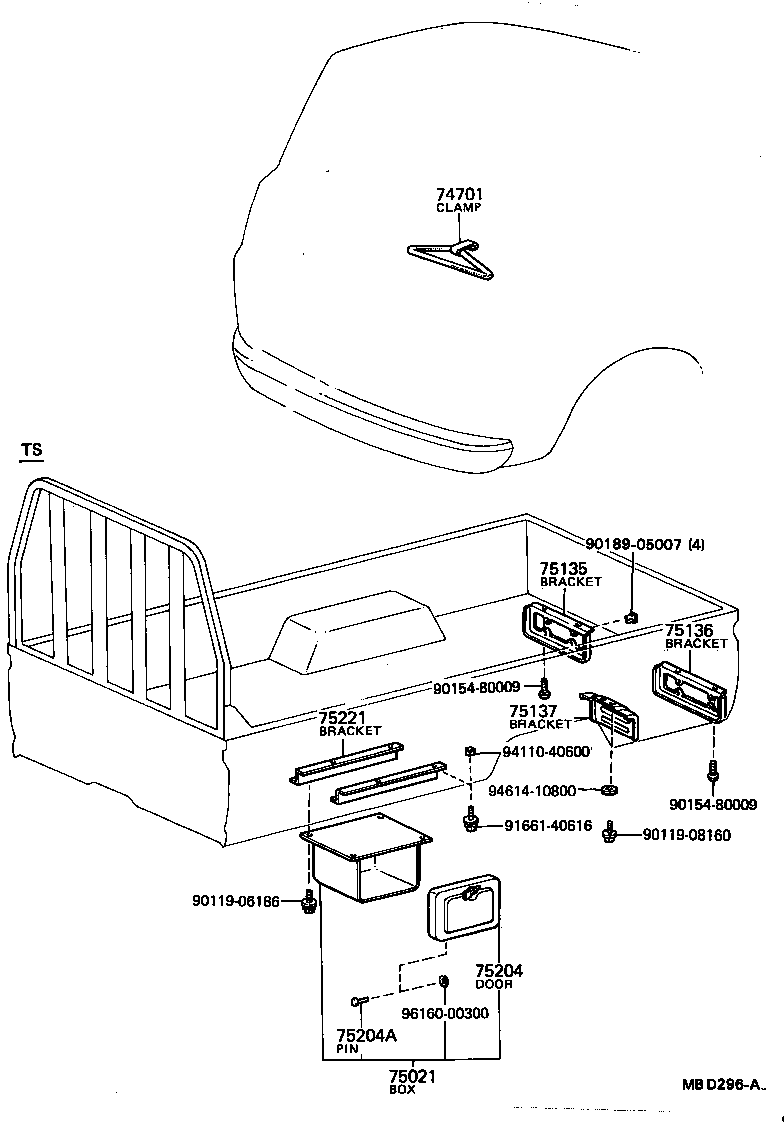

ILLUST NO. 1 OF 2(7708- )JU20,RU20..TS ; (7708- )RU22,30..T1,TW1

Click highlighted areas on diagram

diagram 74701 75021 75135 75136 75137 75204 75204A 75221 9011906186 9011908160 9015480009 9015480009 9018905007 9166140616 9411040600 9461410800 9616000300
Part # Description Qty Price
74701 - CLAMP SUB-ASSY, TOOL BAG
74701-95601

RU20..T3..ST;RU20..T3..WT..ATP;RU20..T3..WT..CBU;RU20..T1,T2,TW1,TW2;HU40,50,RU22,3#,WU40,50..TR

 2
75021 - BOX SUB-ASSY, TOOL
75210-95406

JU20,RU20..TS..20T

 1
75137 - BRACKET, LICENSE PLATE LAMP
75137-95400

JU20,RU2#,30..TS

 2
75204 - DOOR SUB-ASSY, TOOL BOX
75204-95401

JU20,RU2#..TS..20T

 1
75204A - PIN, TOOL BOX DOOR HINGE
90249-05002

JU20,RU2#..TS..20T

 2
Common parts
90119-06186
90119-08160
90154-80009
90189-05007
91661-40616
94110-40600
94614-10800
96160-00300
